1 Ton Wheel Loader
GW920 The small wheel loader is a low-profile cab with a special height. It is small in size and has a small turning radius, but the rated load can reach up to 1200kg. It can replace the pneumatic widened tires and vacuum tires according to different needs and sites. It can support OEM customization of colors and configurations. The engine can choose National II, National IV, Euro V, Euro III, Kubota EPA and other engines. It adopts an articulated body structure, matched with an automatic transmission, and a one-lever operation to lift the boom, which is very simple. The LED headlights and the rammed cab are more spacious and luxurious. The interior of the cab is equipped with USB recorders, audio and other auxiliary entertainment functions.
Product Introduction:
1. Compact 1 Tons Wheel Loaders - GW920 with Low-Profile Cab
The GW920 is an advanced 1 tons wheel loader featuring a low-profile cab with a special height, perfect for navigating tight spaces and low-clearance areas. Despite its compact size, this loader offers an impressive rated load capacity of up to 1200kg. With the option to customize tires (including pneumatic widened or vacuum tires), the GW920 can be tailored to meet the specific needs of various work sites. Its user-friendly one-lever boom operation and automatic transmission make it easy to handle, while the spacious and luxurious cab ensures comfort during long shifts.
2. Versatile Mini Loader - GW920 with Low-Profile Cab
The GW920 mini wheel loader combines versatility and performance with its low-profile cab with a special height and compact design. This 1 tons wheel loader offers excellent maneuverability with a small turning radius, making it ideal for urban construction and landscaping projects. It can be fitted with a variety of engine options, including National II, National IV, Euro V, and Kubota EPA, ensuring optimal efficiency and compliance with local standards. The GW920 also features high-end comfort in its cab, including USB recorders and audio systems for a more pleasant operator experience.
3. High-Performance 1 Tons Wheel Loader - GW920
The GW920 1 tons wheel loader is designed with a low-profile cab with a special height, making it the ideal machine for confined spaces and low-clearance environments. It features a powerful engine selection, including options like Euro V and Kubota EPA, catering to various environmental standards. The loader’s articulated body structure, combined with an automatic transmission and one-lever operation, simplifies its handling. Additionally, the spacious cab is equipped with LED headlights, providing both comfort and visibility for the operator on any job site.
Product Parameters:
Model | GW920S |
Trademark | Walker |
whole vehicle Weight | 2400 kg |
Standard Bucket Capacity | 0.3cbm |
Rated load | 1000kg |
Bucket width | 1300 mm |
Engine | HUICHAI |
Engine power | 37-58 kw |
Tire | 1000-16 |
lifting time | 4.0 s |
falling time | 3.2 s |
Overall dimension( LxWxH) | 4380*1300*2200mm |
Wheelbase | 1810 mm |
Wheel track | 1370 mm |
OPERATING RANGE | |
Maximum unloading height | 2400 mm |
Load and Unload Mode | front discharge |
Drive Bridge Type | Wheel side reduction axle |
working hydraulic system | Mechanical single joystick or Hydraulic Pilot |
Walking Mode | Wheeled |
Service brake | Mechanical drum brake on gearbox |
parking brake
| hand operated |
Control Type | automatic transmission |
Drive system | Torque converter hydraulic transmission |
Number of cylinders | 4 |
Product Details:
Company Strength:

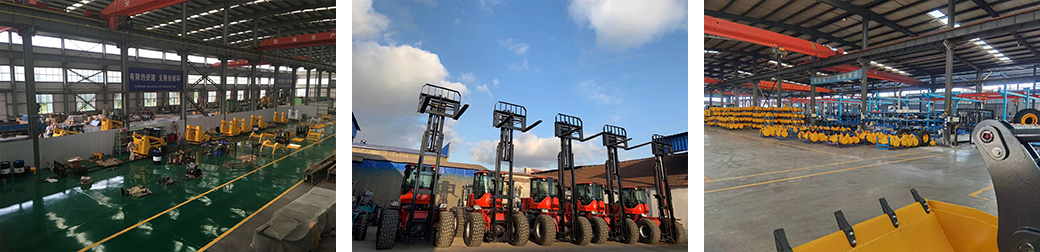

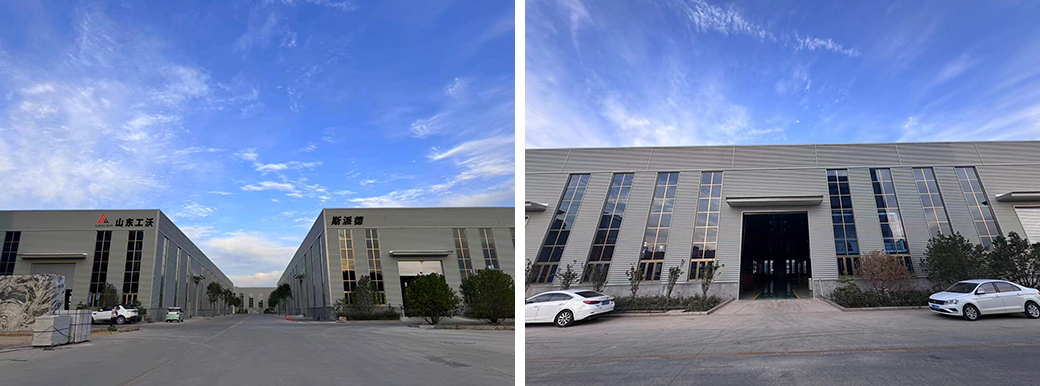

Shandong Gongwo Machinery Co., Ltd. is a leading manufacturer specializing in the production and sale of a wide range of construction machinery, including mini excavators (1-ton to 6-ton), wheel loaders (1-ton to 5-ton), spider cranes, forklifts, skid loaders, and more. With extensive experience in manufacturing and a robust sales network, the company operates three factories covering over 10,000 square meters, including specialized facilities for mini excavators, skid loaders, and wheel loaders. Equipped with state-of-the-art machinery such as laser cutting machines and manipulator welding systems, Shandong Gongwo Machinery boasts a global sales network and agents in countries including Germany, the Philippines, Russia, the U.S., Australia, and Tanzania. The company's mission is to enhance Chinese manufacturing quality and achieve global standards of excellence.
