5.5-ton wheel loader
All-round Performance with High Efficiency and Compact Design

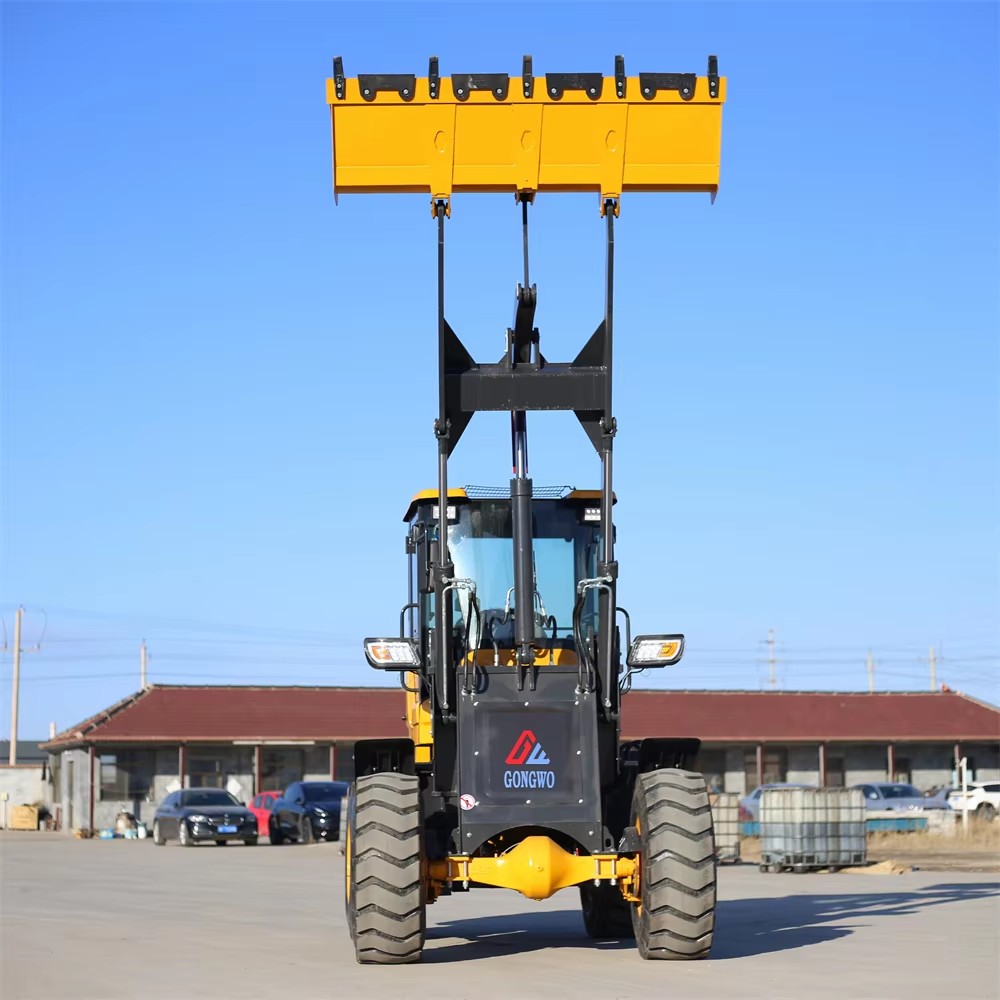

Engineered for heavy-duty operations, the GW940 Wheel Loader combines agility with robust lifting capabilities. With overall dimensions of 5860×2000×2850mm and an operating weight of 5,500kg, it delivers a rated load capacity of 2,000kg. The standard bucket volume is 1m³ (2000mm wide), optimized for rapid loading and unloading of bulk materials such as soil and gravel. Its maximum unloading height reaches 3,500mm, with optional upgrades available up to 4.2m, 4.5m, or 4.8m to accommodate diverse operational requirements. The unloading distance of ≥1,000mm ensures precise material placement.
Professional Power and Transmission Systems
Powered by a 4102 Turbocharged Engine, the loader integrates a 265 torque converter and dual-range continuously variable transmission (CVT), enabling seamless power adjustment across various working conditions. The four-wheel drive system with medium/large wheel-side reduction axles enhances traction on challenging terrains. Equipped with 1670-20 tires, it ensures stability and durability across muddy, sandy, or uneven surfaces.
Structural Design and Passability Advantages
Featuring a wheelbase of 2,500mm, track width of 1,560mm, and minimum ground clearance of 330mm, the loader maneuvers effortlessly in confined spaces while navigating obstacles with ease. The reinforced steel frame and single-lever control system enable intuitive operation of complex movements, significantly boosting productivity. The fortified cab is equipped with LED lighting, offering a spacious and secure workspace for extended operations.
Customization Capabilities
The GW940 supports multi-level customization for unloading height (up to 4.8m), making it adaptable to material handling needs in warehousing, mining, and infrastructure projects. The powertrain can be configured to meet regional emission standards, while the transmission and tire setup can be optimized for specialized applications (e.g., wetlands, mines), providing tailored solutions for diverse user requirements.
Item | Specification |
Vehicle size | 5860×2000×2850mm |
Operating weight | 5500kg |
Unloading height | 3500mm (can be raised to 4.2 meters, 4.5 meters, 4.8 meters) |
Rated load capacity | 2000kg |
Tire model | 1670 - 20 |
Driving mode | Four-wheel drive, medium and large wheel-side deceleration |
Transmission case | 265 torque converter, dual high and low speed continuously variable transmission |
Bucket capacity | 1m³ (2000mm wide) |
Engine | 4102 Boost |
Unloading distance | ≥1000mm |
Wheelbase | 2500mm |
Track width | 1560mm |
Minimum ground clearance | 330mm |

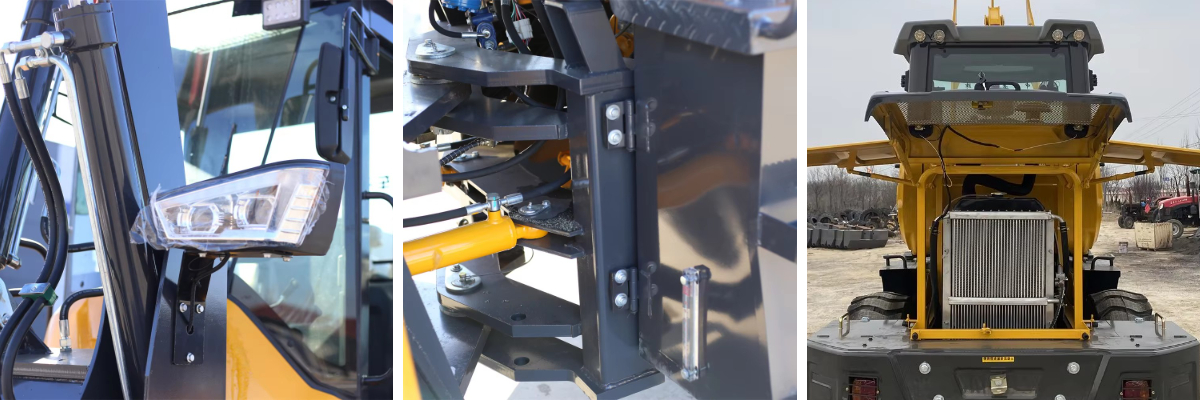

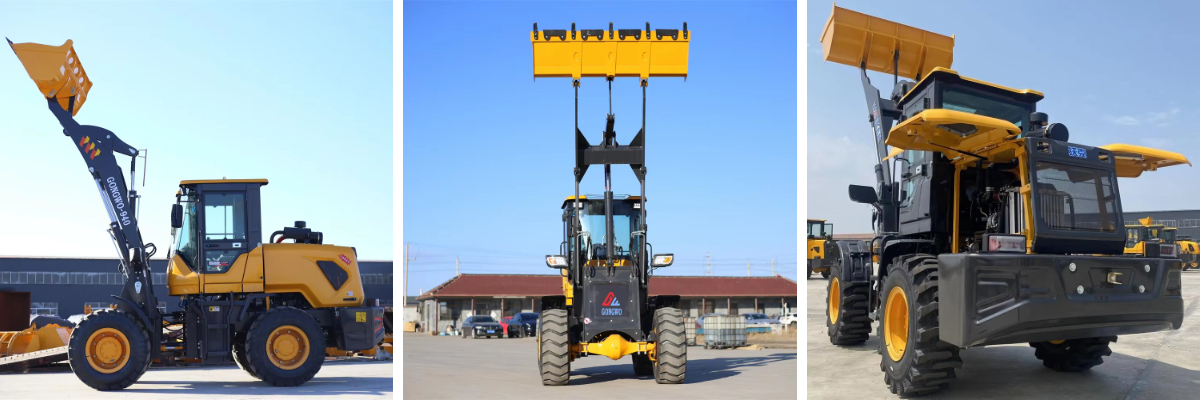

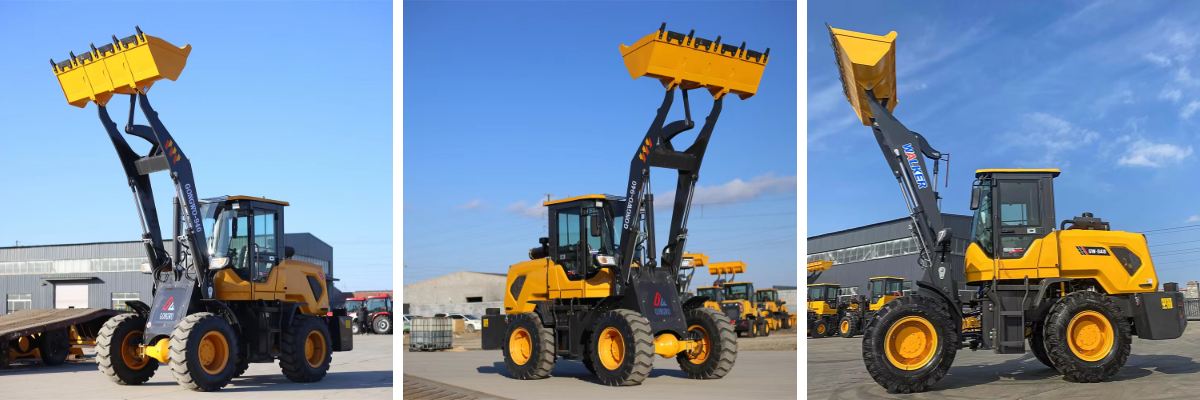

Product Details

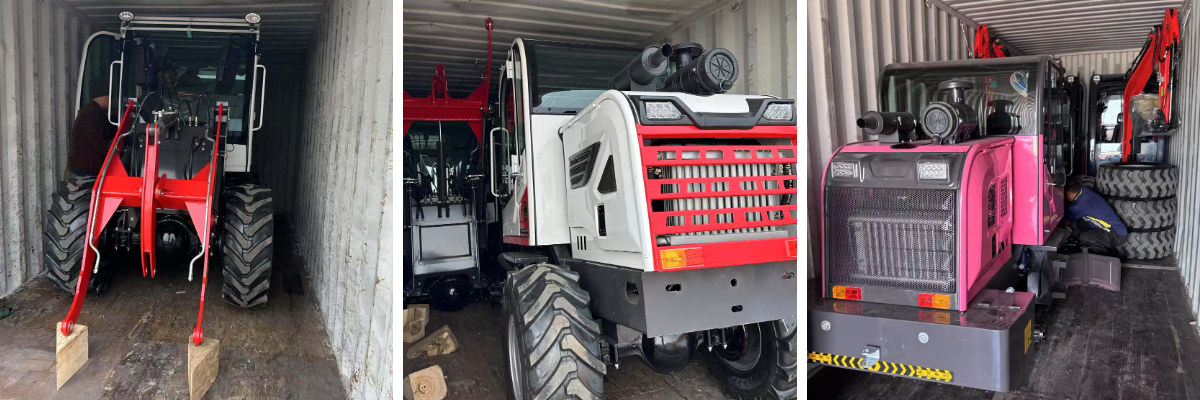

Packaging Images
Company Overview
Shandong Gongwo Machinery Co., Ltd., established in 2012, is an enterprise specialized in manufacturing medium and small construction machinery. Our product portfolio includes compact wheel loaders, mini crawler excavators, electric/diesel tricycles, 2WD/4WD forklifts, among others. Equipment is exported to worldwide markets including Europe, the Americas, Southeast Asia, Africa, Russia, and beyond. For over a decade, we have been dedicated to serving international clients and fulfilling their operational requirements.
