self-loading concrete mixer truck
The self-loading concrete mixer integrates loading, mixing, transportation and unloading, reducing labor and process time without extra equipment.
Its intelligent system enables one-key operation with precise metering, ensuring stable concrete quality and reducing manual errors.
Flexible design with small turning radius handles narrow sites and rural roads, adapting to diverse environments.
Powerful yet fuel-efficient, it features a high-strength wear-resistant mixing drum for long life. Easy maintenance and component replacement cut downtime, offering efficient, low-cost solutions for small-medium projects.
Product Details of Self - loading Concrete Mixer Trucks
I. Product Overview
Self - loading concrete mixer trucks are concrete construction equipment that integrates functions such as automatic loading, mixing, transportation, and unloading. They can reduce the reliance on other equipment and enhance construction efficiency. They are applicable to scenarios like construction projects, road construction, and infrastructure building.
II. Specific Model Parameters
1 - cubic - meter Model
Mixing capacity: ≥ 0.6 cubic meters
Overall dimensions: 4800×2350×3080mm when the arm is raised, and 5900×2350×2660mm when the arm is lowered
Wheelbase: 2100mm
Total weight: 3500kg
Engine: Yunnei 490 or Yuchai 490
Power: 42/43kw
Tire specification: 20.5 - 16
1.5 - cubic - meter Model
Mixing capacity: ≥ 0.9 cubic meters
Overall dimensions (for horizontal rotation and two - way driving): 5050×2350×3500mm when the arm is raised, etc.
Wheelbase: 2180mm
Total weight: 4500kg
Engine: Yunnei 490 supercharged
Power: 55kw
Tire specification: 20.5 - 16

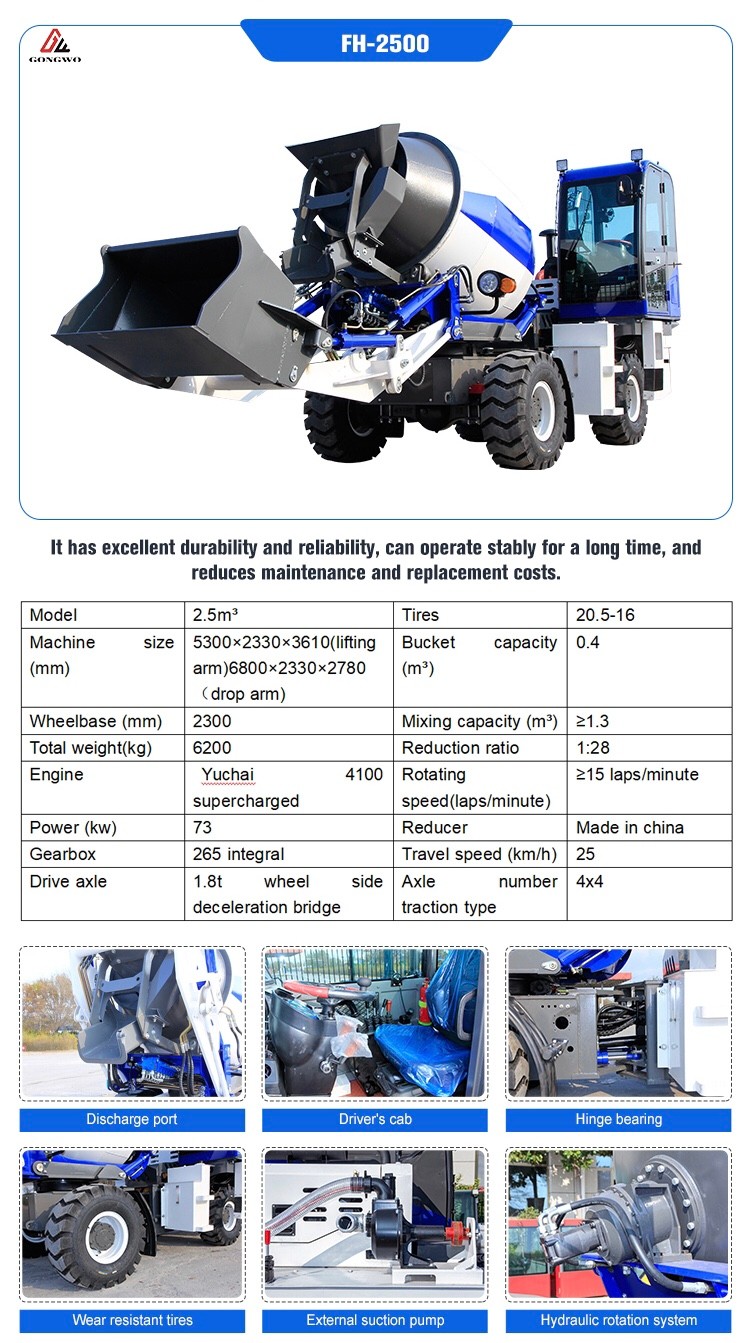

2.5 - cubic - meter Model
Mixing capacity: ≥ 1.3 cubic meters
Overall dimensions: 5300×2330×3610mm when the arm is raised, and 6800×2330×2780mm when the arm is lowered
Wheelbase: 2300mm
Total weight: 6200kg
Engine: Yuchai 4100 supercharged
Power: 73kw
Tire specification: 20.5 - 16
3.5 - cubic - meter Model
Mixing capacity: ≥ 1.8 cubic meters
Overall dimensions: 5900×2350×3900mm when the arm is raised, and 7100×2350×2940mm when the arm is lowered
Wheelbase: 2300mm
Total weight: 7500kg
Engine: Yuchai 4102 supercharged
Power: 78kw
Tire specification: 16/70 r22.5

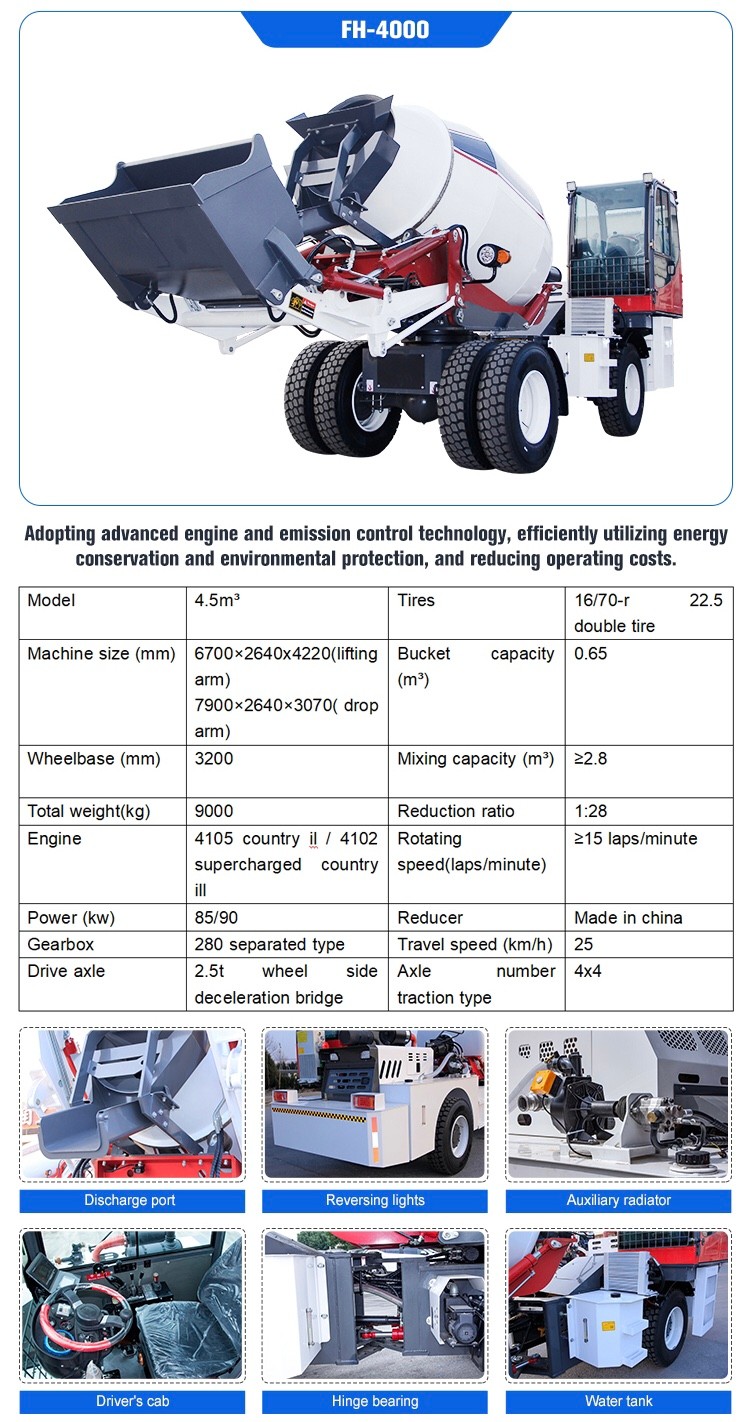

4 - cubic - meter Model
Mixing capacity: ≥ 2.8 cubic meters
Overall dimensions: 6700×2640×4220mm when the arm is raised, and 7900×2640×3070mm when the arm is lowered
Wheelbase: 3200mm
Total weight: 9000kg
Engine: 4105 National II or 4102 National II supercharged
Power: 85/90kw
Tire specification: 16/70 - r22.5 dual - tire

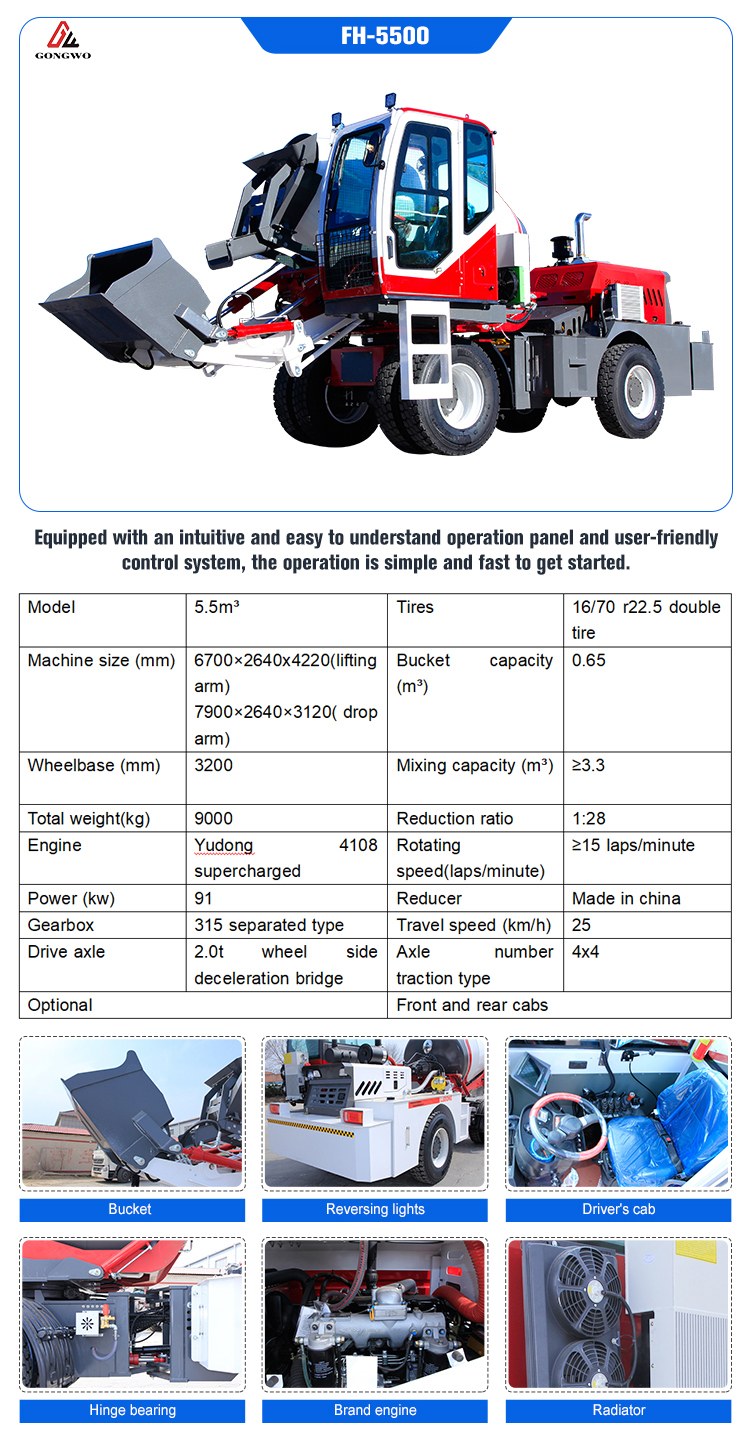

5.5 - cubic - meter Model
Mixing capacity: ≥ 3.3 cubic meters
Overall dimensions: 6700×2640×4220mm when the arm is raised, and 7900×2640×3120mm when the arm is lowered
Wheelbase: 3200mm
Total weight: 9000kg
Engine: Yudong 4108 supercharged
Power: 91kw
Tire specification: 16/70 r22.5 dual - tire

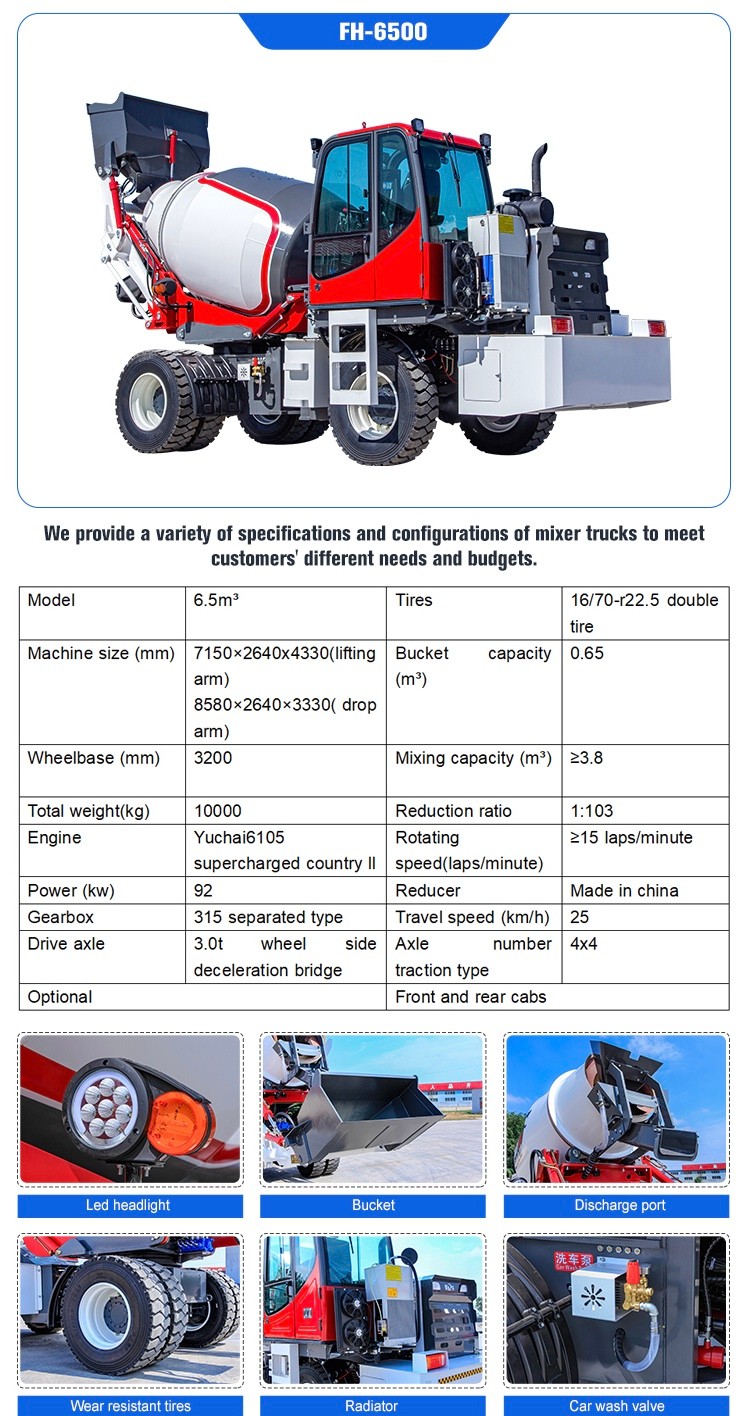

6.5 - cubic - meter Model
Mixing capacity: ≥ 3.8 cubic meters
Overall dimensions: 7150×2640×4330mm when the arm is raised, and 8580×2640×3330mm when the arm is lowered
Wheelbase: 3200mm
Total weight: 10000kg
Engine: Yuchai 6105 National II supercharged
Power: 92kw
Tire specification: 16/70 - r22.5 dual - tire
7.5 - cubic - meter Model
Mixing capacity: ≥ 4.5 cubic meters
Overall dimensions: 7150×2640×4330mm when the arm is raised, and 8580×2640×3330mm when the arm is lowered
Wheelbase: 3200mm
Total weight: 12500kg
Engine: Yuchai 6105 supercharged
Power: 92kw
Tire specification: 4 front / 2 rear, 16/70 - r22.5
III. Product Advantages
Integrated Operation
Equipped with an automatic loading function, it does not require additional loaders. It can independently complete the entire process of concrete production, reducing the time for equipment coordination and labor costs.
Flexible and Precise Control
The intelligent control system supports one - key operation. The precise metering device ensures accurate material proportioning. The vehicle body is flexible with a small turning radius, adapting to narrow and complex construction sites.
Durability and Economy
The mixing drum is made of high - strength wear - resistant materials, which are impact - resistant and corrosion - resistant. Key components are of high quality. It has strong power and low fuel consumption, reducing operating costs.
Safety and Comfort
Some models are equipped with safety systems such as anti - rollover and anti - overflow braking systems. The operation room is ergonomically designed, equipped with comfortable facilities. The operation panel is easy to understand, reducing labor intensity.
Convenient Maintenance
Key components are reasonably arranged, easy to disassemble and replace, reducing downtime for maintenance and improving equipment efficiency.
IV. Application Scenarios
Applicable to various construction projects such as residential communities and commercial buildings, road and bridge projects like rural roads and urban roads, as well as small - scale infrastructure construction projects such as water conservancy facilities and farmland irrigation. It is especially suitable for construction environments with narrow sites.
V. After - sales Service
A professional after - sales team provides 24 - hour responsive services, covering equipment installation and commissioning, operation training, maintenance, and spare parts supply to ensure the equipment runs well.
