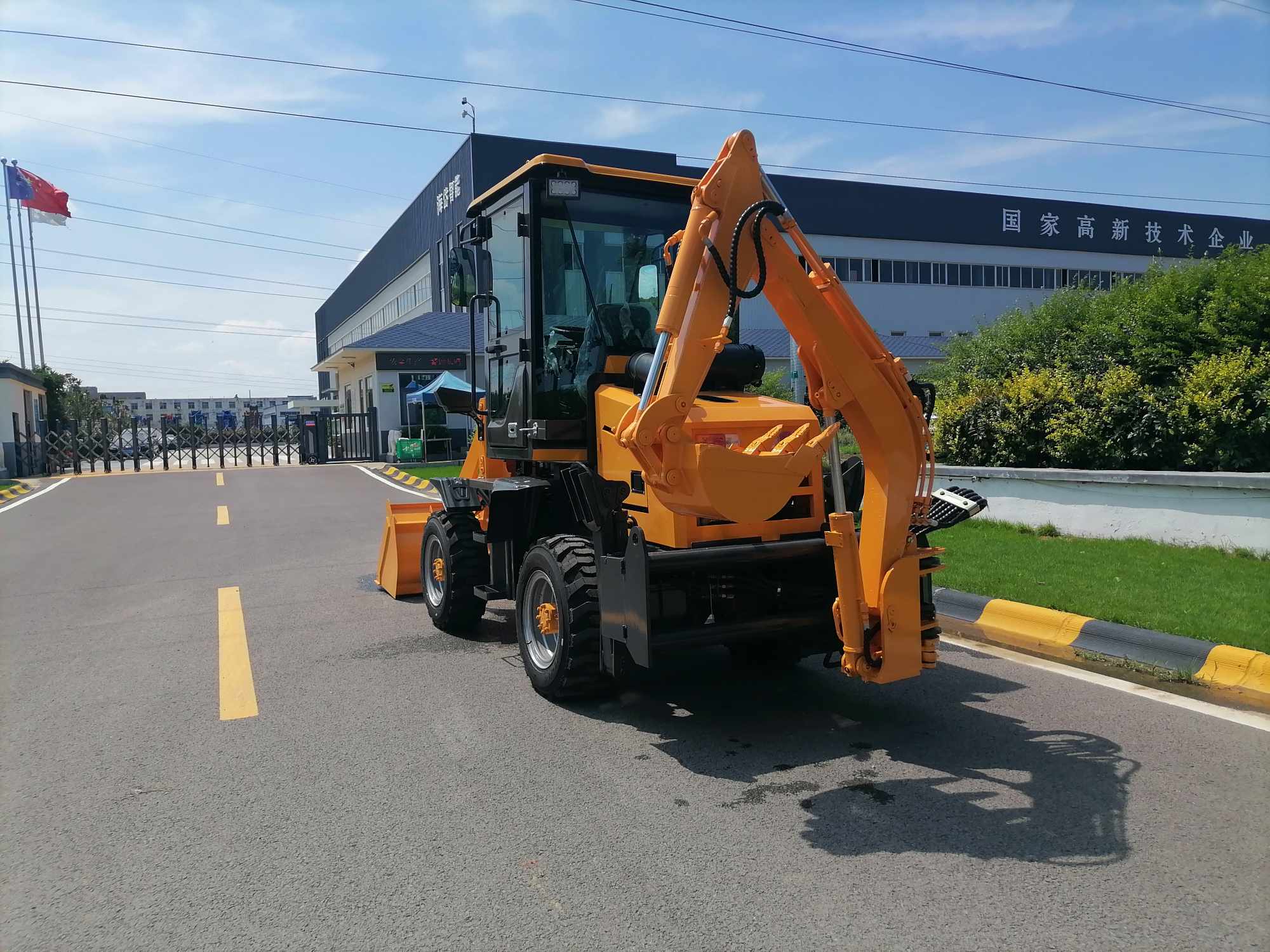

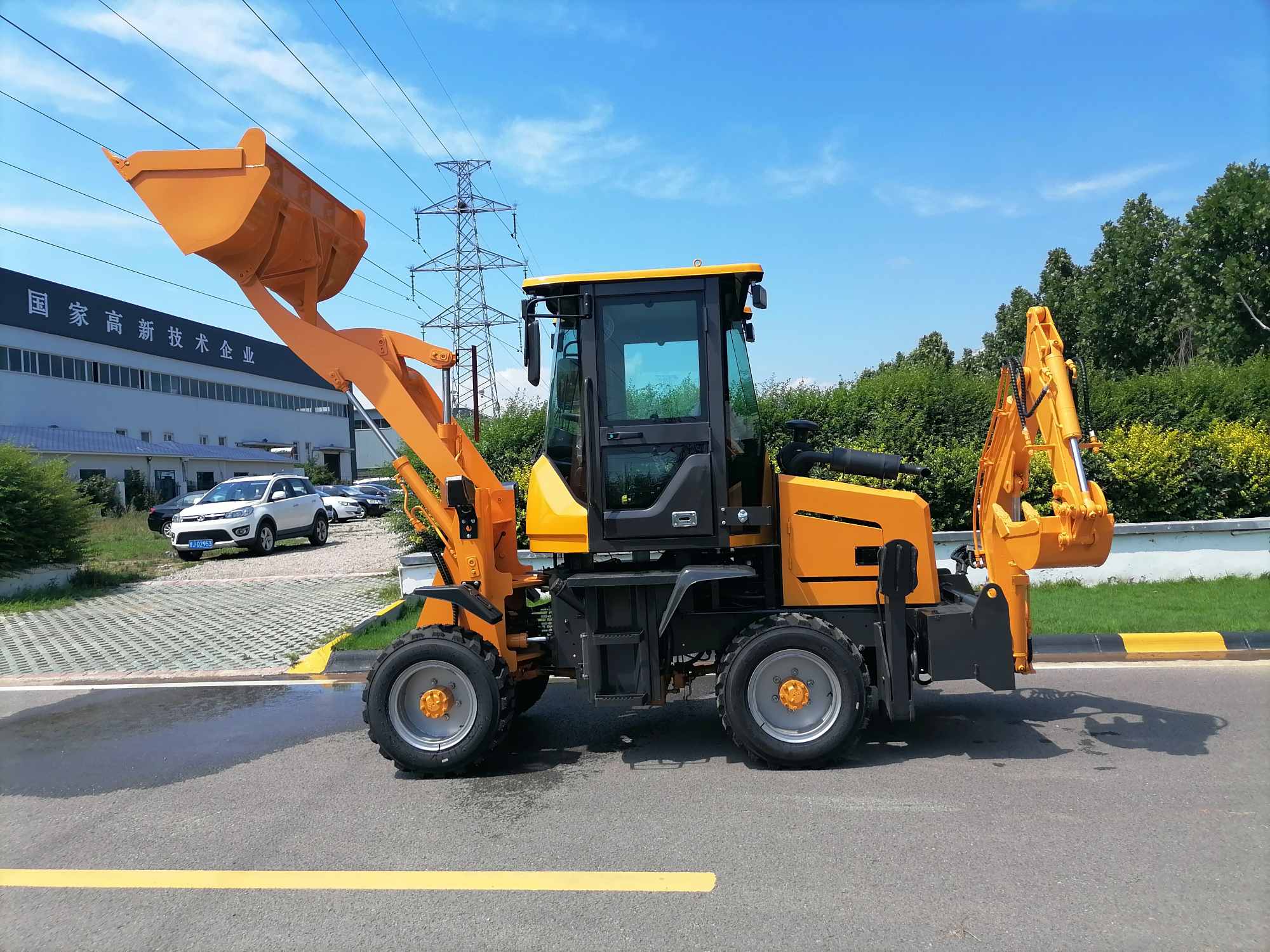

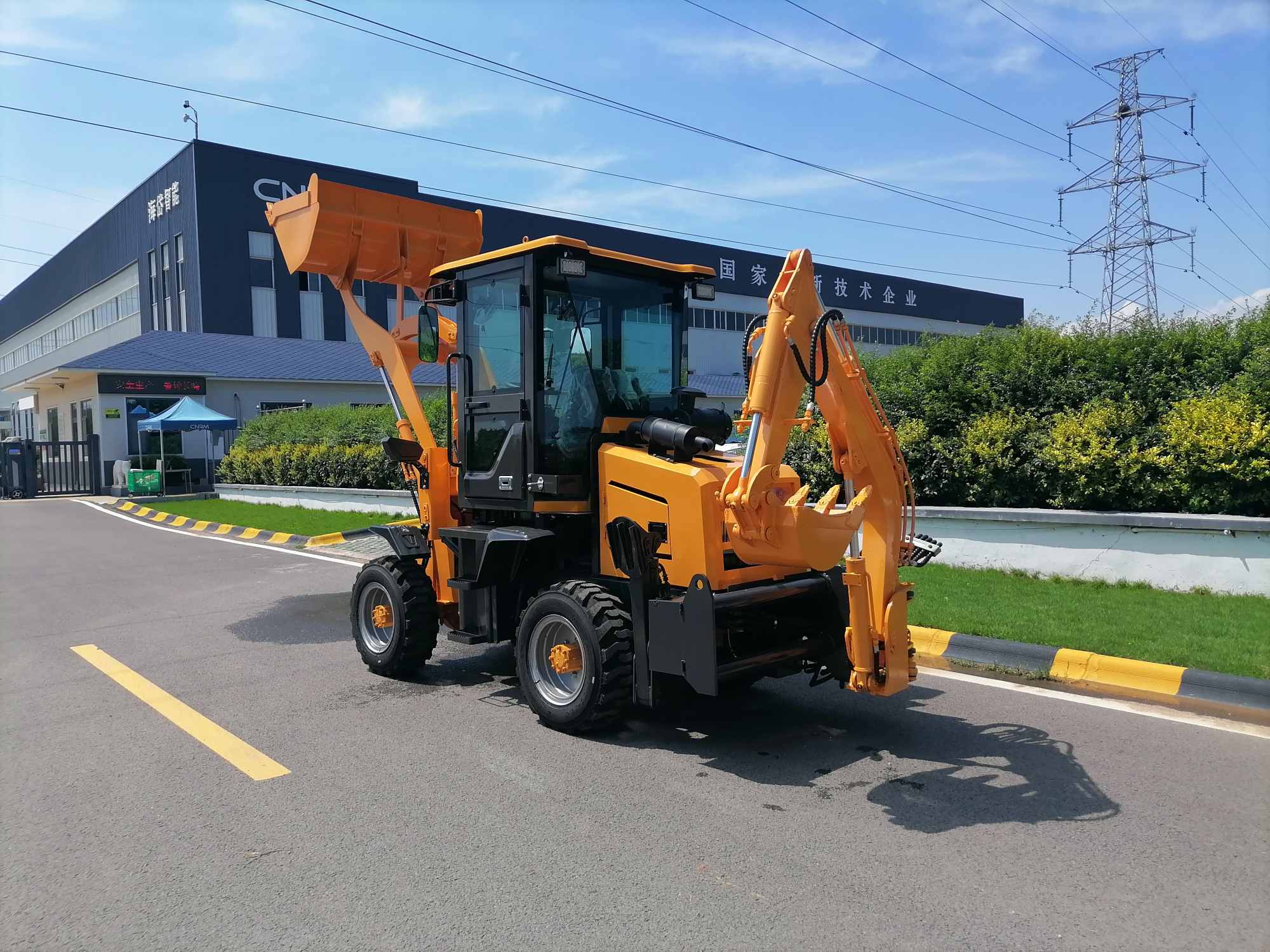

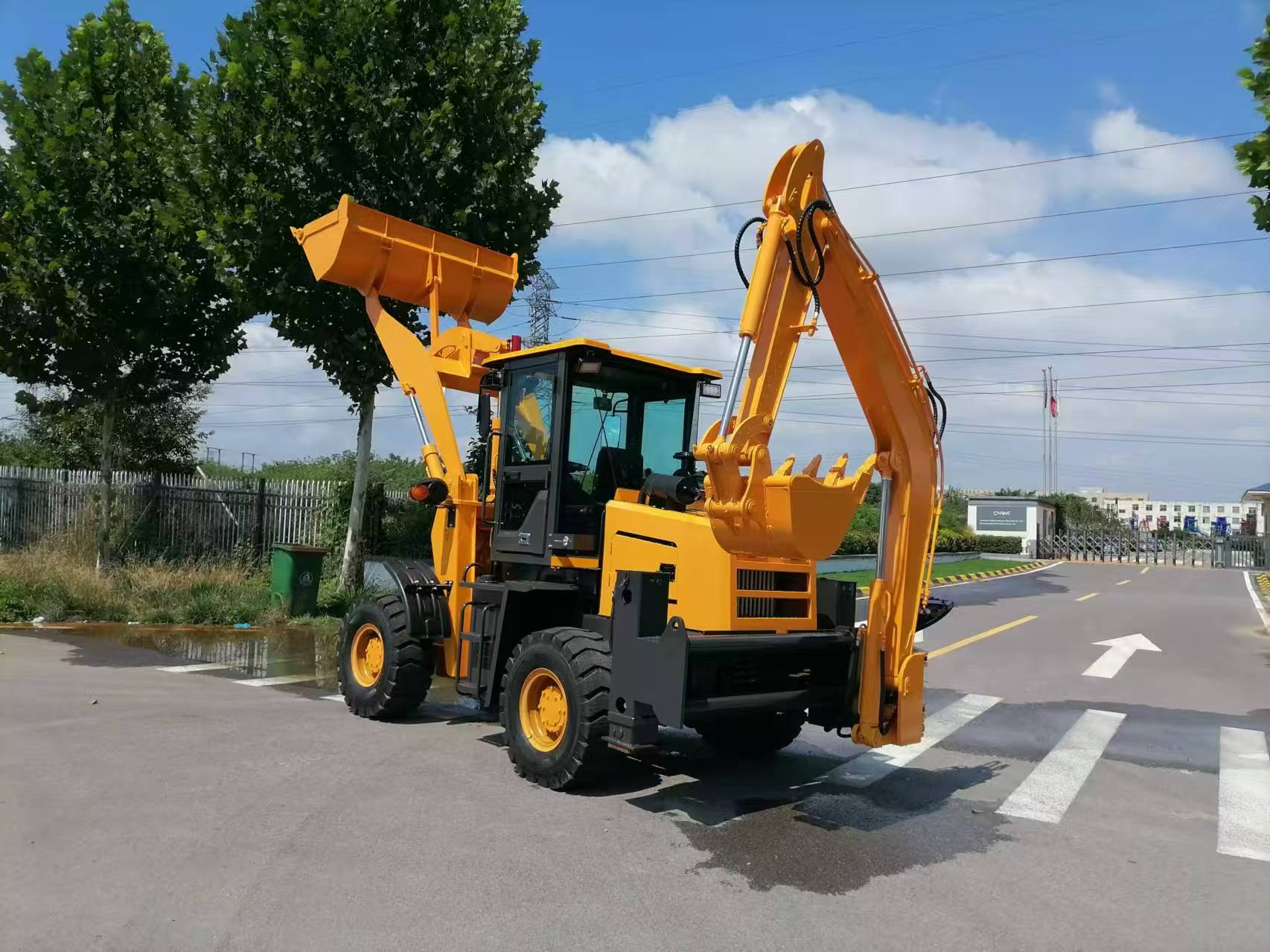

2.5-ton backhoe loader

    In small-scale engineering operations, a piece of equipment that integrates efficient excavation and flexible loading capabilities often becomes the key to improving construction efficiency. This 2.5-tonne excavator-loader, with its core advantages of multi-functional integration, powerful performance, and flexible operation, is perfectly suited for various scenarios such as small construction sites, agricultural production, and municipal maintenance, thanks to its precisely calibrated parameter design.

    The equipment features a compact design with an outline dimension of 5100mm1350mm2580mm, a wheelbase of 1910mm, combined with a track width of 1100mm and a minimum turning radius of 3000mm. It can move flexibly even in confined spaces like narrow lanes, fields, or municipal sidewalks. The minimum ground clearance of 250mm further enhances its passability, effectively avoiding chassis collisions when dealing with rough roads, gravel piles, and other complex terrains, ensuring continuous operation.Equipped with an excavating bucket with a width of 350mm and a capacity of 0.08m³, it has a maximum excavation force of 25KN, which can easily handle the excavation of materials such as clay and gravel. The operating range covers a maximum excavation depth of 1500mm, a maximum excavation radius of 2000mm, and a maximum excavation height of 2600mm. Combined with a 180° excavator swing angle, it achieves multi-angle, dead-angle-free operation. The excavated materials can be accurately stacked at an unloading height of 1500mm, greatly reducing secondary handling.

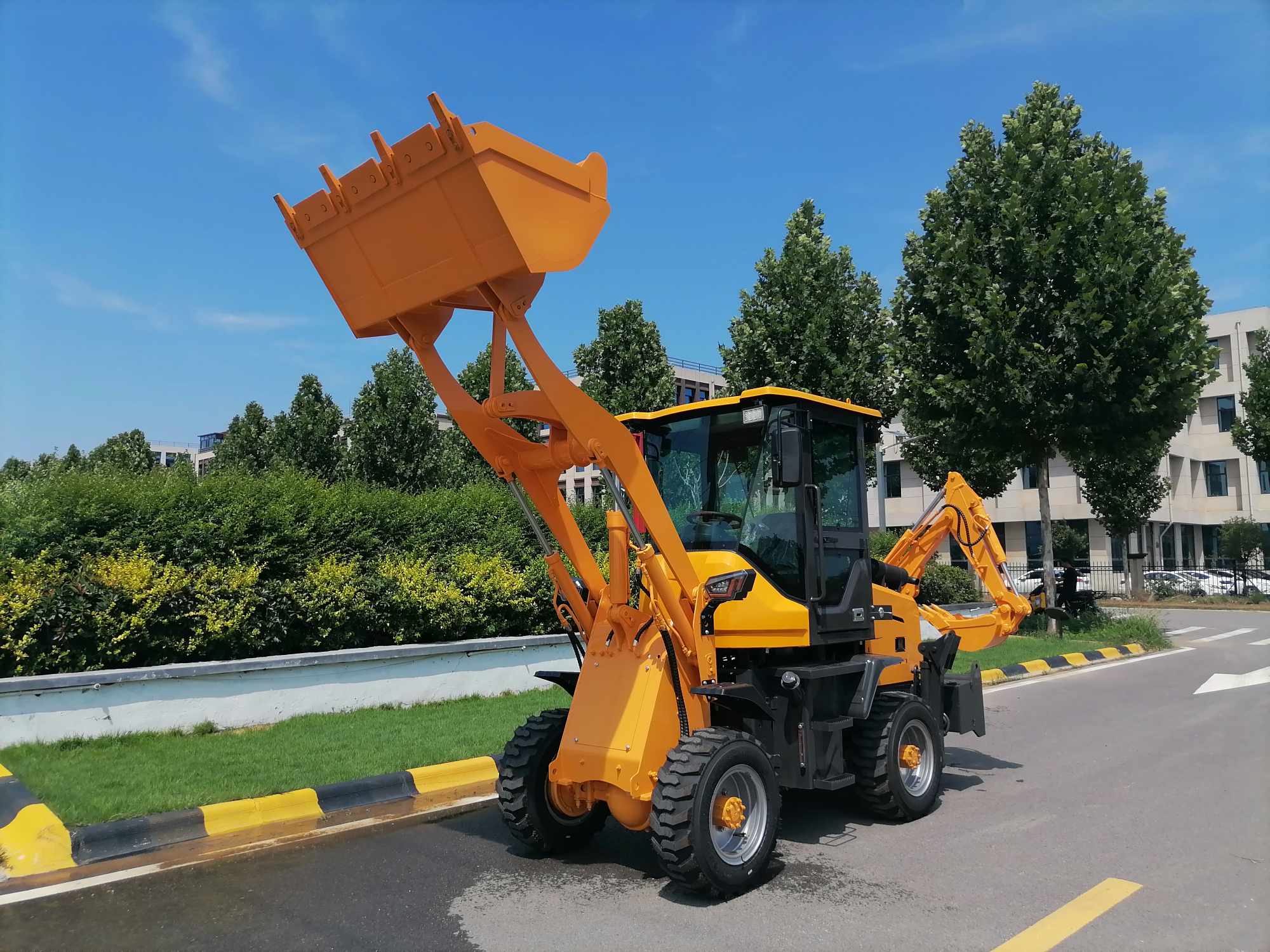

    The loading bucket with a width of 1300mm and a capacity of 0.4m³ has a leading single-load capacity among equipment of the same class. The combination of parameters including a maximum loading lift height of 3000mm, a maximum unloading height of 2200mm, and a maximum unloading distance of 800mm can adapt to various unloading scenarios such as trucks and silos. The maximum breakout force of 28KN ensures easy shoveling even when dealing with wet soil and caked materials. Together with the total front shovel operation time of 12 seconds, it significantly improves the efficiency of cyclic operations.

    The equipment is equipped with a 490-type four-stroke engine, with a rated power of 37KW and a rated speed of 2400r/min. The 4-cylinder, 90mm bore design provides strong power output, easily driving heavy-duty operations such as excavation and loading. The transmission system adopts a perfect combination of four-wheel drive and hydraulic transmission, along with a ZL28F torque converter and a fixed-shaft power shift gearbox (2 forward + 2 reverse gears). The power transmission is smooth and efficient, and it can automatically adjust the output according to the operating load to avoid power waste or overload. Whether climbing (maximum climbing ability of 25°) or driving on muddy roads (maximum speed of 20Km/h), it can maintain stable power performance.

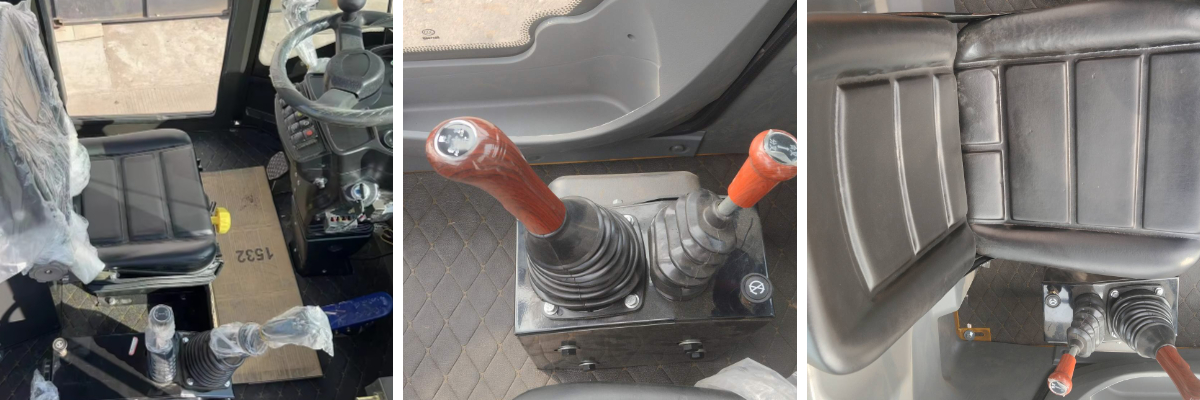

    It adopts articulated full-hydraulic steering with a steering angle of 33°, combined with a 33° steering angle and a minimum turning radius of 3000mm, resulting in sensitive control response and higher precision during fine-tuning operations. The 180° excavator swing angle and fully hydraulically controlled bucket/boom allow operators to complete complex actions with simple operations, making it easy for beginners to get started quickly.

    It is equipped with an oil-brake drum-type service brake and a manual parking brake, with a braking distance of 3000mm, ensuring braking safety during high-speed driving or slope operations. The 825-16 specification 130 Bell tires (front and rear tire pressure of 250KPa) have strong grip, and combined with four-wheel drive, they effectively reduce the risk of slipping. In addition, the reasonable capacity design of the 20L fuel tank and 20L hydraulic oil tank meets the needs of half-day continuous operation, reducing the frequency of refueling midway.

    The practical design of the equipment can be seen in the details: the 1300mm wide loading bucket is suitable for most material loading needs; the 825-16 tires balance wear resistance and shock absorption, making them suitable for various urban and rural roads; the oil-brake drum-type brake is easy to maintain; and the manual parking brake is stable and reliable when parking on slopes. Whether it is foundation excavation in small construction sites, earthwork arrangement in agricultural production, or pipeline backfilling and material transfer in municipal engineering, this 2.5-tonne excavator-loader can, with its "one machine, multiple functions" advantage, help users save equipment investment costs and improve overall operation efficiency.

    Choosing this excavator-loader means choosing efficiency, flexibility, and reliability — making every operation easier and every investment more worthwhile.

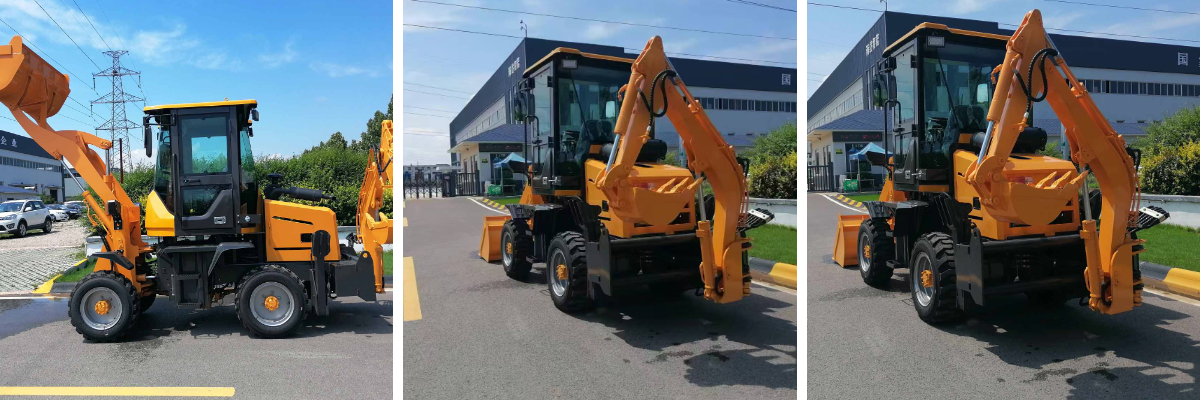

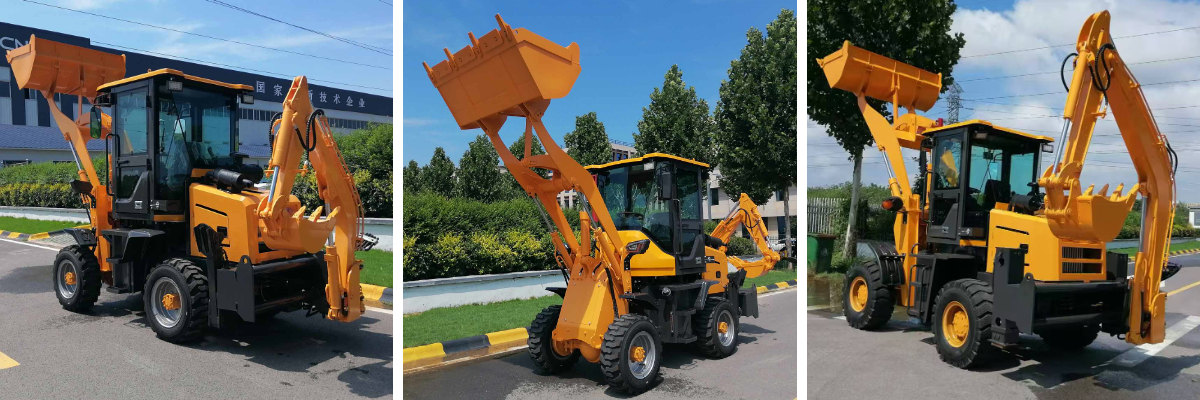

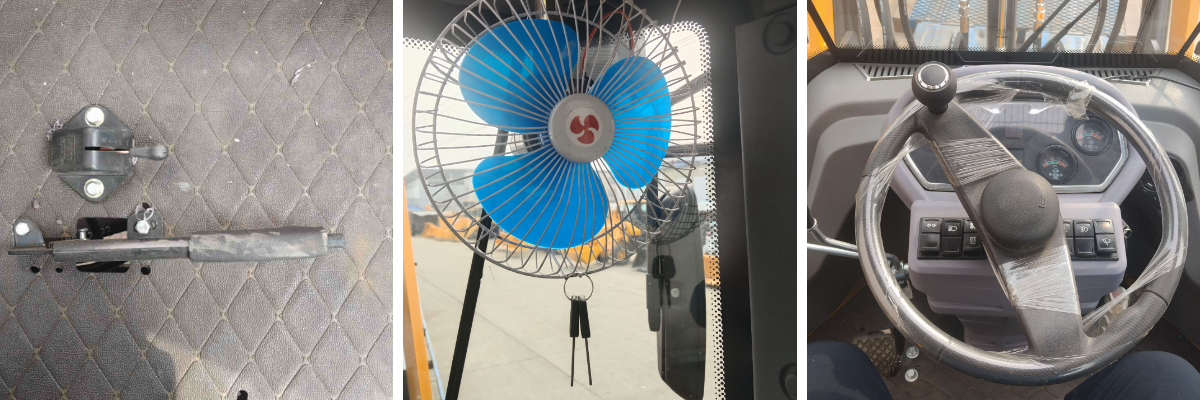

detail display
