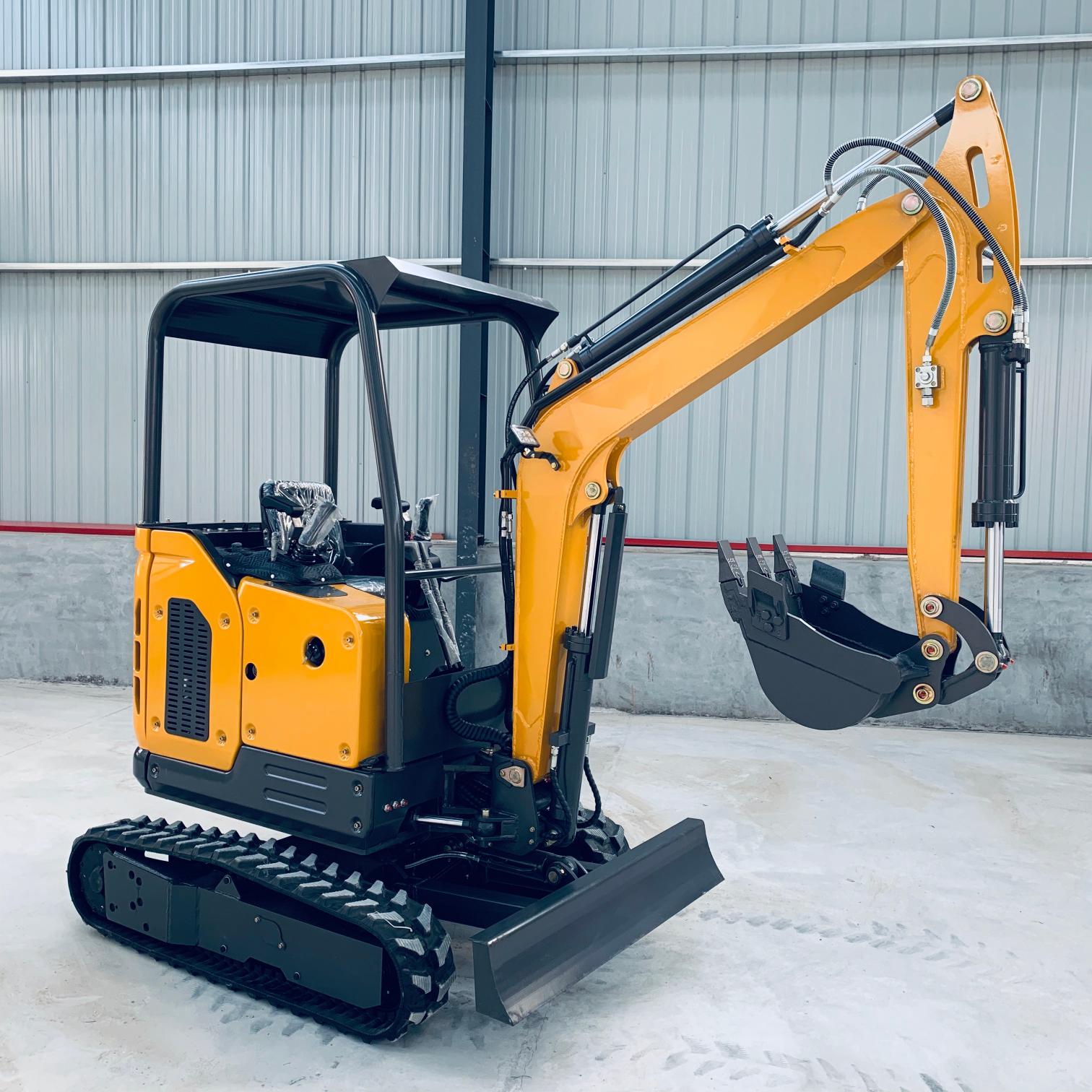

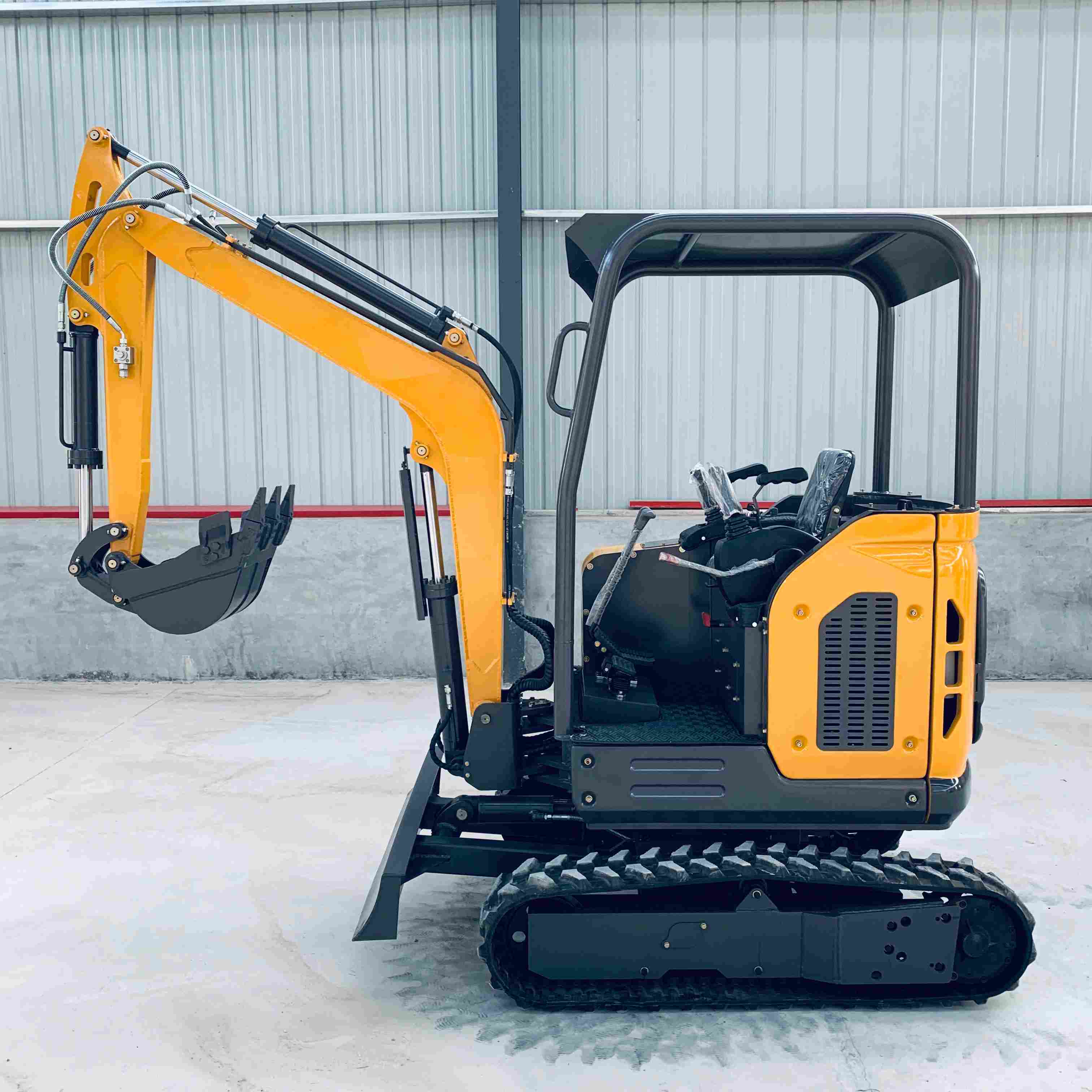

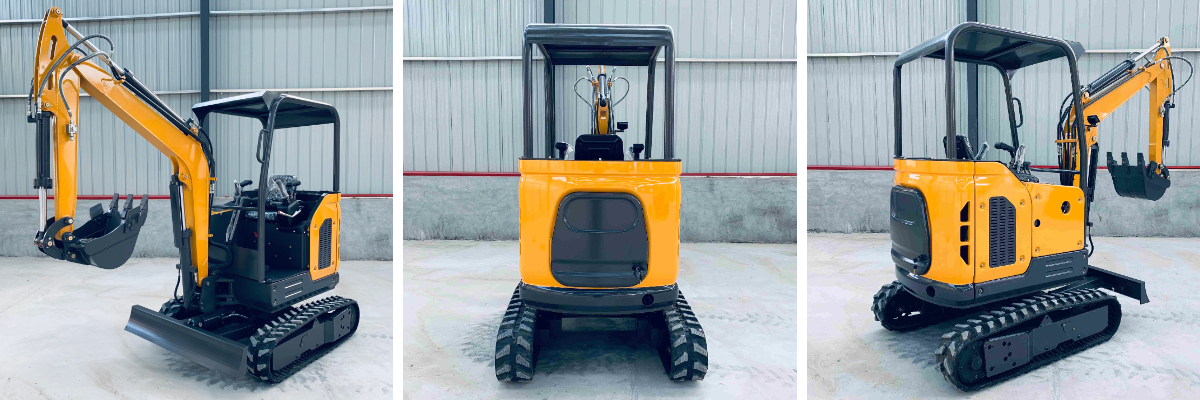

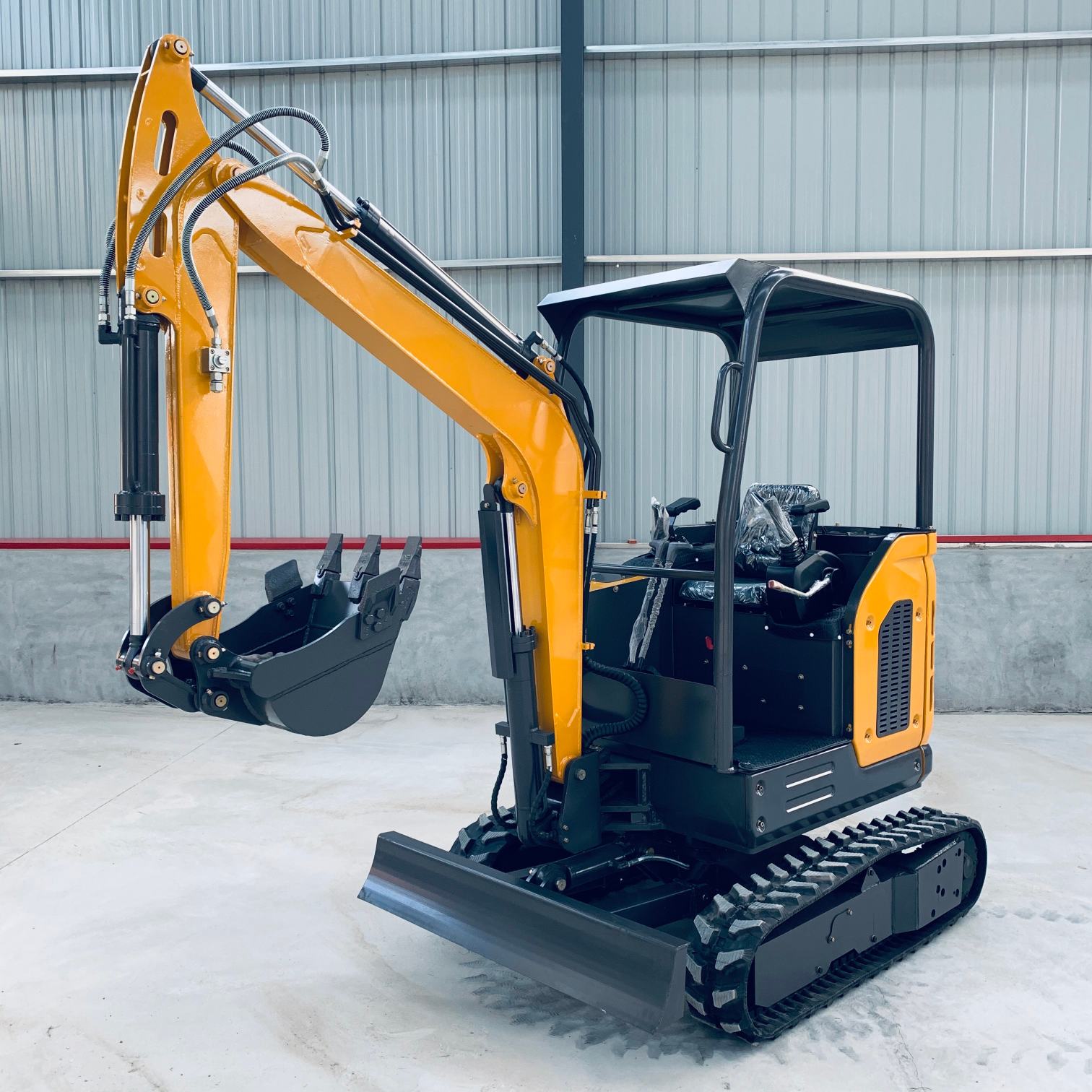

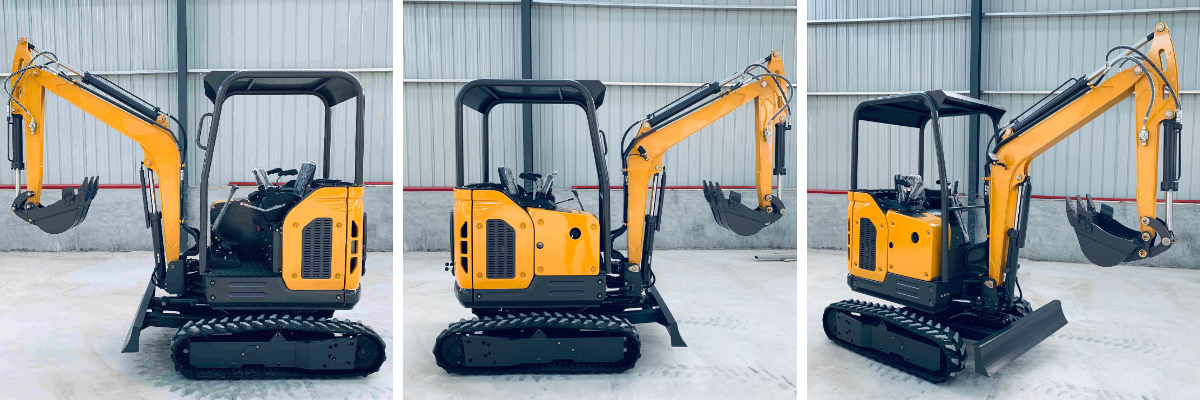

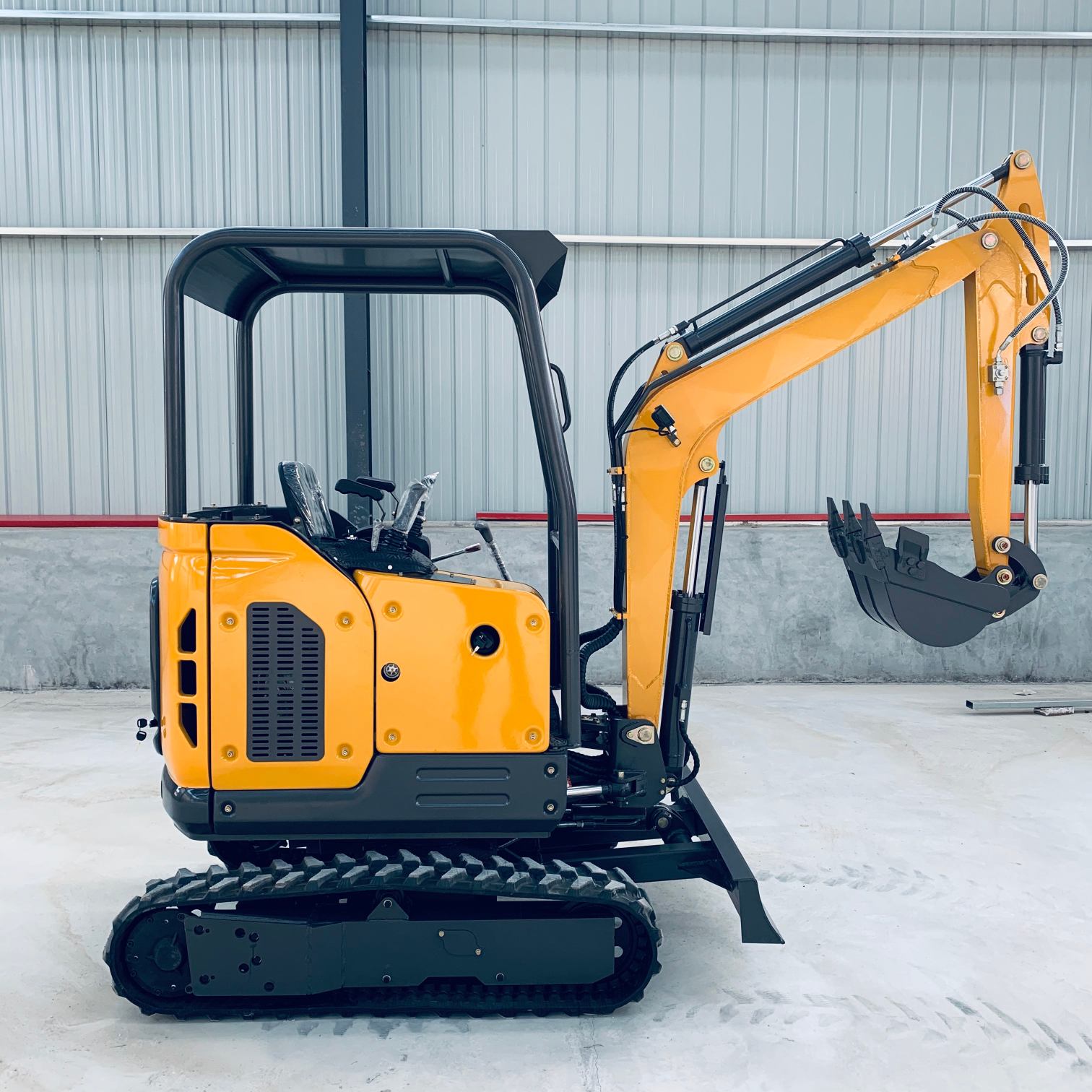

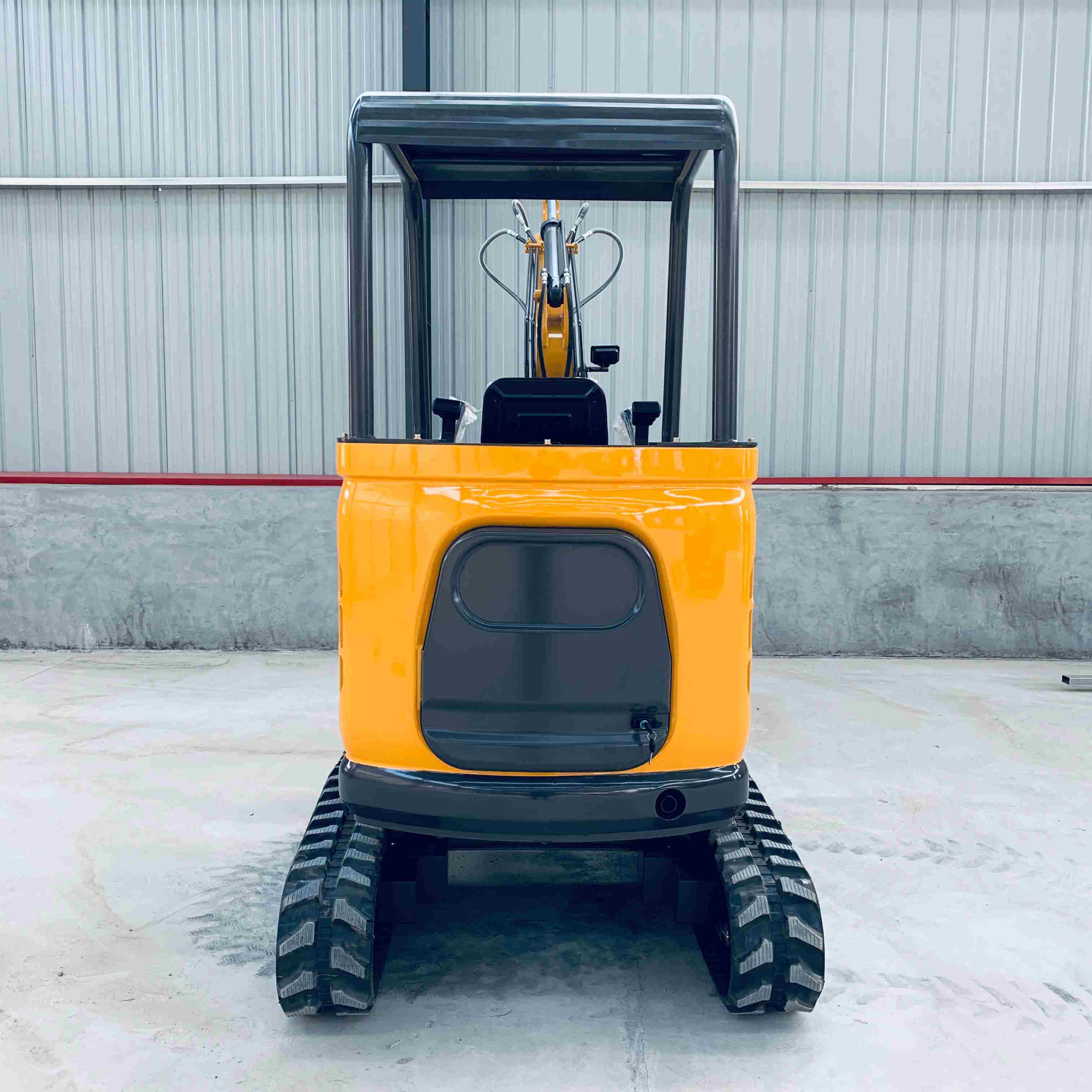

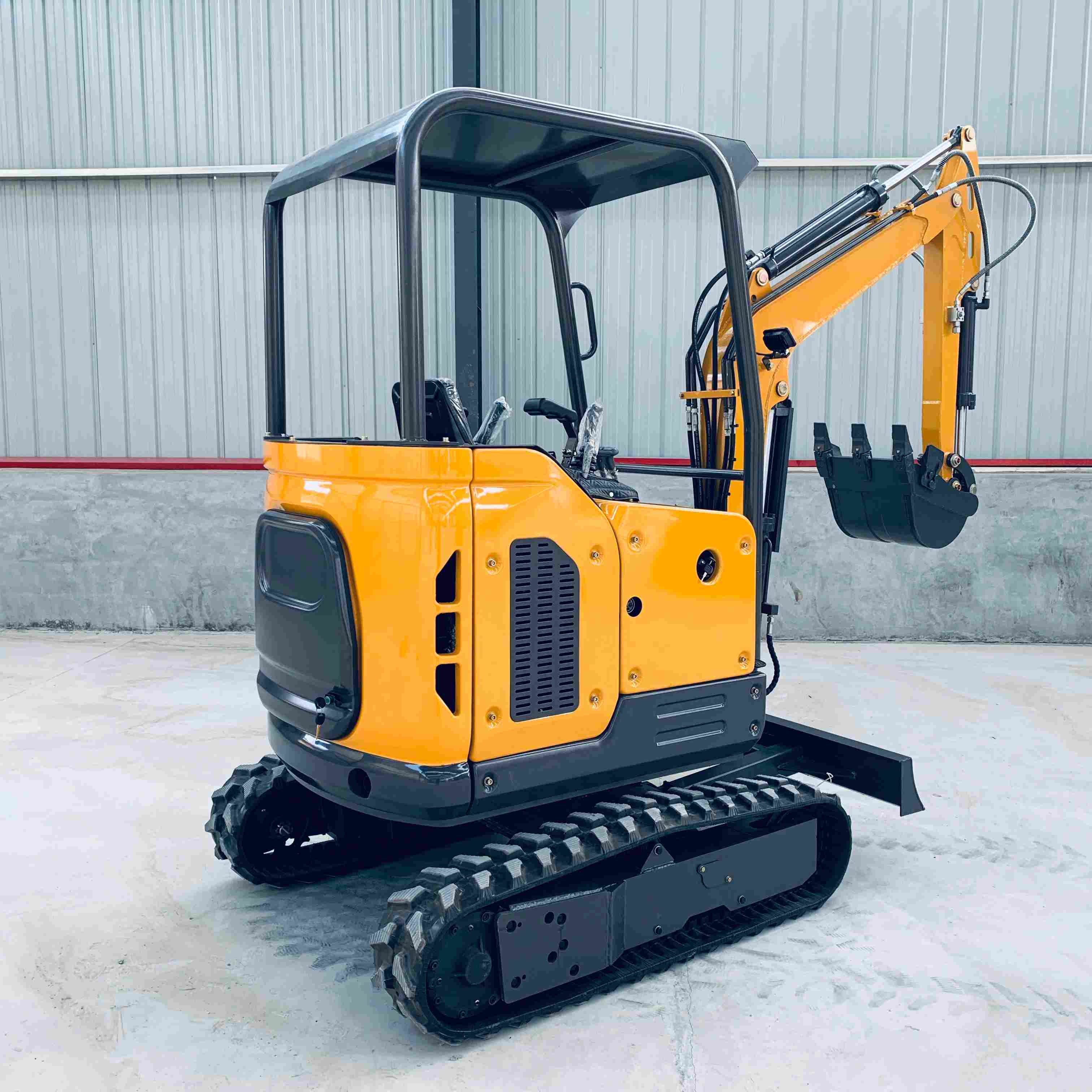

2.5 ton mini excavator

This 2.5-ton mini excavator, with its extremely compact size and reliable performance, is the ideal choice for small-site operations. It meets Euro 5/EPA4 emission standards and is equipped with a Japanese KUBOTA D1105 engine. The 3-cylinder design delivers 14KW of power, featuring strong performance and excellent fuel efficiency, balancing environmental friendliness and practicality.

Its operational performance is particularly impressive. The 0.06m³ standard bucket, combined with a maximum bucket digging force of 14KN and an arm digging force of 10KN, can accurately complete delicate tasks such as small foundation pit excavation and pipeline laying. It has a maximum digging height of 3365mm, a maximum digging depth of 2050mm, a maximum vertical digging depth of 1725mm, and a maximum ground digging radius of 3860mm. The boom can swing 75° to the left and 45° to the right, with a minimum swing radius of only 1720mm and a tail swing radius of 955mm, allowing flexible operation even in narrow spaces like courtyards and lanes.

The body design fully considers passability and stability. With an operating weight of 2500kg, a track gauge of 820mm, a track length on the ground of 1230mm, and a minimum ground clearance of 210mm, it ensures passage through complex terrains. The blade has a maximum lifting height of 230mm and a maximum cutting depth of 275mm, enabling quick site leveling. The hydraulic system, with a pressure of 18Mpa, responds sensitively, and the 9rpm swing speed ensures smooth operation. Its 35° grade ability handles sloped scenarios effortlessly.

With overall dimensions of 3665mm×1050mm×2260mm, it is convenient for transportation and transfer. Key components are reasonably arranged for easy maintenance, making it suitable for small operations such as home gardening and municipal maintenance. It excels in various tasks with its "small yet sophisticated" characteristics.
