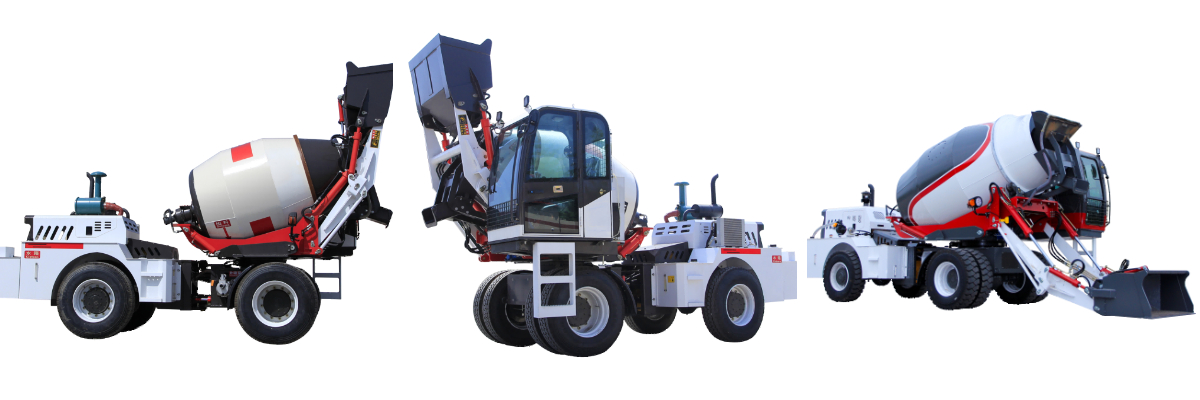

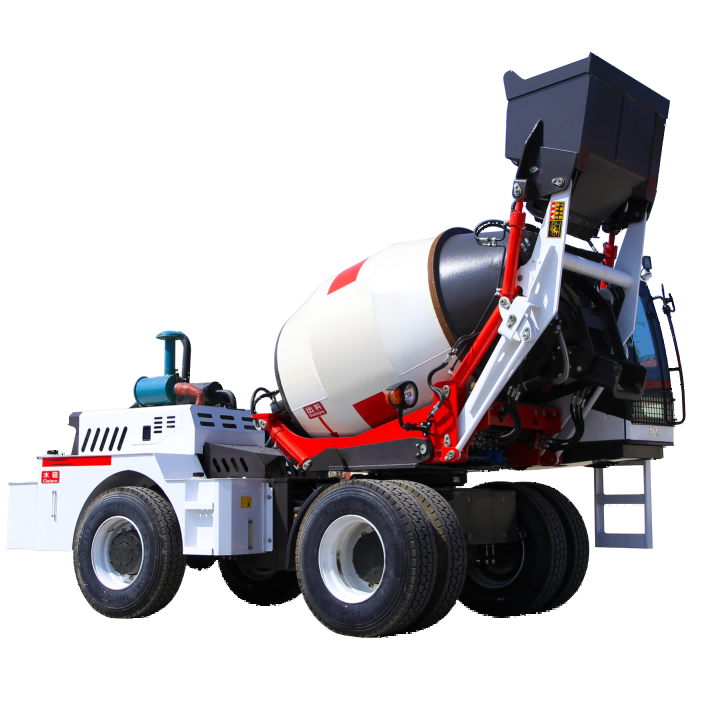

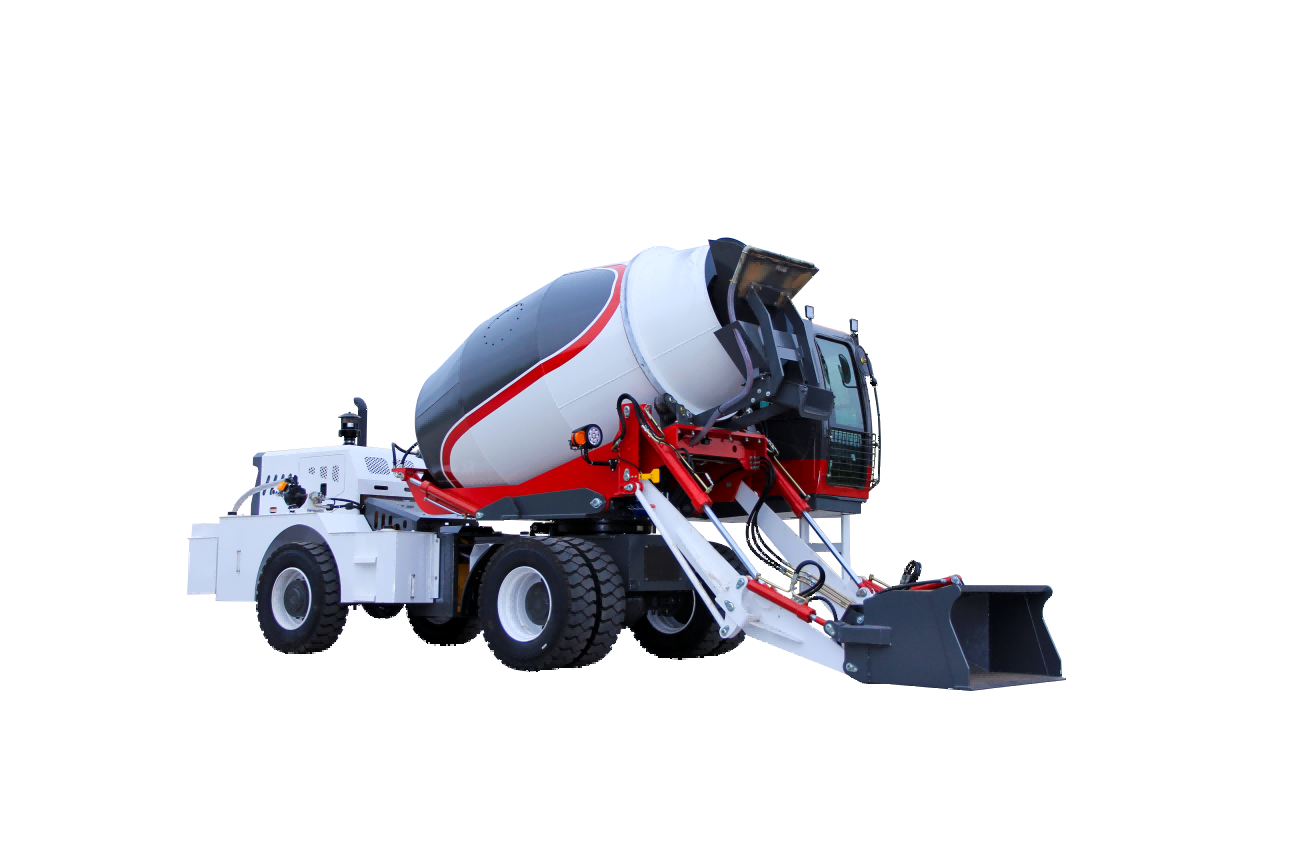

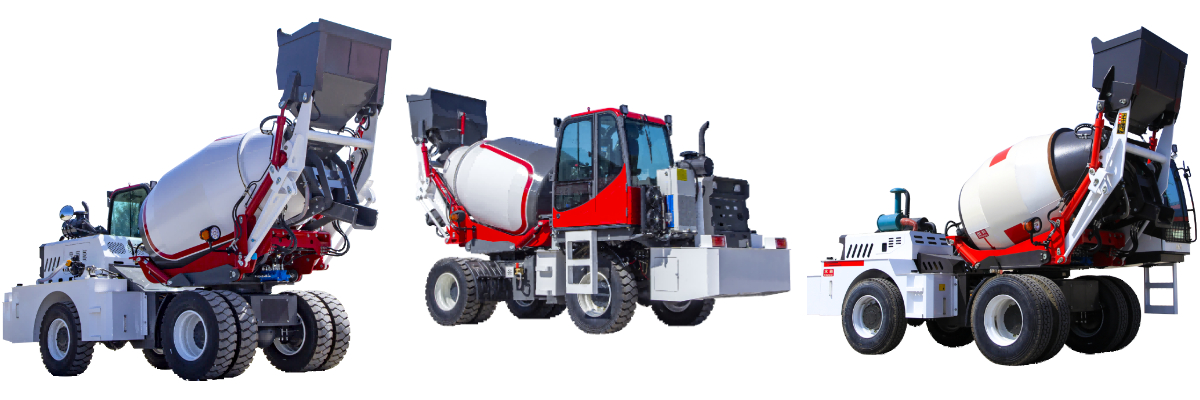

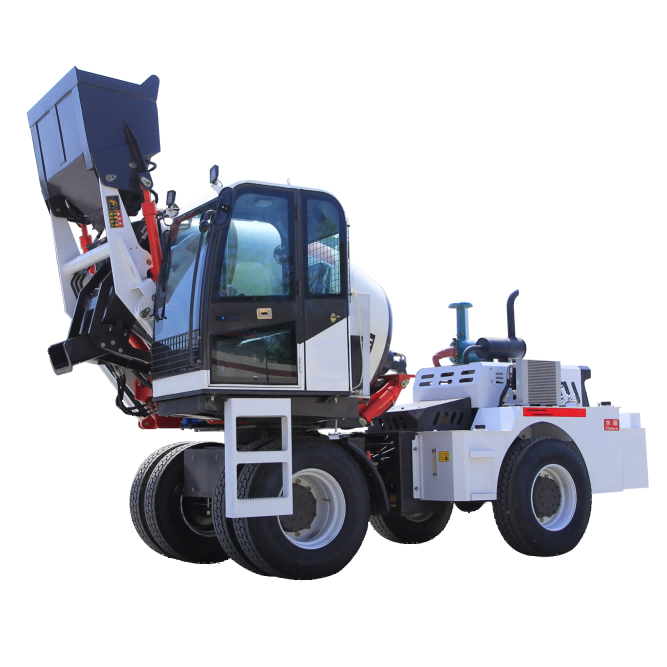

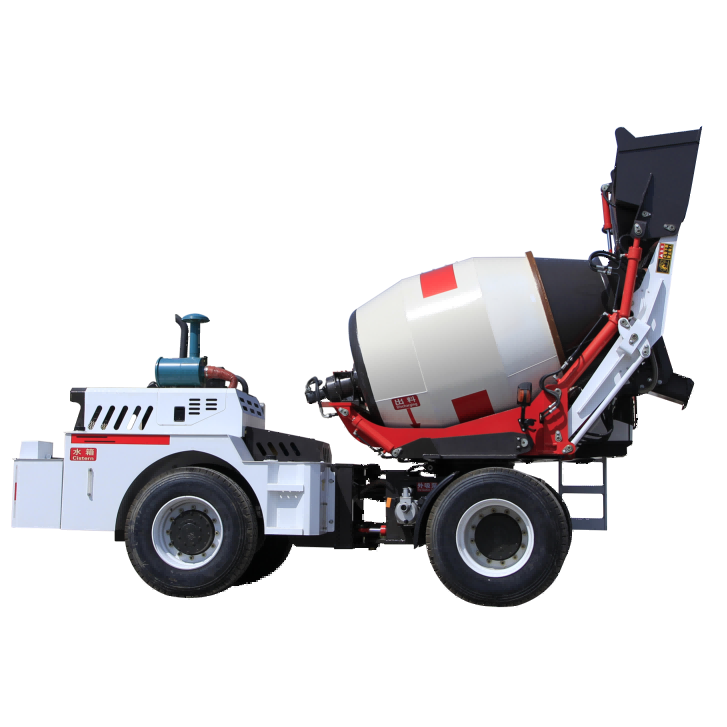

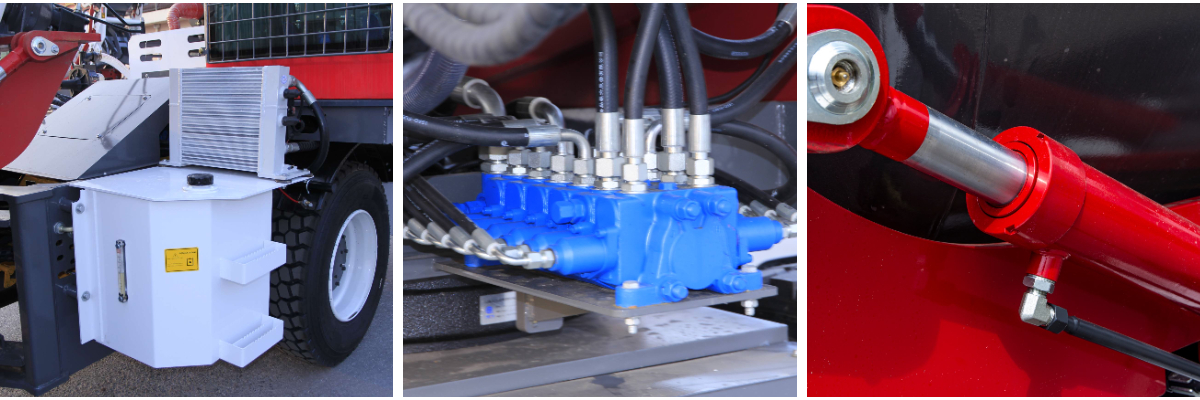

4.5 m³ concrete mixer truck
The 4.5 m³ self-loading concrete mixer truck is an efficient choice for micro projects. It integrates the functions of automatic loading, mixing and unloading, and can operate independently without additional equipment, greatly reducing labor and equipment investment.
The volume of the mixing drum is precisely matched to the needs of micro projects, with strong mixing uniformity that can effectively prevent concrete segregation and ensure construction quality. Its compact body design and small turning radius make it easy to adapt to complex scenarios such as narrow construction sites and rural roads, ensuring convenient passage.
Equipped with a powerful power system and efficient transmission device, it has excellent climbing ability to meet the needs of multi-terrain operation and transfer. It features intelligent operation with a user-friendly control panel, which is easy to learn and use, reducing labor costs. The large-capacity water tank and fuel tank reduce the frequency of refueling, extend continuous operation time, and help promote efficient project progress.
Product Introduction
Model FH-4000 is a high-efficiency equipment for micro projects, integrating automatic loading, precise mixing, and convenient unloading. It operates independently without auxiliary equipment, reducing labor and equipment costs. Suitable for limited-space or simple construction sites, it serves as a reliable assistant for micro projects.
Performance Advantages
Mixing Performance: The drum volume fits micro project needs, with advanced mixing technology ensuring high concrete uniformity and avoiding segregation, guaranteeing construction quality for both structural and decoration works.
Body Design: Compact and flexible with a small turning radius, it moves freely in narrow sites or rural roads, adapting to urban old area renovations and rural road constructions.
Power System: Equipped with a powerful engine and efficient transmission, it has excellent climbing ability, handling rough terrain and slopes stably, ensuring uninterrupted project progress.

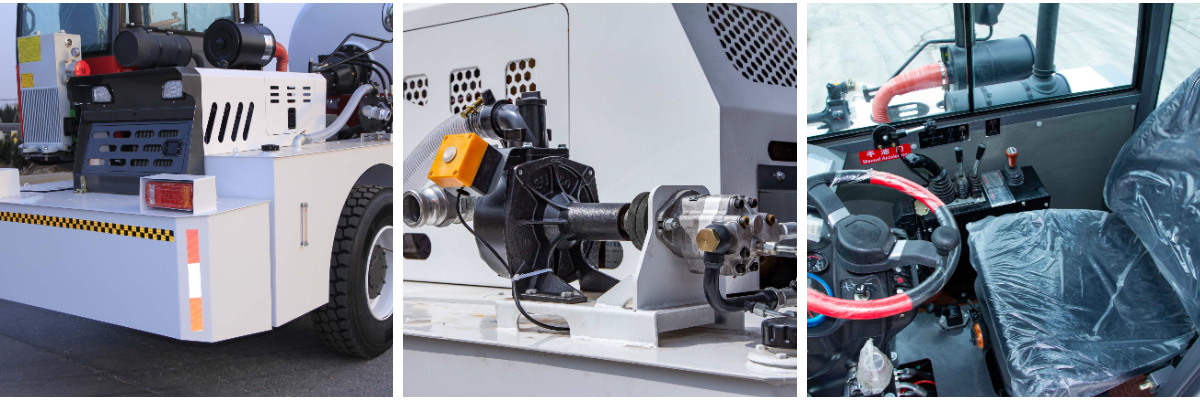

Operation and Endurance: Intelligent control panel enables easy mastery after simple training. Large water and fuel tanks reduce refueling frequency, extending continuous operation time.

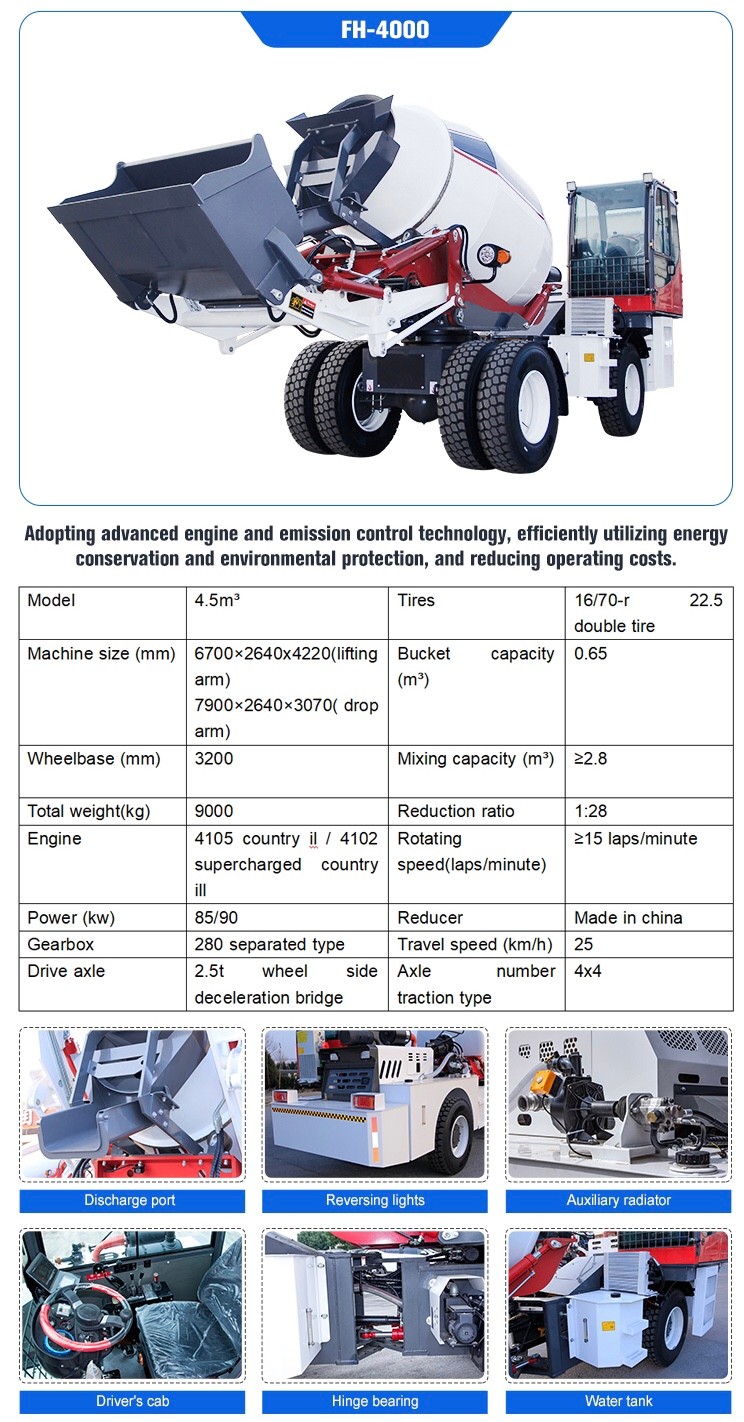

Technical Parameters
Overall dimensions: 6700×2640×4220mm (boom extended); 7900×2640×3070mm (retracted)
Wheelbase: 3200mm; total weight: 9000kg
Engine: 4105 National II / 4102 turbocharged National III (85/90kW)
Gearbox: 280 split type; drive axle: 2.5-ton wheel-side reduction axle
Tire: 16/70-R22.5 dual tire; hopper capacity: 0.65m³; mixing capacity: ≥2.8m³
Mixing drum speed: ≥15rpm; driving speed: 25km/h; driving form: 4×4
After-sales Service
A professional team provides timely support for installation, maintenance, and troubleshooting, ensuring worry-free use with customer needs as the priority.
In summary, this mixer truck is ideal for micro projects, combining excellent performance, flexible design, advanced technology, and quality after-sales service to ensure efficient, high-quality project completion.
