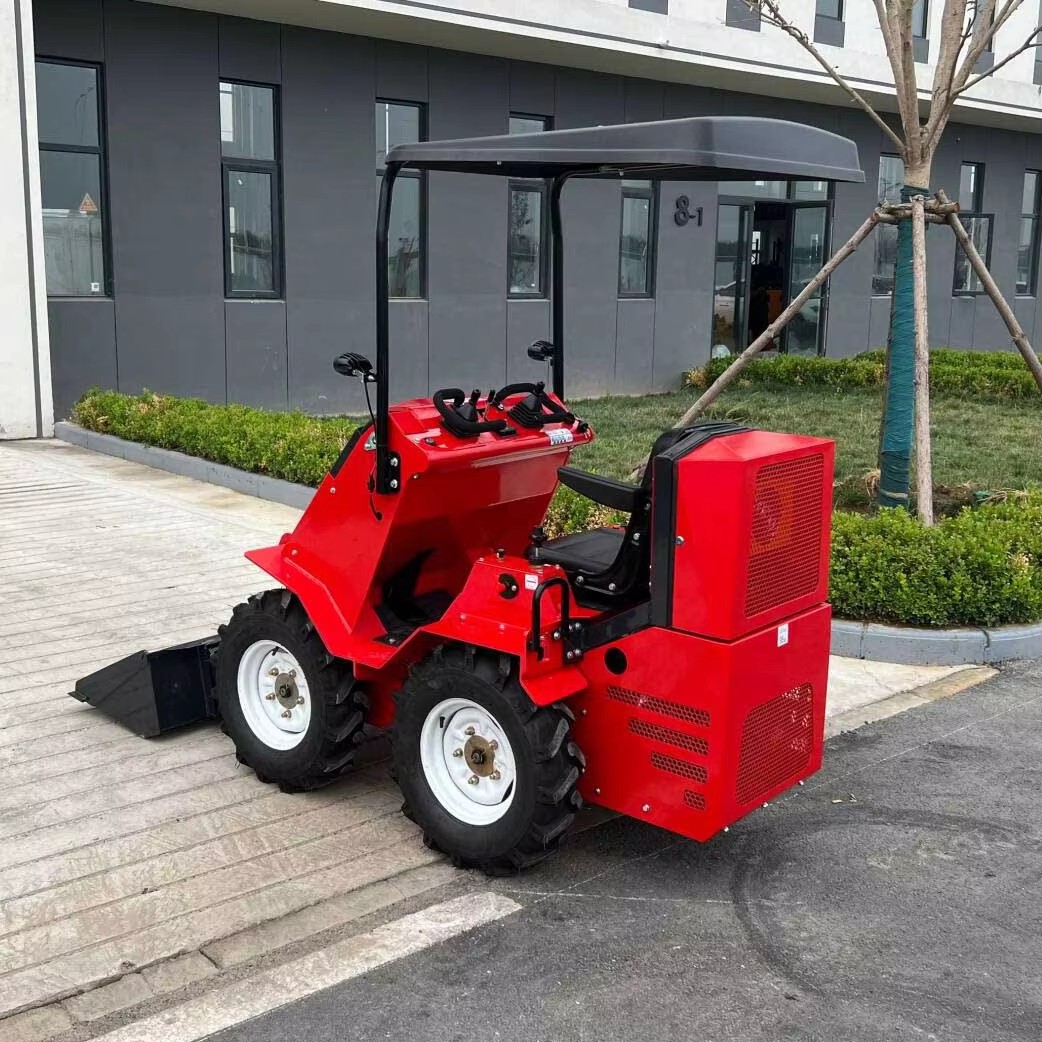

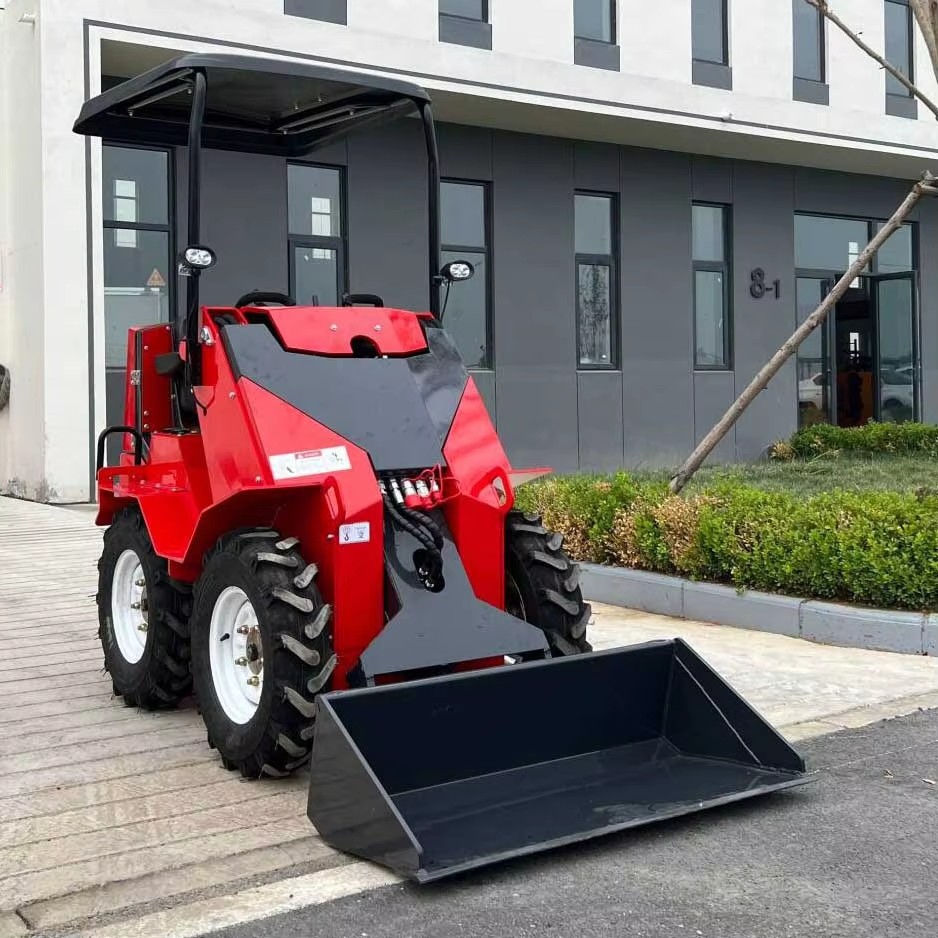

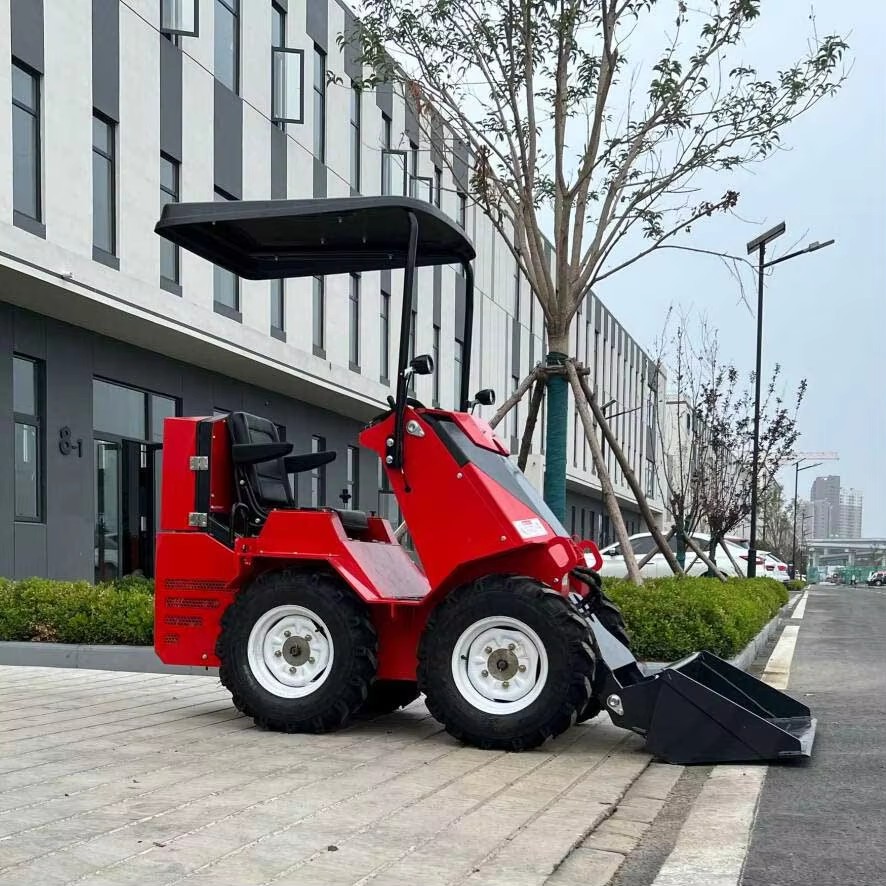

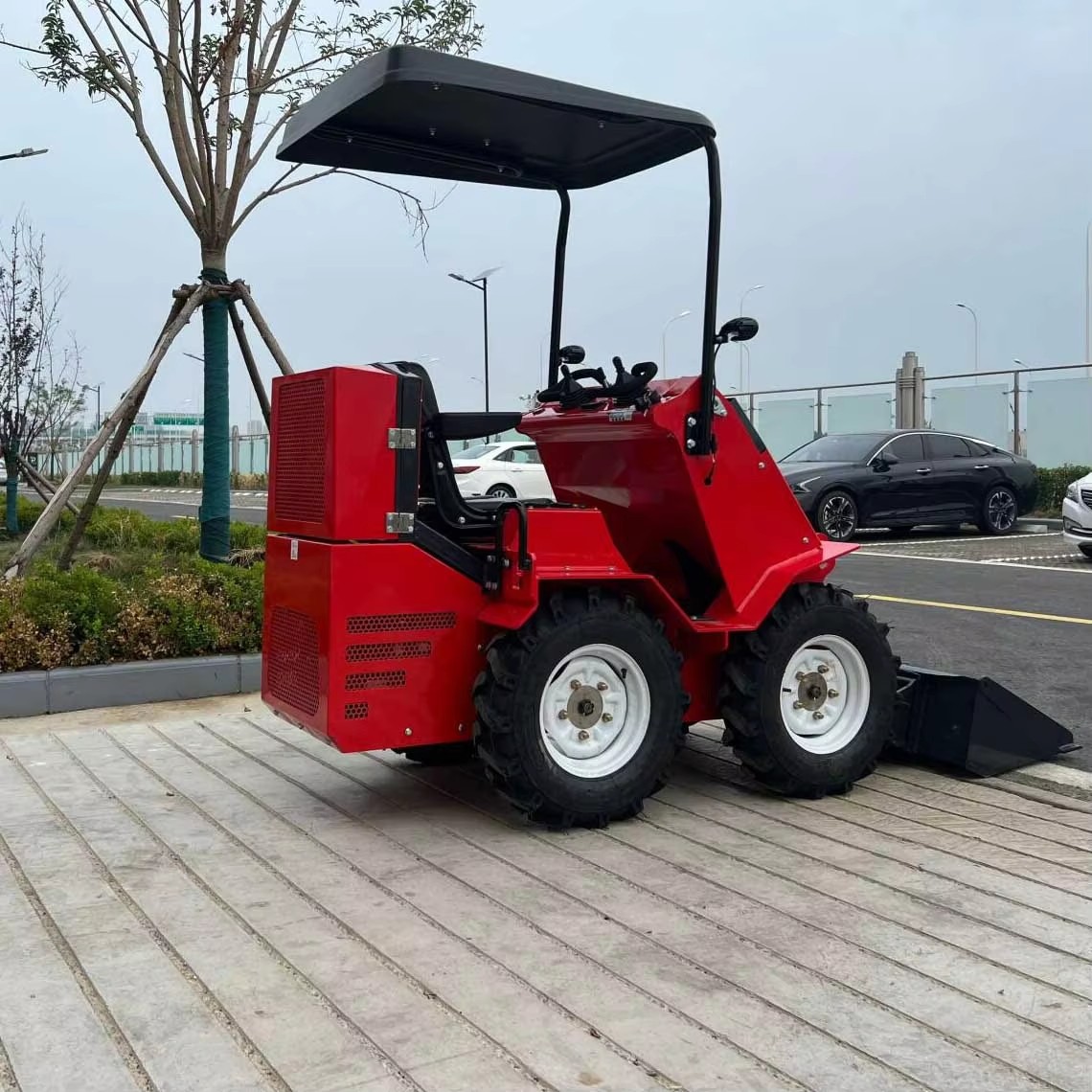

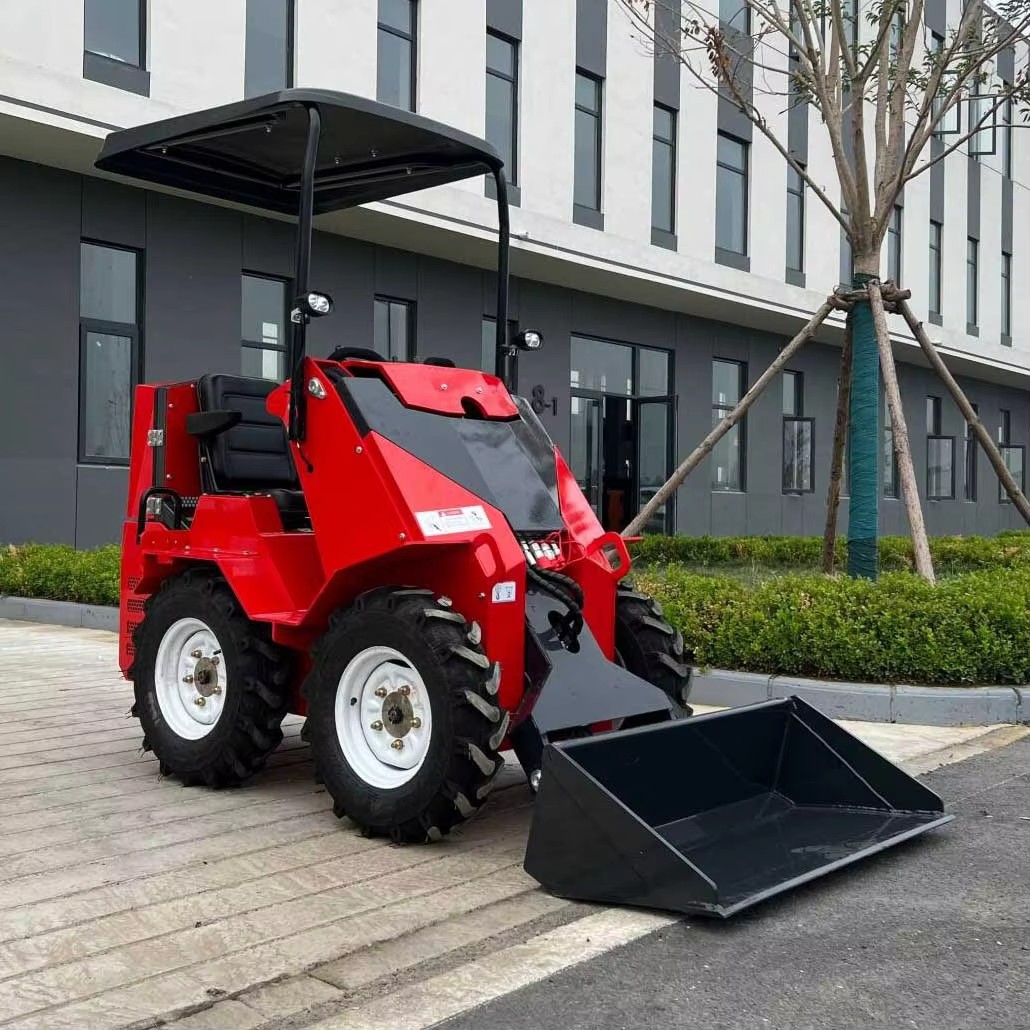

Skid Steer Loader
1、Comfortable ride: Equipped with an ergonomic seat and shock absorption system, reducing fatigue during long hours of operation and enhancing work comfort.
2、Wide visibility: Optimized cab design with unobstructed view, keeping the work environment in full sight to improve operational safety.
3、Precise control: Integrated joysticks with sensitive response, enabling smooth compound actions, easy to master even for beginners.
4、Adaptive power: Equipped with a high-efficiency engine, delivering stable power output while balancing work efficiency and fuel economy.
5、Universal attachments: Quick-change system compatible with multiple tools, easily switching work modes to adapt to diverse scenarios.
6、Compact and flexible: Small body with a small turning radius, operating freely in narrow spaces, with better passability than conventional equipment.
7、Durable and low-consumption: Reinforced design for key components, low failure rate, reduced maintenance costs, and more economical for long-term use.
This ride-on skid steer loader is designed for compact efficiency, powered by a dual-cylinder "Popularization of science" engine delivering 14kw net power—ideal for light to medium-duty tasks. Its 2-cylinder configuration balances performance and fuel economy, paired with a 15L fuel tank to support extended operations.
Built for maneuverability in tight spaces, the loader features an overall width of 1100mm and a ground clearance of 170mm, easily navigating narrow alleys or crowded work sites. With an overall length of 2750mm (with bucket) and 2220mm (without), it combines a small footprint with practical reach: operating height reaches 2466mm, while the bucket hinge pin sits at 1877mm, enabling unloading heights of 1382mm for efficient material handling.
Functional specs cater to versatile use: rated loading capacity of 250kg and a 0.12m³ bucket (1050mm width) handle daily lifting and hauling needs. The 18MPa rated hydraulic pressure ensures responsive bucket actions, complemented by a machine weight of 1100kgs for stable operation.
Operator comfort is prioritized with a console height of 1250mm and a total vehicle height of 1900mm, creating a balanced workspace. Travel speed ranges from 0 to 5.5km/h, allowing controlled movement. Perfect for small-scale construction, garden maintenance, or warehouse logistics, it blends agility and reliability for everyday tasks.
Engine model | Popularization of science |
No. of cylinders | two-cylinder |
Net Power | 14kw |
Operating height | 2466mm |
Height to bucket hinge pin | 1877mm |
Vehicle height | 1900mm |
Console height | 1250mm |
Overall length with GP bucket | 2750mm |
Overall length without bucket | 2220mm |
Overall width | 1100mm |
Ground clearance | 170mm |
Unloading height | 1382mm |
Rated loading capacity | 250kg |
Bucket volume | 0.12m³ |
Bucket width | 1050mm |
Machine weight | 1100kgs |
Rated pressure | 18mpa |
Tank capacity | 15L |
Travel speed | 0~5.5km/h |
