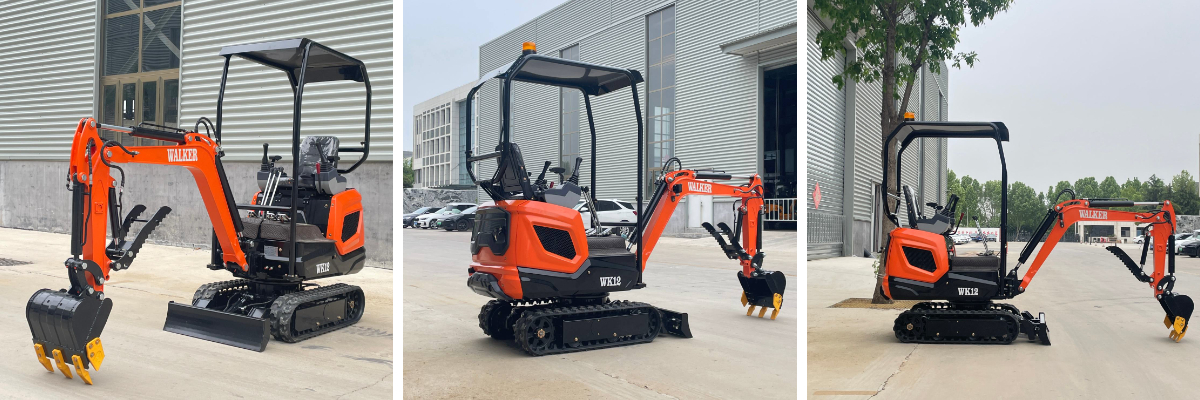

1.2 ton excavator

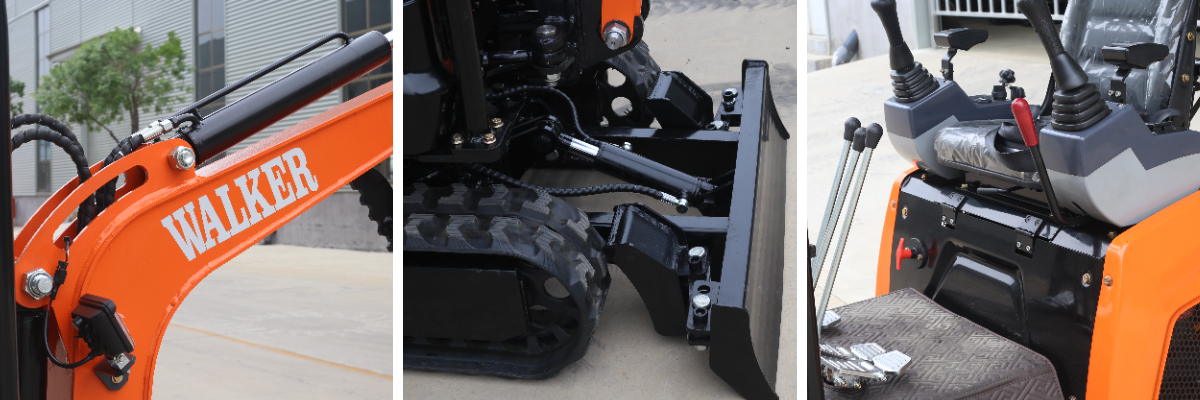

Bulldozer Bucket：Designed with a reinforced structure, featuring excellent durability and extended service life. Perfect for site grading, material piling, and backfilling operations, it ensures safer and more stable machine performance during climbing, uphill lifting, and swiveling maneuvers.
Hydraulic System + Counterweight：Equipped with dual-side hydraulic pilot control and counterweight, enabling smoother and more stable operation.
High-End Cab：Available with a spacious weatherproof cab and air conditioning (cooling & heating), integrated with enhanced safety features. The ergonomically designed seat, paired with auxiliary control levers, optimizes operational comfort.
Versatile Capability：Fully integrated with multi-attachment compatibility to address diverse work requirements.

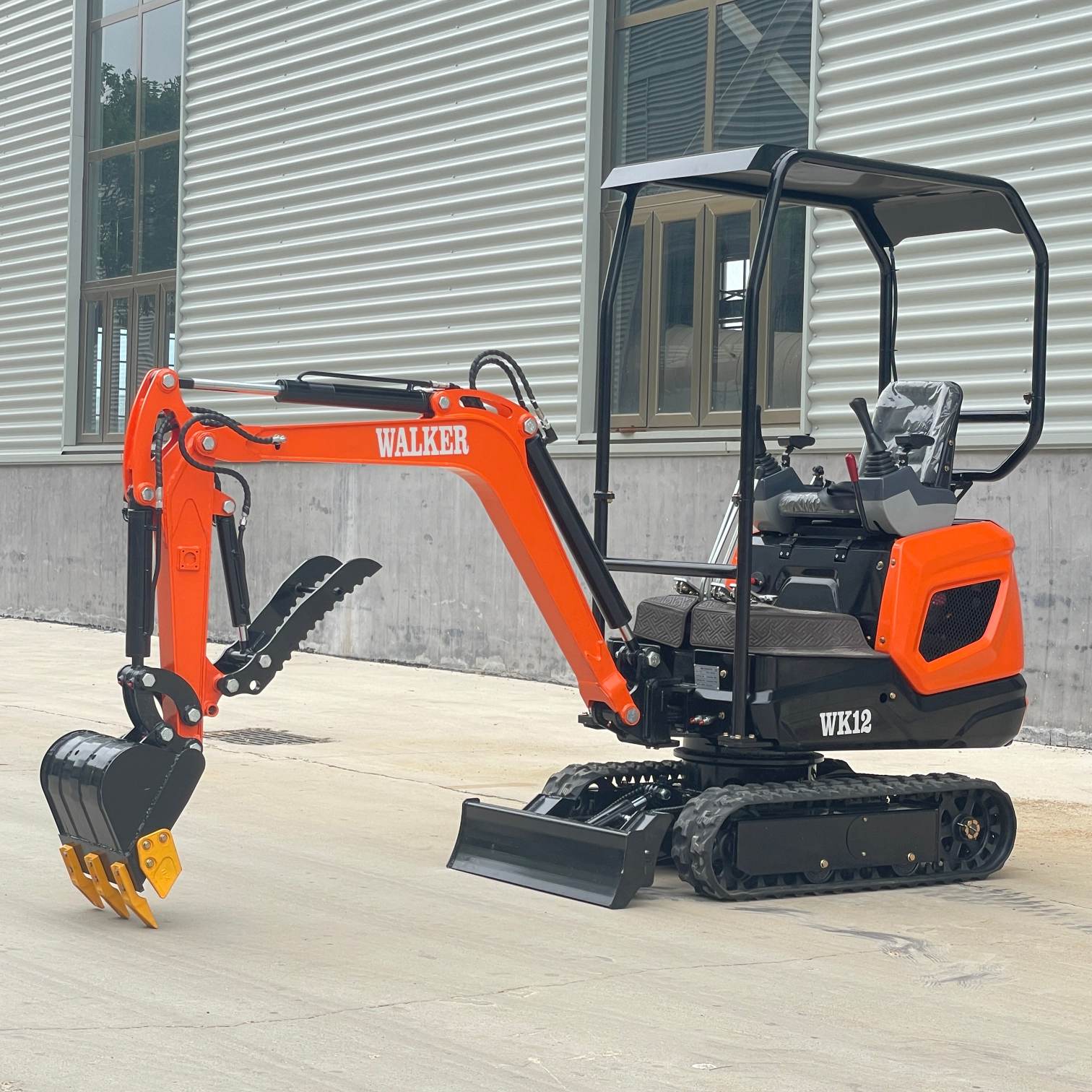

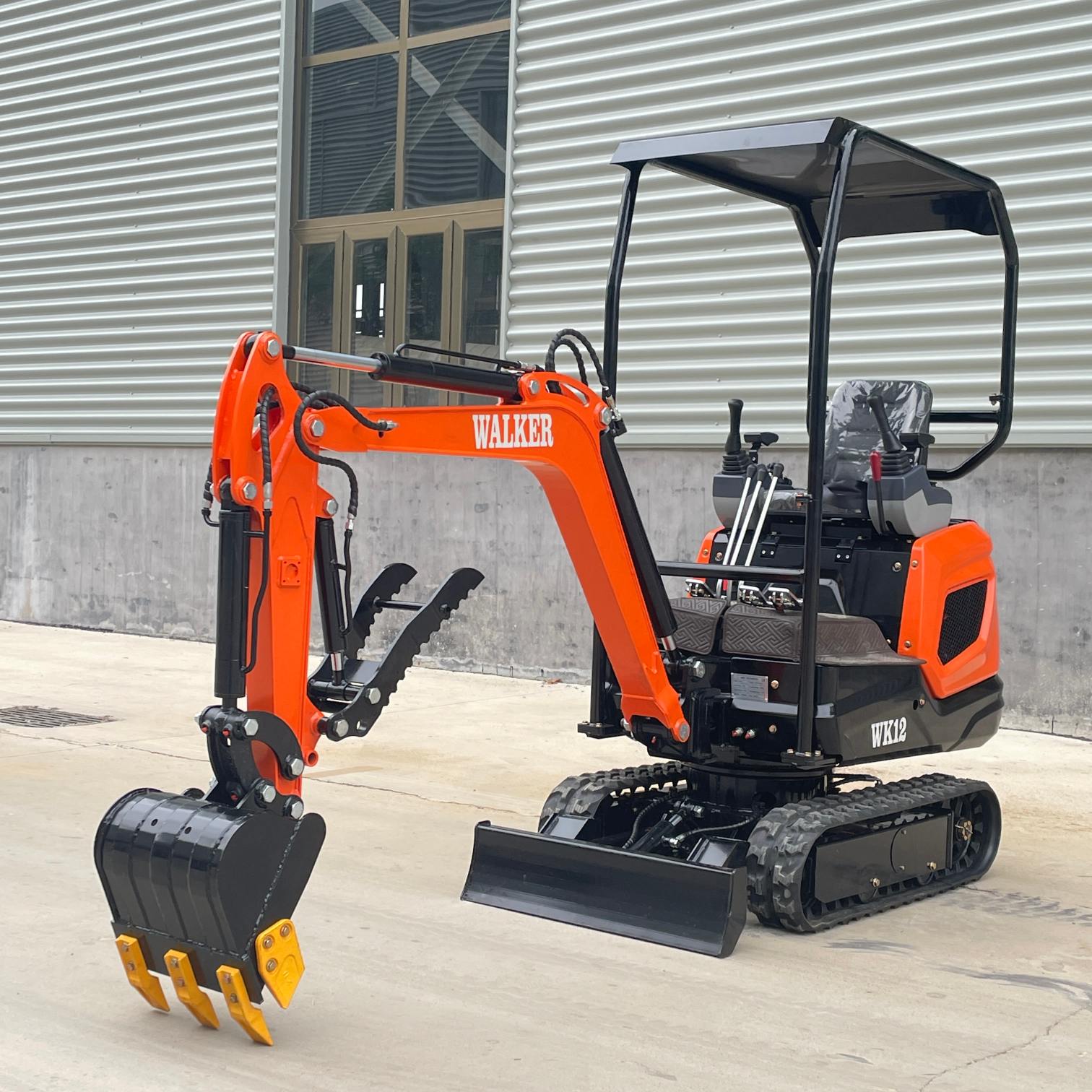

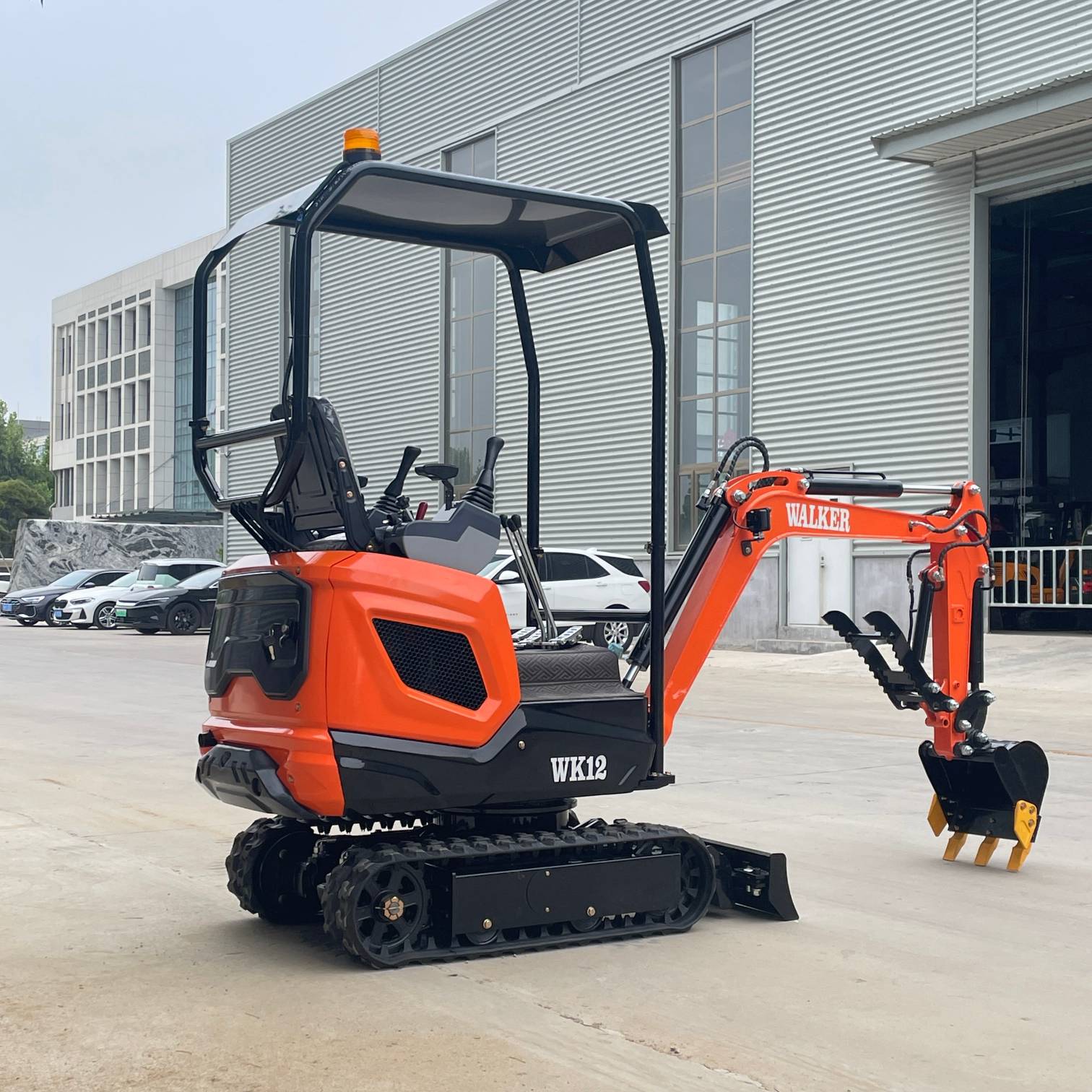

Introduction to WK12 Excavator
I. Flexible Power and Configuration Options
The power system of the WK12 excavator can be optionally equipped with KOOP 192 engine or Kubota D722 engine as needed, meeting different working conditions and environmental standards. Standard configurations include front mechanical linkage, rubber tracks, bulldozer blade, digging bucket, cylinder guards, and seat armrests, ensuring complete basic operating setups. Additionally, optional features like boom side swing, enclosed cab, swing boom, and retractable tracks enable flexible adaptation to diversified scenarios such as narrow spaces and complex terrains.
II. New Model Upgrades
As a fully updated 2025 model, the WK12 achieves three core advancements while inheriting classic performance:
III. Quality and After-sales Guarantee
With over a decade of expertise in excavator manufacturing, Shandong Gongwo Machinery ensures reliable product quality through full-process control from design to packaging. Core components come with a 1-year warranty, while wearing parts are covered by a 3-month warranty. Our comprehensive after-sales support eliminates all usage concerns.
Model | WK12 |
Operating weight | 1200kg |
Digging bucket capacity | 0.018m³ |
Bucket width | 400mm |
Engine | KOOP192 |
Heat dissipation mode | Air Cool |
Rated power | 7KW |
Optional engine | Kubota D722,10.2kw |
Travel speed（行驶速度） | 2.1km/h |
Chassis width | 934mm |
Track width | 180mm |
Minimum ground clearance | 197mm |
Maximum digging height | 2283mm |
Maximum unloading height | 1698mm |
Maximum excavation radius | 2507mm |
Maximum digging depth | 1436mm |
Vertical digging depth | 1436mm |
Minimum radius of tum | 1371mm |
Turning speed | 3000rpm |
Maximum climbing capacity | 15° |
Working pressure | 16MPa |
Optional | Swing boom, telescopic tracks, Enclosed cabin |
Product Details

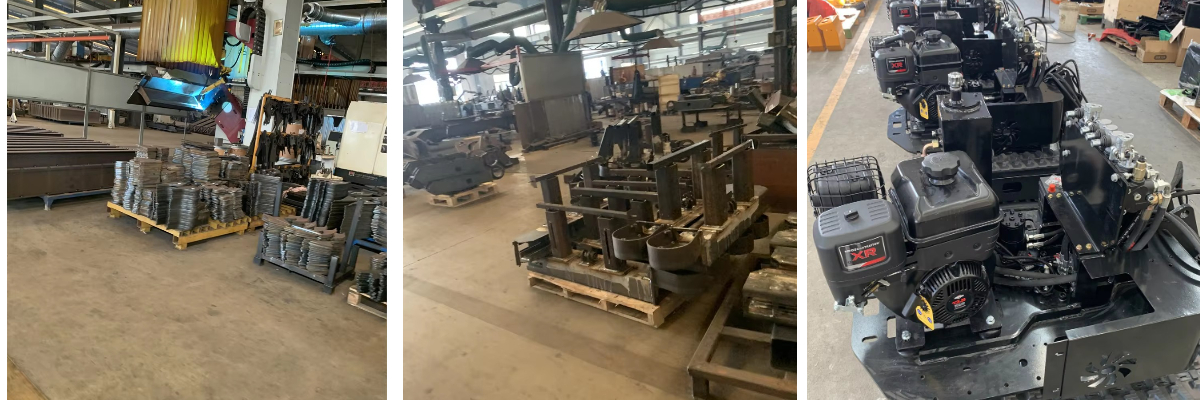

Workshop Display
Shandong Gongwo Machinery Co., Ltd., established in 2012, is a specialized enterprise in manufacturing medium and small construction machinery. Our product portfolio includes compact wheel loaders, mini crawler excavators, electric/diesel tricycles, 2WD/4WD forklifts, and more. Equipment is exported to worldwide markets including Europe, the Americas, Southeast Asia, Africa, Russia, and beyond. For over a decade, we have been dedicated to serving international clients and fulfilling their operational requirements.
