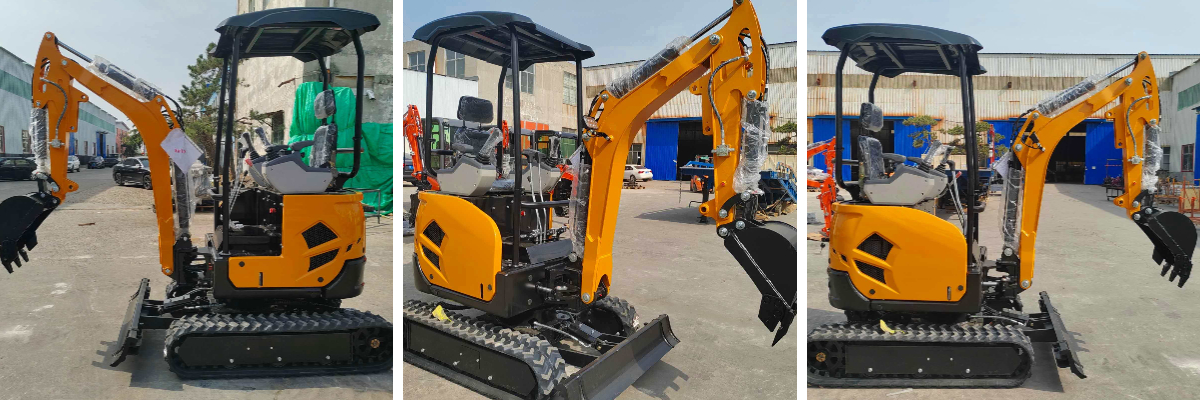

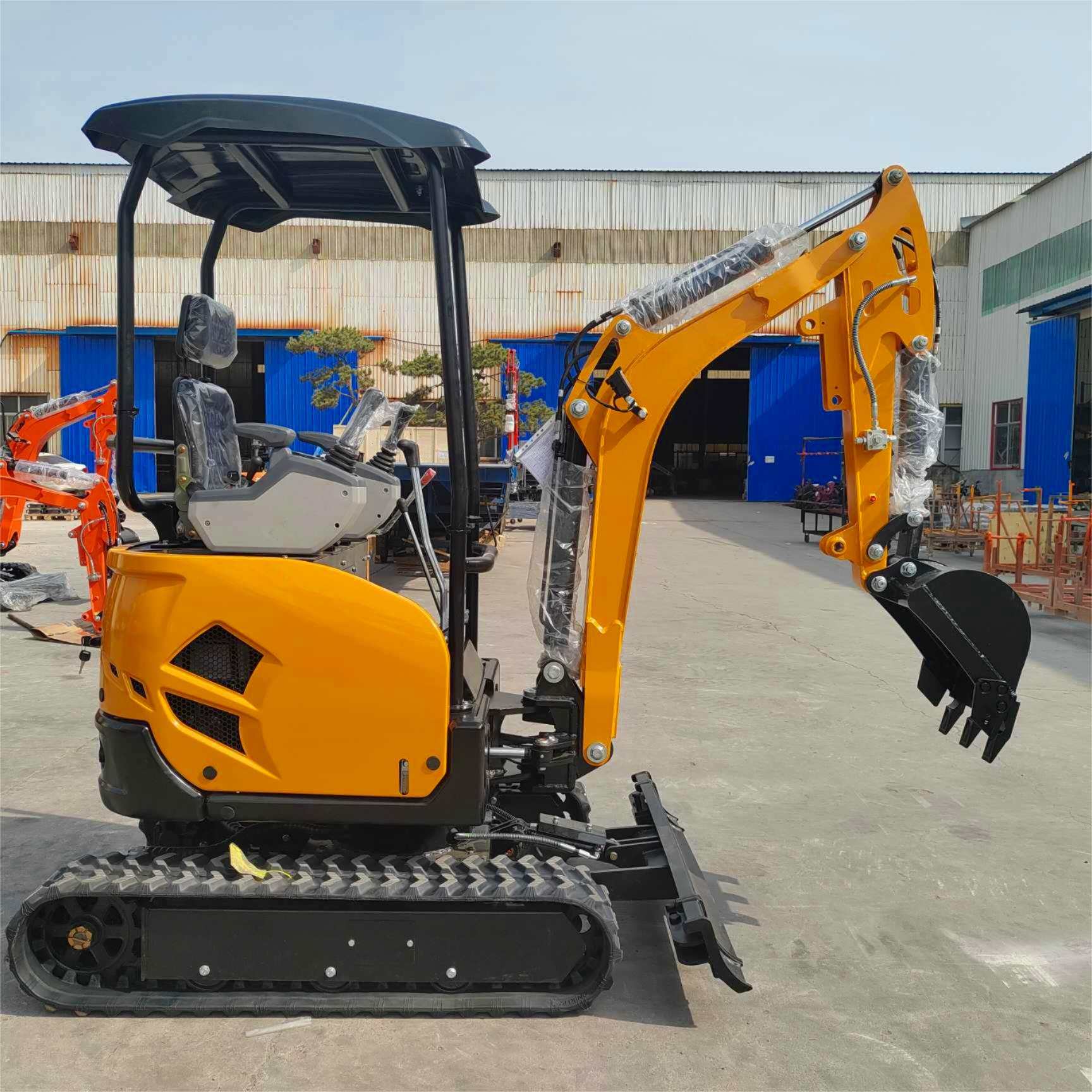

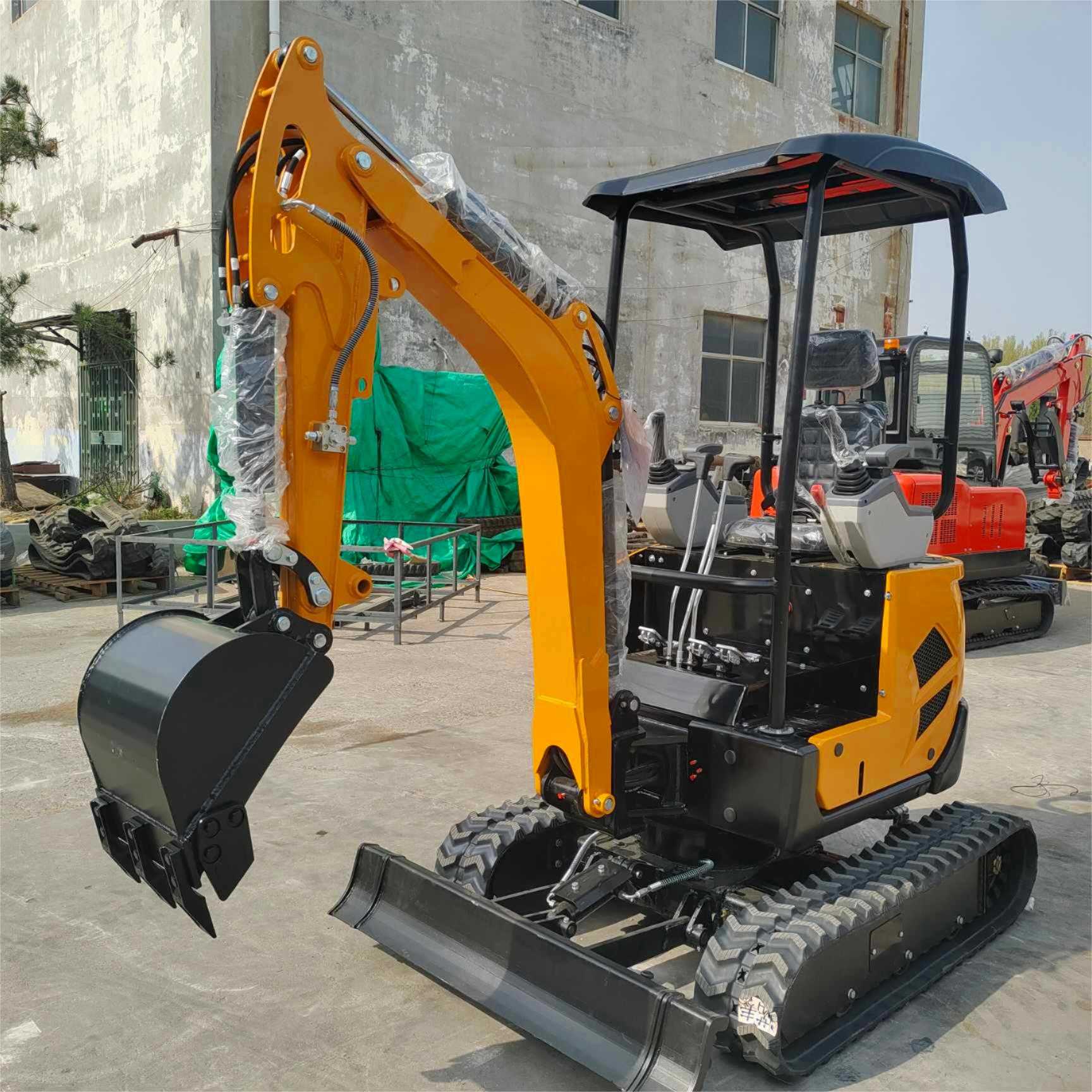

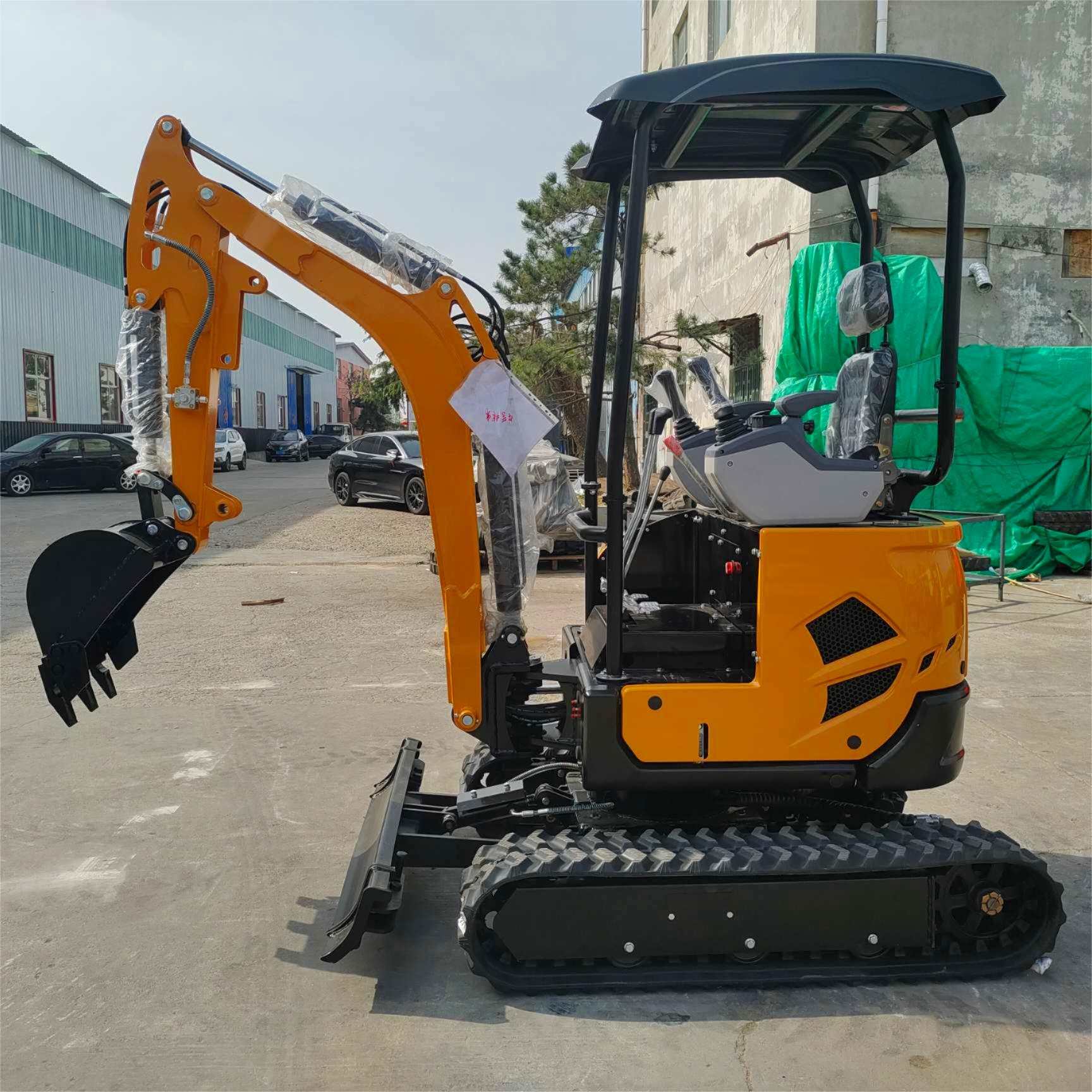

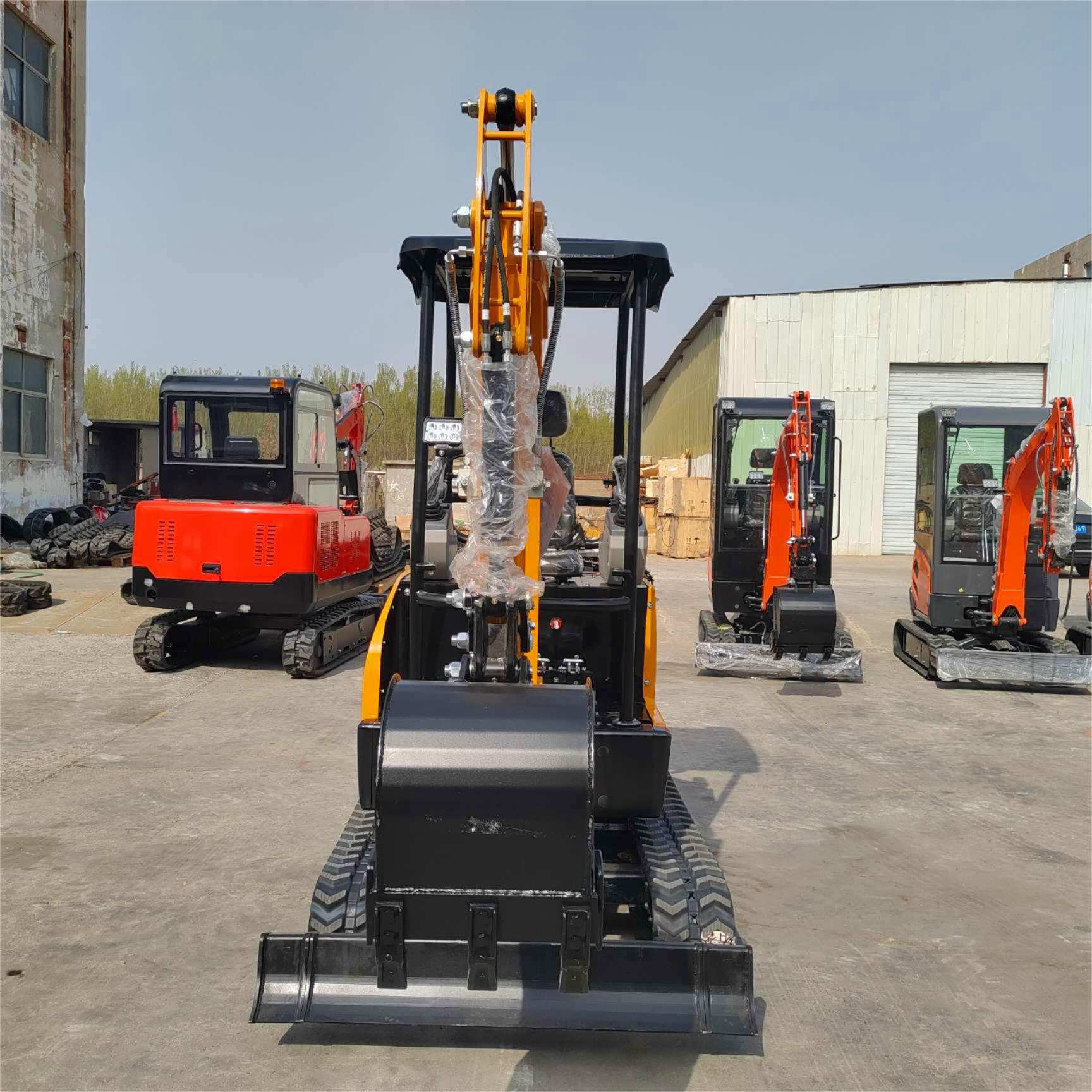

1.8 ton excavator
Bulldozer Bucket：Engineered with a reinforced structure for premium durability and extended service life. Perfect for site grading, material piling, and backfilling, it ensures safer, more stable machine performance during climbing, uphill lifting, and swiveling operations.
Hydraulic Pilot System：Designed for effortless, responsive operation, boosting productivity while minimizing system pressure.
High-End Cab：Spacious, weatherproof cabin with enhanced safety features. Ergonomically crafted with auxiliary control levers for optimized operational comfort.
Versatile Capability：Fully integrated with multi-attachment compatibility to tackle diverse work requirements.
Introduction to WK18 Excavator
I. Flexible Power and Configuration Options
The power system of the WK18 excavator can be optionally equipped with Laidong 385BT engine (complying with CE standards), Perkins 403j-11 engine, and Kubota 1105 engine to meet different working conditions and environmental standards. Standard configurations include boom side swing, rubber tracks, hydraulic control travel, gear pump, Beifang load-sensitive multi-way valve, Sanyo travel motor, Sanyo slewing motor, bulldozer blade, digging bucket, cylinder guards, and seat armrests, ensuring complete basic operating functions. In addition, optional closed cab, air conditioning, retractable tracks, steel tracks, and various accessories for different working environments are available, flexibly adapting to diversified scenarios such as narrow spaces and complex terrains.
II. Adaptability to Diverse Construction Scenarios
With flexible configurations and a compact body, the WK18 is highly suitable for small-scale engineering construction, municipal maintenance, agricultural operations, and other scenarios. As a powerful tool for small-range construction, it can efficiently complete various tasks such as excavation and dozing.
III. Quality and After-sales Guarantee
Shandong Gongwo Machinery has more than ten years of experience in excavator production, controlling the entire process from design to packaging to ensure reliable product quality. Core components are provided with a 1-year warranty, and wearing parts enjoy a 3-month warranty. A perfect after-sales support system eliminates user concerns about usage.
Item | Parameter Value |
Emission Standard | Euro 5, EPA |
Engine | KUBOTA |
Other engines | Briggs & Stratton gasoline engine |
Power | 10.2kw/14kw |
Number of cylinder | 3/2 |
Overall length | 4325/1655 |
Overall width | 1100 |
Overall height | 2260 |
Upper width | 990 |
Standard track shoe width | 180 |
Track gauge | 920 |
Min.ground clearance | 119 |
Tail turning radius | 790 |
Track ground length | 1050 |
Track length | 1545 |
Max digging height | 2590mm |
Max. unloading height | 1640mm |
Max.digging depth | 2100mm |
Max.digging distance | 3200mm |
Min.turning radius | 1711mm |
Boom swing Angle(left) | 75° |
Boom swing Angle(right) | 45° |
working weight | 1800kg |
Bucket capacity | 0.03m³ |
Swing speed | 12rmp |
Grade ability | 30 |
Main pump brand | Tianjin CBT - F308/303GGH1R |

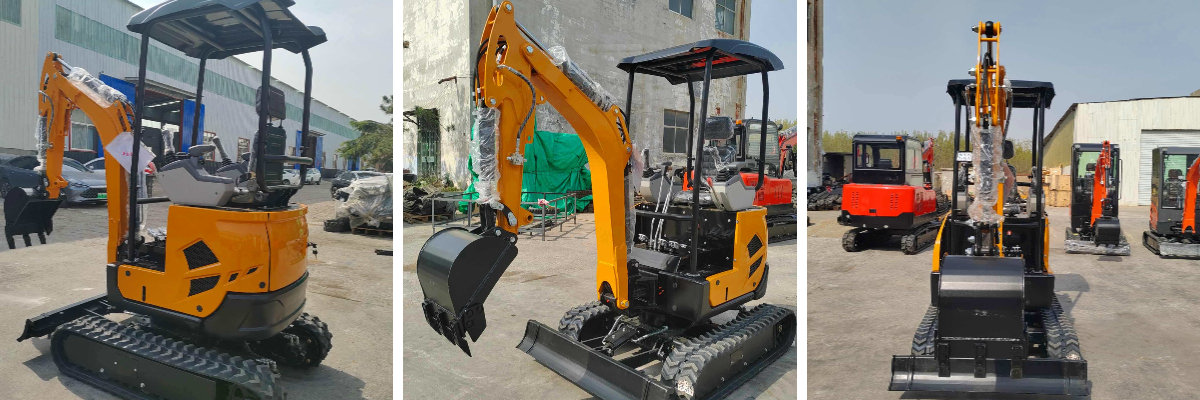

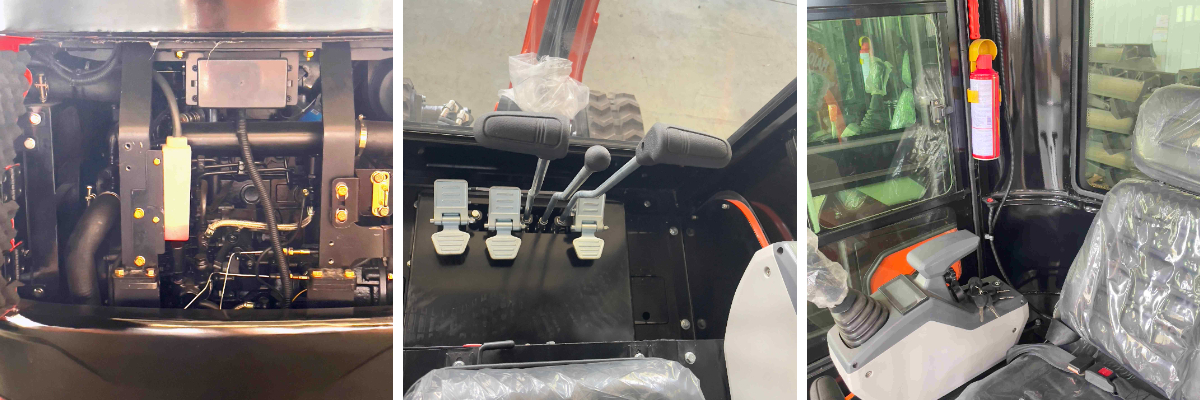

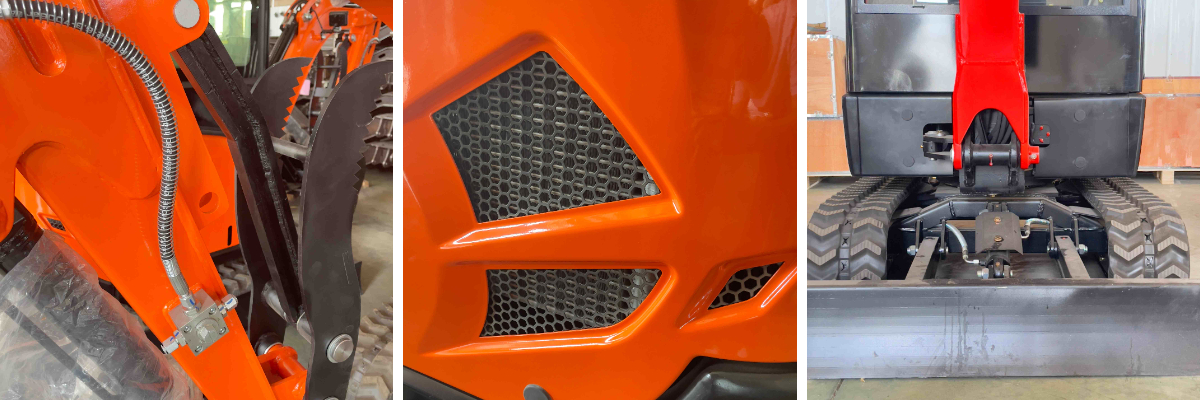

Product Details

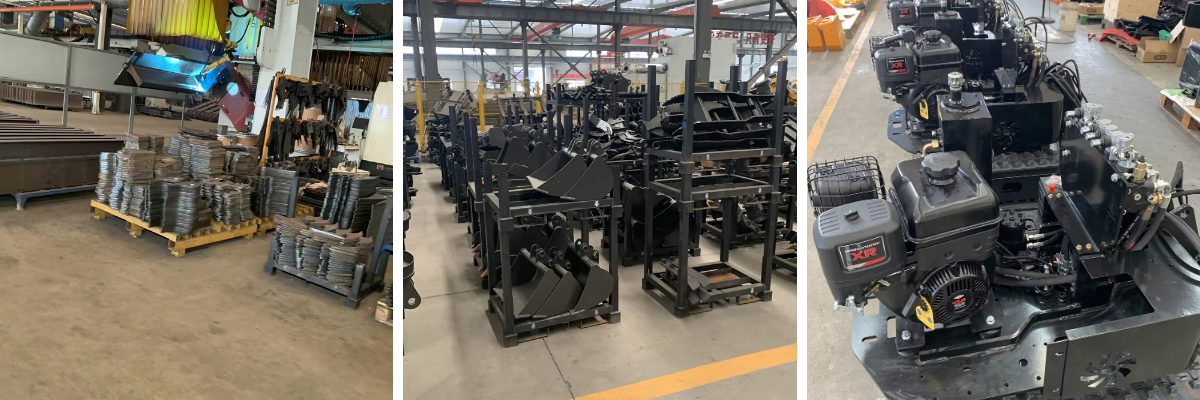

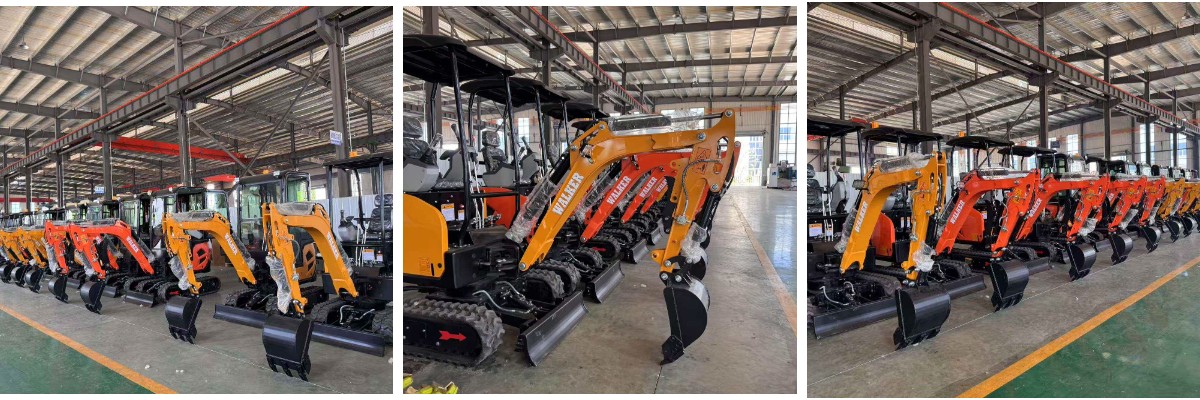

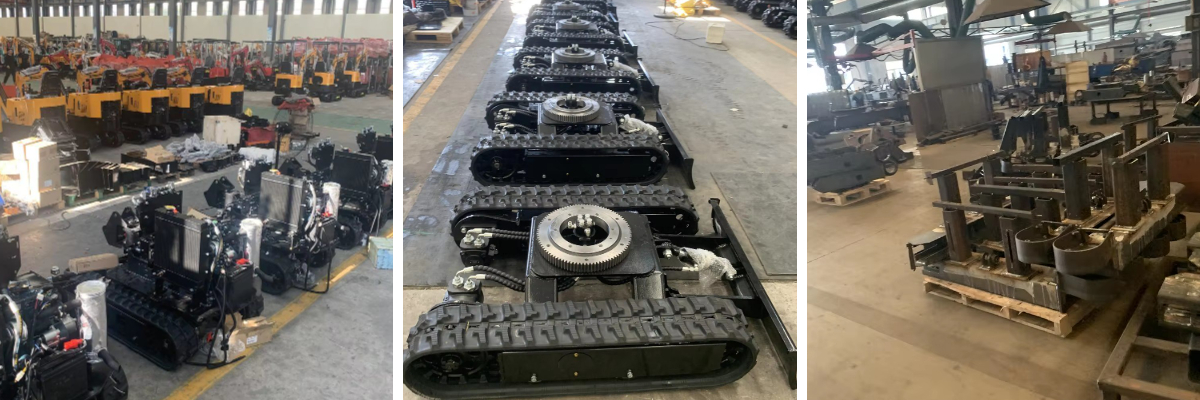

Workshop Display
Company Overview
Shandong Gongwo Machinery Co., Ltd., established in 2012, is an enterprise specialized in manufacturing medium and small construction machinery. Our product portfolio includes compact wheel loaders, mini crawler excavators, electric/diesel tricycles, 2WD/4WD forklifts, among others. Equipment is exported to worldwide markets including Europe, the Americas, Southeast Asia, Africa, Russia, and beyond. For over a decade, we have been dedicated to serving international clients and fulfilling their operational requirements.
