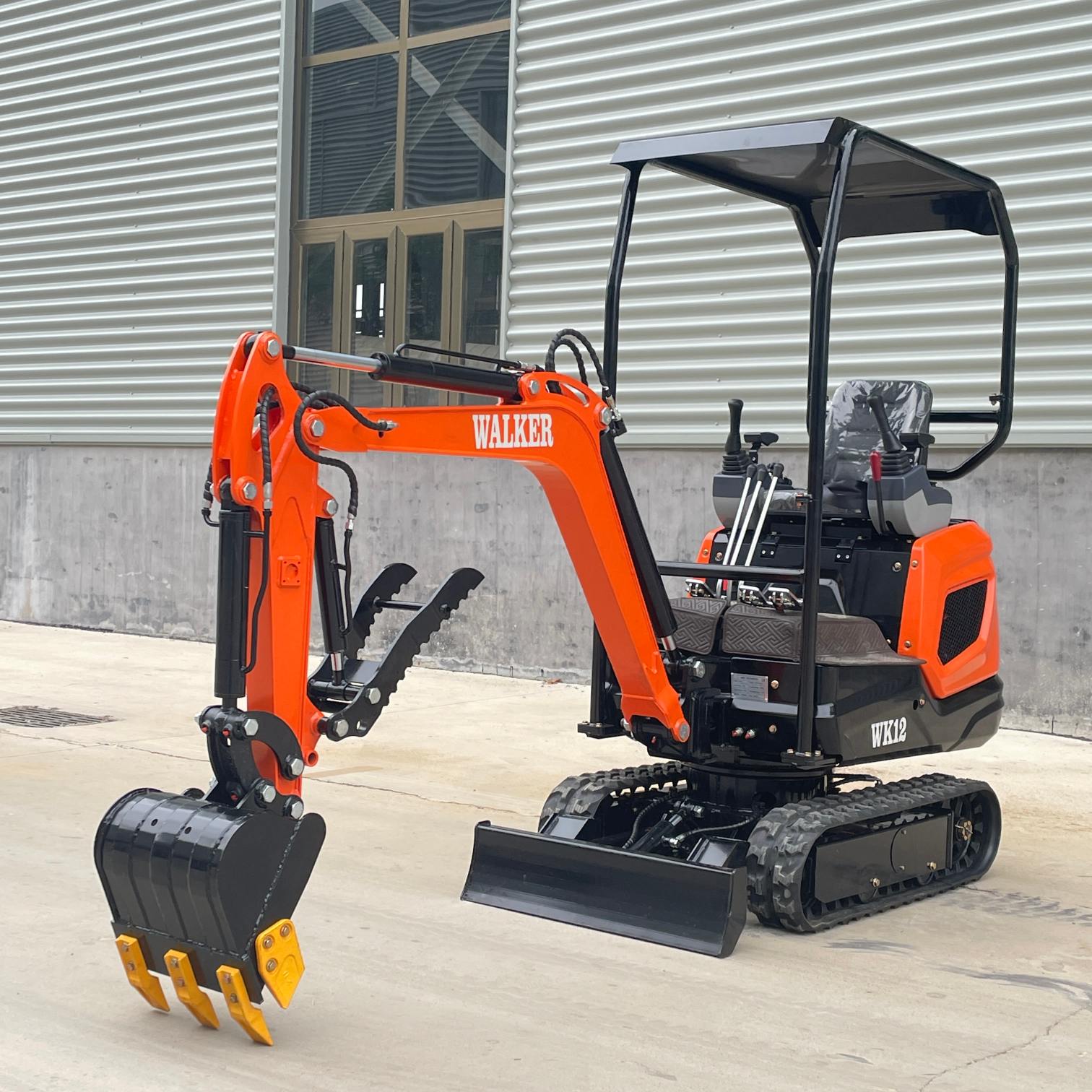

1.2-Ton Mini Digger

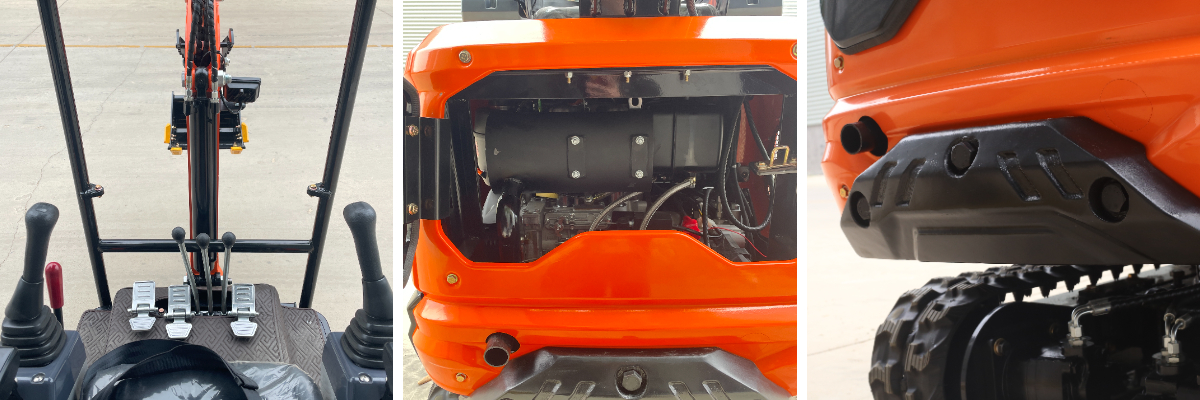

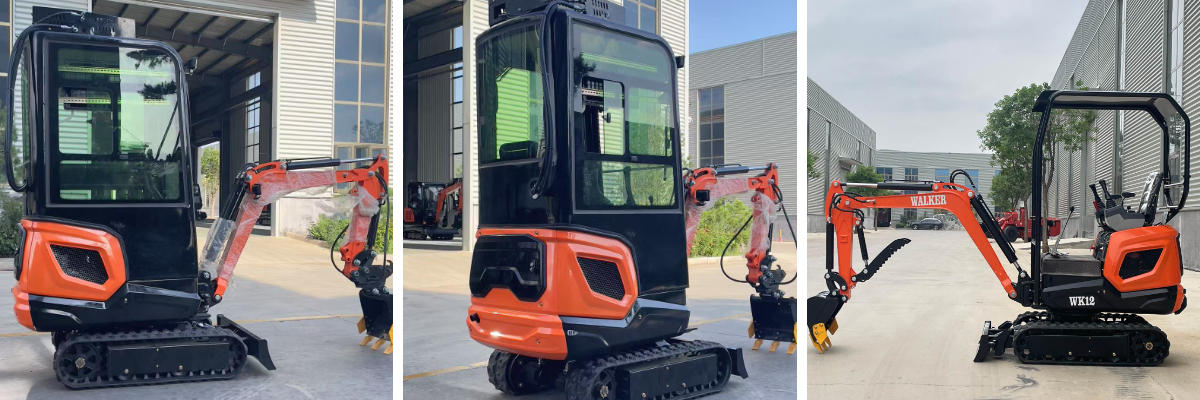

The WK12 excavator, weighing 1.2 tons, is a compact and versatile piece of construction machinery. It is equipped with a KOOP192 engine, which offers a rated power of 7kW and an optional Kubota D722 engine with 10.2kW for enhanced performance. The air - cooling heat dissipation mode ensures the engine operates reliably even under heavy loads.

With an operating weight of 1200kg, this excavator is lightweight yet stable. The chassis width is 934mm and the track width is 180mm, providing good stability and maneuverability on various terrains. The minimum ground clearance of 197mm allows it to navigate over uneven surfaces without getting stuck easily.

In terms of digging capabilities, the WK12 has a digging bucket capacity of 0.018m³ and a bucket width of 400mm, making it suitable for small - scale digging tasks. It can reach a maximum digging height of 2283mm, a maximum unloading height of 1698mm, a maximum excavation radius of 2507mm, and a maximum digging depth of 1436mm, as well as a vertical digging depth of 1436mm. These specifications enable it to handle a variety of digging and loading operations.

The travel speed of 2.1km/h allows for relatively quick movement around the job site. The turning speed of 3000rpm ensures agile maneuvering in tight spaces, with a minimum radius of turn of 1371mm. It can climb slopes with a maximum angle of 15°, expanding its application range to some hilly areas. The working pressure of the hydraulic system is 16MPa, providing sufficient power for the digging and other operations.

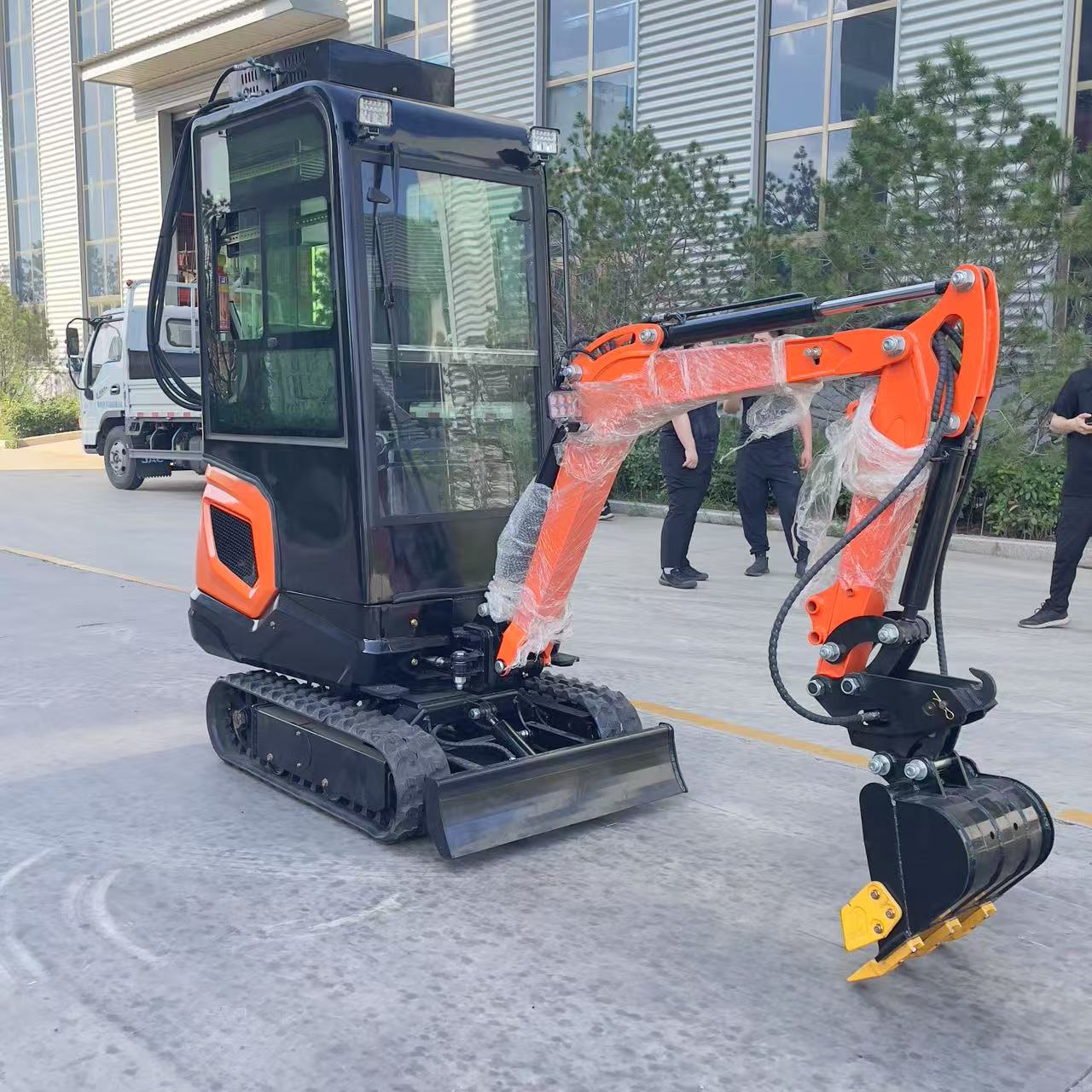

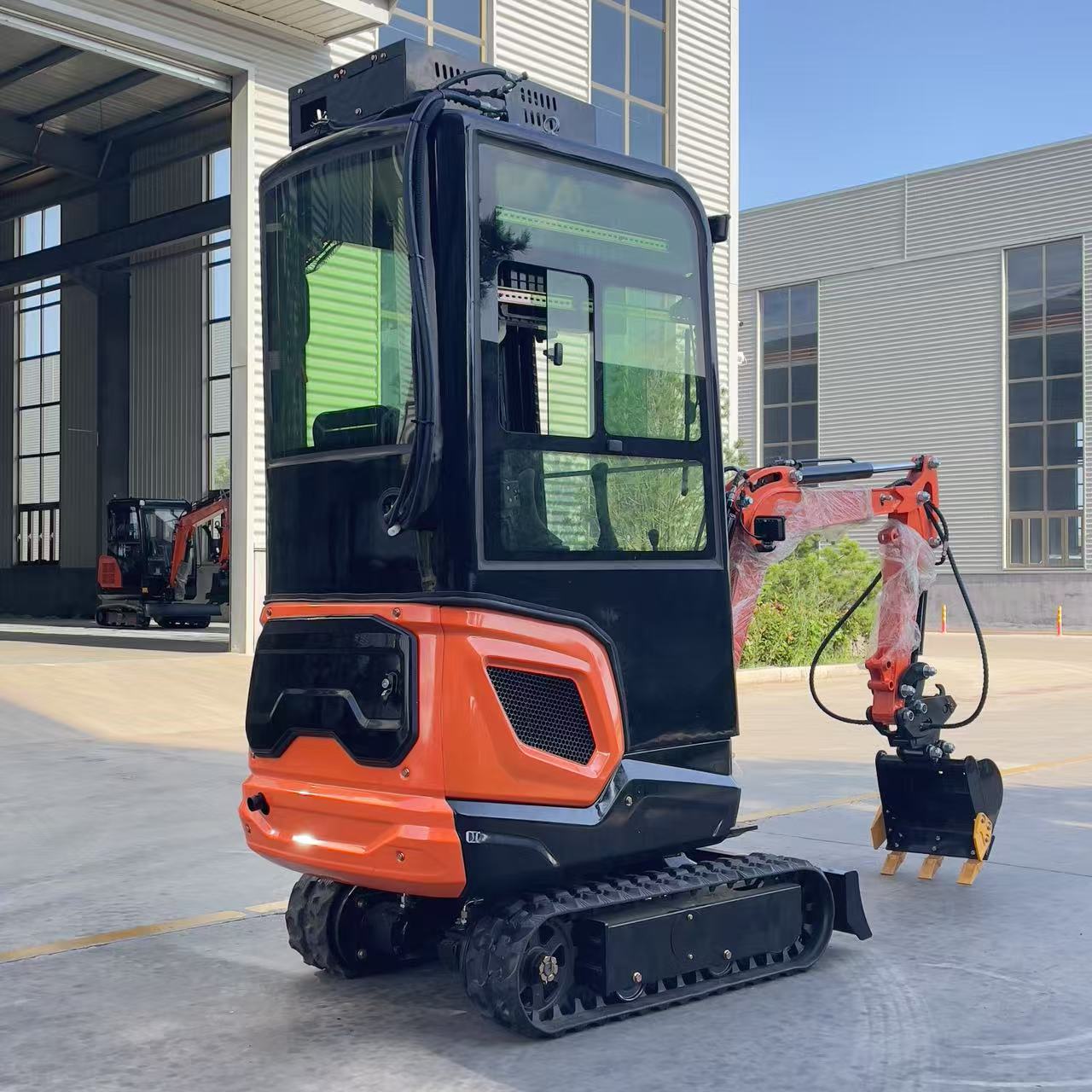

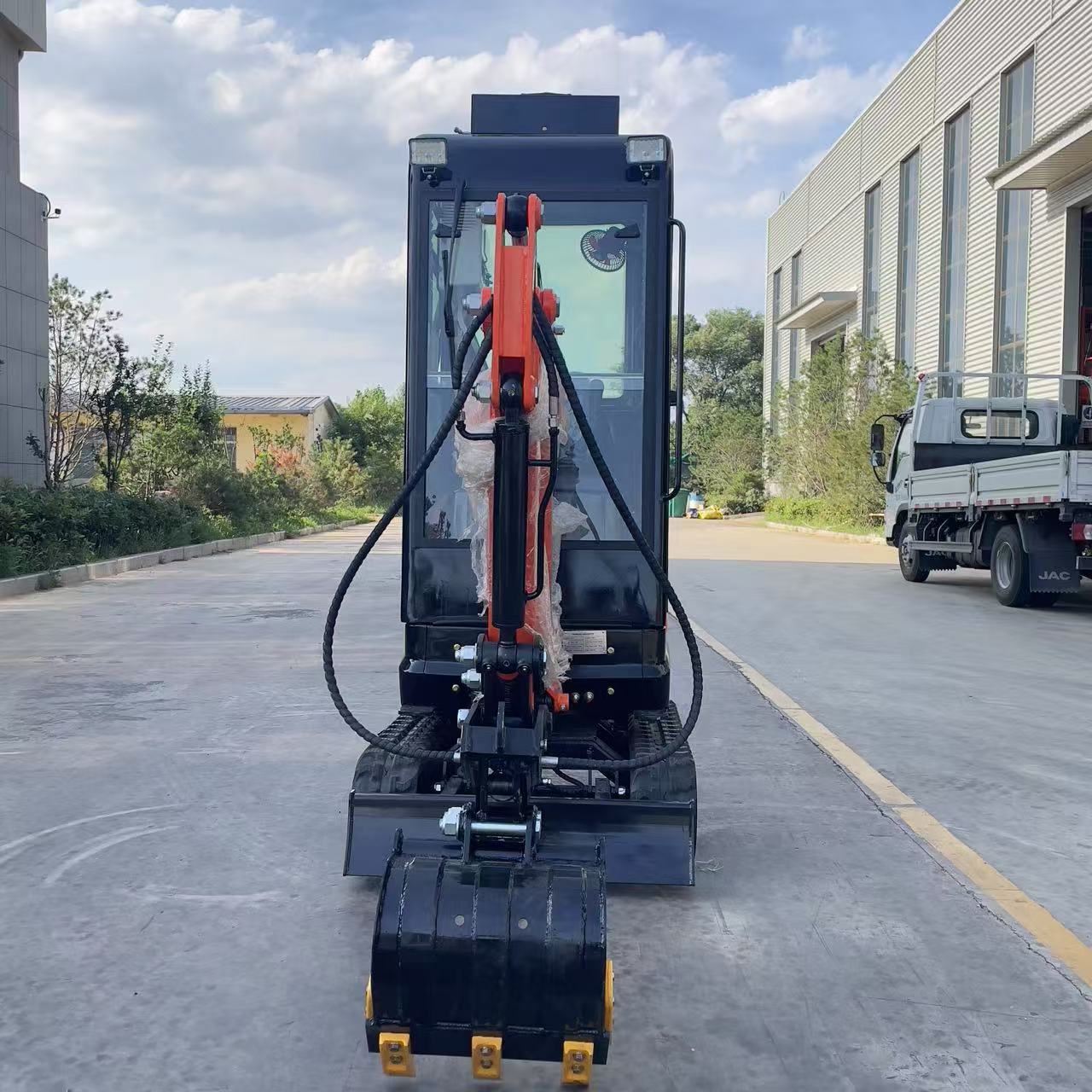

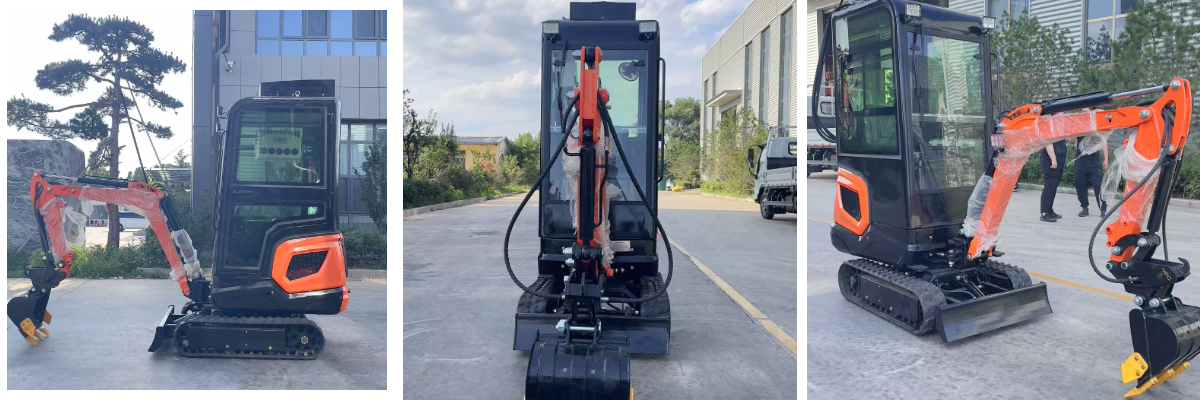

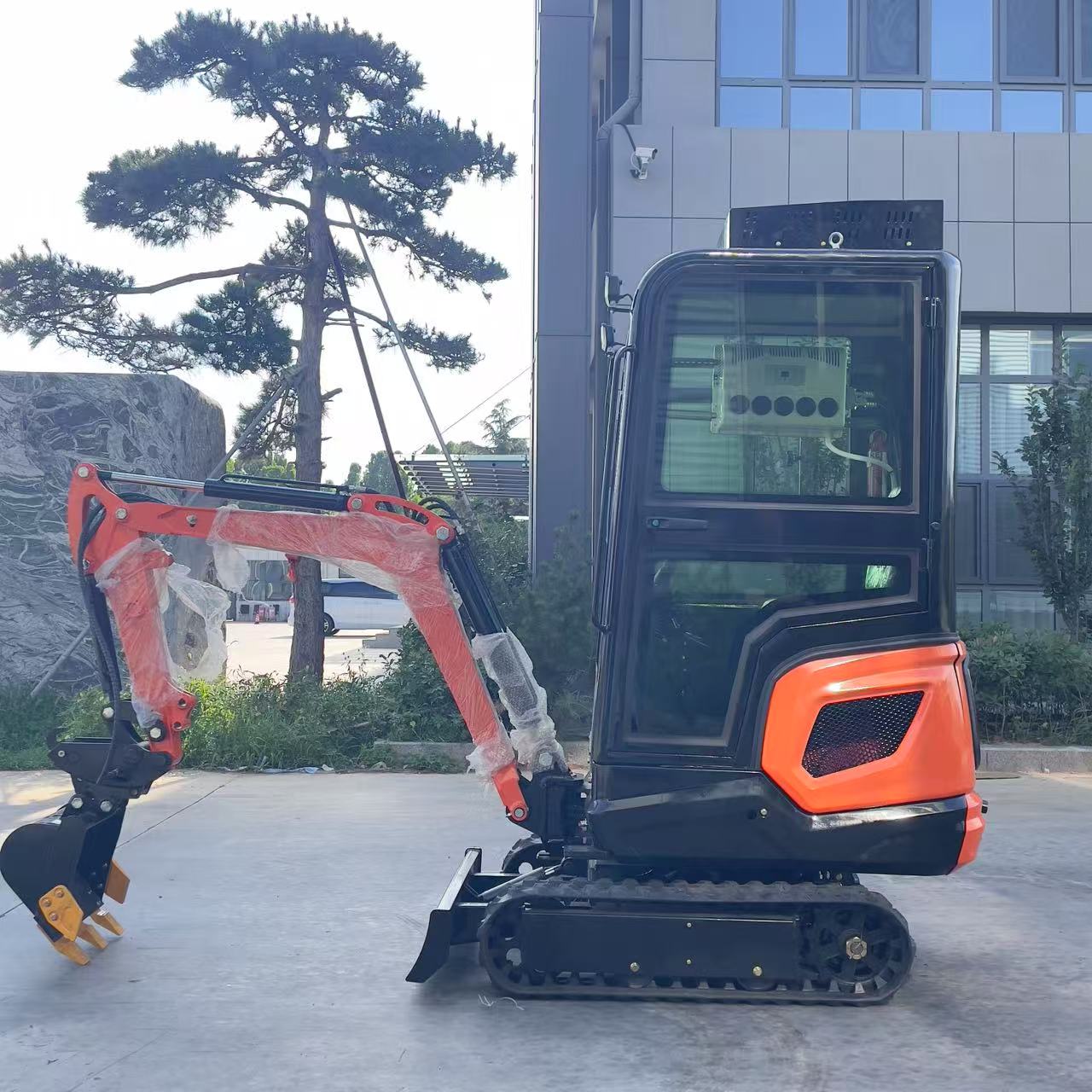

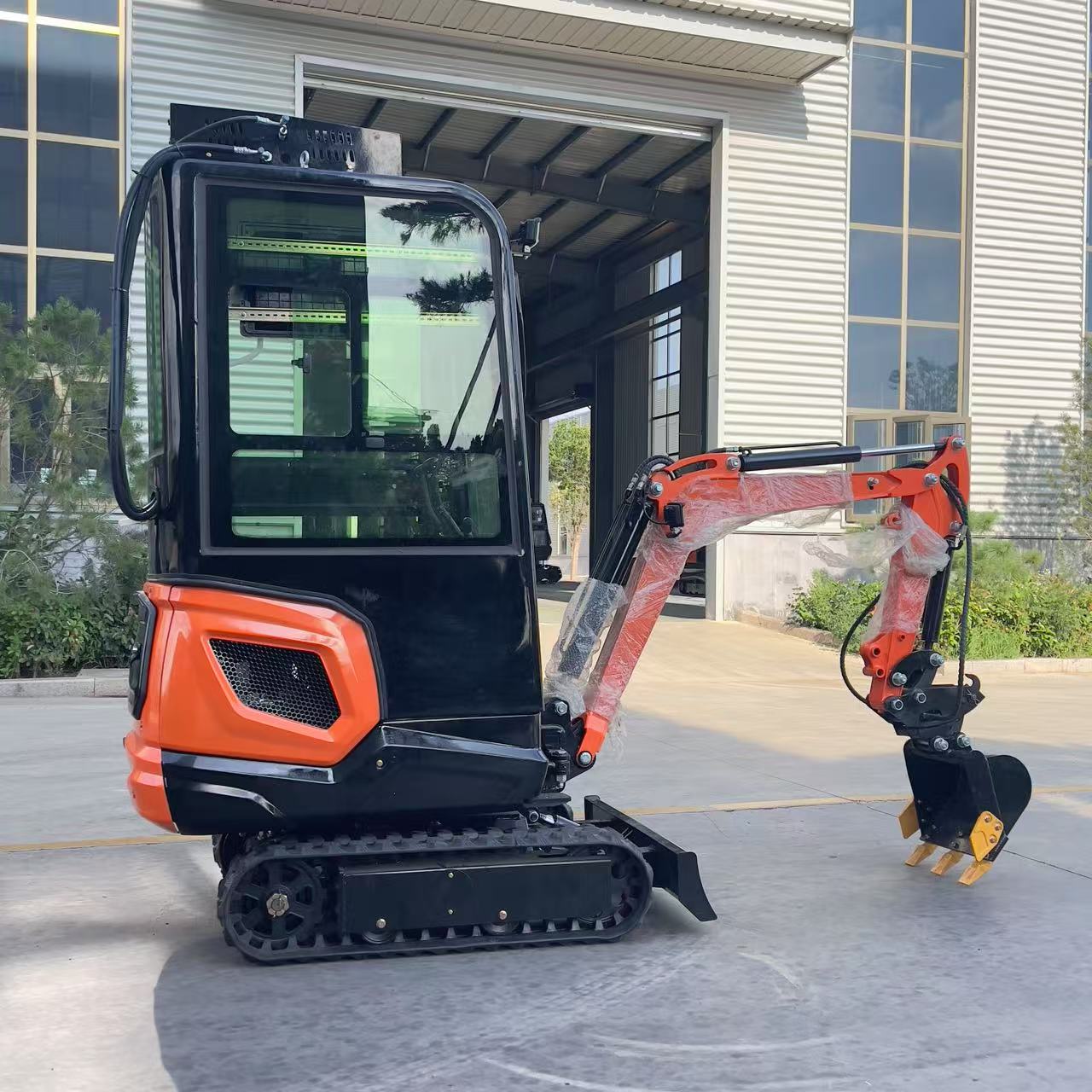

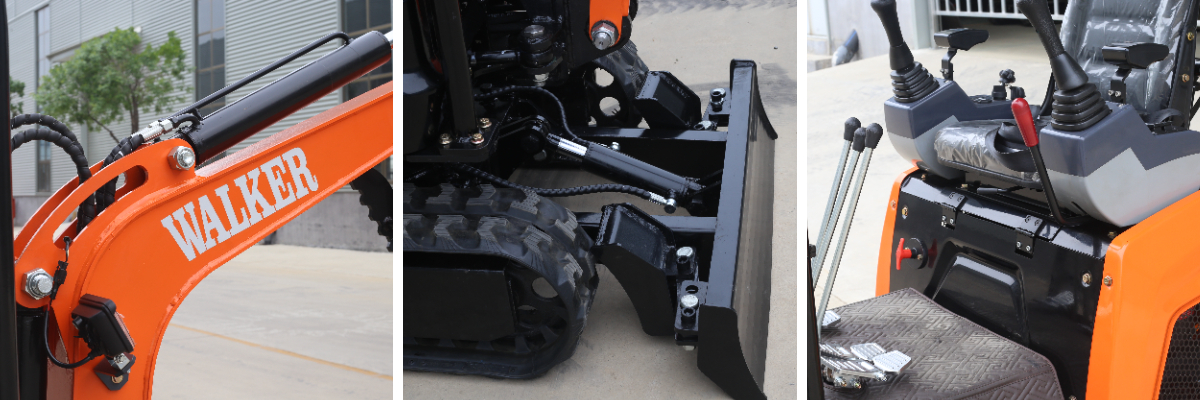

Moreover, the WK12 offers optional features such as a swing boom, telescopic tracks, and an enclosed cabin. The swing boom enhances the flexibility of the excavator's operations, allowing it to reach areas that are otherwise difficult to access. Telescopic tracks improve the adaptability to different ground conditions, and the enclosed cabin provides a more comfortable and safe operating environment for the operator, especially in harsh weather conditions.

In conclusion, the WK12 1.2 - ton excavator is a reliable and efficient machine that combines compact size, powerful performance, and a range of useful features, making it an ideal choice for small construction projects, landscaping, and other similar applications.
