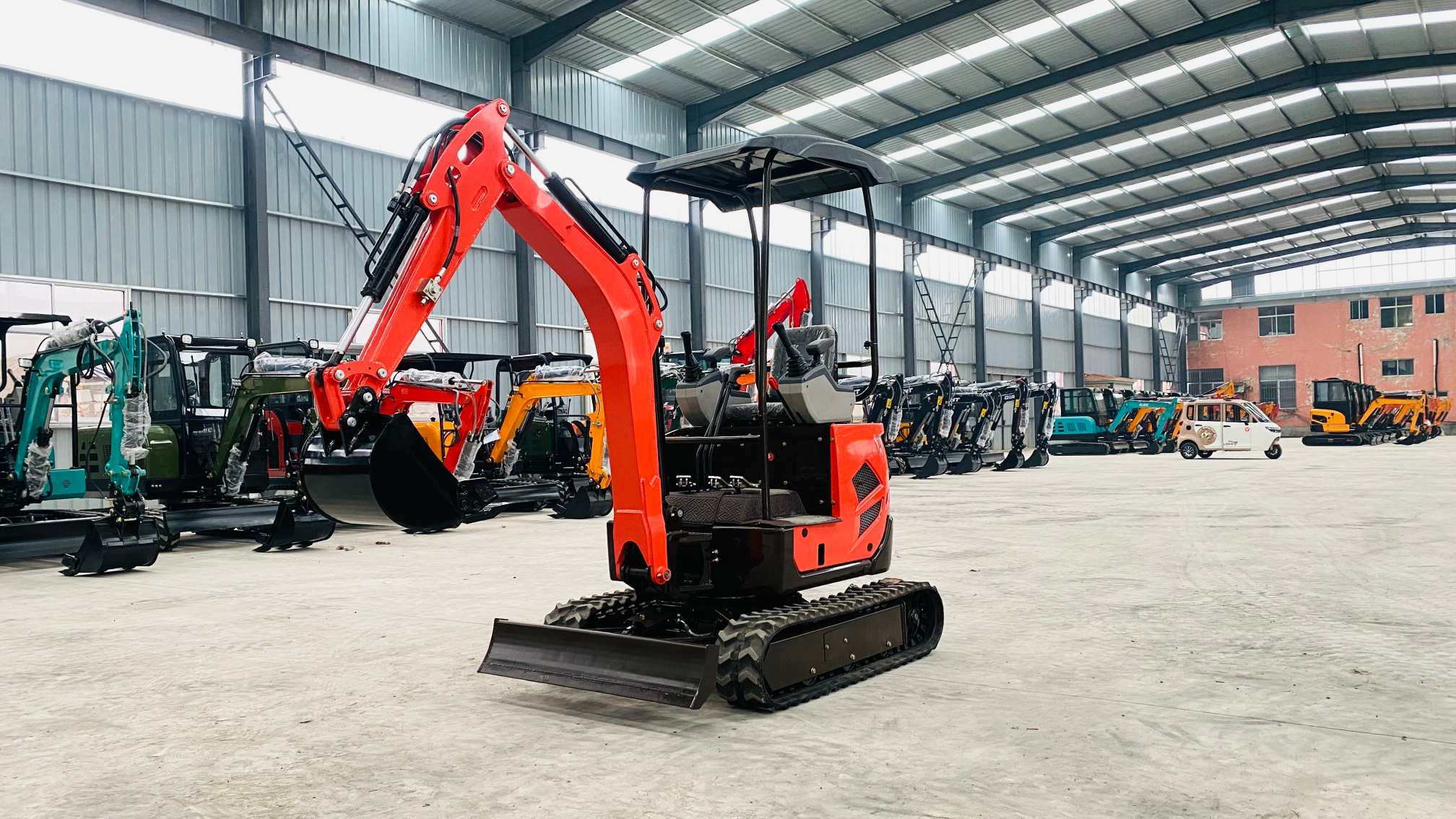

1.8 Ton Mini Excavator
Engine:
Powered by renowned engines from Briggs & Stratton, Kubota, and Laidong, all meeting EPA and Euro5 emission standards for superior performance and Eco-compliance.
Standard Features:
Standard with swing boom feature enhances maneuverability.
Durable Design:
Features an upgraded, more powerful design with a one-piece cast iron construction, built on a foundation of excellent quality.
Luxury Cabin :
The driver's seat is designed with ergonomics in mind, offering a luxurious and comfortable operating cabin for enhanced productivity.
Zero Tail Design:
The zero tail design ensures safer operation and greater convenience in tight spaces.
Optional Cabin:
Optional cabin, extendable chassis, high or low speed, and air conditioning, heating for improved comfort and efficiency.

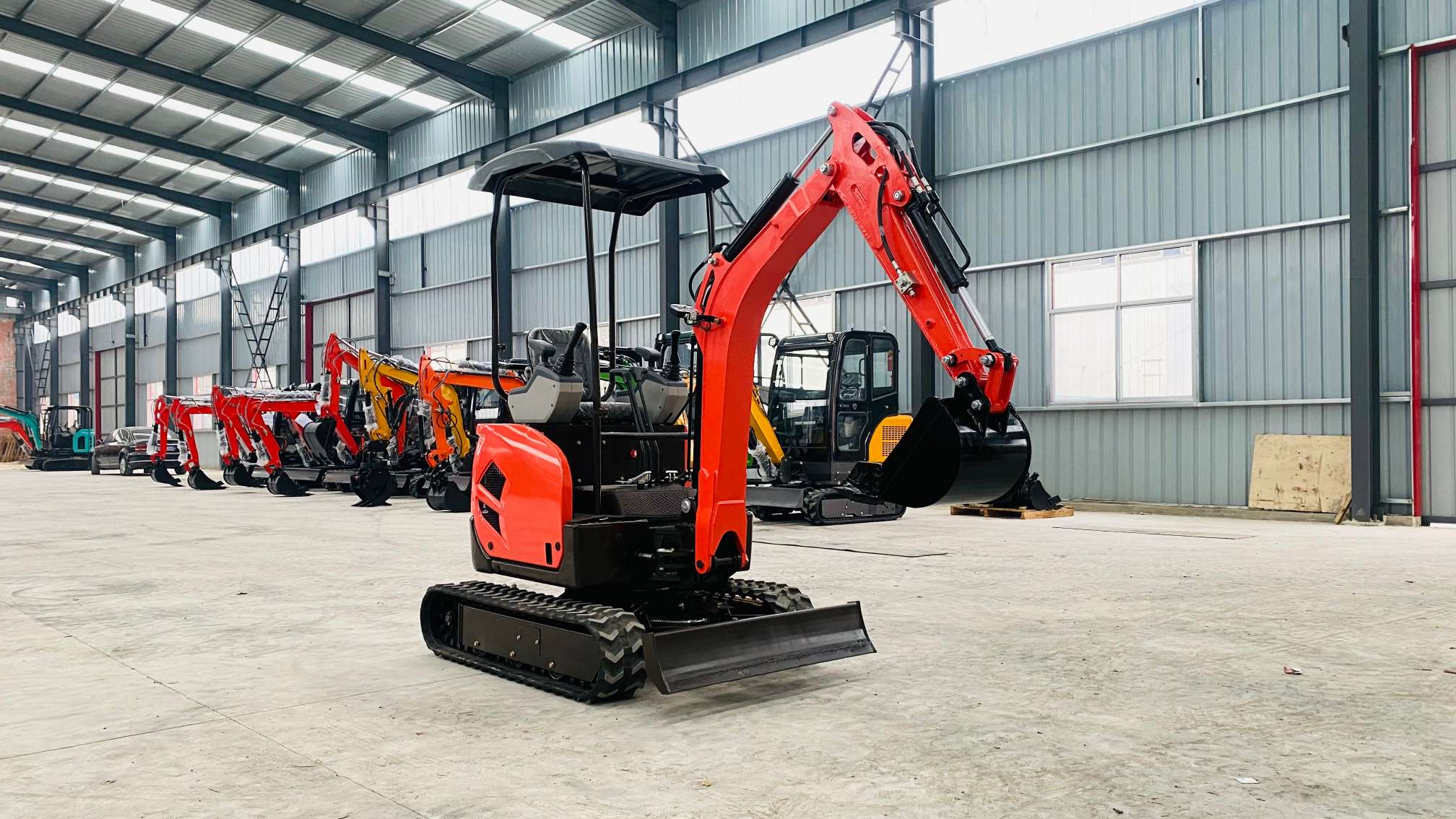

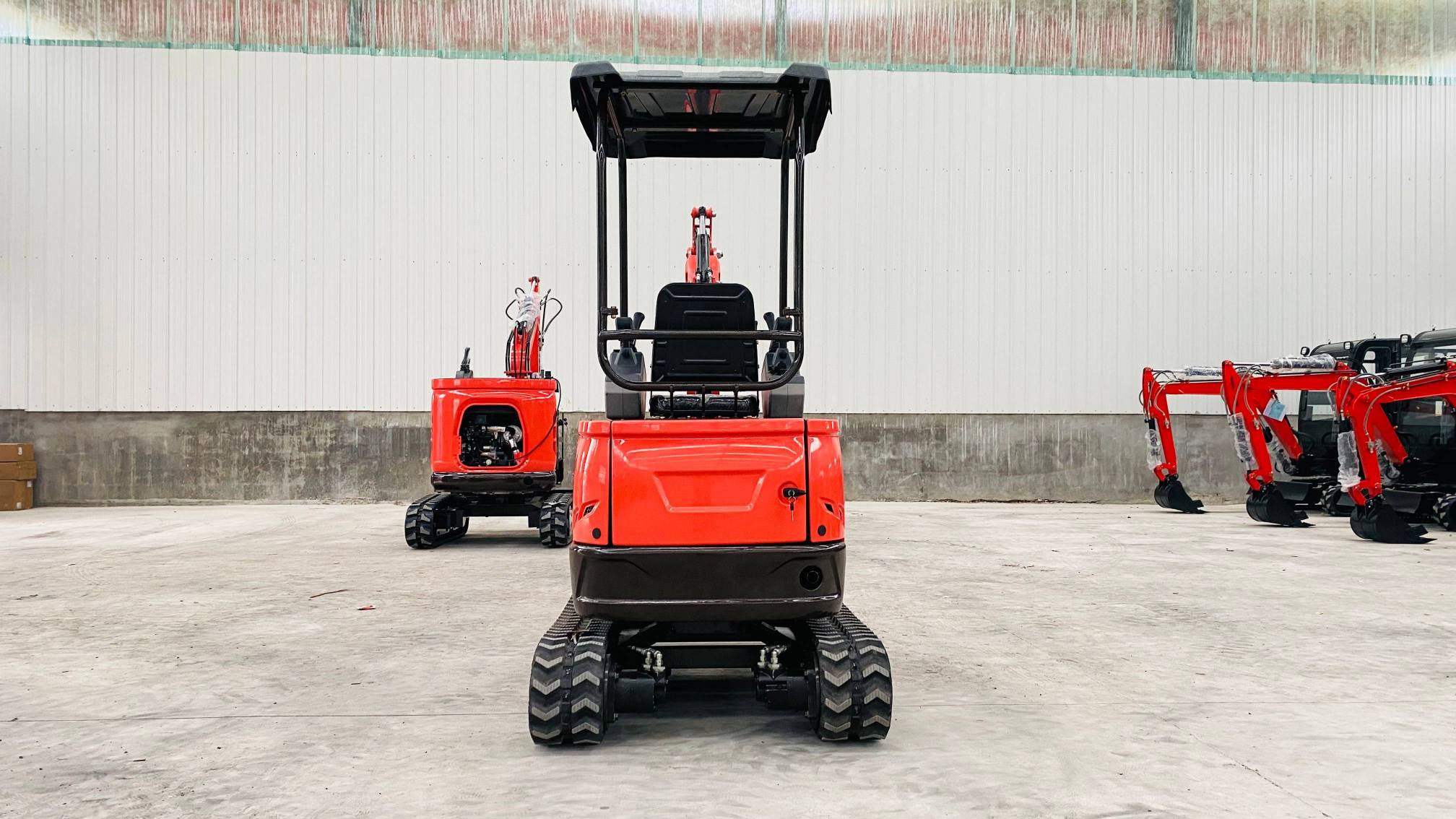

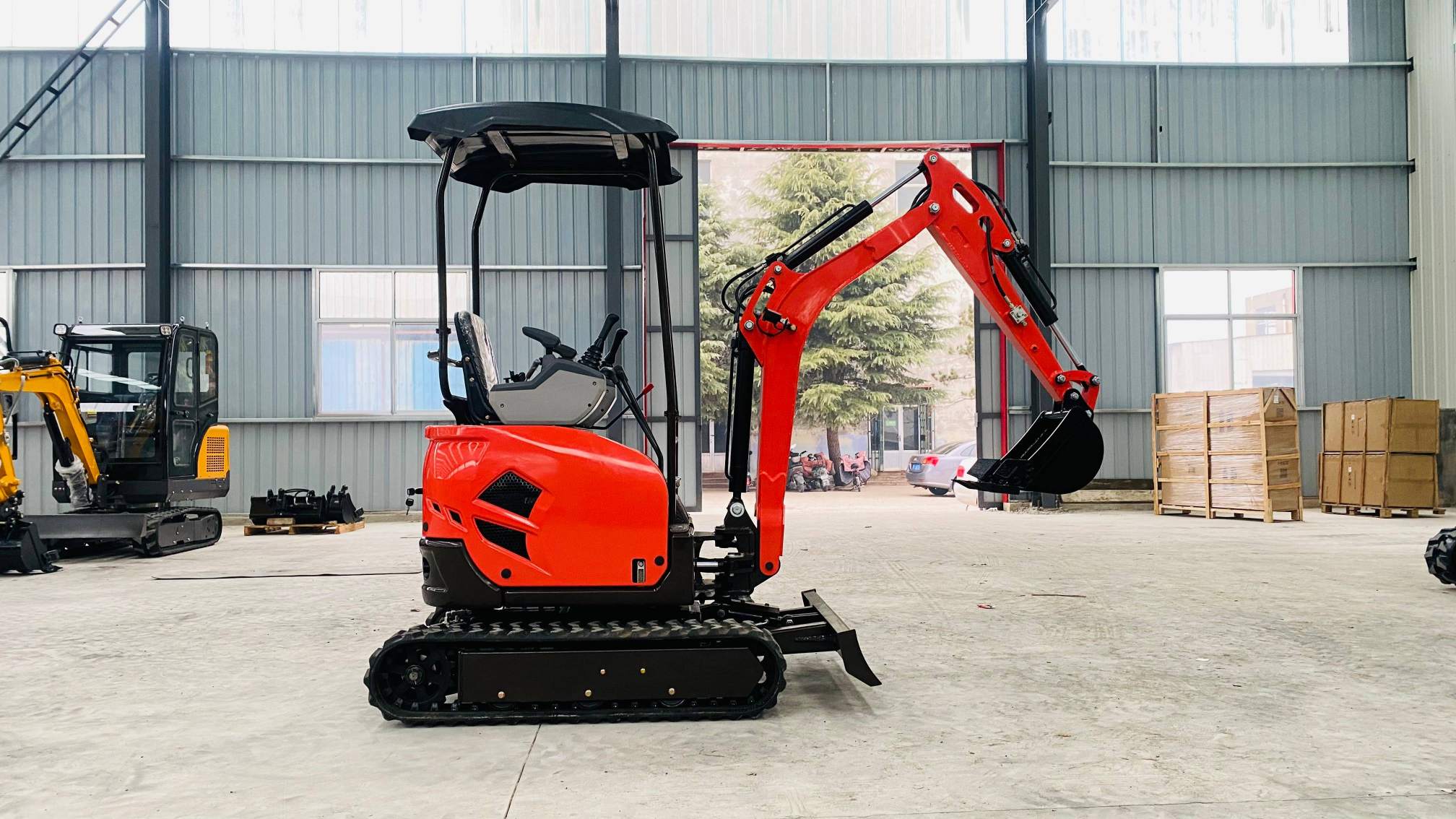

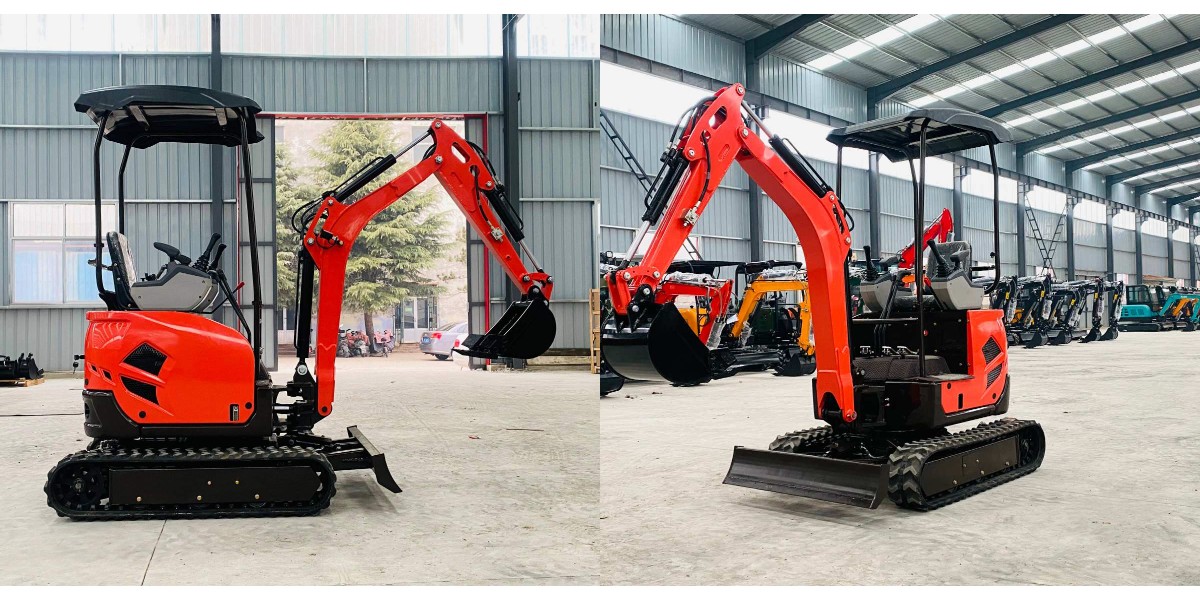

Product show
Machine parameters
Model | WK18 |
Operating weight | 1800kg |
Digging bucket capacity | 0.04m³ |
Bucket width | 400mm |
Engine | Laidong 385(Euro 5) |
Rated power | 18.1kw |
Optional engine | Kubota D722,kubota D902 |
Travel speed | 2.1km/h |
Track length | 934mm |
Track width | 230mm |
Minimum ground clearance | 380mm |
Maximum digging height | 2900mm |
Maximum dumping height | 1780mm |
Maximum excavation radius | 2507mm |
Maximum digging depth | 2200mm |
Bulldozer Maximum Depth | 325mm |
Minimum radius of tum | 3500mm |
Angle of roll | 45° |
Swing Angle | 360° |
Working pressure | 18MPa |
Standard | Swing boom ,upper arm |
Optional | Telescopic tracks,Enclosed cabin |
Product Details

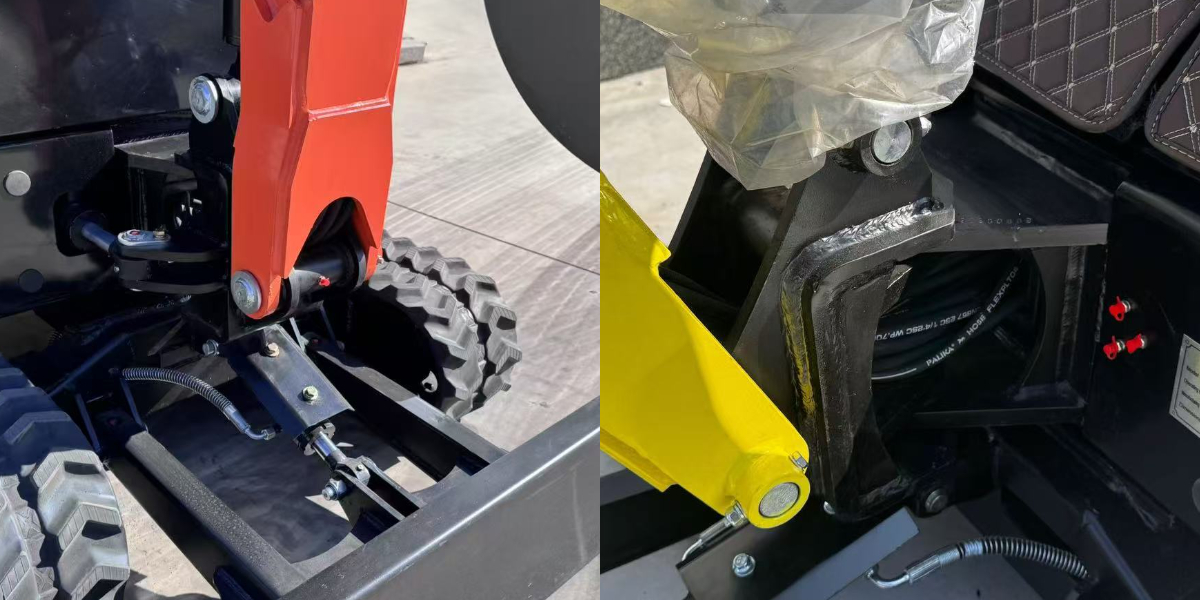

Swing boom

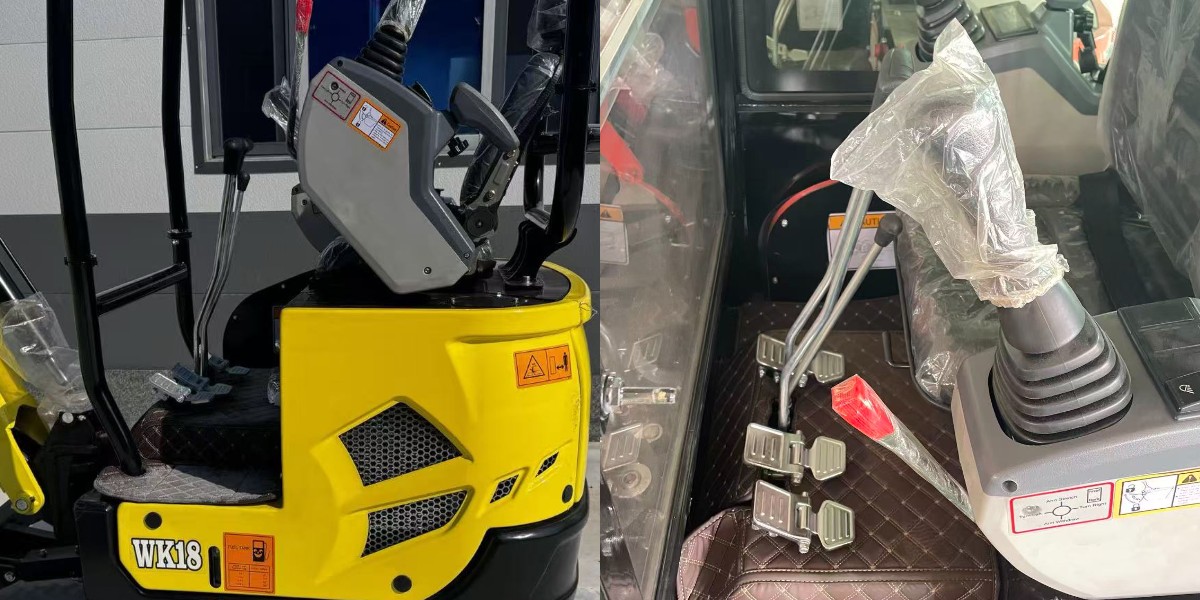

Hydraulic pilot

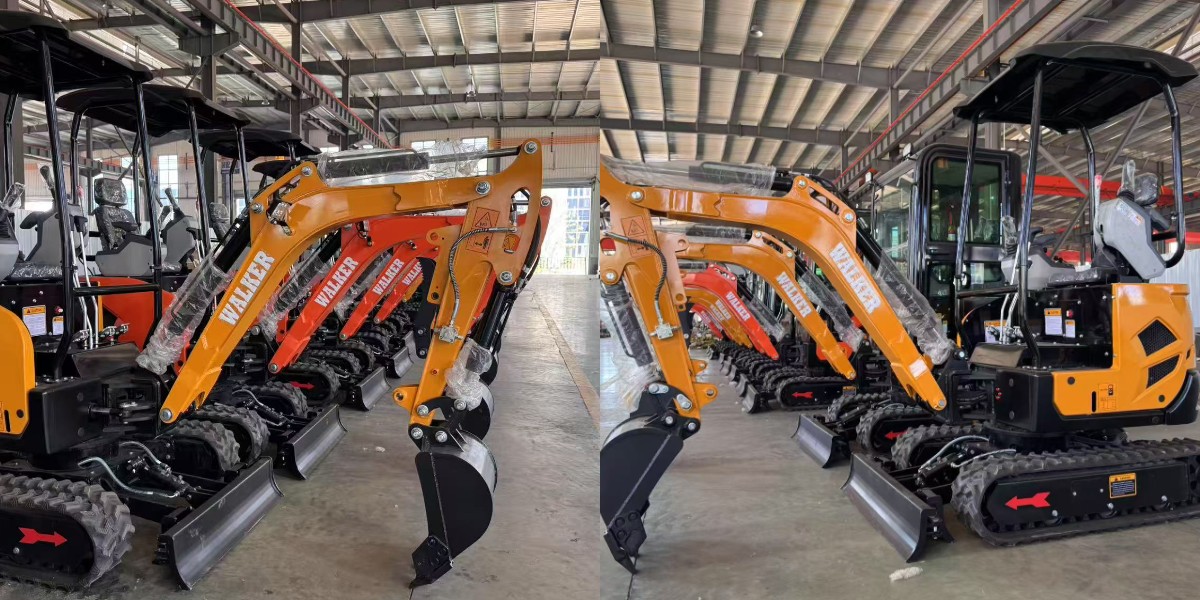

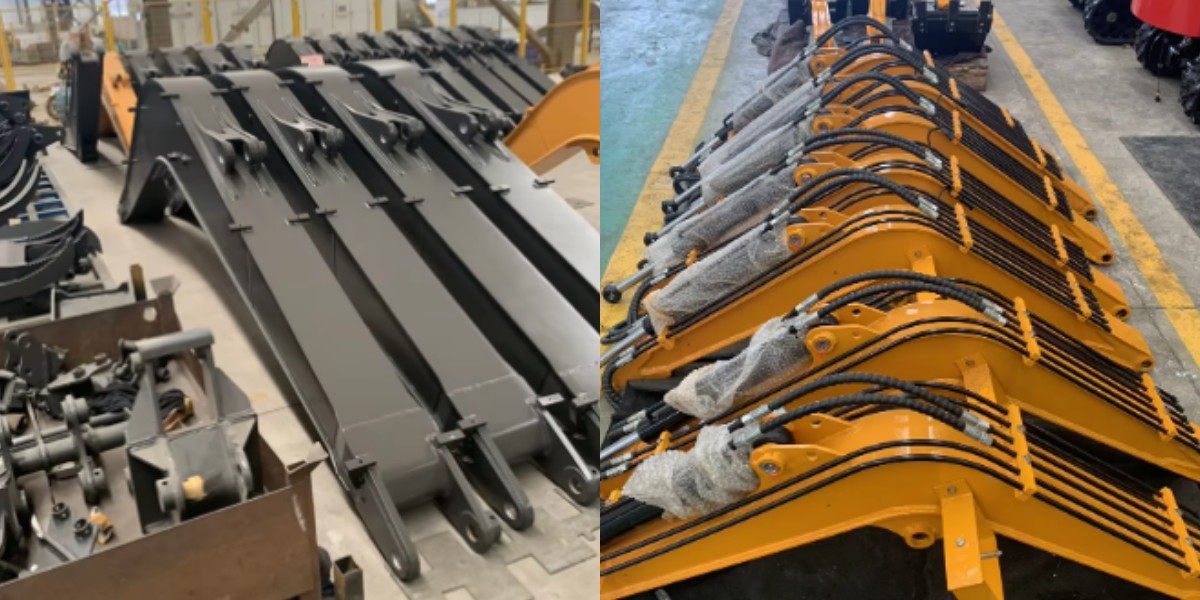

Workshop Display
