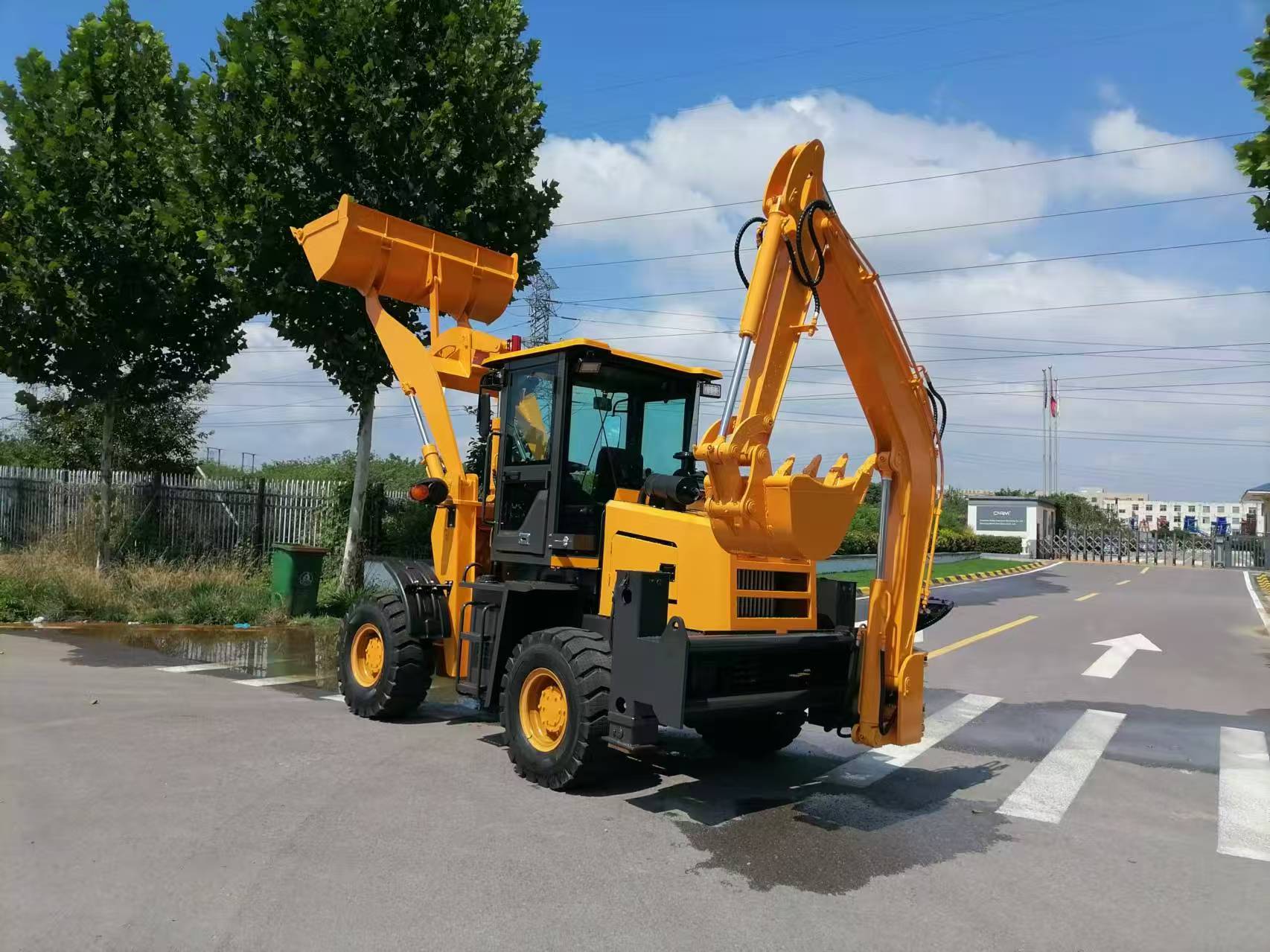

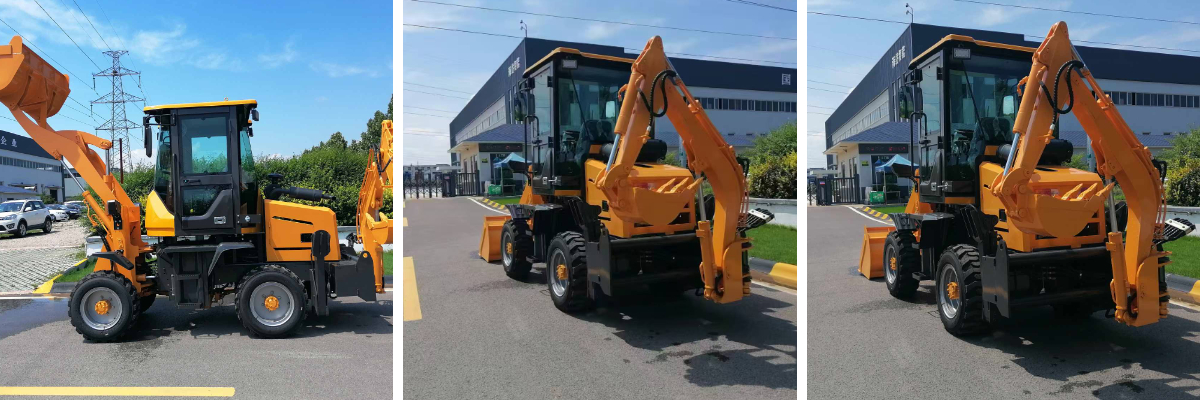

2.5 Tonne Backhoe Loader

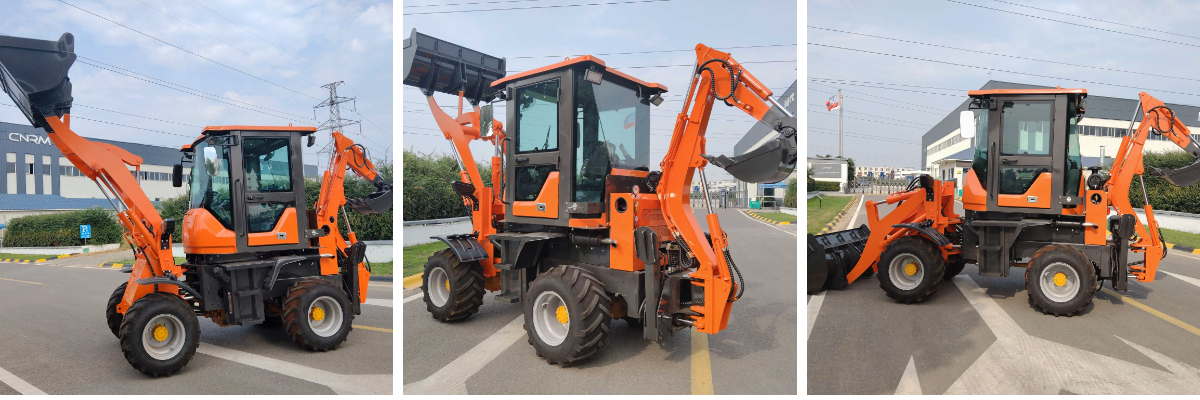

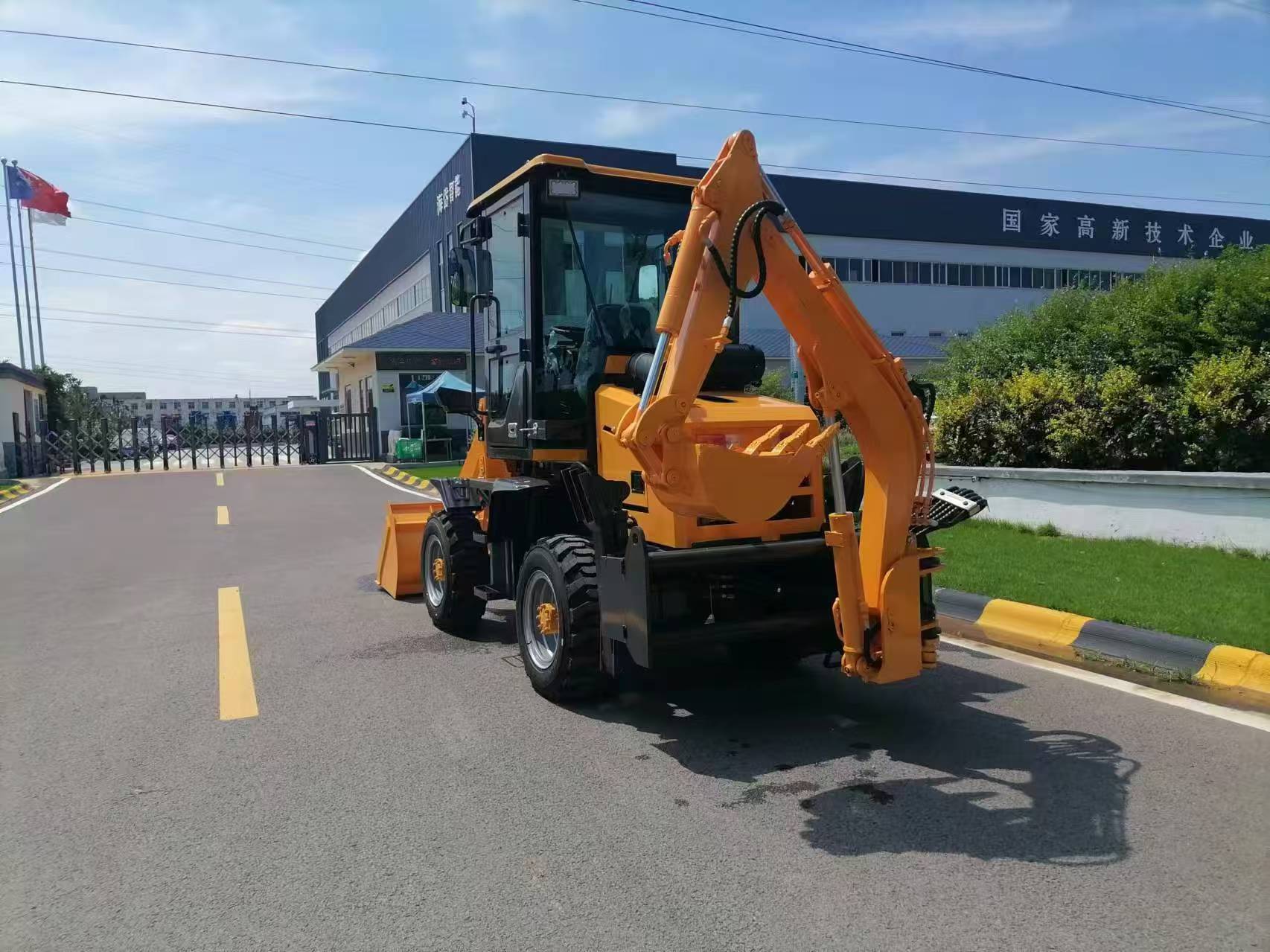

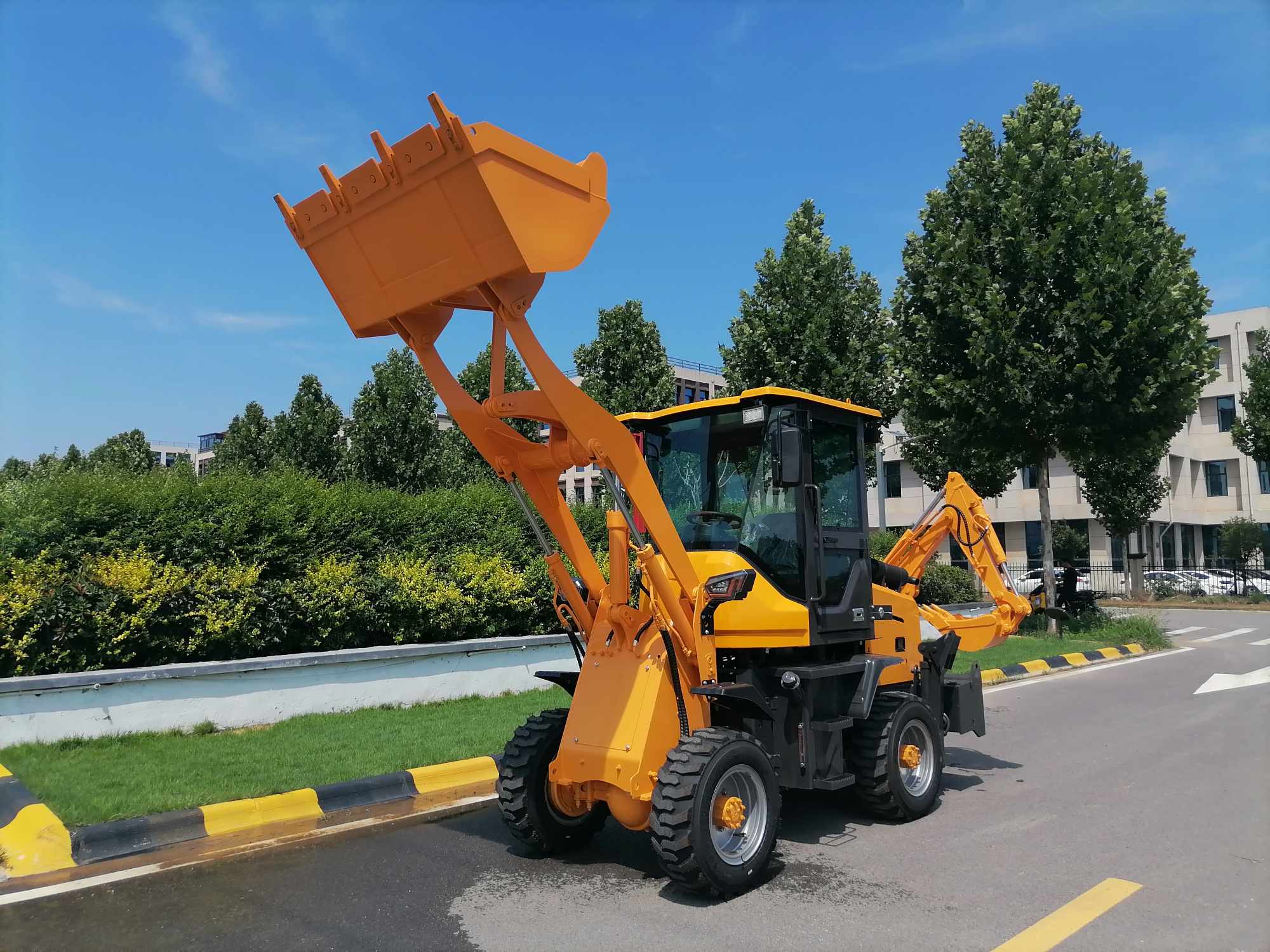

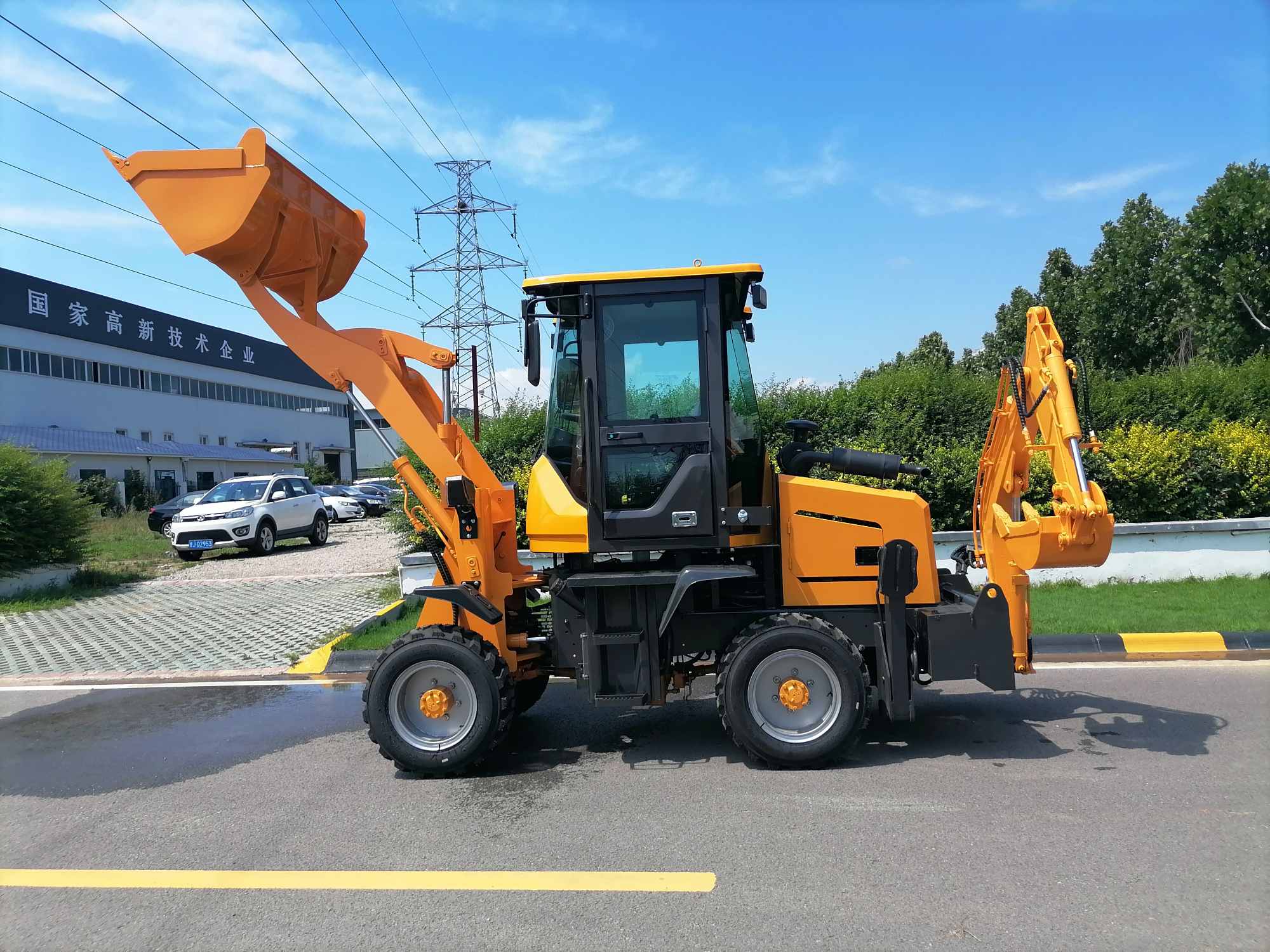

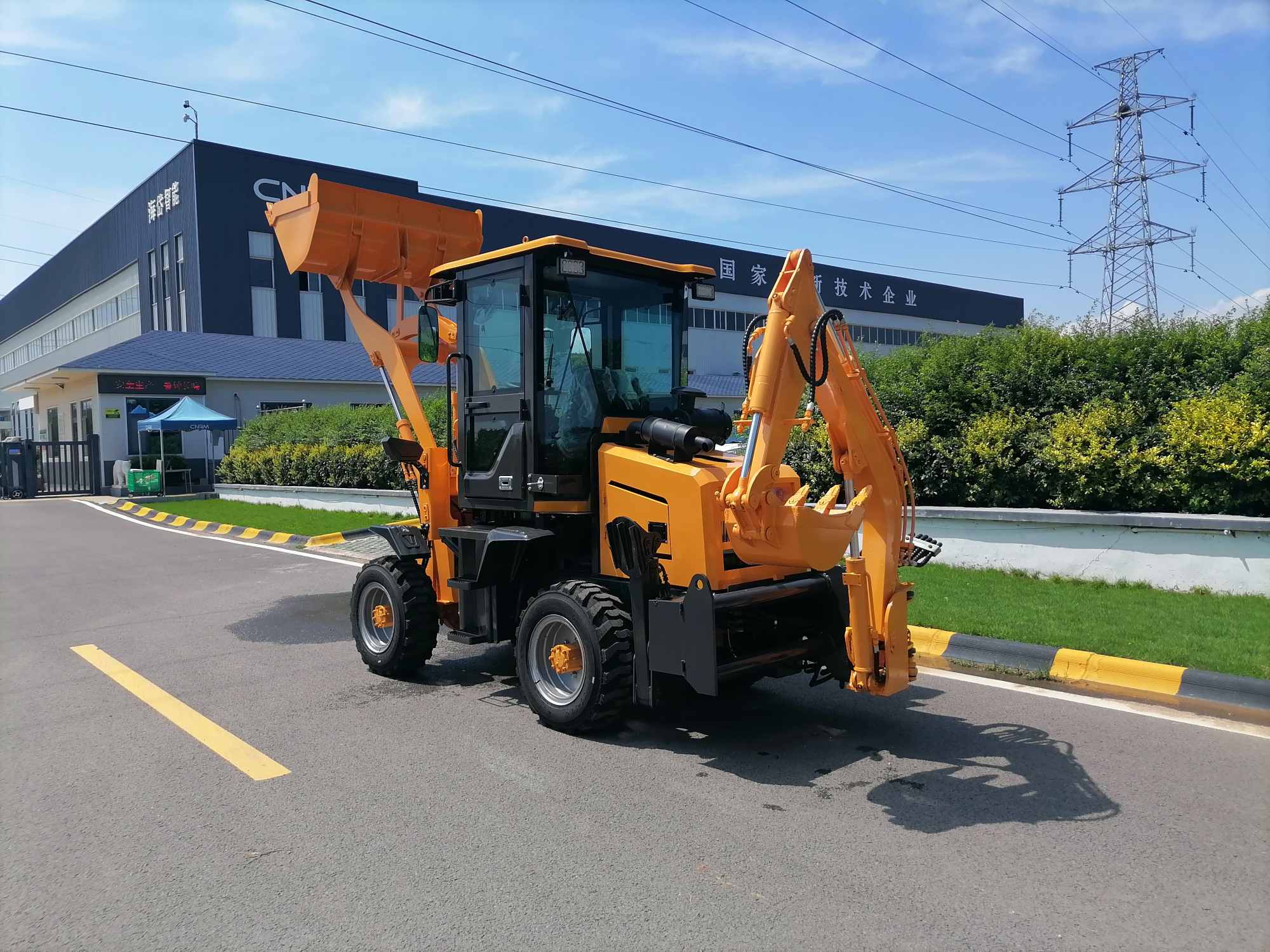

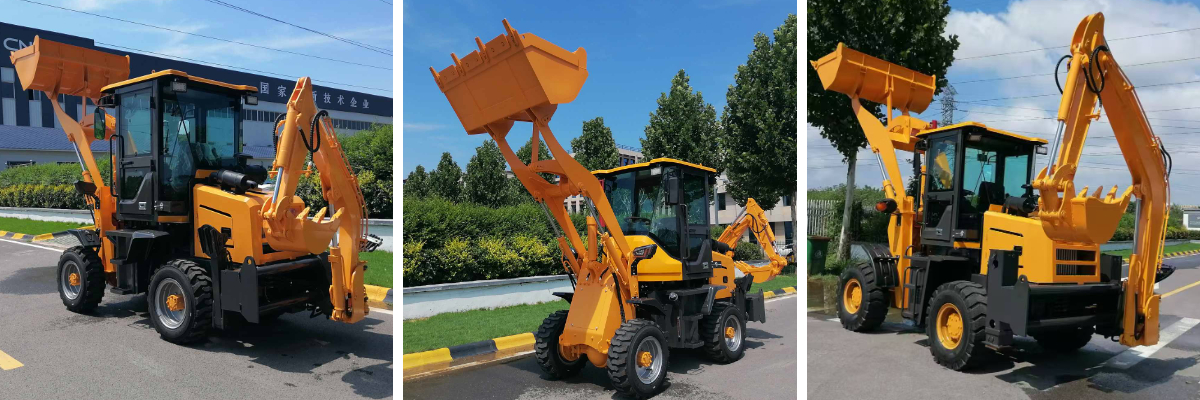

This 2.5-ton backhoe loader, with its excellent performance, flexible operation, and wide adaptability, has become a capable assistant in the field of small and medium-sized engineering. Whether it is for municipal construction, agricultural development, or small infrastructure projects, it can meet diverse needs with efficient and stable performance.

In terms of core power, it is equipped with a 490-model four-stroke engine, featuring 4 cylinders with a bore of 90mm. At a rated speed of 2400r/min, it can output a rated power of 37KW, with sufficient power reserve to handle various complex working conditions. Meanwhile, its transmission system adopts hydraulic transmission, equipped with a ZL28F torque converter and a fixed-shaft power shift gearbox, featuring 2 forward gears and 2 reverse gears. The gear shifting is smooth, and power transmission is efficient, ensuring the equipment's power output and operational efficiency in different working scenarios.

In terms of operational performance, this backhoe loader demonstrates strong capabilities. The excavation end can reach a maximum digging depth of 1500mm, a maximum digging height of 2600mm, a maximum digging radius of 2000mm, and a maximum digging force of 25KN. Combined with a bucket capacity of 0.08m³, it can easily handle various excavation operations. The loading end has a loading bucket width of 1300mm and a capacity of 0.4m³, with a maximum loading lift height of 3000mm and a maximum breakout force of 28KN, enabling efficient loading and handling of materials. The hydraulic system pressure is 16MPa, ensuring that actions such as digging, lifting, and swinging are responsive and precisely controllable, shortening the operation cycle and increasing the workload per unit time.

In terms of working range, its parameters are equally impressive. The excavation unloading height is 1500mm, the maximum unloading height is 2200mm, and the maximum unloading distance is 800mm, which can meet the material unloading needs at different heights and distances. The boom can realize 180° rotation, facilitating operations at different angles and improving the flexibility and convenience of the work.

The passability and stability of the equipment are also trustworthy. With an overall weight of 2500Kg, it adopts articulated full-hydraulic steering with a steering angle of 33° and a minimum turning radius of 3000mm, allowing flexible turning and easy operation in narrow spaces. It is equipped with 130 Bell tires of 825-16 specification, with both front and rear tire pressures at 250KPa, providing good grip and stability. The maximum driving speed is 20Km/h, and the maximum climbing ability is 25°, enabling it to adapt to driving and operation on various complex terrains. The minimum ground clearance of 250mm effectively avoids collisions between the chassis and ground protrusions, protecting core components.

In terms of detailed design, the equipment balances practicality and durability. It adopts an oil-brake drum-type service brake and a manual parking brake, with a braking distance of 3000mm. The reliable braking effect ensures safety during operation and driving. The 20L fuel tank and 20L hydraulic oil tank capacity meet the needs of long-term continuous operations, reducing the number of shutdowns for refueling.

In addition, the overall dimensions of the machine are 5100mm×1350mm×2580mm, with a wheelbase of 1910mm and a track width of 1100mm. Its compact size facilitates transportation and operation in narrow spaces. Whether it is for precise digging, efficient loading, or driving on complex terrains, this 2.5-ton backhoe loader can create higher operational value for users with its powerful power output, flexible operation response, and reliable structural design, making it an ideal choice for small and medium-sized engineering construction.
