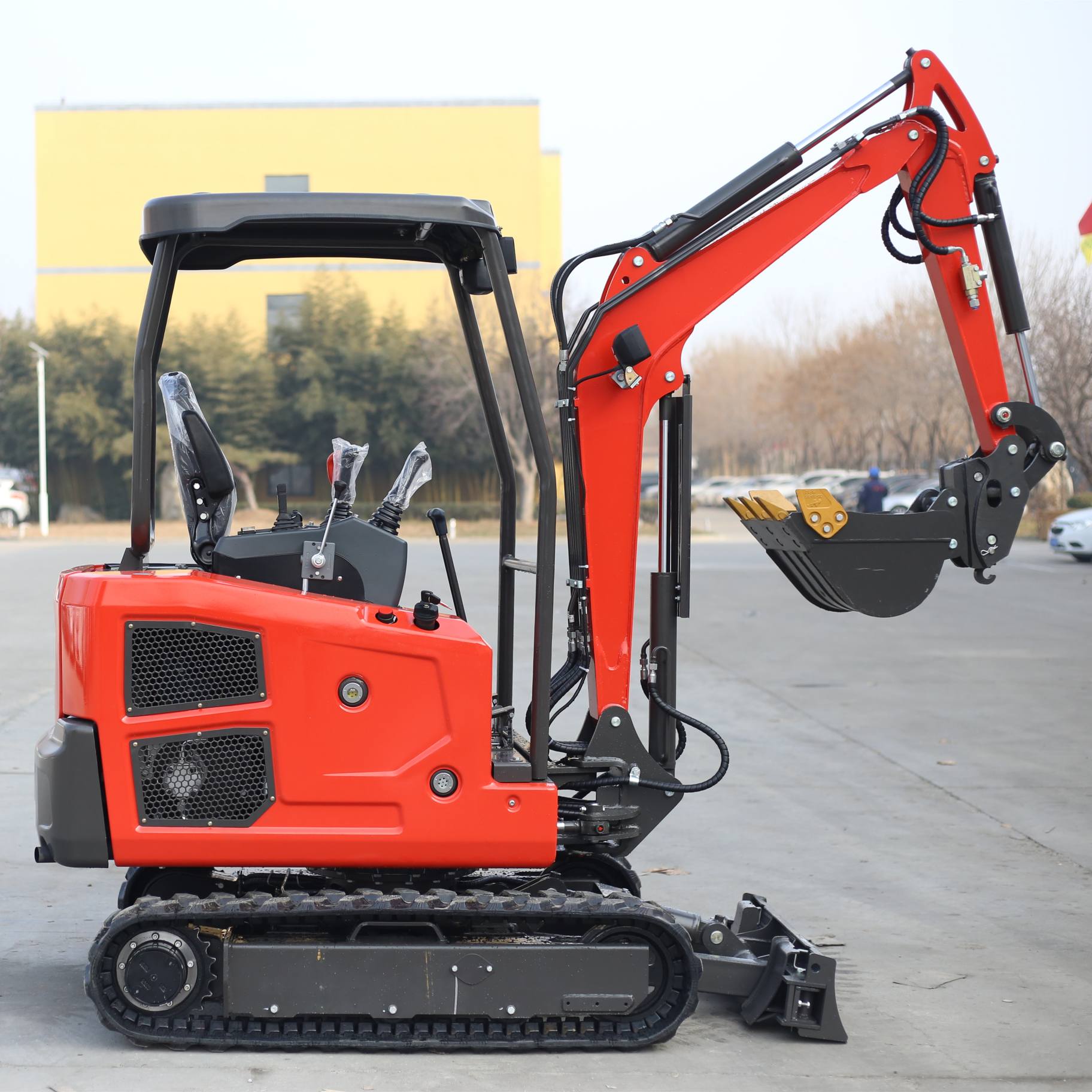

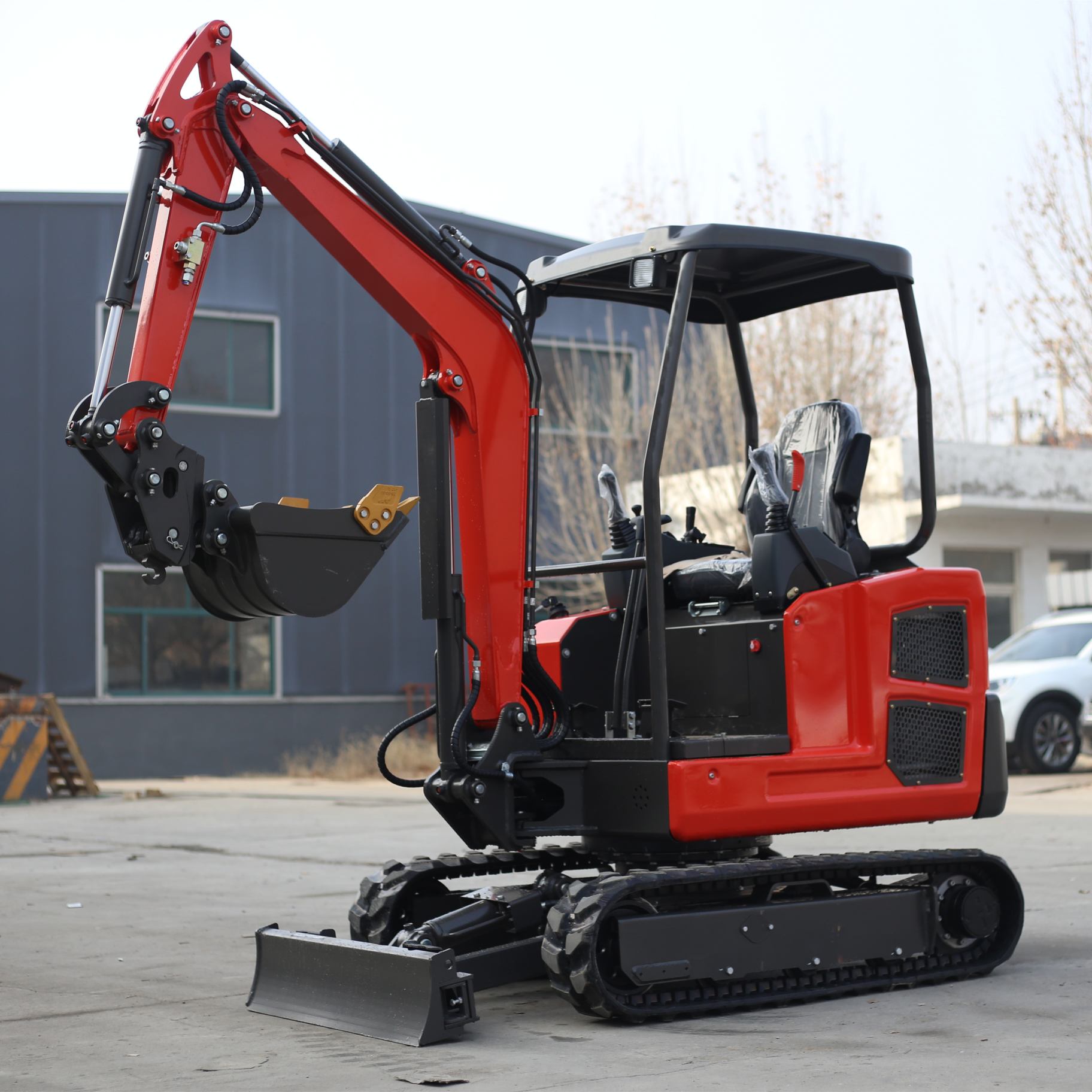

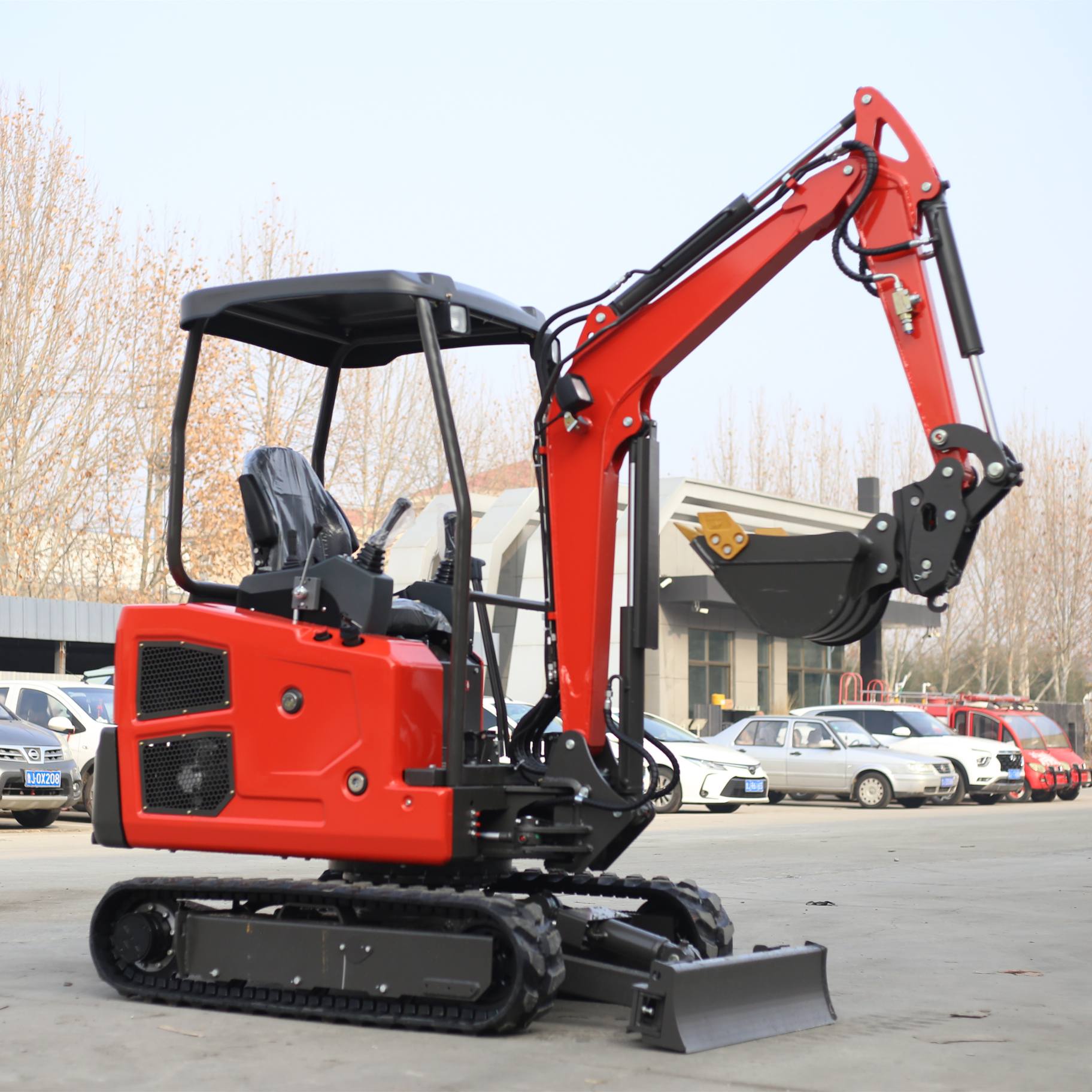

2.5 Ton Mini Excavator
2.5 Ton Mini Excavator
1.Engine: Powered by renowned engines from Kubota, and Laidong, all meeting EPA and Euro5 emission standards for superior performance and Eco-compliance.
2.Standard with swing boom feature enhances maneuverability.
3.Durable Design: Features an upgraded, more powerful design with a one-piece cast iron construction, built on a foundation of excellent quality.
4.Luxury Cabin :The driver's seat is designed with ergonomics in mind, offering a luxurious and comfortable operating cabin for enhanced productivity.
5.The zero tail design ensures safer operation and greater convenience in tight spaces.
6.Optional Cabin,extendable chassis, high or low speed, and air conditioning, heating for improved comfort and efficiency.
Brand new WK25 Mini Digger
compact, powerful, and perfect for landscaping, groundwork, utilities & tight-access jobs.
Product Details

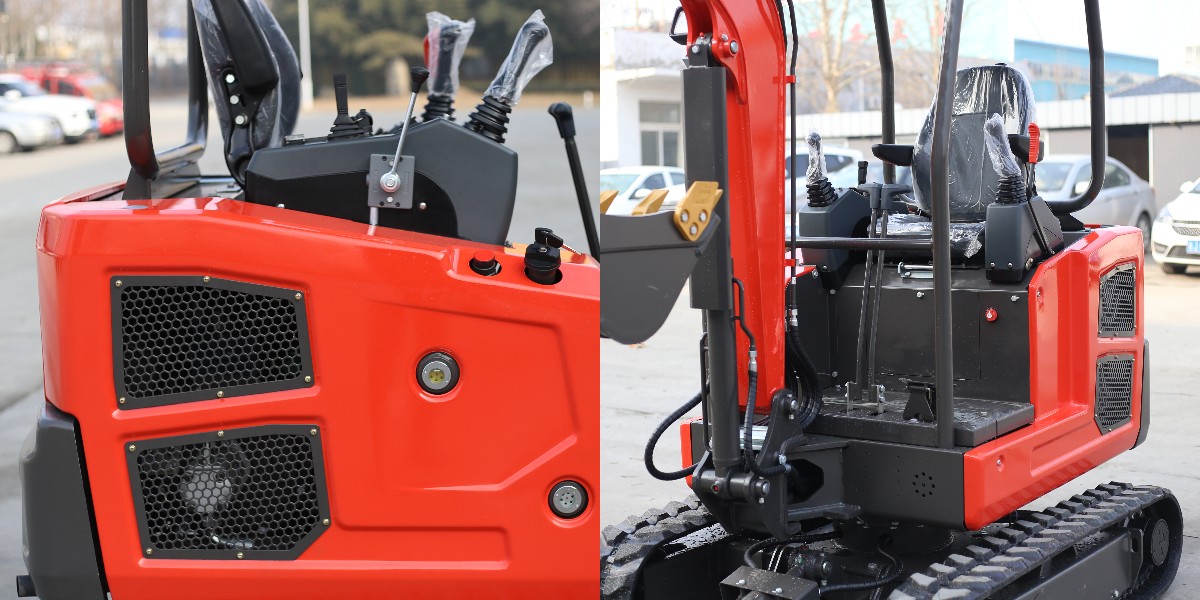

1.Hydraulic pilot on both sides of the seat More convenient operation The action is silky

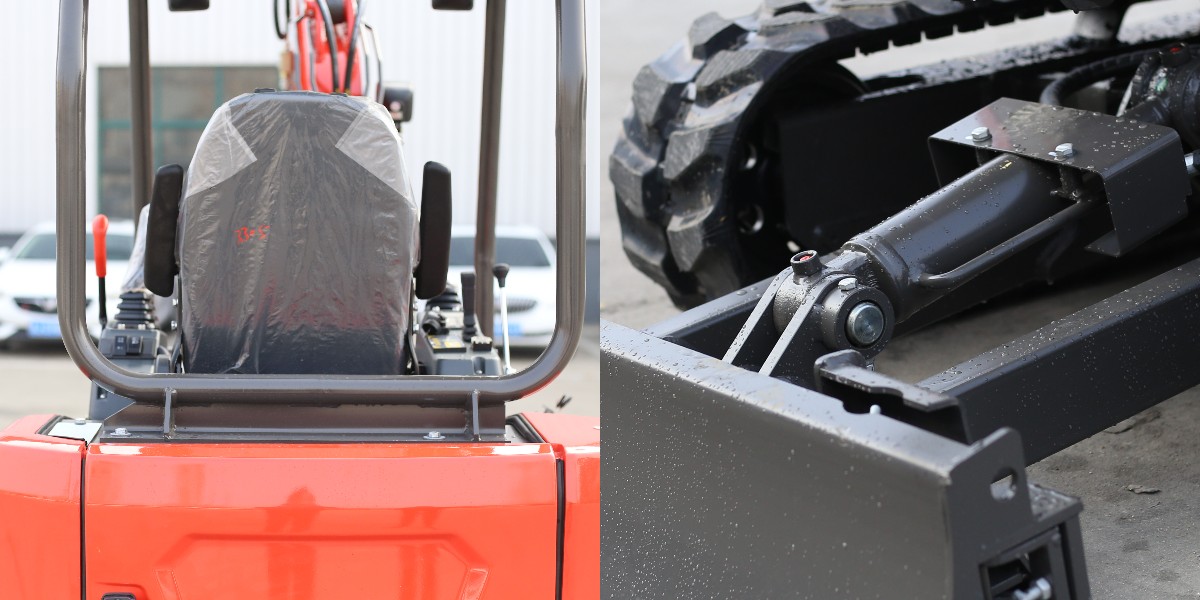

2.Comfortable seat,Levers on both sides of the seat, seat with armrests, LCD screen
![2.5 ton excavator]( "2.5 ton excavator")

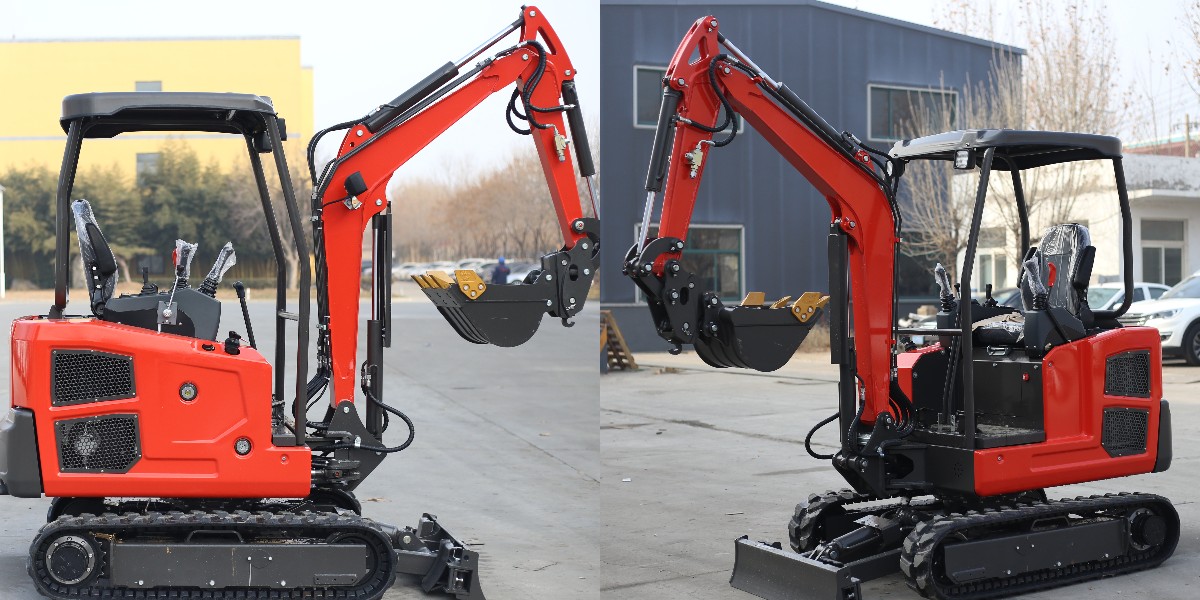

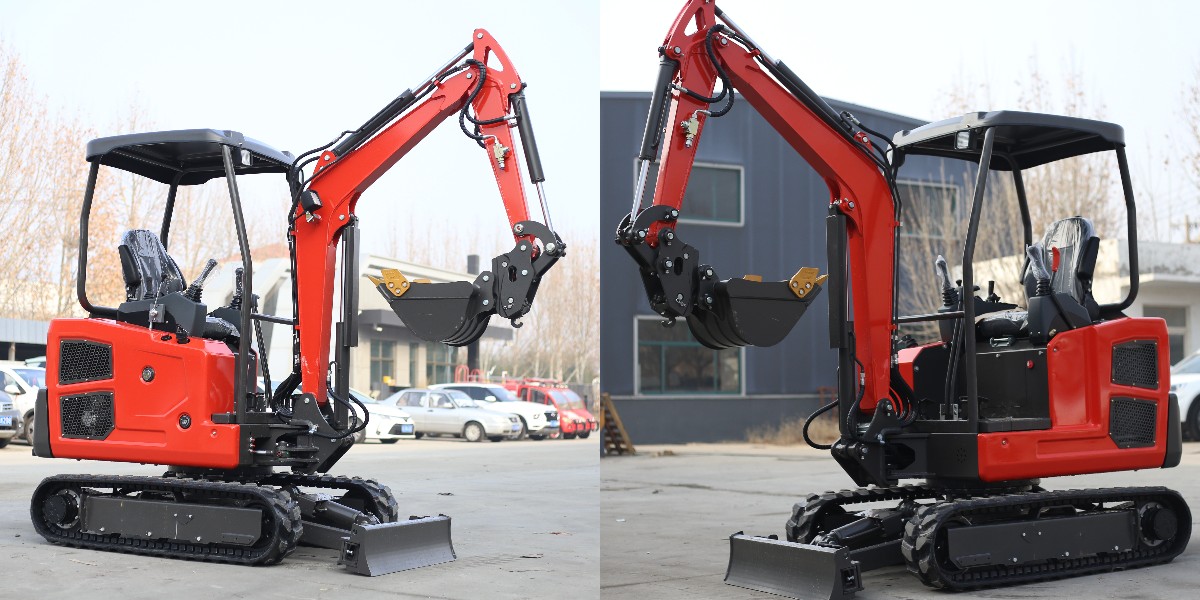

3.Swing boom function is Standard configuration,the big arm can swing to left and right，to have a large operating range.
![2.5 ton excavator]( "2.5 ton excavator")

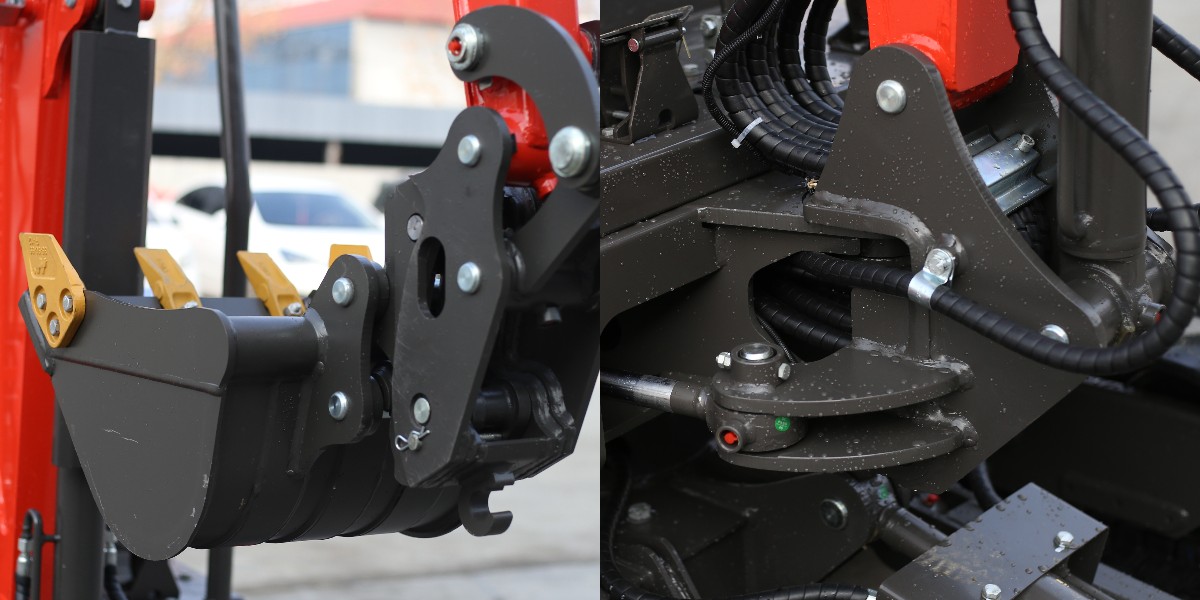

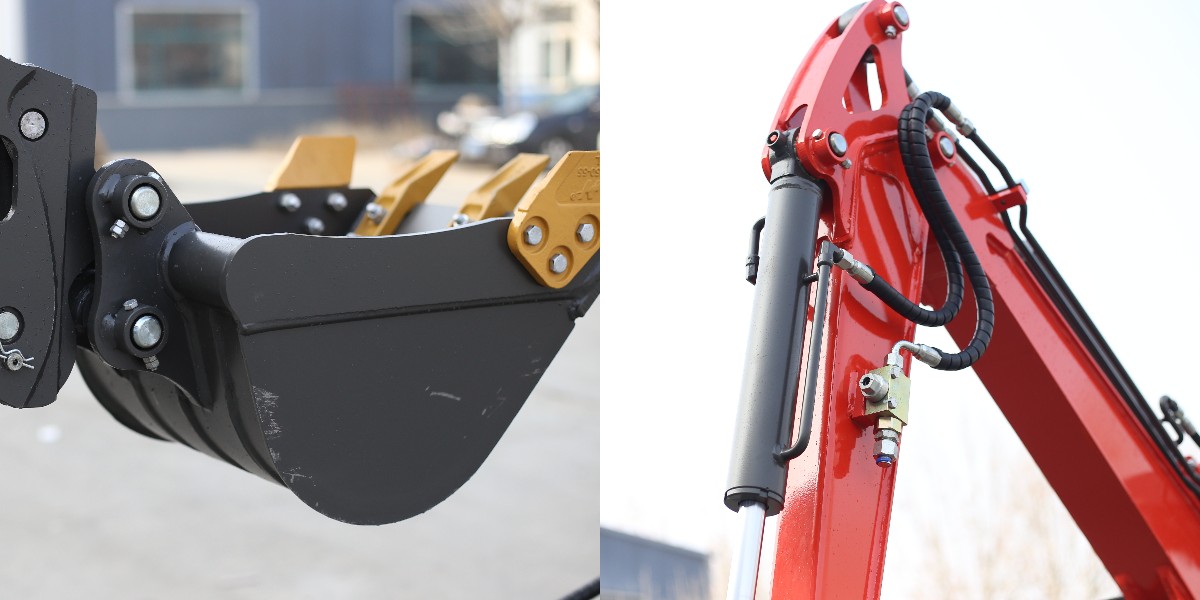

4.Stong bucket ,Design of oil cylinder baffle to protect the oil cylinder
![2.5 ton excavator]( "2.5 ton excavator")
![2.5 ton excavator]( "2.5 ton excavator")
Machine parameters
ENGINE
Emission Standard
Euro V /EPA
Make /Model
Laidong/ KUBOTA
Power /Rotation speed
385/D1105
Number of cylinder
3
TRACK SYSTEM
Maximum Travel speed
2.5km/h
Width of track shoe(Rubber &steel track)
230mm
Number of track shoe per side(steel track only)
38pcs
PERFORMANCE PARAMETER
Standard Bucket capacity
0.06m³
Swing speed
10-12rpm
Maximum Grade ability
35°
Maximum Bucket digging force
14KN
Maximum Arm digging force
10KN
Hydraulic system pressure
18Mpa
Working weight
2500kg
MACHINE SIZE
Overall dimension (L*W*H)
3655mm*1050mm*2232mm
Axle base(Track length on ground)
1230mm
Track gauge
1070mm
Minimum Ground clearance
230mm
Swing radius at tail
1000mm
WORKING RANGE
Maximum Digging height
3391mm
Maximum Dumping height
2290mm
Maximum Digging depth
21250mm
Maximum Vertical digging depth
1771mm
Maximum Digging radius
3860mm
Minimum swing radius
1720mm
Maximum Lifting height of blade
240mm
Maximum Cutting depth of blade
310mm
Boom swing angle(Left/Right)
45°/45°

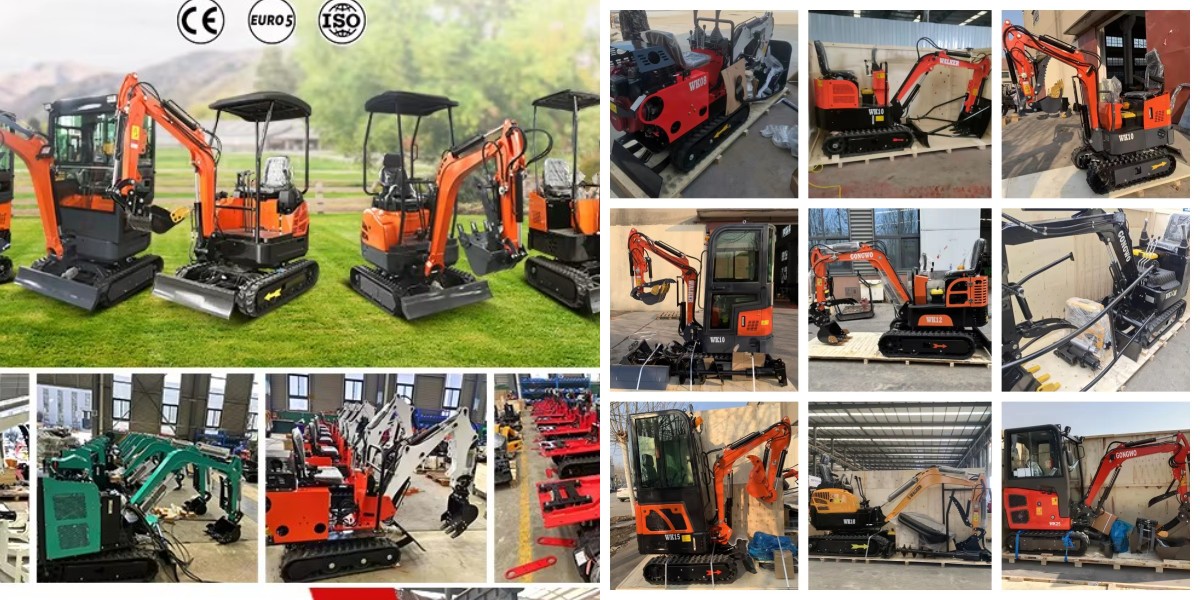

Workshop and Packing
![2.5 ton excavator]( "2.5 ton excavator")
Company ProfileCertificate
Shandong Gongwo Machinery Co., Ltd. is located in Laizhou City, Shandong Province China, is
the domestic production of construction machinery and engineering machinery backbone enterprises.
Strong technical force, has many years engaged in mechanical design and development of professional
and technical personnel and high-quality management personnel, in the mechanical design and manufacturing, has accumulated a wealth of industry experience.- Characteristics of the company took the lead through the IS09001: 2008 international quality certificateself-loading concrete mixer truck cation, established a strict quality inspection system, with advanced equipment and testing instruments, the main design and development of ZL series loaders, dump trucks,mini crawler excavator road roller skid steer wood fork machine, with reasonable design, low energy consumption, high efficiency, easy operation and maintenance and so to meet the different requirements of customers, products sell well in more than 20 provinces and cities in the country, and some products are exported to Africa, Southeast Asia, Russia,Mongolia and other countries and regions, with first-class products, the best reputation and qualityservices in the industry prestigious, users of all ages.
Company is willing to "high quality, low price, service" business policy, to "re contract, Should credibility" business principles, to "open up, innovation, the pursuit of excellence" spirit of enterprise,continuous improvement process, improve product performance, improve product quality, and new and old customers from all walks of life in the economic construction and into, create brilliant. ![2.5 ton excavator]( "2.5 ton excavator")
FAQ
1.How long is your lead time? 15-20days after receiving the deposit 2.How is the warranty? Our warranty time is 6 months from date of machine arriving at your destination port. 3.Do you have any machine in stock? No, every machine is manufactured according to customer request. This ensures higher quality. 4.Could you do OEM? Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements. 5.What is the advantage of WALKER? All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
