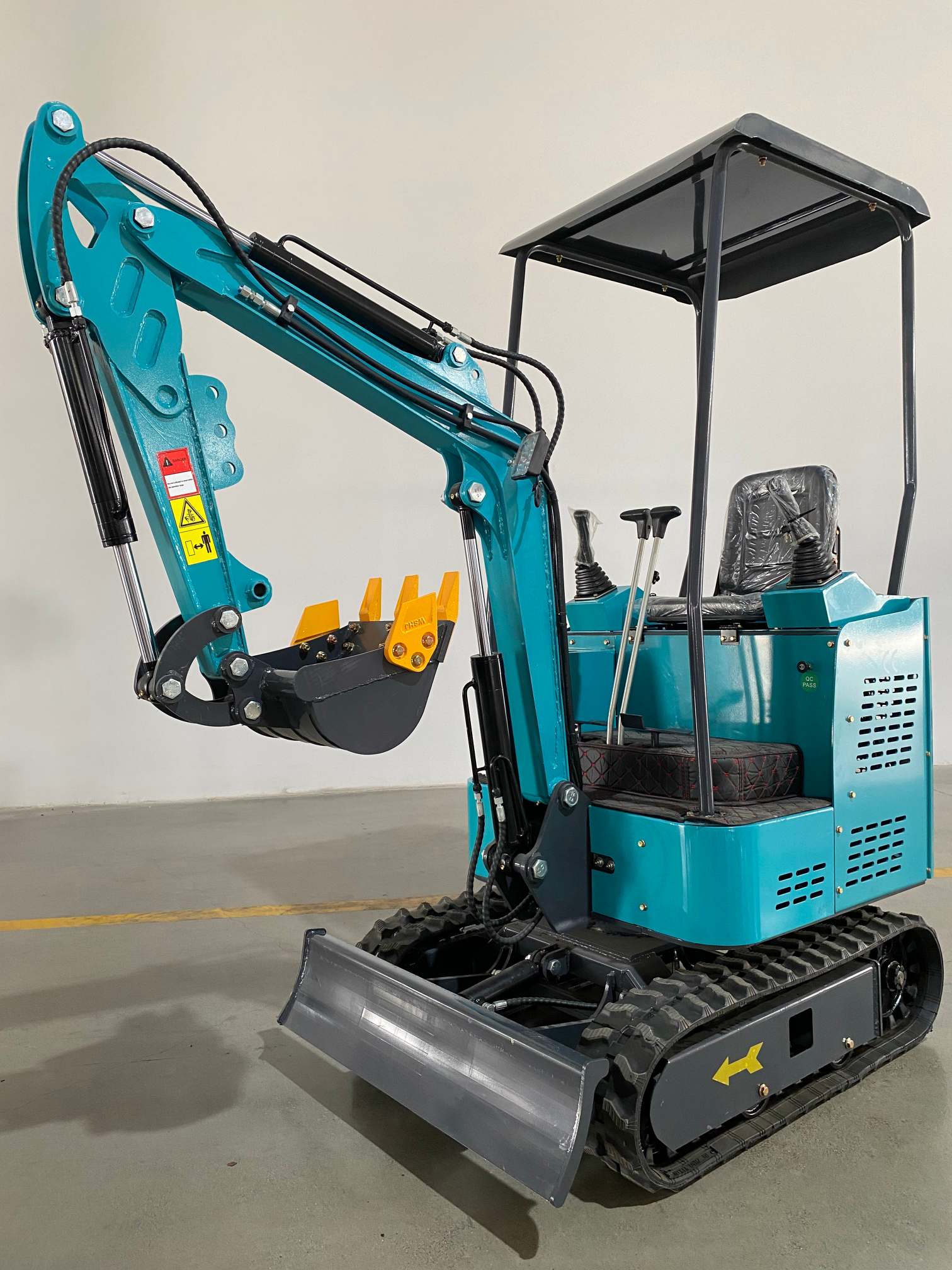

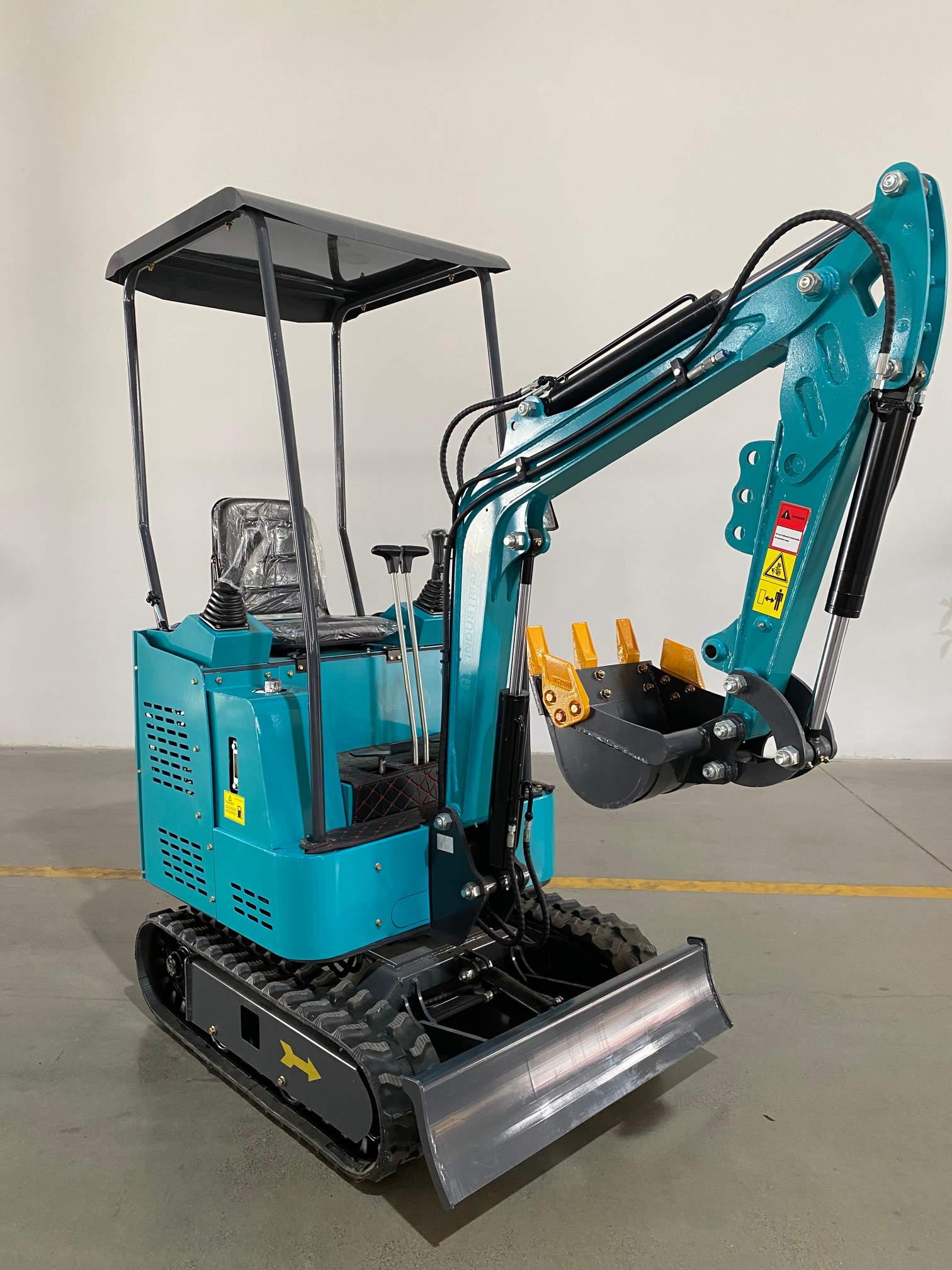

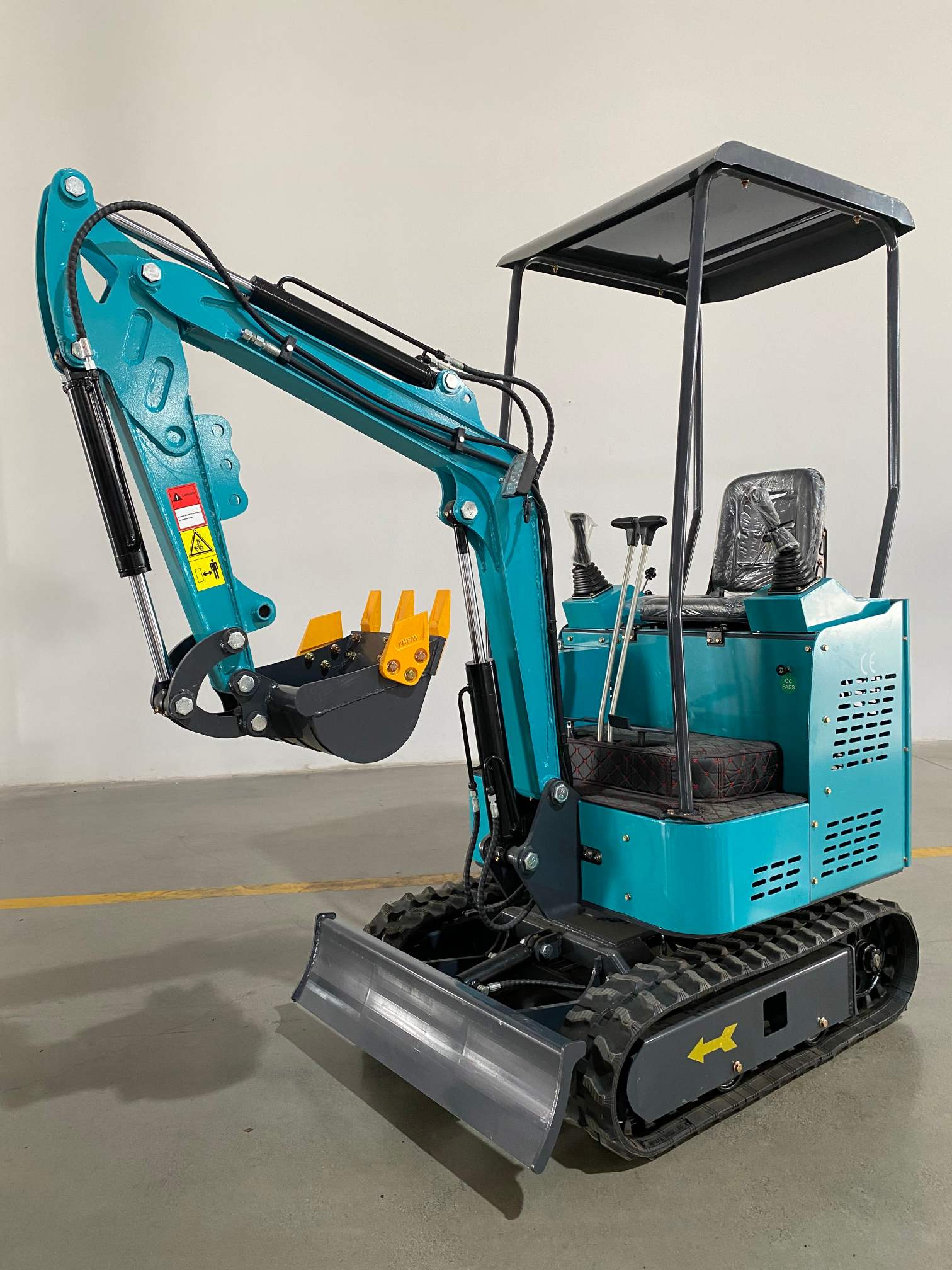

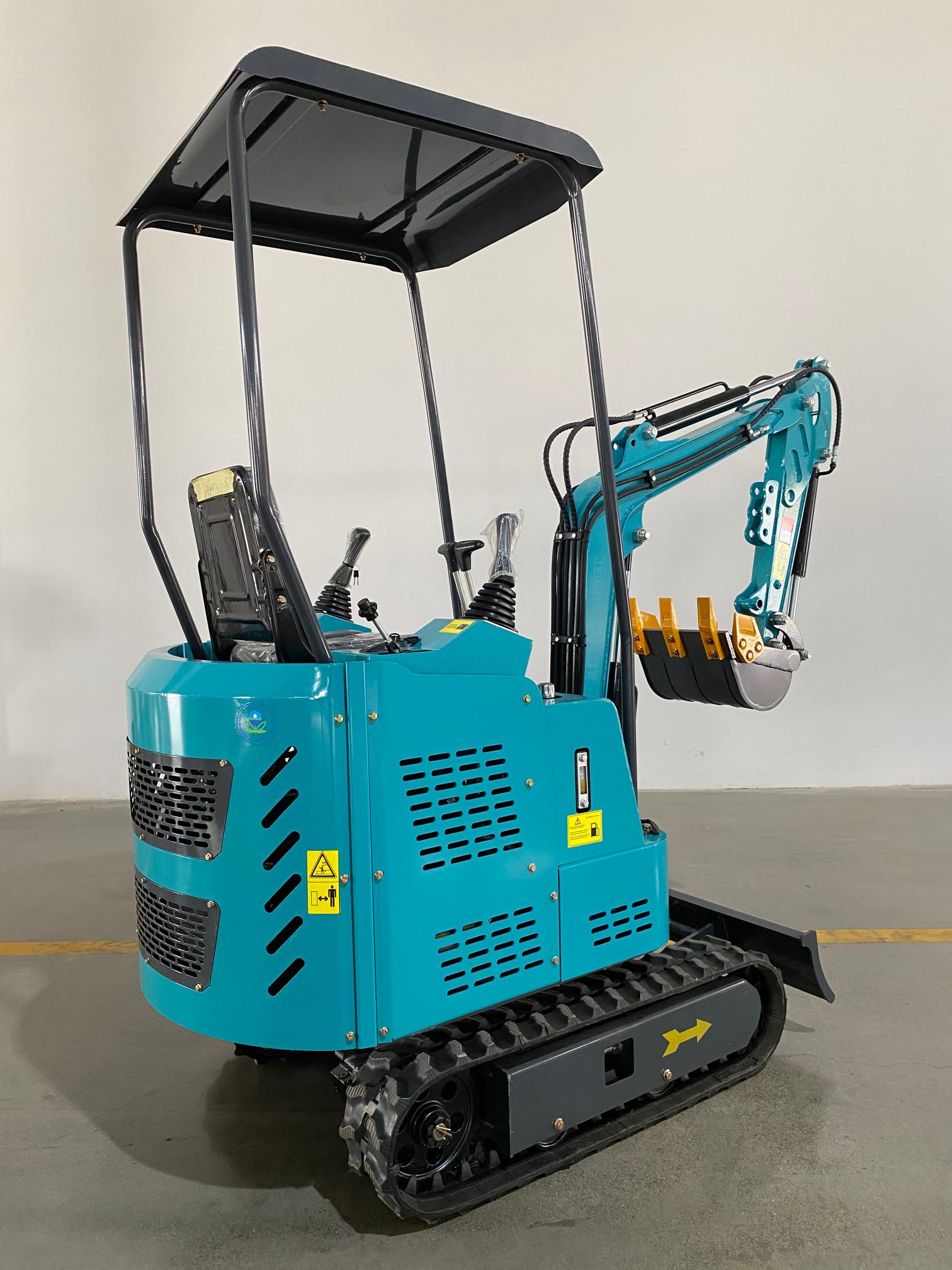

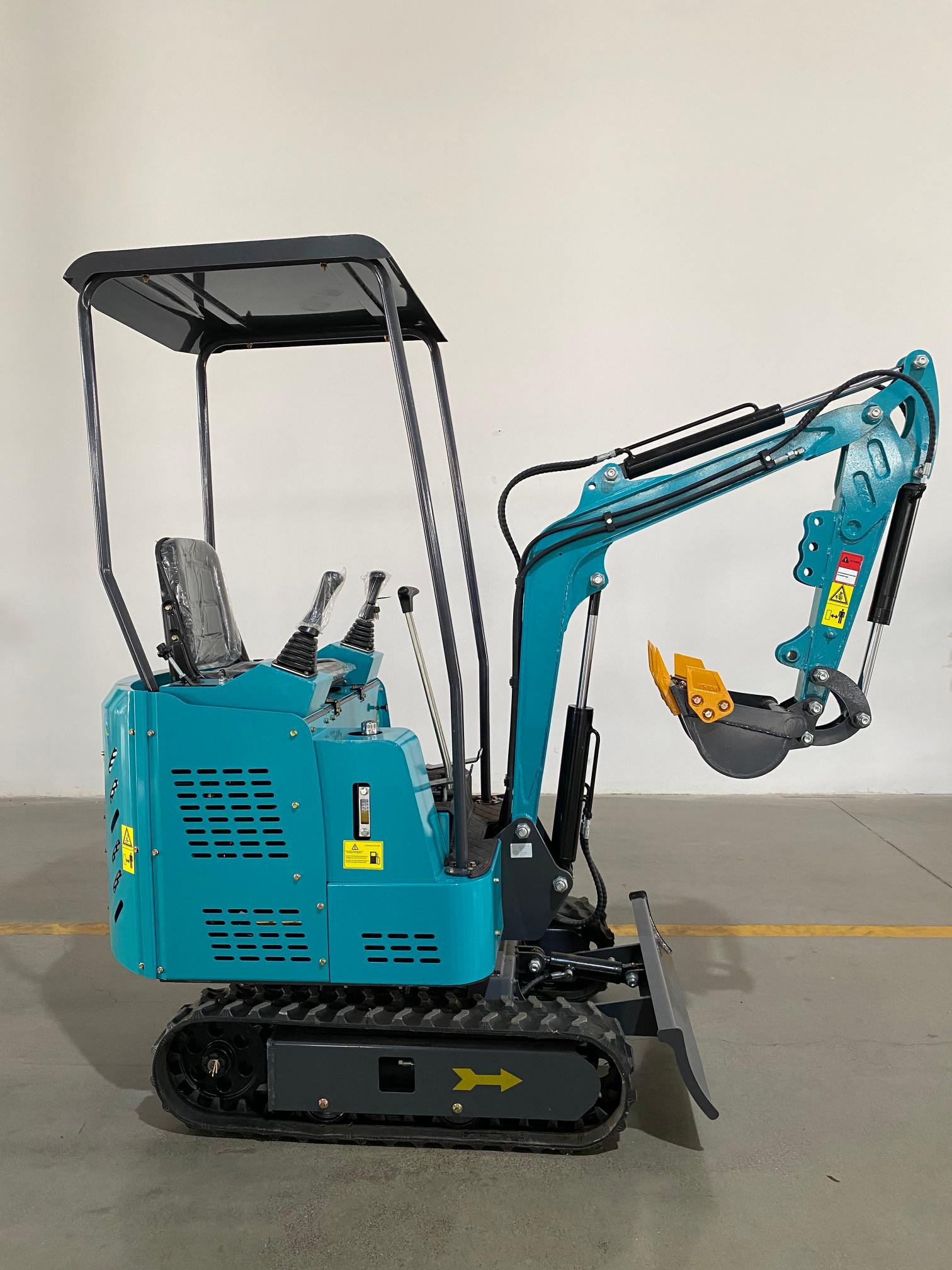

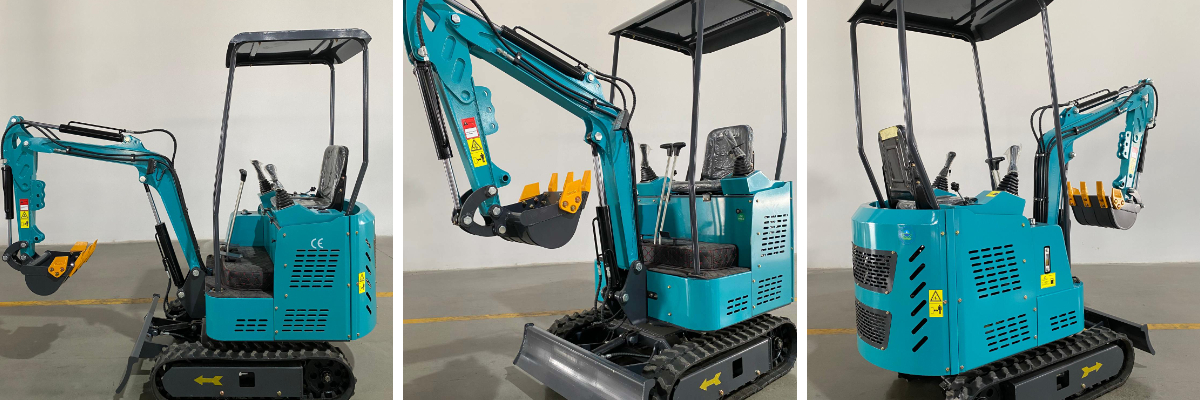

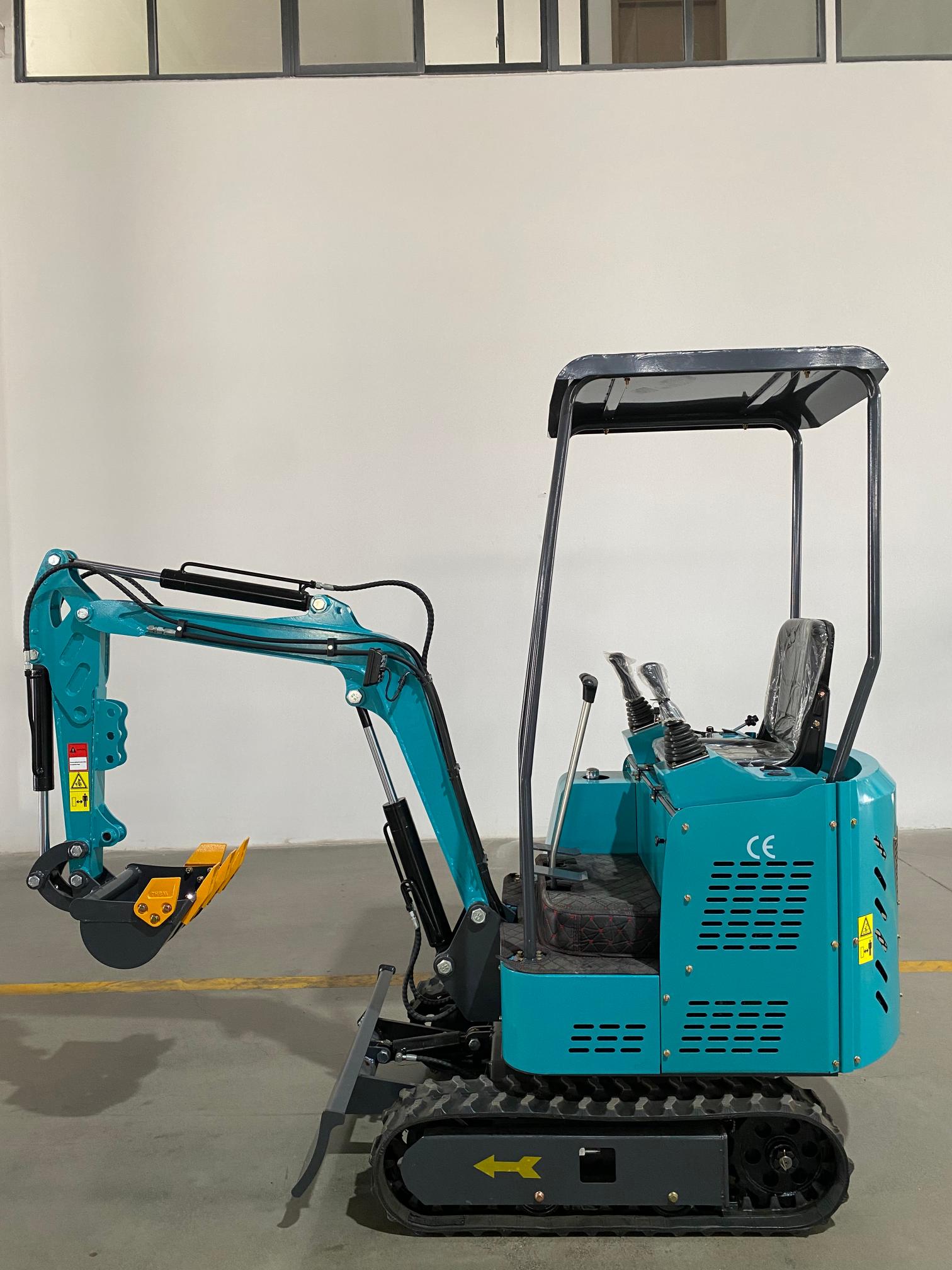

1.5 ton mini excavator

The WK15 1.5-ton mini excavator is a high-efficiency equipment that balances flexibility and operational capability. Specifically designed for small and medium-sized precision engineering projects, it performs excellently in scenarios such as rural renovation, small-scale infrastructure construction, and garden maintenance. With an operating weight of 1500kg, it achieves a perfect balance between "lightweight body and strong load-bearing capacity". The overall dimensions of 2450×1100×2200mm, combined with a 1050mm chassis width, allow it to easily navigate through confined spaces like narrow lanes and indoor areas. Meanwhile, compared to smaller-tonnage models, it is more adaptable to slightly complex operational intensities, with both passability and load-bearing capacity doubly optimized.

The power system is equipped with a Kubota engine (with optional Briggs & Stratton gasoline engine or KOOP engine). The rated power of 10.2kW delivers strong and stable output. The three-cylinder water-cooled heat dissipation design ensures the equipment maintains stable performance during long-term high-intensity operations, completely eliminating the efficiency degradation issue of air-cooled models in high-temperature environments. With a travel speed of 2.5km/h and a maximum climbing capacity of 35°, it can flexibly handle both flat sites and sloped terrains, significantly expanding the operational range.

In terms of operational performance, the WK15 demonstrates capabilities far surpassing smaller-tonnage models: the 0.03m³ digging bucket capacity, paired with a 400mm bucket width, can efficiently complete small-scale earth excavation and material transfer. The maximum digging depth reaches 1750mm, and the maximum digging radius on the ground is 2850mm. Combined with a maximum digging height of 2650mm and a maximum dumping height of 1850mm, it easily meets diverse needs such as wall foundation excavation, small ditch trimming, and material loading. The platform's back turning radius of 740mm is extremely small, eliminating the need for frequent machine movement when operating in narrow spaces, thus greatly improving operational efficiency.

The detailed design of the equipment takes both practicality and durability into account: the total track length of 1230mm, combined with a 180mm track width, results in low ground pressure, allowing it to operate on fragile surfaces like lawns and floor tiles without causing damage. The 135mm chassis ground clearance is sufficient to handle slightly raised terrains, avoiding collisions with the bottom components. Reinforced structural parts and a precision hydraulic system (with implicit stable pressure characteristics) ensure precise and controllable operations. When paired with attachments such as breakers and grapples, it can realize multi-purpose functionality. Daily maintenance only requires basic inspection and lubrication, significantly reducing operating costs. It is an ideal choice that balances flexibility, efficiency, and economy.
