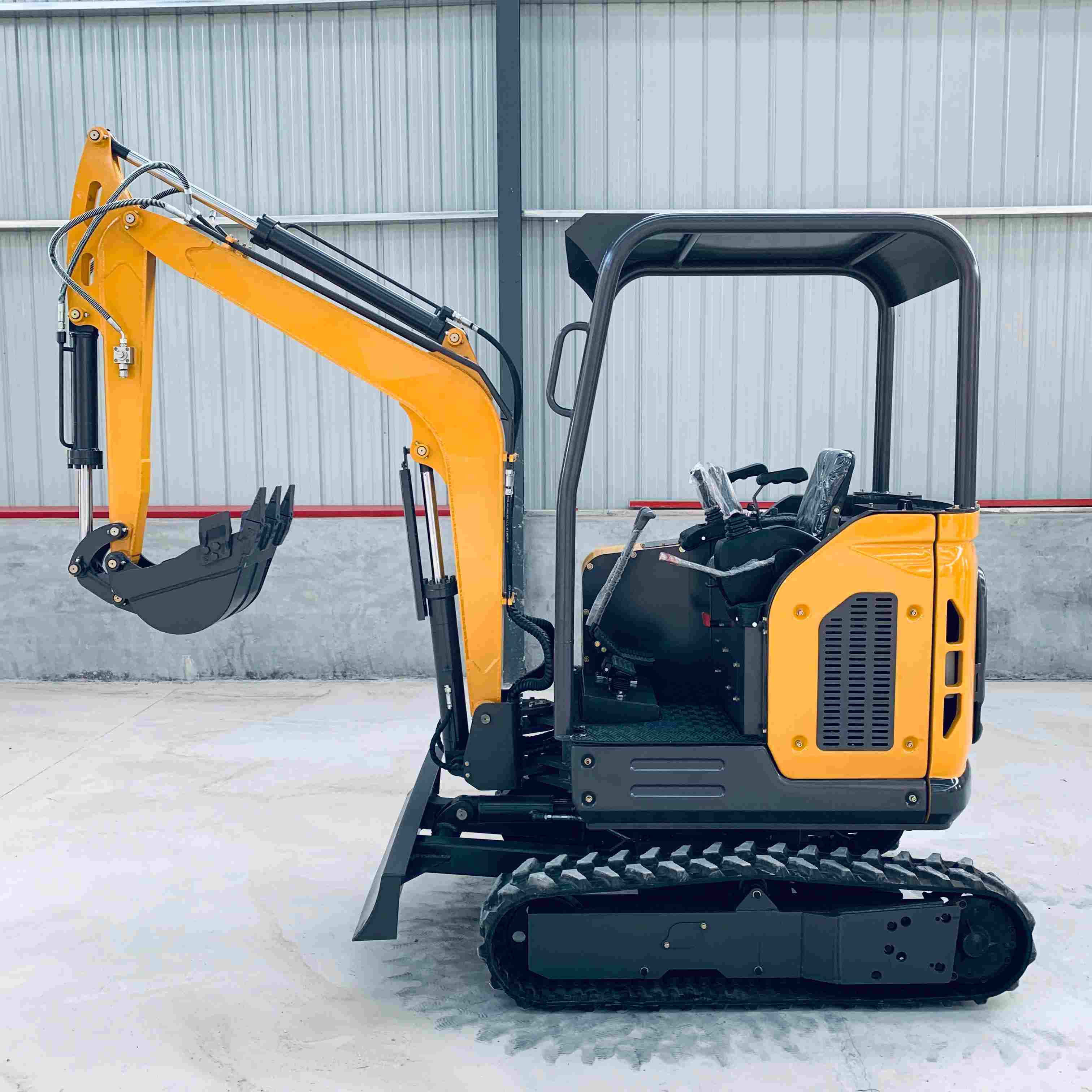

2.5 Tonne Excavator

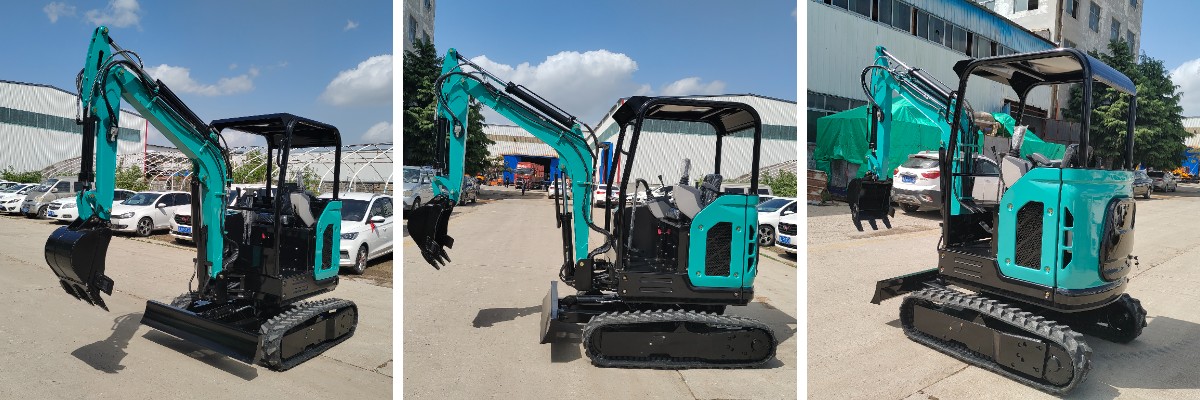

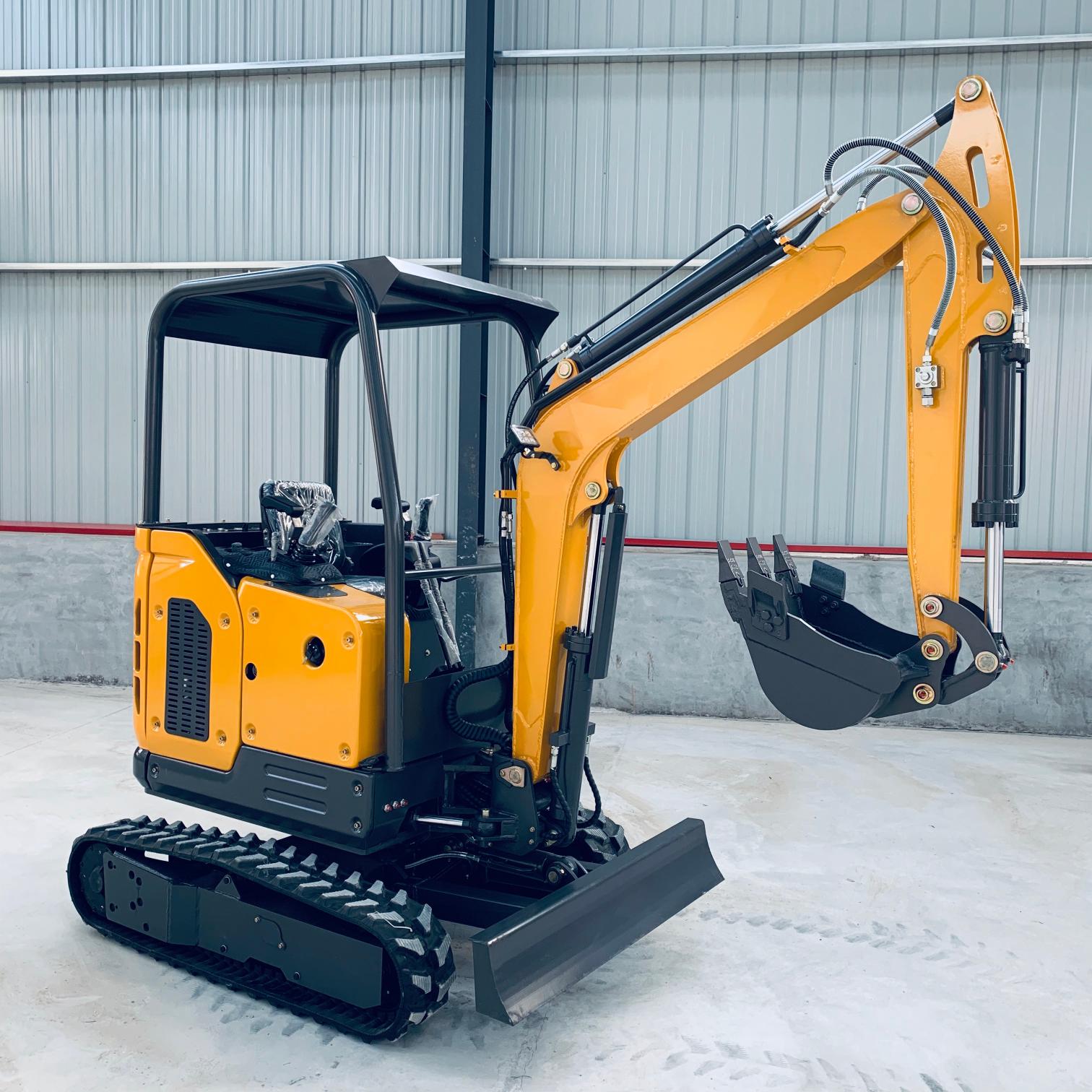

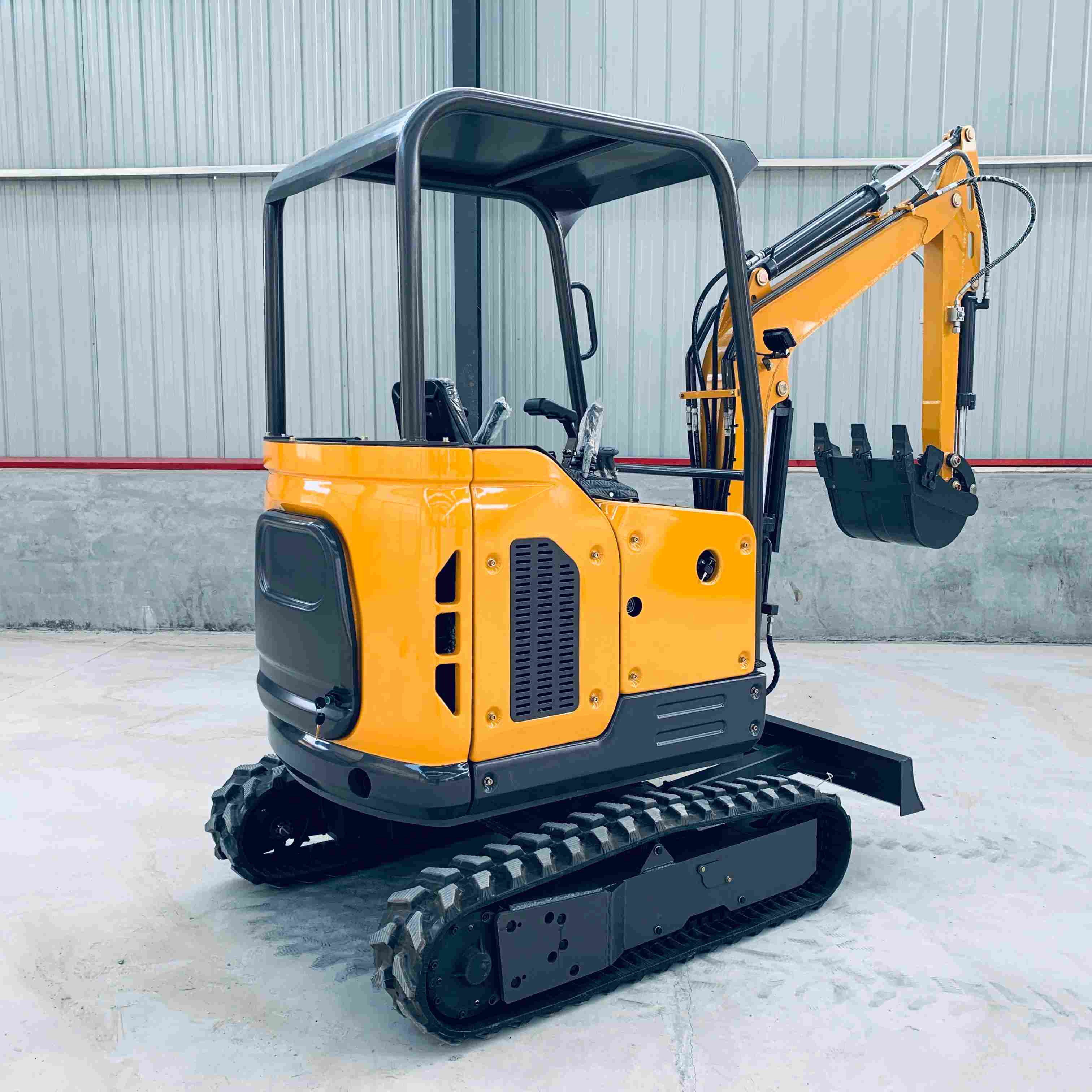

This 2.5-ton excavator, with its excellent performance and reliable quality, stands out as an ideal choice for small-scale engineering operations. In terms of environmental compliance, it strictly adheres to Euro 5 and EPA4 emission standards, not only meeting the stringent environmental requirements of international markets but also adapting to regulatory norms in different regions, ensuring that every operation balances efficiency with eco-friendliness.

One of its core strengths lies in the power system, which is equipped with the Japanese KUBOTA D1105 engine—a classic model from KUBOTA. Featuring a 3-cylinder configuration, the D1105 engine delivers robust power with an output of 14KW. Coupled with its stable operation, it provides a solid guarantee for the equipment's efficient performance in various working conditions, easily handling tasks such as earth excavation and site leveling.

In terms of operational performance, this excavator demonstrates professional capabilities that surpass many models in its class. It boasts a maximum bucket digging force of 14KN and a maximum arm digging force of 10KN, paired with a standard bucket capacity of 0.06m³. This combination enables it to efficiently handle materials like soil and gravel, significantly boosting work efficiency. The hydraulic system maintains a stable pressure of 18Mpa, ensuring precise and smooth movements such as excavation, lifting, and swinging, further enhancing the controllability of the equipment.

The excavator also excels in operational range and flexibility. It can reach a maximum digging height of 3365mm and a maximum dumping height of 2385mm, easily meeting the needs of loading and unloading at high positions. With a maximum digging depth of 2050mm and a maximum vertical digging depth of 1725mm, it can effectively handle underground materials. Its maximum digging radius of 3860mm allows it to cover a wider operational area, reducing the frequency of equipment movement. The boom can swing 75° to the left and 45° to the right, and combined with a swing speed of 9rpm, the equipment remains highly maneuverable even in narrow spaces. The minimum swing radius is only 1720mm, and the tail swing radius is 955mm, greatly reducing the risk of collisions during operation.

The equipment's passability and stability are equally reliable. With an operating weight of 2500kg and overall dimensions of 3665mm×1050mm×2260mm, its compact design allows it to adapt to confined environments such as urban alleys and indoor spaces. The track gauge is 820mm, and the track length on the ground is 1230mm. Combined with a reasonable track shoe width, it ensures stable travel on complex terrains like muddy ground and slopes, with a maximum grade ability of 35°, making it effortless to handle mountainous operations. The minimum ground clearance of 210mm effectively prevents collisions between the chassis and ground protrusions, protecting the equipment components.

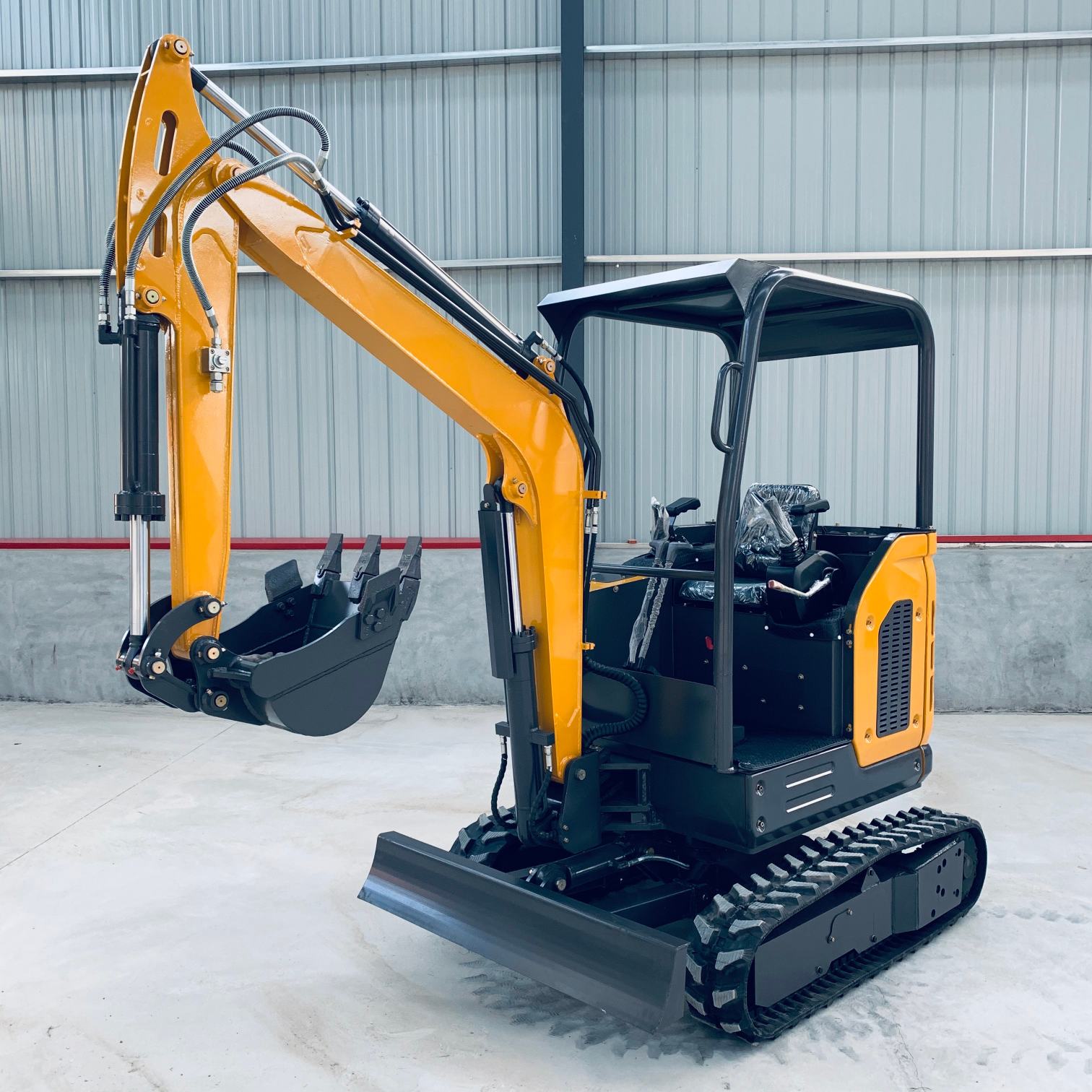

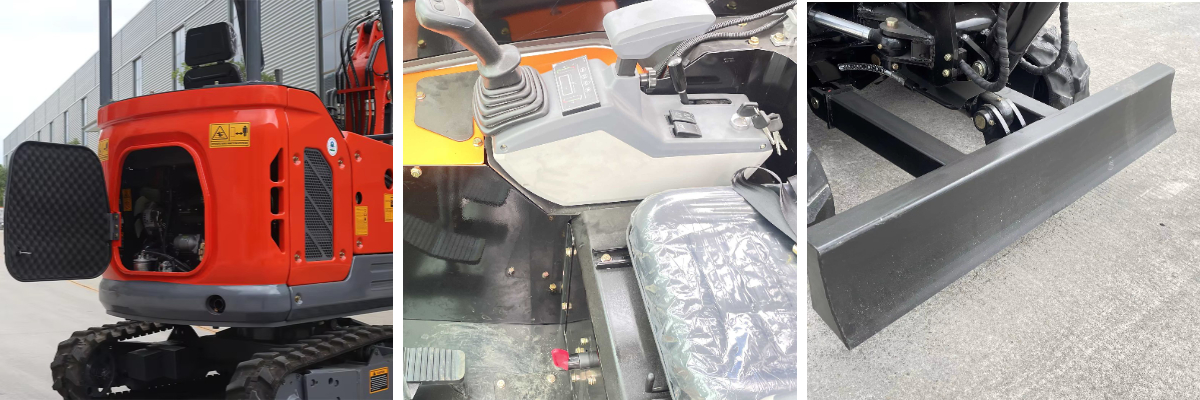

In addition, it is equipped with a practical blade function. The blade can reach a maximum lifting height of 230mm and a maximum cutting depth of 275mm, enabling it to quickly complete auxiliary tasks such as site leveling and earth moving without the need for additional equipment, further expanding the equipment's application scenarios.

Whether it is for small construction projects, municipal maintenance, agricultural transformation, or garden construction, this 2.5-ton excavator can create higher operational value for users with its strong power, flexible operation, and reliable performance.
