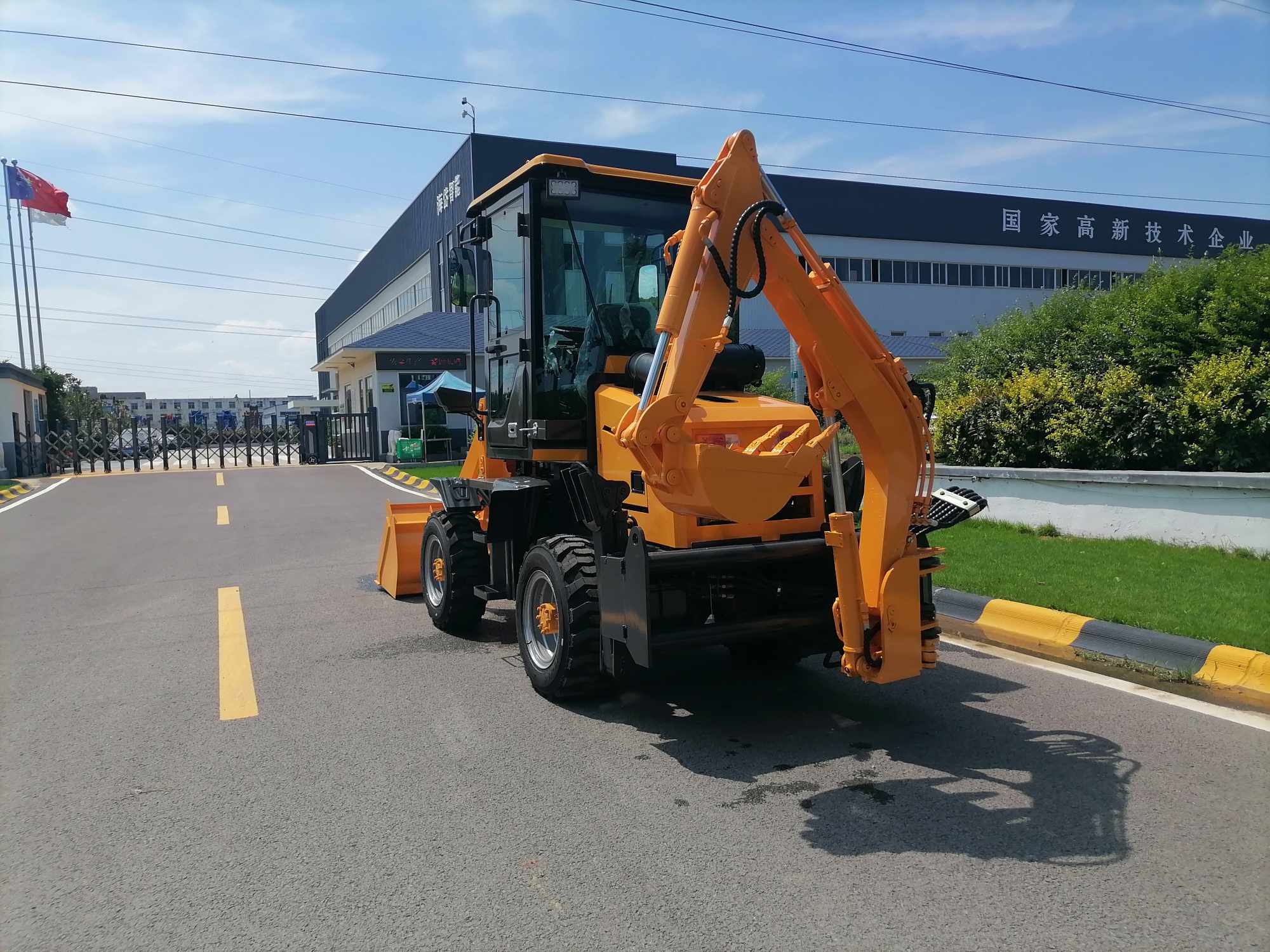

2.5 T Backhoe Loader

This 2.5-ton backhoe loader, with its compact and flexible design combined with versatile functions, stands out as an ideal choice for small-scale construction projects, agricultural operations, and municipal maintenance tasks. Boasting overall dimensions of 5100mm×1350mm×2580mm, paired with a 1910mm wheelbase and 1100mm track width, it exhibits exceptional maneuverability in confined spaces—featuring a minimum turning radius of just 3000mm. The 250mm minimum ground clearance ensures passability on bumpy roads, allowing it to navigate rural lanes or courtyard construction sites with ease.

As a versatile workhorse integrating loading and excavating capabilities, its operational performance is particularly impressive. In terms of loading, the 1300mm-wide loading bucket has a capacity of 0.4m³, with a maximum unloading height of 2200mm and an unloading distance of 800mm. Combined with a maximum breakout force of 28KN, it efficiently handles the transfer of materials such as sand, gravel, and soil. The total operation time for the loading shovel is only 12 seconds, significantly shortening the work cycle and boosting efficiency. The excavating function is equally remarkable: the 350mm-wide excavating bucket has a capacity of 0.08m³, with a maximum excavation depth of 1500mm and a radius of 2000mm. The 180° swing angle makes tasks like ditch trimming and small foundation pit digging effortless, while the maximum digging force of 25KN and a maximum excavation height of 2600mm further expand its operational range.

The power system is equipped with a 490-type four-stroke engine, featuring a 4-cylinder design with a 90mm bore. It delivers a rated power of 37KW and a rated speed of 2400r/min, providing robust power output with excellent fuel economy. The transmission adopts a fixed-shaft power shift gearbox with 2 forward and 2 reverse gears, paired with a ZL28F torque converter. Combined with the four-wheel drive design, it ensures smooth power transmission, enabling easy climbing of 25° slopes. With a maximum travel speed of 20Km/h, it meets the needs of cross-area operations

The hydraulic system, centered around a system pressure of 16MPa, drives the full-hydraulic articulated steering (with a 33° steering angle) and precise operational movements, offering responsive control that even novice operators can quickly master. The braking system uses oil-brake drum-type service brakes, complemented by a manual parking brake, and the 3000mm braking distance ensures operational safety. The 825-16 tires (with both front and rear tire pressures set at 250KPa) provide strong grip, adapting to various terrains. The 20L fuel tank and 20L hydraulic oil tank are designed to meet the demands of continuous operations.

With an overall weight of 2500Kg, the machine ensures operational stability while remaining easy to transport and relocate. Whether it’s earthwork sorting in farmland renovation, ditch digging in municipal maintenance, or material transfer at small construction sites, this backhoe loader reduces equipment investment through its "multi-functional in one machine" feature. Its durable structural design and easy maintenance make it a reliable, high-efficiency tool that users can trust for the long term.
