3.5 ton excavator
Bulldozer Bucket: Thickened structural design ensures superior quality and extended service life. Ideal for site leveling, material stacking, and backfilling operations, it guarantees safer and more stable machine performance during climbing/uphill lifting/swiveling maneuvers.
Hydraulic Pilot System: Features labor-saving, convenient, and flexible operation, enhancing work efficiency while reducing system pressure.

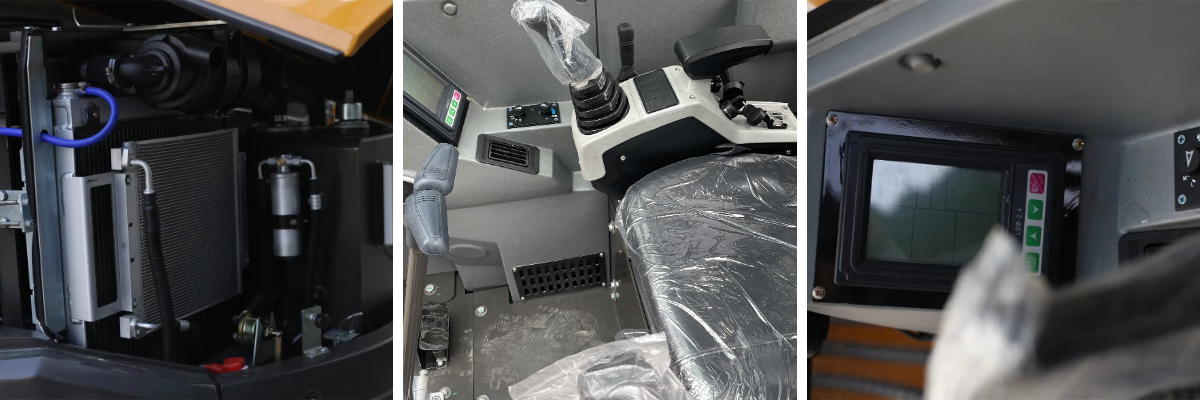

High-End Cab: Spacious and comfortable, with wind and rain protection to significantly improve safety. Ergonomically designed and equipped with auxiliary control levers to optimize the operating experience.
Versatile Functionality: Comprehensive functions, compatible with various attachments to support diversified operational needs.

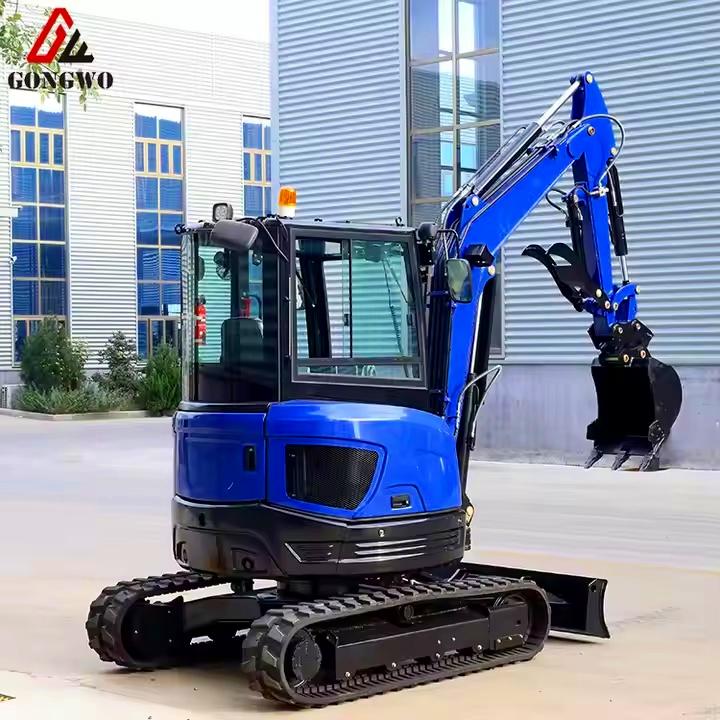

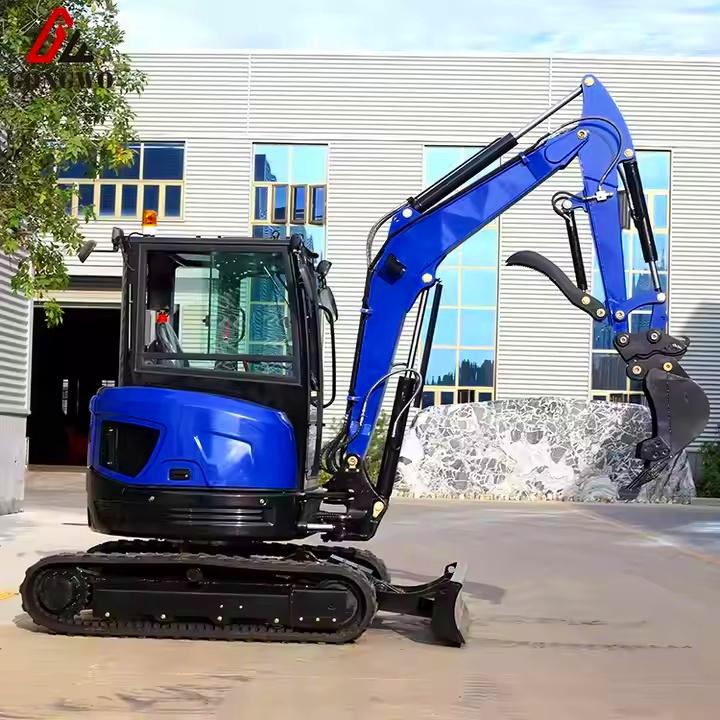

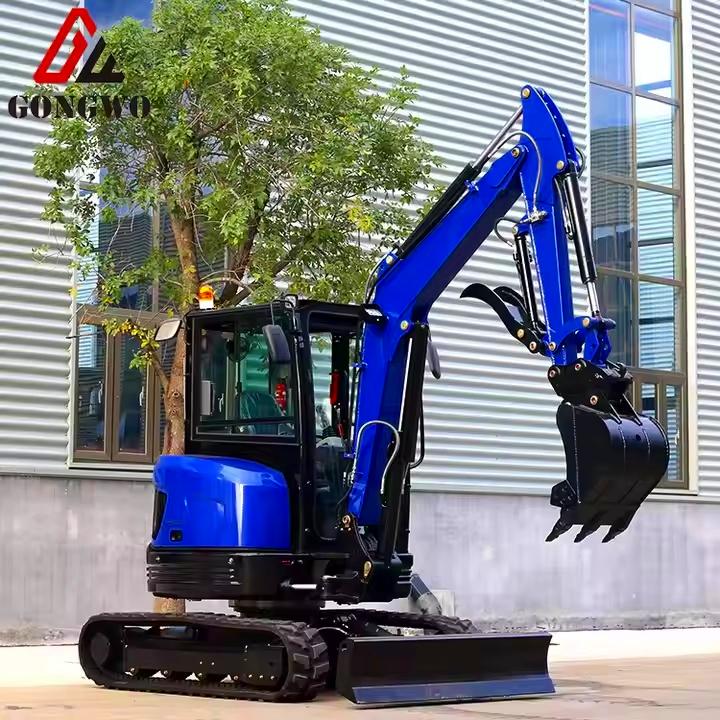

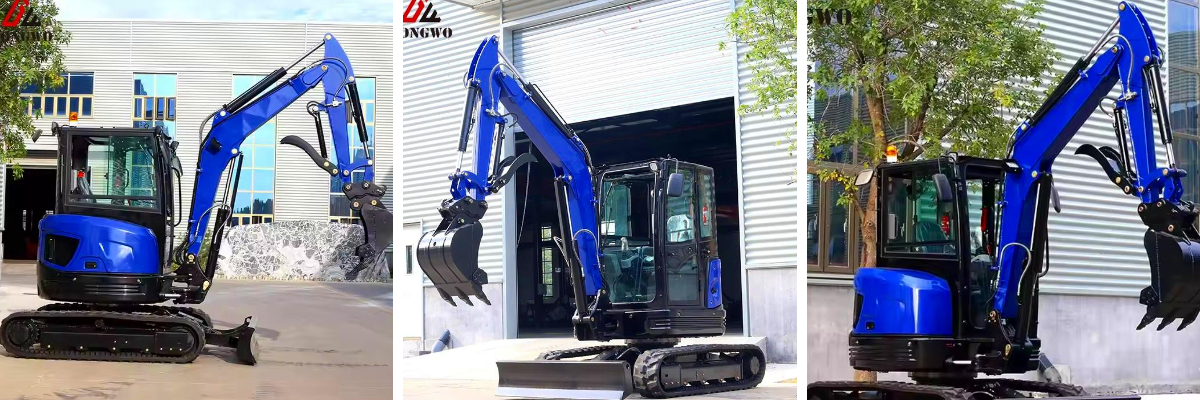

Introduction to WK35 Mini Excavator
I. Flexible Selection of Power and Configuration

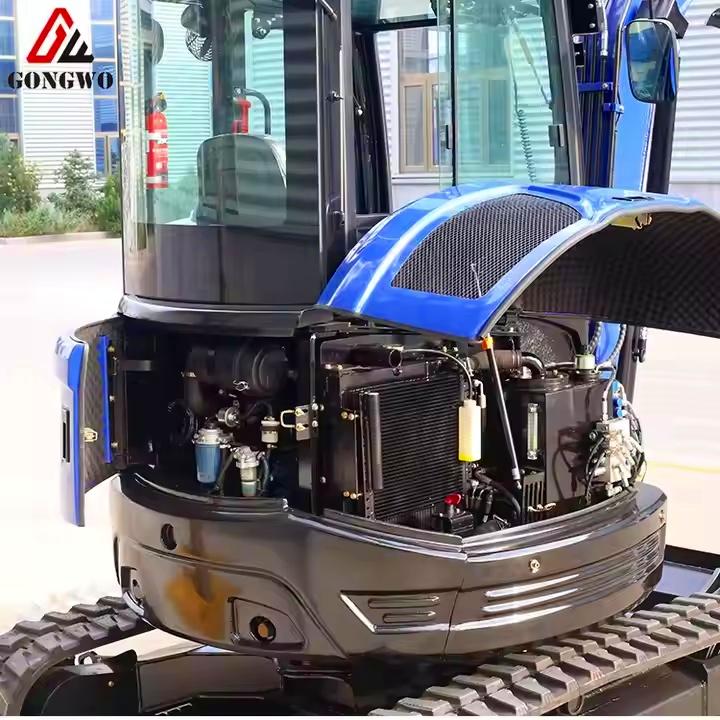

The power system of the WK35 excavator can be optionally equipped with the Xinchai 490 engine, Changchai 390BT engine (CE-certified), or Kubota 1703 engine based on requirements, catering to different working conditions and environmental standards. It comes standard with a front mechanical linkage, rubber tracks, bulldozer blade, digging bucket, cylinder guards, seat armrests, piston pump, Northern multi-way valve, Danfoss travel motor, as well as standard boom side swing and hydraulic control travel, ensuring complete basic operating configurations. Additionally, optional closed cab, swing boom, and retractable tracks enable flexible adaptation to diversified scenarios like narrow spaces and complex terrains.
II. Suitable for Diverse Construction Scenarios
With flexible configurations and a compact body, the WK35 is ideal for small-scale engineering construction, municipal maintenance, agricultural operations, and other scenarios. It serves as a powerful tool for small-range construction, facilitating efficient completion of various tasks such as excavation and dozing.
III. Quality and After-sales Guarantee
Shandong Gongwo Machinery has deep expertise in excavator production for over a decade, controlling the entire process from design to packaging to ensure reliable product quality. Core components come with a 1-year warranty, and wearing parts are covered by a 3-month warranty. Complete after-sales support eliminates worries about usage.
Category | Item | Details |
ENGINE | Emission Standard | Euro 5/EPA4 |
Make/Model | KUBOTA/D1703 | |
Power/Rotation speed | 18.5kw (25HP)/2200rpm | |
Number of cylinder | 3 | |
Type | In-line water-cooled, 4-stroke, mechanical pump, naturally aspirated | |
Max torque | 97.4N.m/1500rpm | |
Displacement | 1.642L | |
Engine | KUBOTA | |
Other engines | Briggs & Stratton gasoline engine | |
TRACK DRIVING SYSTEM | Maximum Travel speed (High/low) | 14.2/4.4km/h |
Width of steel track shoe | 300mm | |
Carrier roller (each side) | 1 | |
Supporting roller (each side) | 4 | |
Final drive | 2×0.7L | |
MACHINE SIZE | Overall dimension (L×W×H) | 4915mm×1720mm×2525mm |
Axle base (Track length on ground) | 1670mm | |
Length of rubber track | 2154mm | |
Track gauge | 1420mm | |
Minimum Ground clearance | 295mm | |
Swing radius at tail | 860mm | |
Swing radius at front | 2538mm | |
Height of blade | 350mm | |
WORKING RANGE | Maximum Digging height | 4800mm |
Maximum Dumping height | 3406mm | |
Maximum Digging depth | 3208mm | |
Maximum Vertical digging depth | 2957mm | |
Maximum digging distance (on ground) | 5480mm | |
Maximum vertical distance (digging radius) | 5359mm | |
Minimum swing radius | 2530mm | |
Max height when min.swing radius | 3655mm | |
Maximum Lifting height of blade | 365mm | |
Maximum Cutting depth of blade | 385mm | |
Boom swing angle (Left/Right) | 55°/65° | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.12m³ |
Swing speed | 12rpm | |
Maximum Grade ability | 58%(30°) | |
Ground pressure | 32Kpa | |
Maximum Bucket digging force | 30.4KN | |
Maximum Arm digging force | 18.2KN | |
Hydraulic system pressure | 22.5Mpa | |
Machine weight | 3810kg | |
Boom length | 2535mm | |
Arm length | 1400mm | |
Fuel tank capacity | 40L | |
Hydraulic oil tank capacity | 44L | |
Engine oil capacity | 7L | |
Radiator capacity | 3.8L |

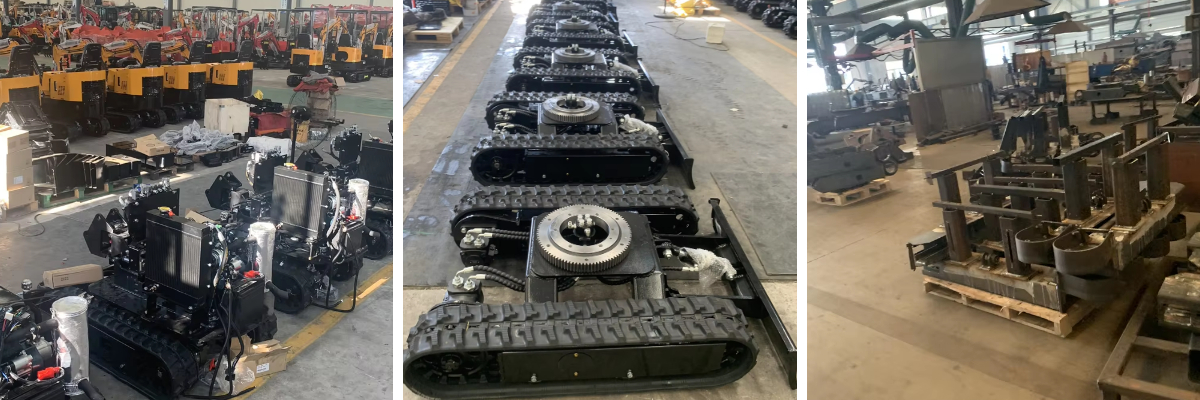

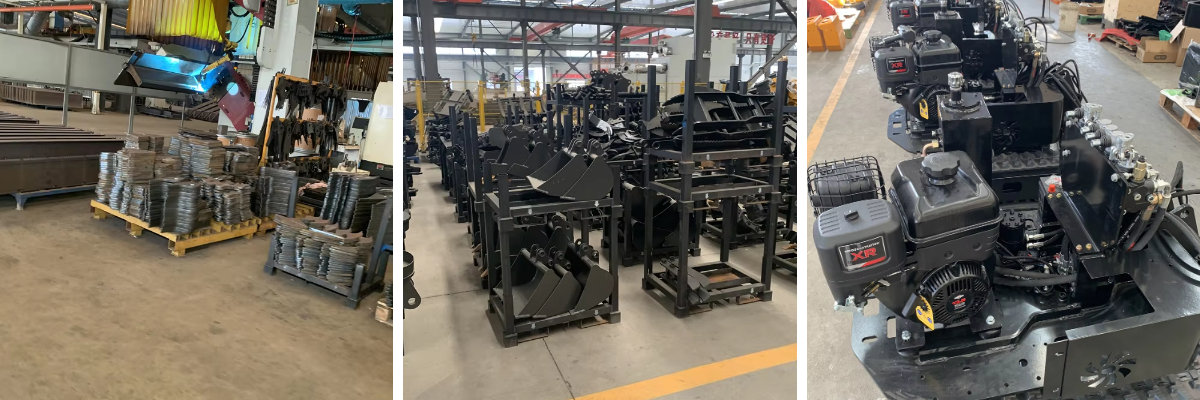

Workshop Display
Company Overview
Shandong Gongwo Machinery Co., Ltd., established in 2012, is a manufacturing facility specializing in medium and small-scale construction machinery. Our product portfolio includes compact wheel loaders, mini crawler excavators, electric/diesel tricycles, 2WD/4WD forklifts, and more. Spanning over 100 mu of land with a workforce of 100+ employees, we achieve an annual sales volume exceeding 20,000 units. Our equipment is exported to markets across Europe, the Americas, Southeast Asia, Africa, Russia, and other global regions. For over a decade, we have been dedicated to serving international clients and fulfilling their operational requirements.
