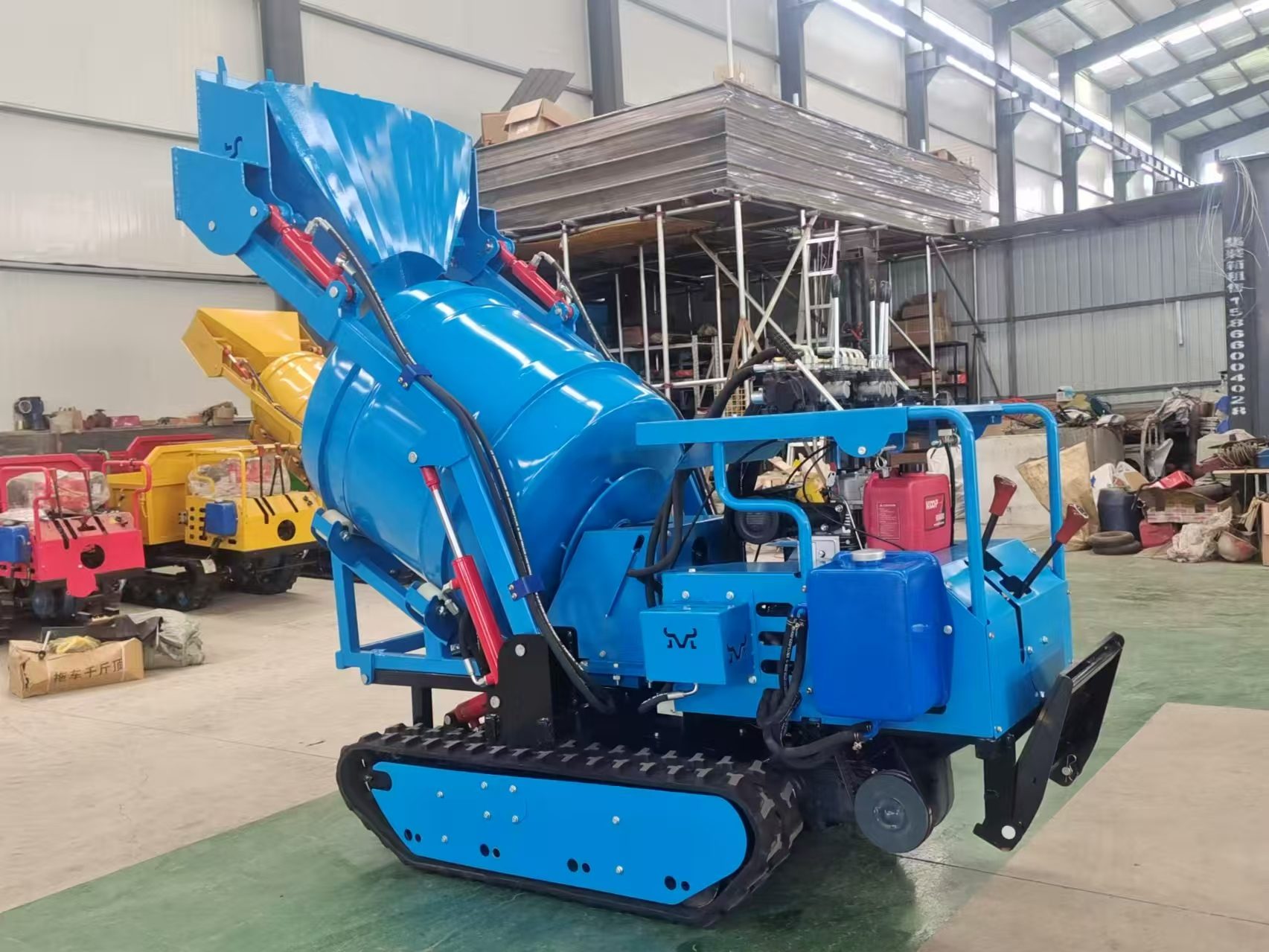

1000L mixer truck

In scenarios such as large-scale building foundation pouring, municipal main road maintenance, and industrial park construction, the 1000L self-loading concrete mixer truck, with its core advantages of "large capacity + strong adaptability", has become a key hub connecting medium-sized equipment and heavy-duty mixing stations. This equipment not only retains the flexible control characteristics of small and medium-sized mixers but also possesses the production capacity advantages of large-scale operations. Through its all-round design and reliable performance, it provides construction teams with a one-stop solution from raw material loading to concrete pouring.

Power and Control: Strong and Stable, Adapted to High-Intensity Operations

The power system is the core guarantee for efficient construction. The 1000L mixer truck is equipped with a Changchai 192F diesel engine, with a 12-horsepower output and a 4-stroke design. Its power output is continuously stable, maintaining a uniform speed even in heavy-load mixing conditions, fully meeting the intensity requirements of continuous 8-hour operations in large-scale projects. The air-cooled heat dissipation system does not rely on cooling water circulation, and can still operate stably in high-temperature and arid rural construction sites or dusty municipal sites, completely avoiding shutdowns caused by water shortages or blocked heat dissipation in traditional water-cooled equipment.

The transmission system adopts a GL-18 gearbox, with a clear and intuitive layout of 3 forward gears and 1 reverse gear. Combined with an ergonomically designed manual lever, the operation force is light and the stroke is moderate. Whether it is high-speed driving during empty vehicle transfer (up to 8KM/h) or low-speed positioning when approaching the pouring point (stepless adjustment from 0-2KM/h), it can be flexibly switched through gears. Even first-time operators can master it proficiently after simple training, significantly reducing labor costs.

Operational Efficiency: Large Capacity with Precise Control, More Efficient Batch Construction

The 1000L feeding capacity provides sufficient space for large-scale mixing. Combined with a shovel capacity of 0.12 cubic meters, a single material fetch can meet the needs of one round of mixing, eliminating the need for frequent trips to the material pile. The single-shift operation efficiency is approximately 25% higher than that of 800L equipment. The 600L discharge capacity accurately matches the segmented pouring needs of large-scale projects - a single discharge can complete the pouring of about 30 square meters of ground leveling or 5 standard walls, reducing construction interruptions caused by material replenishment and making the construction rhythm more coherent.

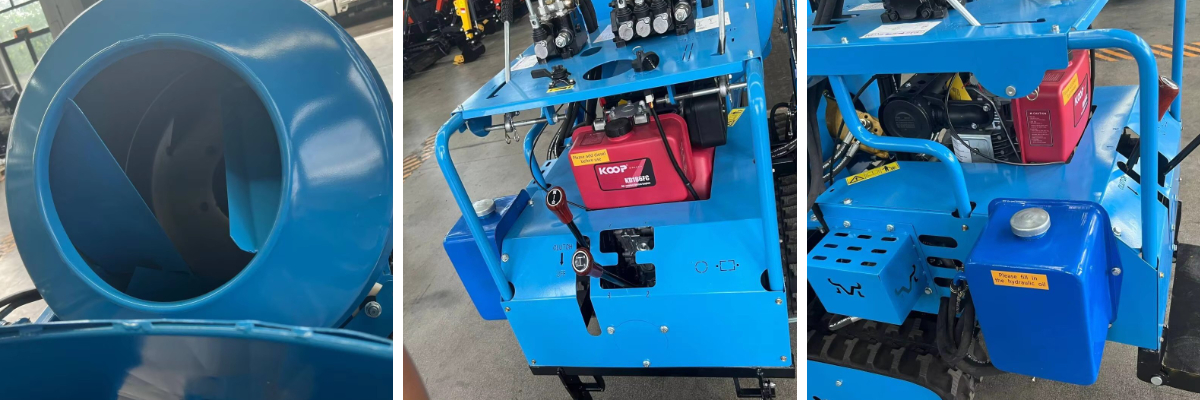

Mixing quality directly determines project strength. The mixing drum adopts an optimized size of Φ760×1380 mm, and the internal spiral blades are designed through fluid dynamics simulation, forming a three-dimensional mixing trajectory of "bottom pushing - middle turning - top reflux" when rotating. This design allows cement, sand, gravel, and water to fully mix within 3-6 minutes, with the concrete segregation rate controlled within 4%, far lower than the industry average. It ensures that the surface of the poured structure is flat, the strength meets the standard, and no secondary trimming is required.

The unloading process is also efficient. The hydraulically driven unloading system responds quickly, and the unloading angle and flow can be precisely adjusted through the lever. Whether it is wall pouring at a height of more than 3 meters or thin-layer paving of ground cushions, it can achieve spill-free operation. After unloading, there is very little residue in the drum, reducing manual cleaning costs and avoiding material waste.

Terrain Adaptability: Smooth Passage in Complex Sites

Construction sites of large-scale projects often cover a variety of terrains - from hardened roads to muddy dirt roads, from flat sites to steep slopes, placing high demands on the passability of equipment. The 1000L mixer truck, with its crawler design and compact size, easily copes with various complex environments.

The overall dimensions are 2900×1100×1750 mm, with a width of only 1.1 meters, enabling it to flexibly pass through gaps in construction enclosures or narrow passages in factories; the height of 1.75 meters can pass through doorways of most factories and warehouses, realizing seamless connection of "indoor mixing + on-site pouring". The rubber crawler adopts a large-size design of 230×72×50 mm, combined with a ground contact length of 1100 mm. It can evenly distribute the weight of the equipment (net weight 930KG, gross weight 1050KG) on the ground, avoiding damage to hardened roads, and providing strong grip on slippery terrains such as mud and loose soil, ensuring stability during climbing and turning.

The equipment also performs excellently in the face of common obstacles on construction sites: a maximum climbing angle of 40° allows it to easily climb over 2-meter-high soil slopes; a vertical obstacle-surmounting capacity of 200 mm enables it to directly roll over brick piles, small pipes, and other obstacles; a wading depth of 350 mm allows it to operate normally in waterlogged sites after rain without waiting for the site to dry, effectively shortening construction delays caused by weather.

Durability and Maintenance: High-Quality, Reducing Long-Term Costs

The durability of engineering equipment is directly related to the investment return cycle. The 1000L mixer truck is particularly strict in the selection of key components: the inner wall of the mixing drum is made of 8 mm thick wear-resistant steel plate, with wear resistance 60% higher than ordinary steel, and a service life of more than 10,000 hours; the edge of the shovel is inlaid with high-strength alloy, which is not easy to curl when dealing with hard materials such as sand and gravel, extending the replacement cycle to 2000 hours; the rubber crawler is added with anti-aging agents, which is not easy to crack in extreme environments from -20℃ to 60℃, with a service life 50% longer than ordinary crawlers.

Maintenance convenience is also thoughtful. The equipment is standard-equipped with a centralized lubrication device, with oil injection ports reserved at key bearings and hinge points of the body. Daily maintenance only requires regular filling of lubricating grease, which can be completed without professional tools; the inspection doors of the engine and gearbox are designed to be wide, providing sufficient operating space for parts replacement or troubleshooting. Ordinary technicians in the construction team can independently complete maintenance, saving thousands of yuan in professional maintenance costs every year.

Multiple Adaptability and Logistics Convenience

To adapt to energy supply and environmental protection requirements in different regions, the equipment supports two power options: diesel and gasoline - diesel power can be selected in cold northern regions (with better low-temperature starting performance), and gasoline power can be used in southern residential areas or sites sensitive to noise (with quieter operation). All power versions comply with Euro 5 or EPA environmental certification standards, meeting local emission regulations whether for domestic large-scale projects or overseas export projects, without worrying about policy restrictions.

The logistics and transportation link is also worry-free. A single set of equipment is packaged in a custom wooden box with dimensions of 2570×1060×2000 mm. Vulnerable parts such as the mixing drum and crawler are protected by a reinforced frame to ensure no damage during long-distance transportation. The flexible packaging design also facilitates batch transportation, greatly reducing logistics costs and allowing the equipment to quickly reach the construction site.

From the efficient production capacity of batch pouring to the adaptability to complex terrains, from durable and worry-free quality design to flexible adaptation to multiple scenarios, the 1000L self-loading concrete mixer truck, with its "all-round and balanced" performance, has become a core equipment for large-scale engineering construction teams. It not only improves construction efficiency and controls material waste but also operates stably in various complex environments, providing reliable support for the efficient progress of every large-scale project.
