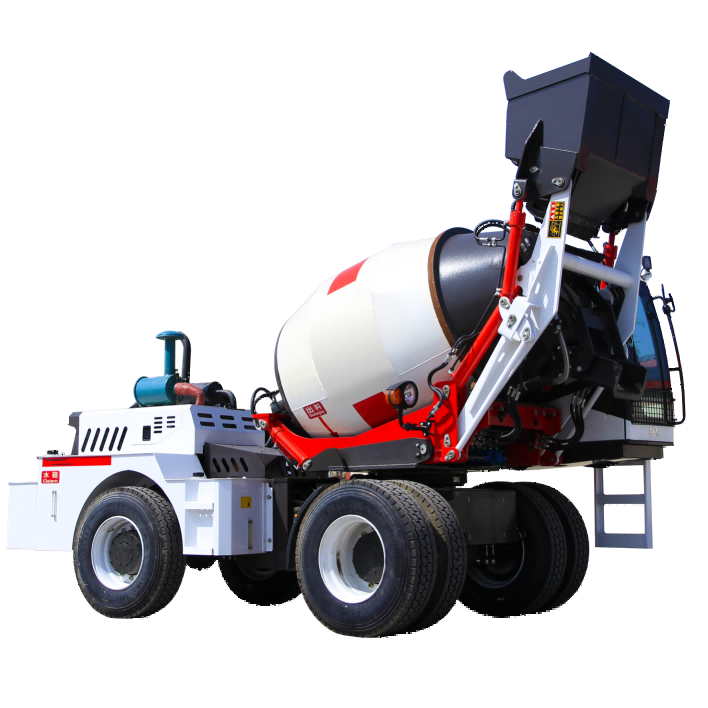

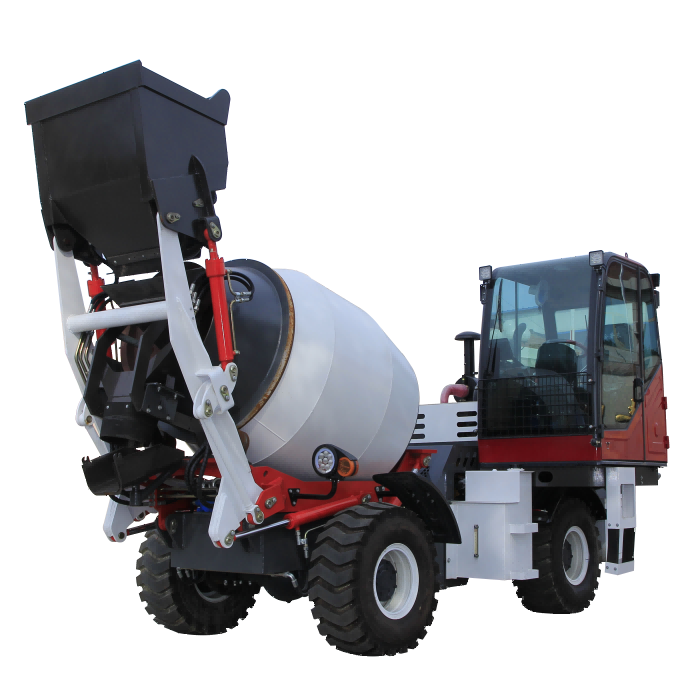

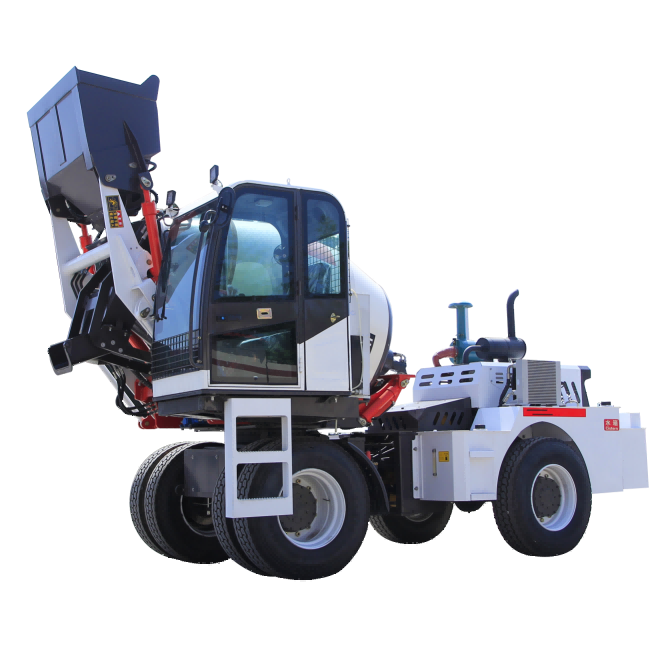

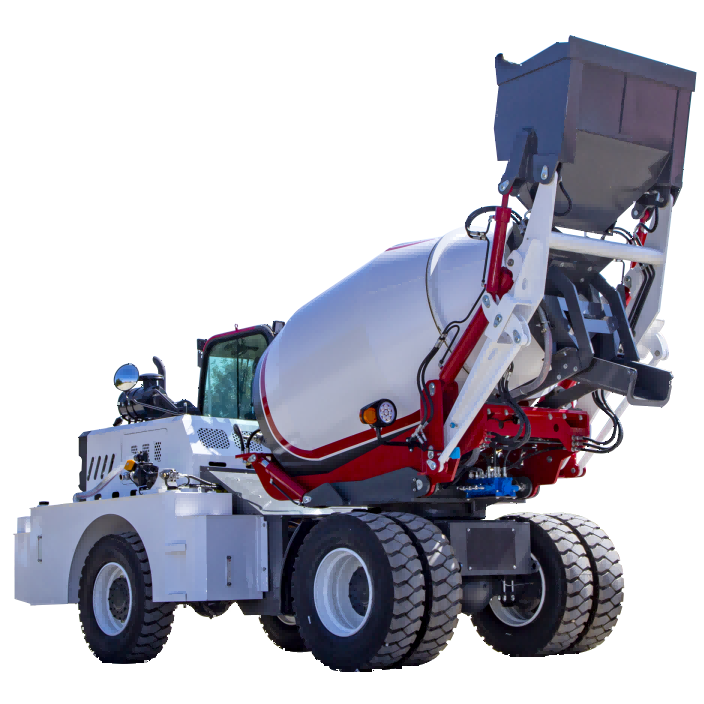

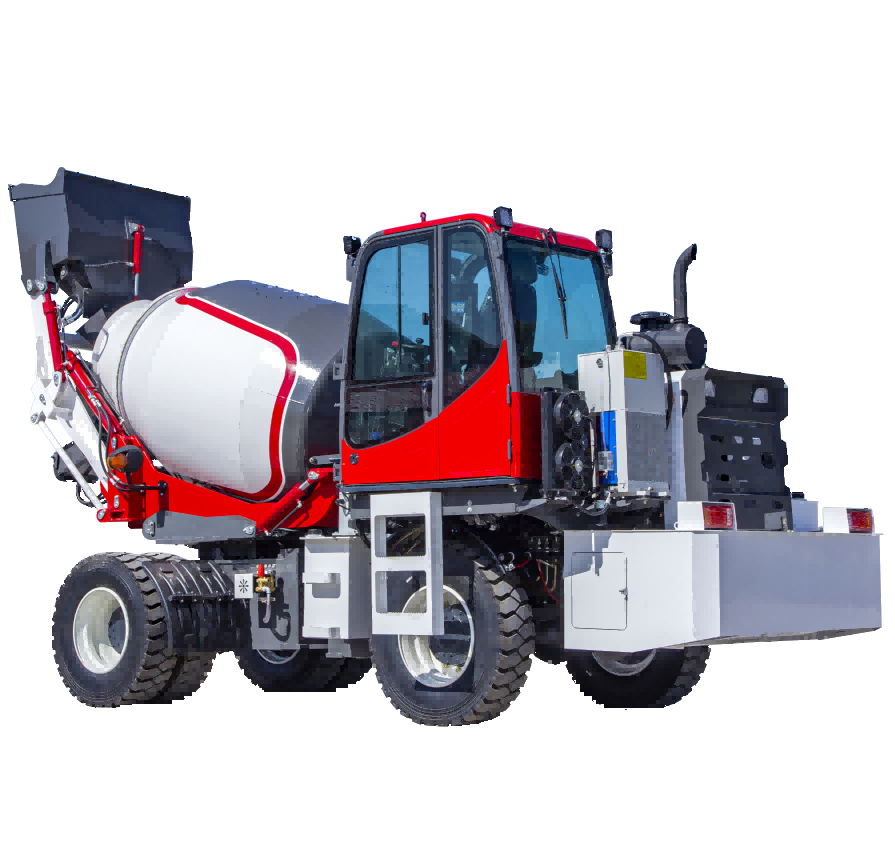

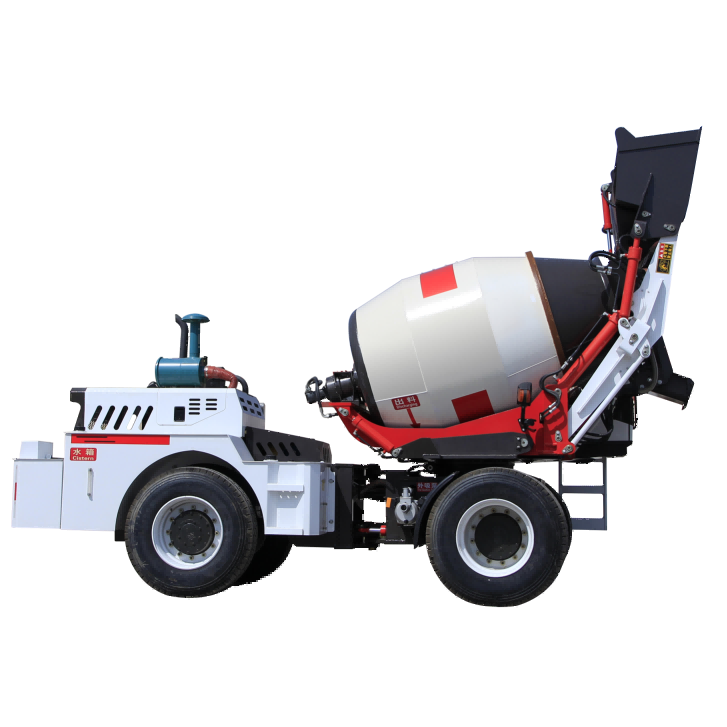

1 m³ concrete mixer truck
1、1-cubic-meter self-loading mixer: ideal for small projects.
2、1m³ capacity fits rural road hardening, courtyard renovation; compact, navigates narrow lanes/indoors with great mobility.

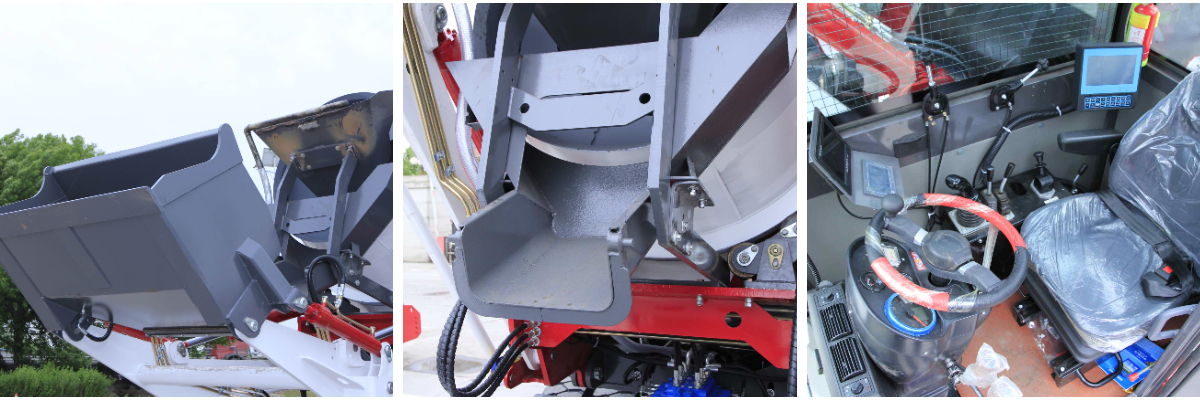

3、Built-in bucket enables automatic loading (no extra equipment needed).
4、One person handles loading, mixing, unloading—saves 3-5 workers' labor costs.
5、Wear-resistant steel drum; 15rpm stable mixing (uniform concrete); 360° discharge (no residue, less waste).
6、Small energy-saving engine: sufficient power, low fuel use; anti-slip tires for stable operation on complex roads.
7、Simple control panel: easy for novices; boosts small-project efficiency.

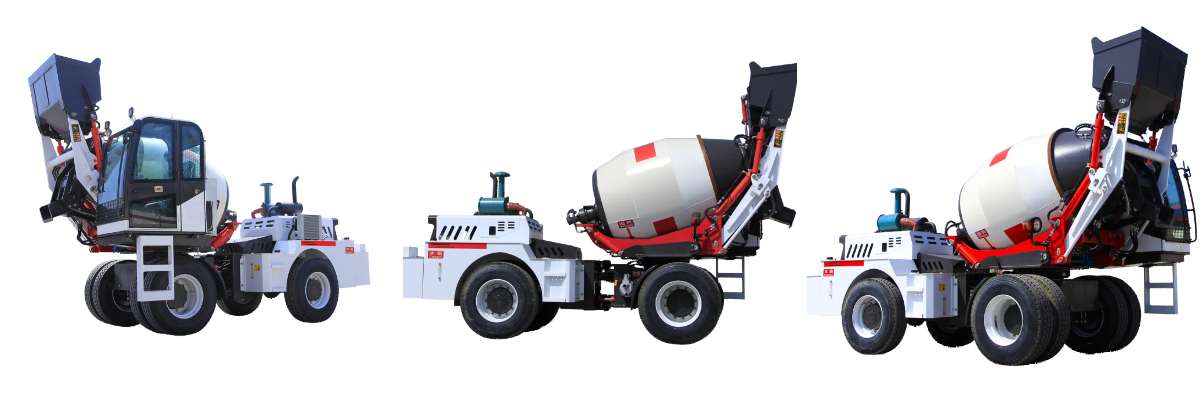

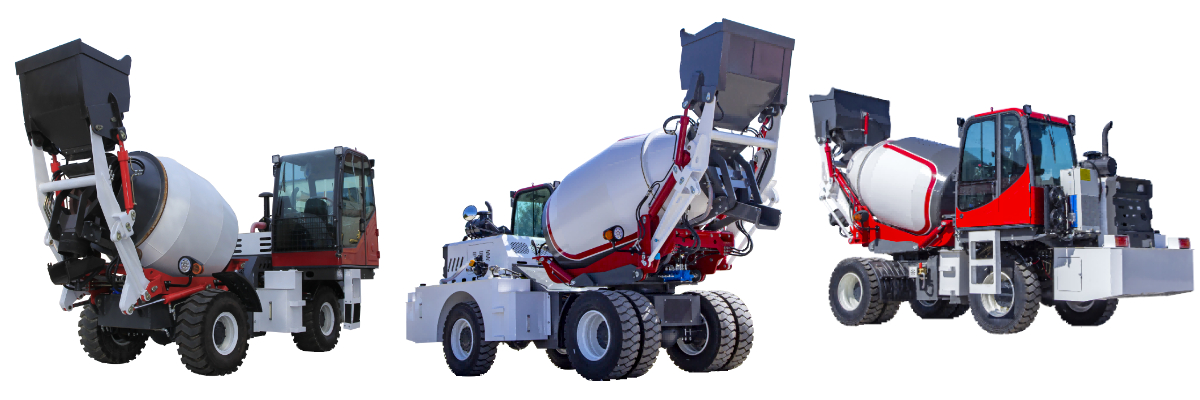

The 1-cubic-meter self-loading concrete mixer truck is a high-performance equipment specially designed for small-scale projects. It combines advanced technology and high-quality components, and performs excellently in terms of performance and production efficiency.

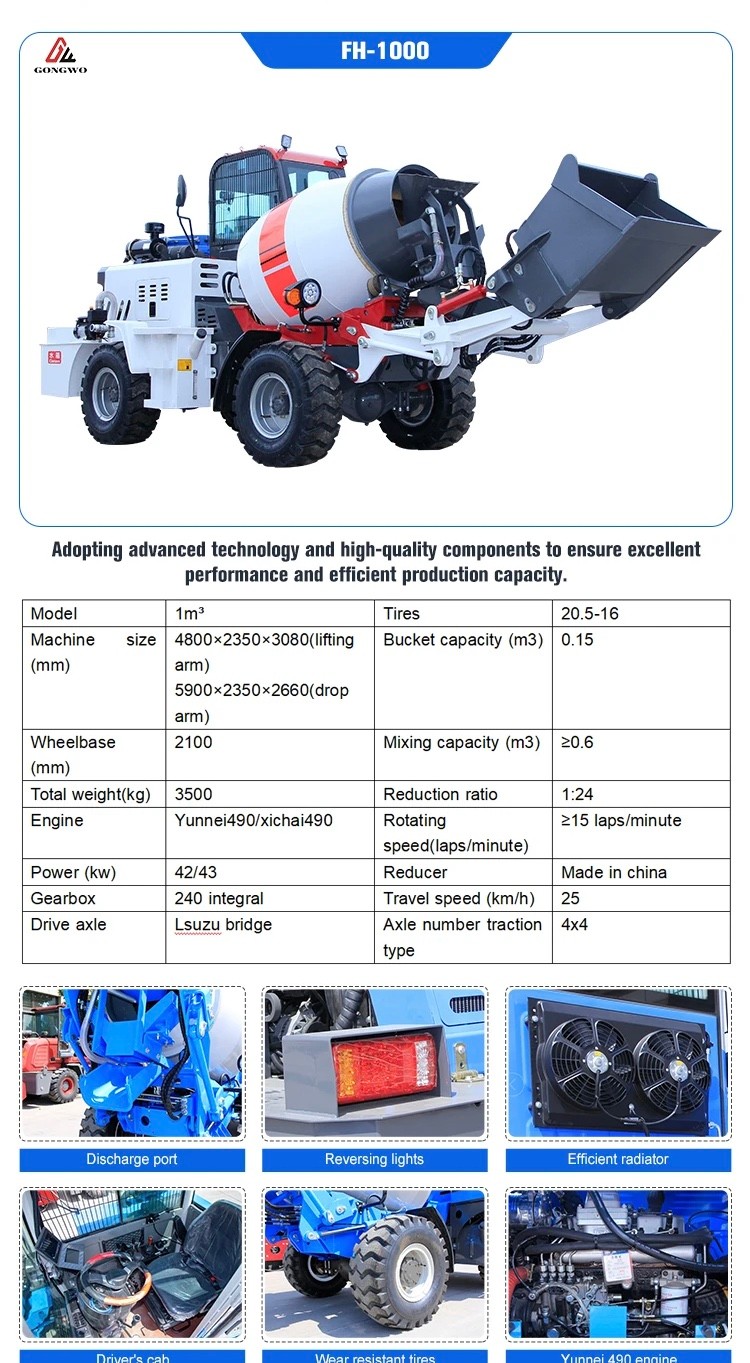

The overall dimensions of this mixer truck are 4800×2350×3080 mm (lifting arm) and 5900×2350×2660 mm (drop arm), with a wheelbase of 2100 mm and a total weight of 3500 kg. Its compact size enables it to easily cope with various narrow working environments. Tires with the specification of 20.5-16 have good wear resistance, providing a strong guarantee for the stable driving of the vehicle under complex road conditions.

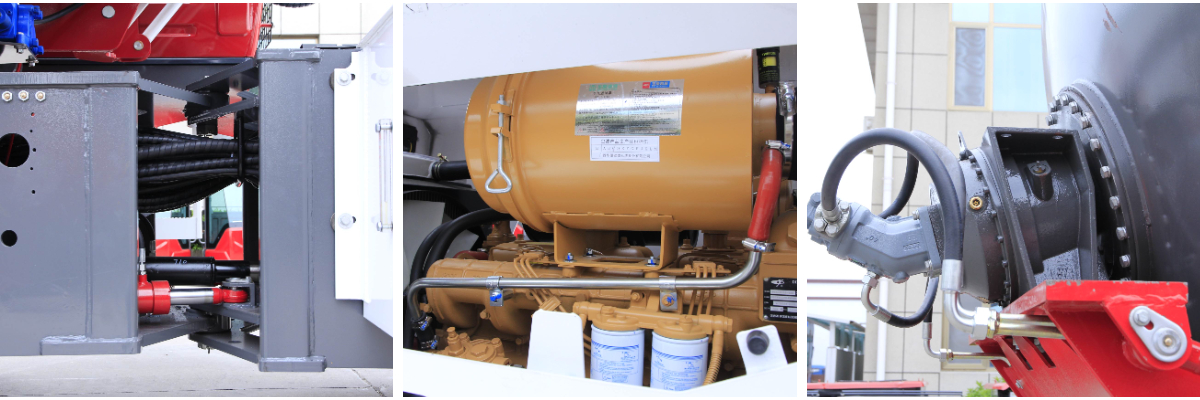

In terms of power, it is equipped with a Yunnei 490 or Xichai 490 engine, with a power of up to 42/43 kilowatts. The power is strong and reliable. Equipped with a 240 integral gearbox and an Isuzu axle, the transmission system is efficient and stable, which can give full play to the performance of the engine and provide strong traction for the vehicle. The maximum driving speed of the vehicle is 25 kilometers per hour, and the 4×4 axle traction type further enhances its off-road capability and passability. Whether it is inside a narrow construction site or on rough urban and rural roads, it can shuttle flexibly and move smoothly.
In terms of operating performance, the bucket capacity of the FH-1000 is 0.15 cubic meters. Although the capacity is not large, it can efficiently complete the loading task for small-scale projects. The mixing capacity is ≥0.6 cubic meters, which can fully meet the concrete demand of small-scale projects. The reduction ratio of the mixing drum is 1:24, and the rotation speed is ≥15 laps per minute, ensuring uniform concrete mixing and smooth discharge.
It also has a series of practical designs. The vehicle is equipped with an efficient radiator, which can effectively control the engine temperature and ensure the stable operation of the equipment during long-term operation. The cab is designed to be spacious and comfortable, providing a good working environment for operators.
With its excellent performance, reliable quality and practical design, the 1-cubic-meter self-loading concrete mixer truck has become an ideal choice for small-scale infrastructure, municipal maintenance and other projects, bringing users an efficient and convenient construction experience.
