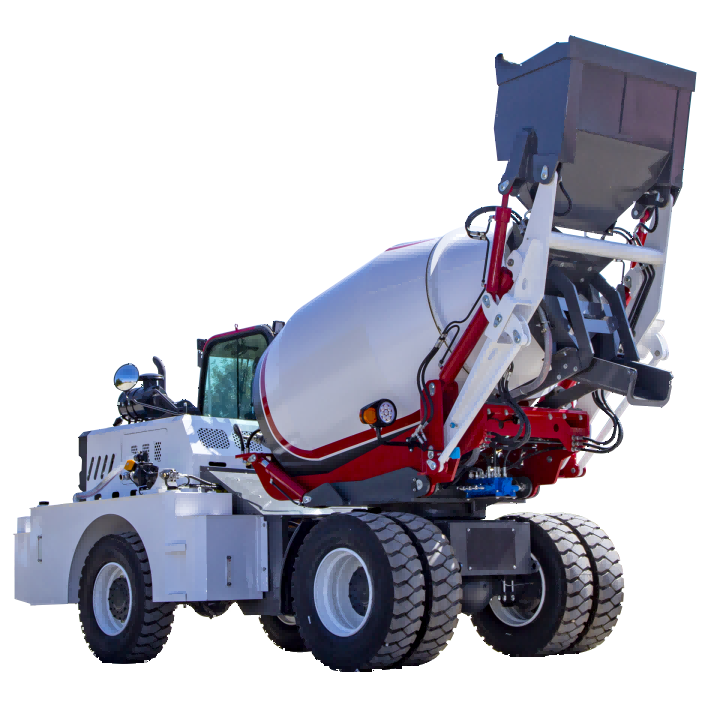

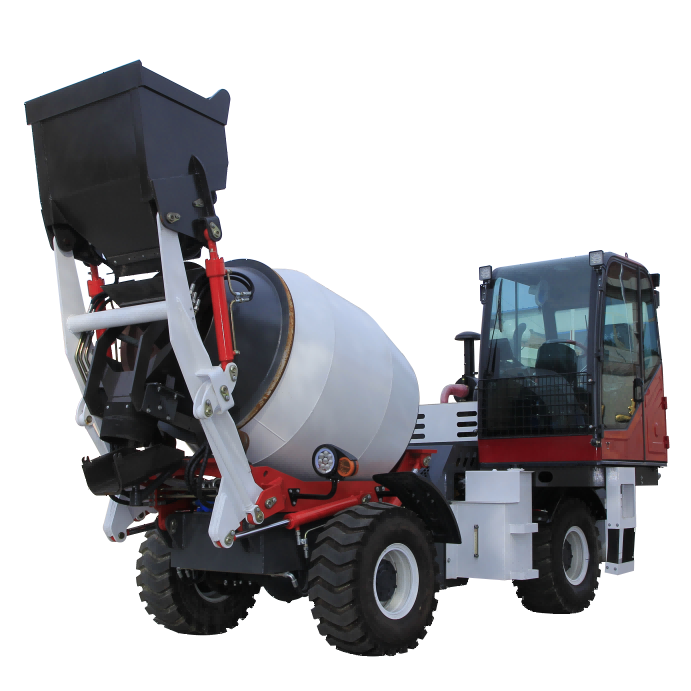

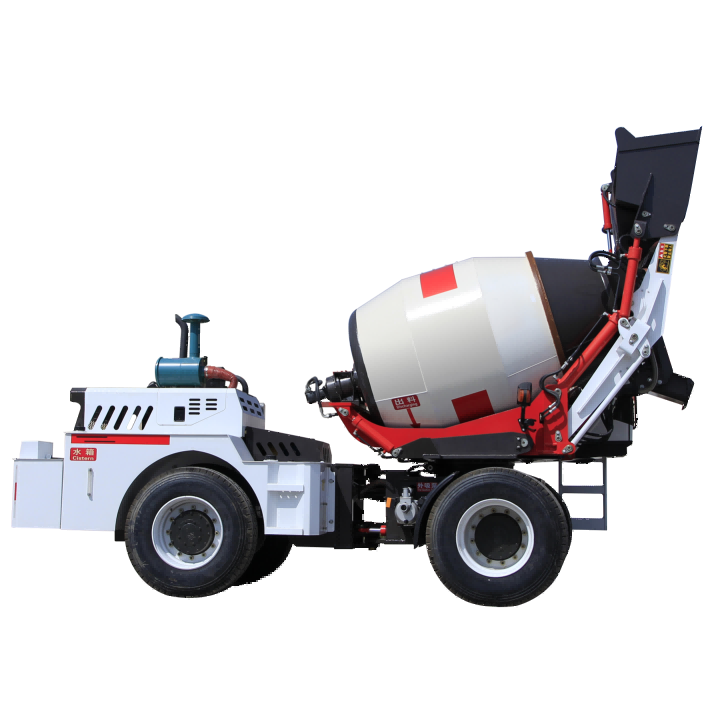

1.5 m³ concrete mixer truck

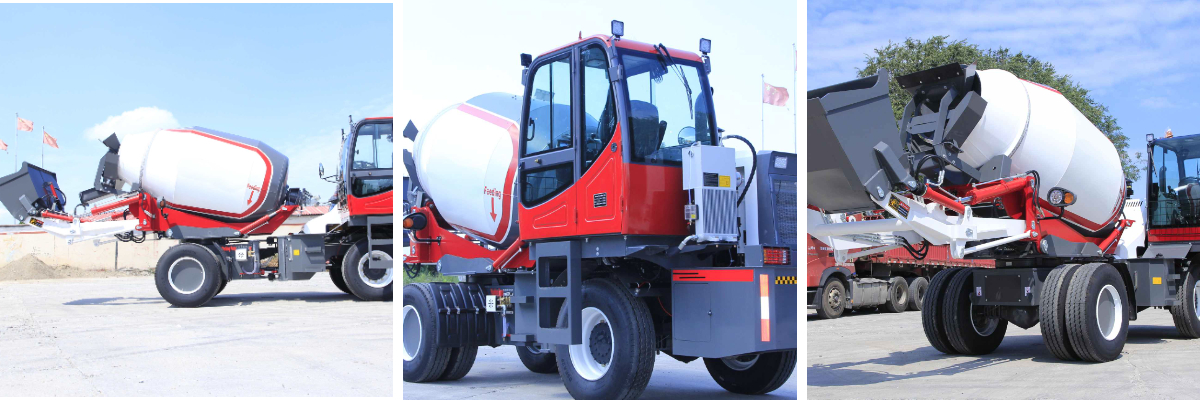

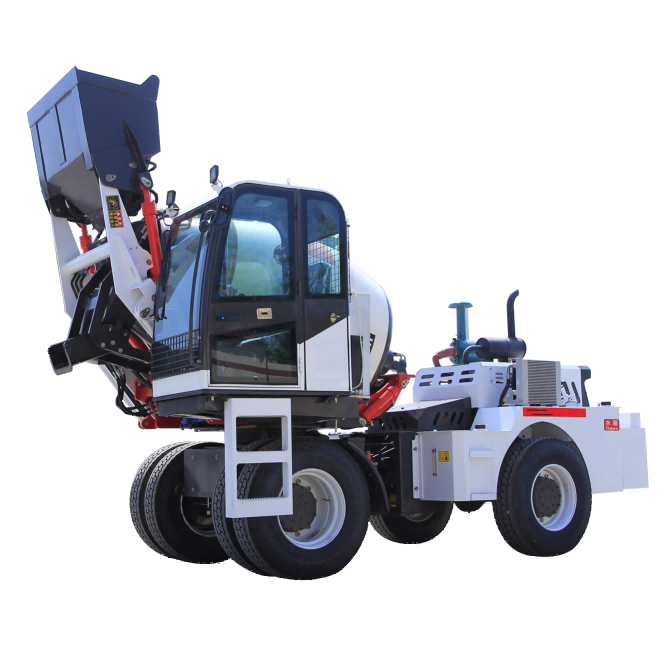

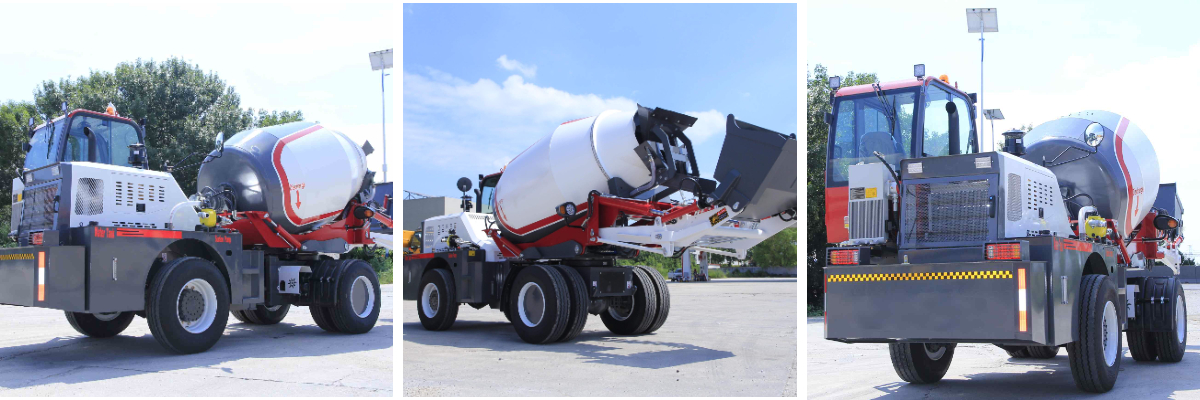

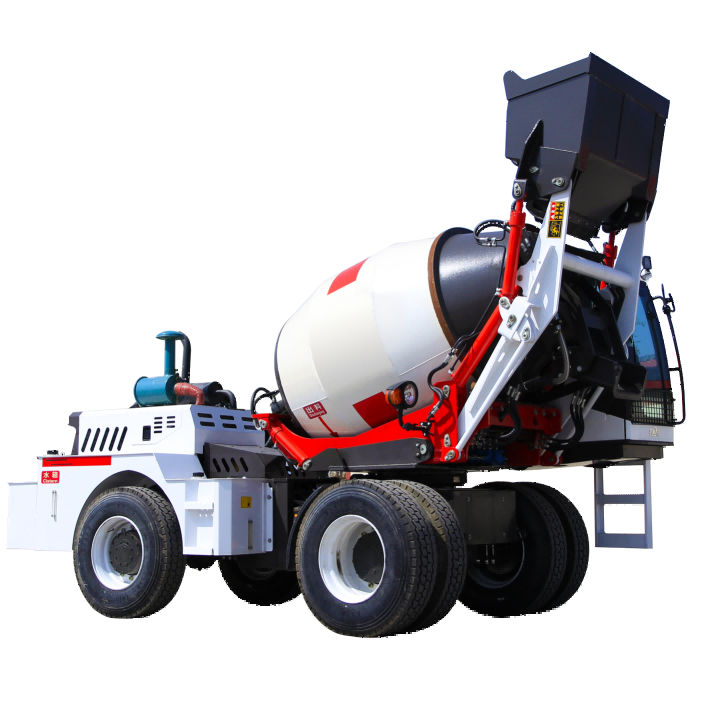

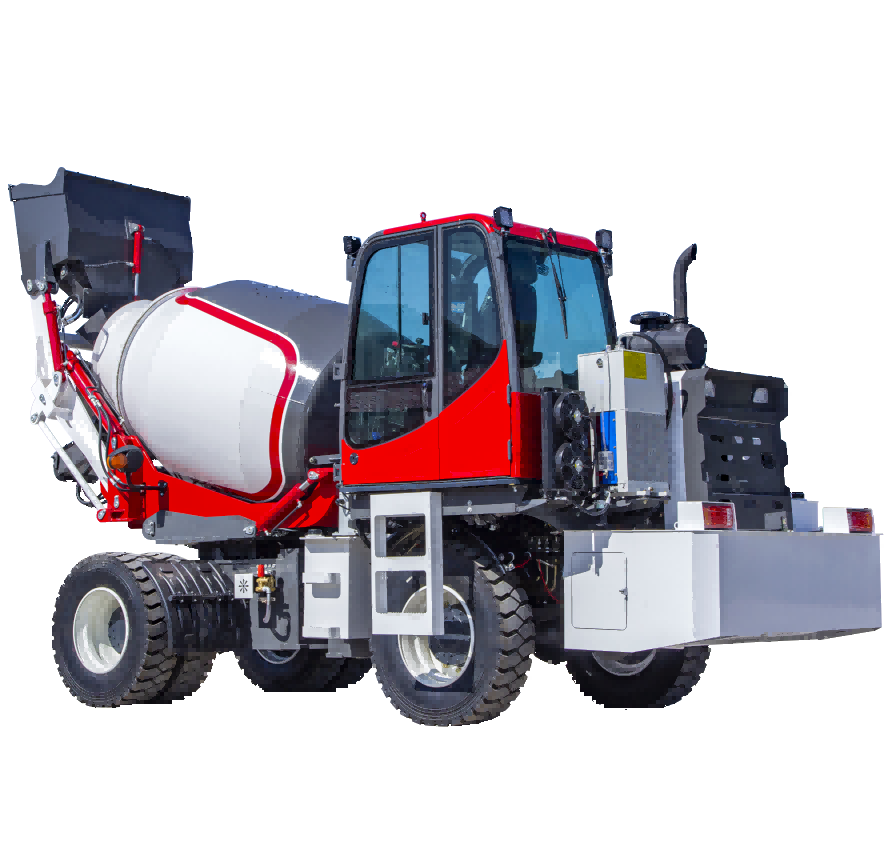

The 1.5-cubic-meter self-loading concrete mixer truck is a high-performance engineering machinery. It is equipped with a powerful engine, enabling stable operation even in complex construction environments. Its 1.5-cubic-meter capacity is ideal for small and medium-sized projects, and it can easily pass through narrow spaces. The self-loading design with a bucket eliminates the need for additional loading equipment, saving time and labor costs. The mixing drum is made of wear-resistant materials, ensuring uniform mixing and residue-free discharge. The integrated control panel is user-friendly, allowing one person to complete the entire process of loading, mixing, and unloading. It is also equipped with a reliable transmission system and durable tires, providing strong power and stable performance. In short, this mixer truck is an excellent choice for small-scale infrastructure and municipal maintenance projects due to its efficiency, flexibility, and reliability.
The 1.5-cubic-meter self-loading concrete mixer truck is a meticulously designed engineering machinery, specifically crafted to meet the requirements of small and medium-sized construction projects.

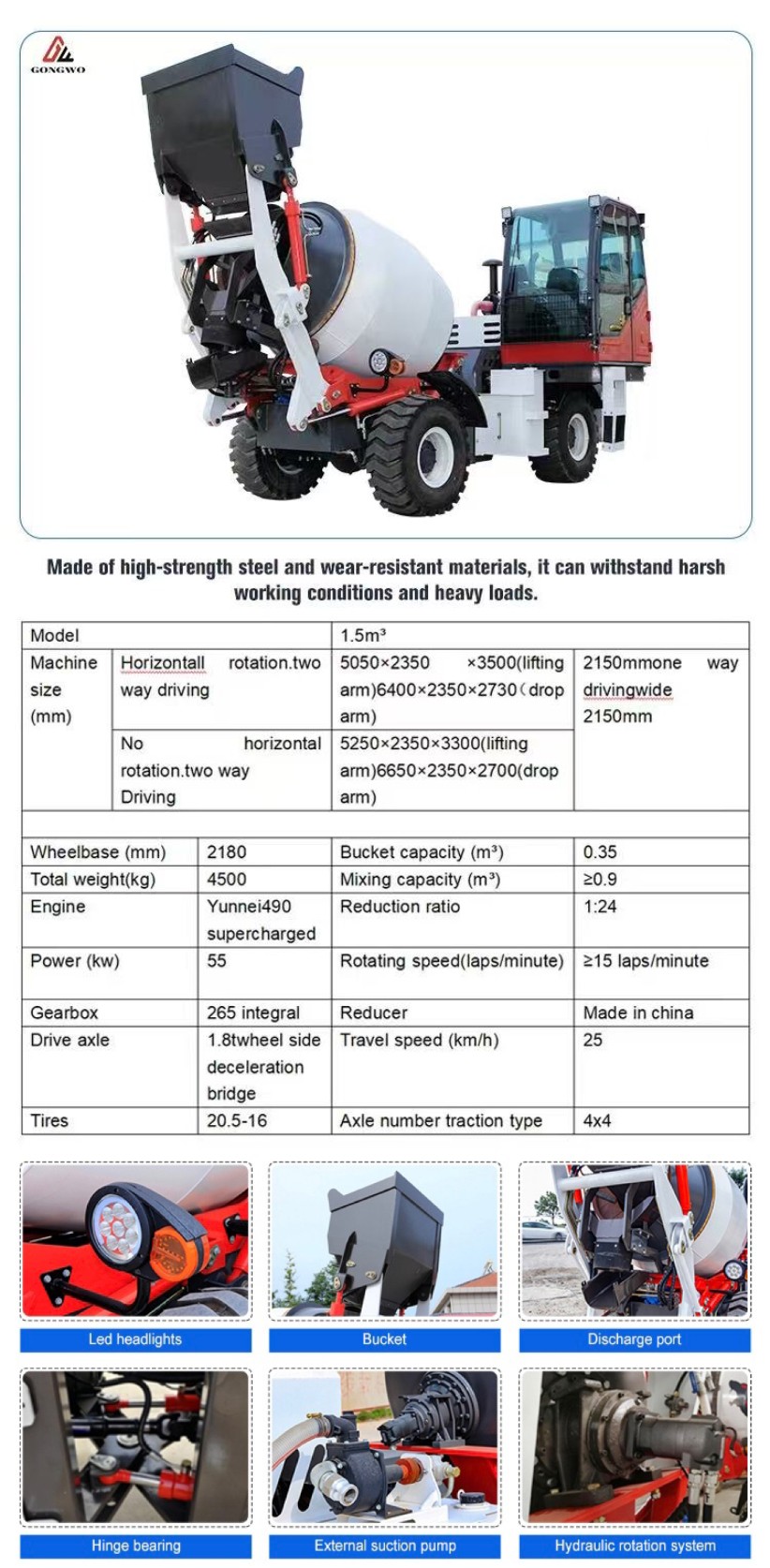

This mixer truck is equipped with a Yunnei 490 turbocharged engine, boasting a power of 55 kilowatts. It offers stable and efficient power output, enabling it to easily handle various complex road conditions and working environments. With a 265 integral gearbox and a 1.8-ton wheel-side deceleration drive axle, its transmission system performs excellently, providing the vehicle with strong traction and stable driving performance. Its maximum driving speed can reach 25 kilometers per hour, and the 4×4 axle traction type further enhances the vehicle's off-road capability and passability. Whether it is inside a narrow construction site or on rough urban and rural roads, it can shuttle flexibly without any hindrance.
In terms of operating performance, this mixer truck performs exceptionally well. Its bucket capacity is 0.35 cubic meters, which can efficiently complete the loading task. The mixing capacity is ≥0.9 cubic meters, fully meeting the concrete demand of small and medium-sized projects. The reduction ratio of the mixing drum is 1:24, and the rotation speed is ≥15 laps per minute, ensuring uniform concrete mixing and smooth discharge. The 360° rotating discharge design, combined with the mixing drum made of high-strength steel and wear-resistant materials, not only leaves no residue during discharge but also greatly extends the service life of the equipment, allowing it to withstand harsh working conditions and heavy loads.
The wheelbase of the vehicle is 2180 mm, and the total weight is 4500 kg. Tires with the specification of 20.5-16 have good wear resistance and stability, and can adapt to long-term high-intensity operations.

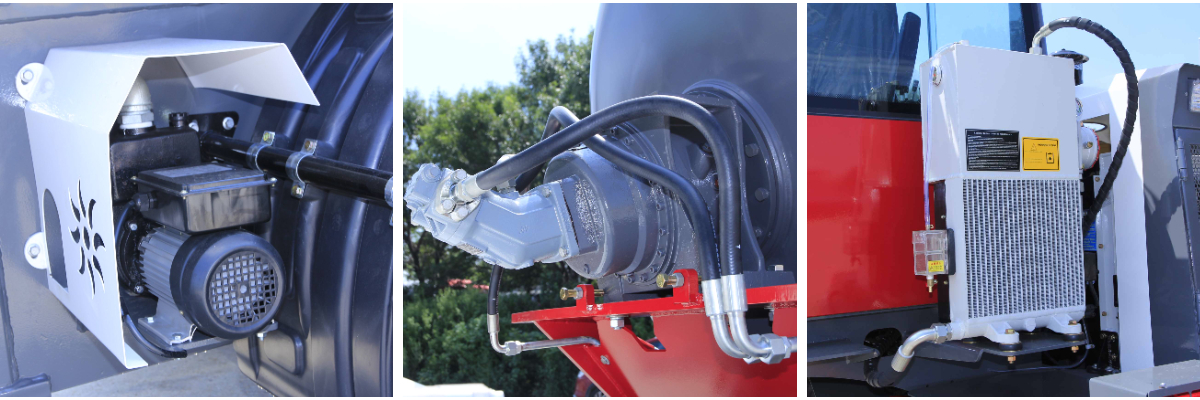

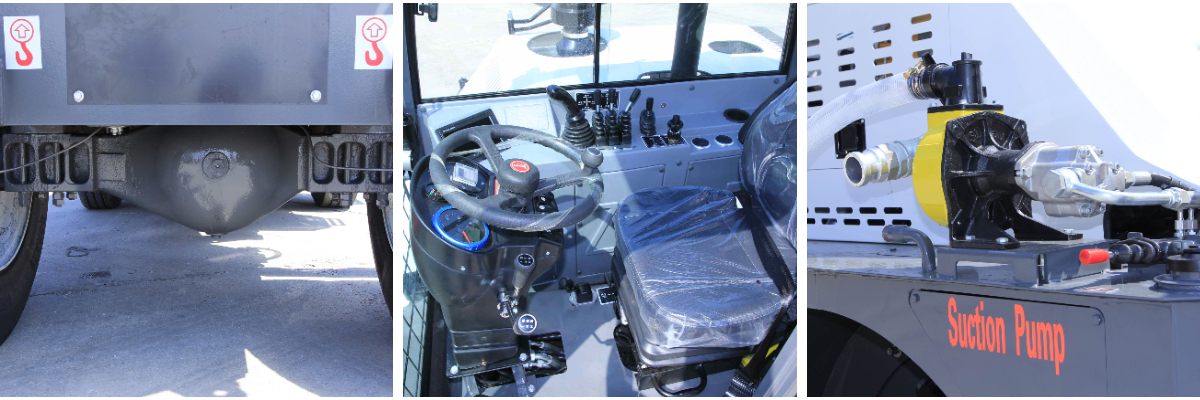

In addition, this mixer truck also has a series of humanized designs. Its cab is spacious and comfortable, equipped with an integrated operation panel, which is simple and easy to operate. A single person can complete the entire process of loading, mixing, and unloading, greatly improving construction efficiency. Moreover, the vehicle is also equipped with an external suction pump and a hydraulic rotation system, further enhancing the convenience and flexibility of operations.
With its excellent performance, reliable quality, and humanized design, the 1.5-cubic-meter self-loading concrete mixer truck has become an ideal choice for small-scale infrastructure, municipal maintenance, and other projects, bringing users an efficient and convenient construction experience.
