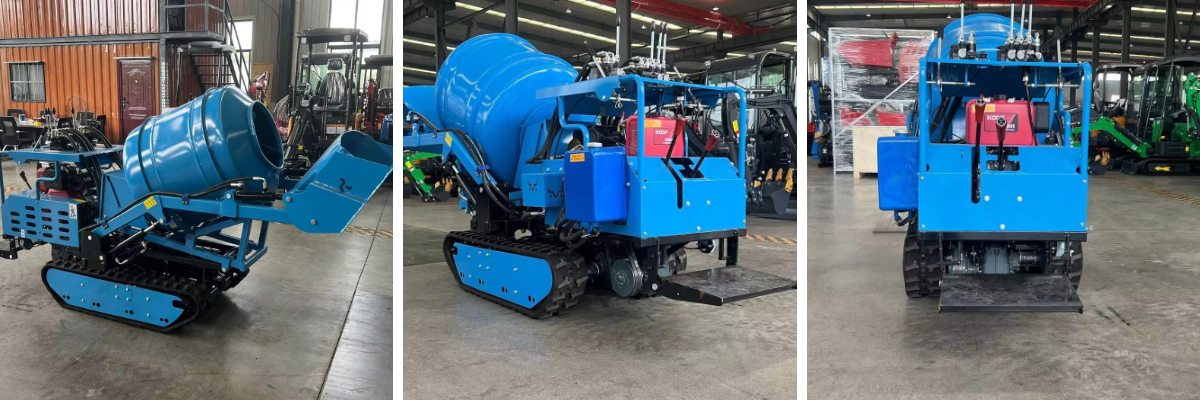

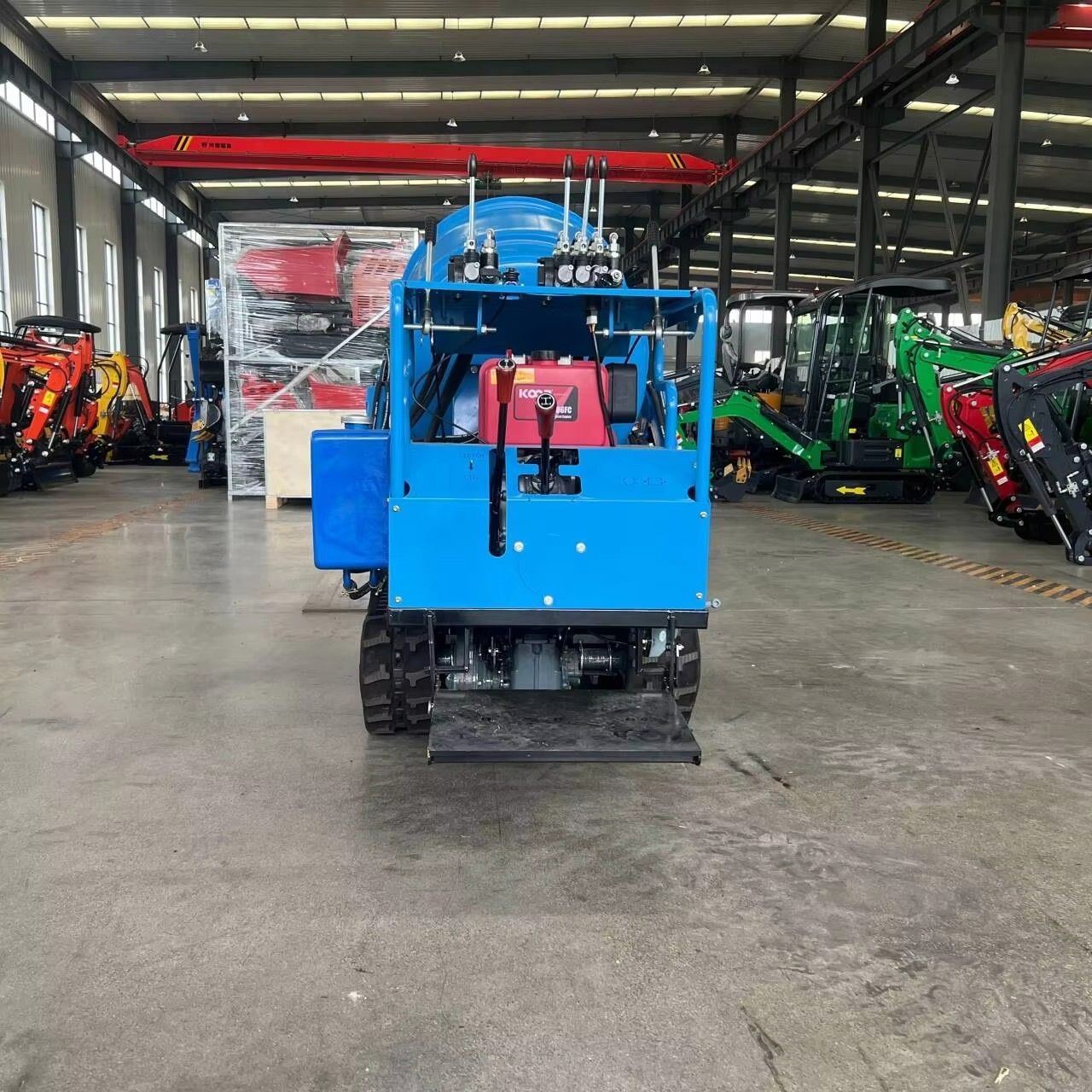

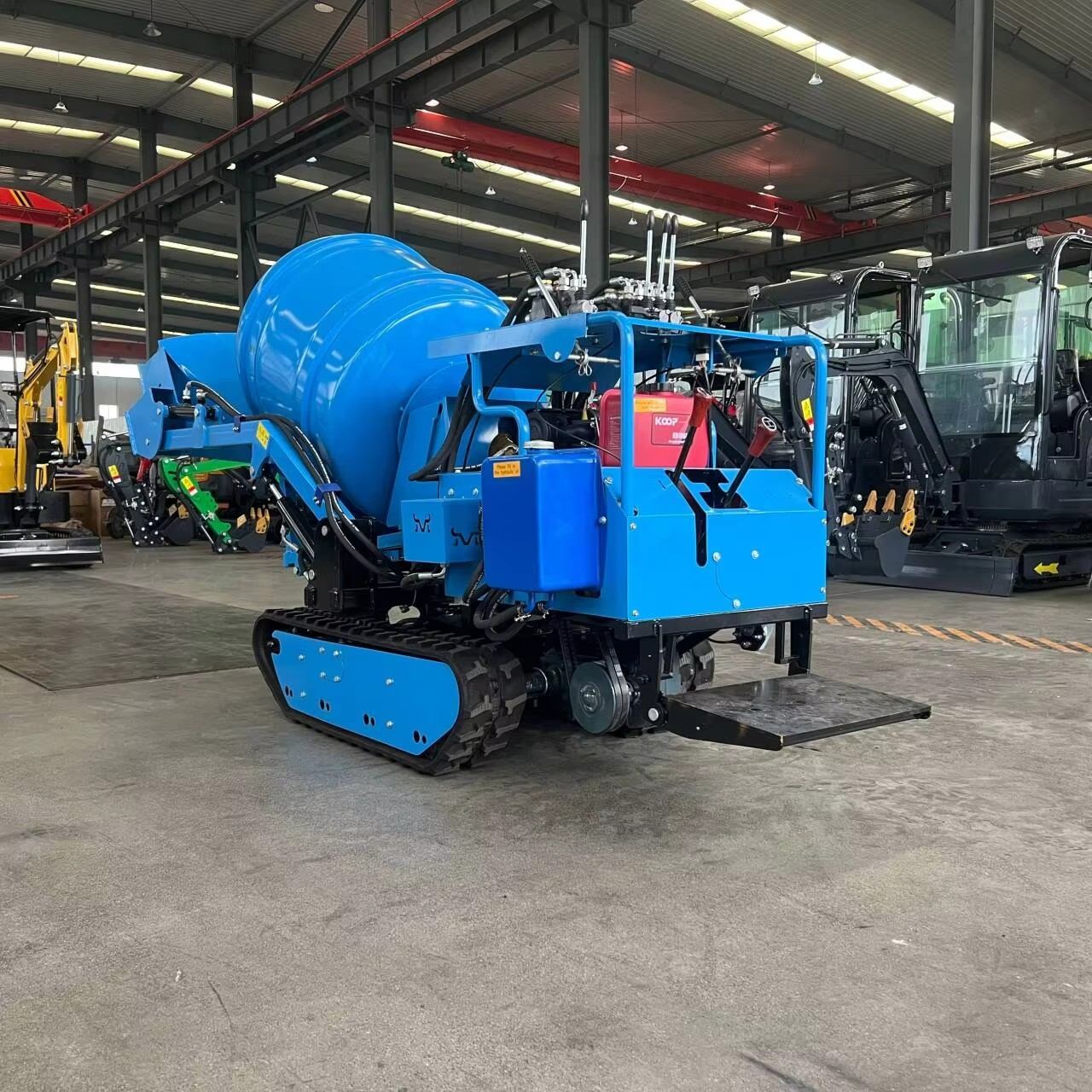

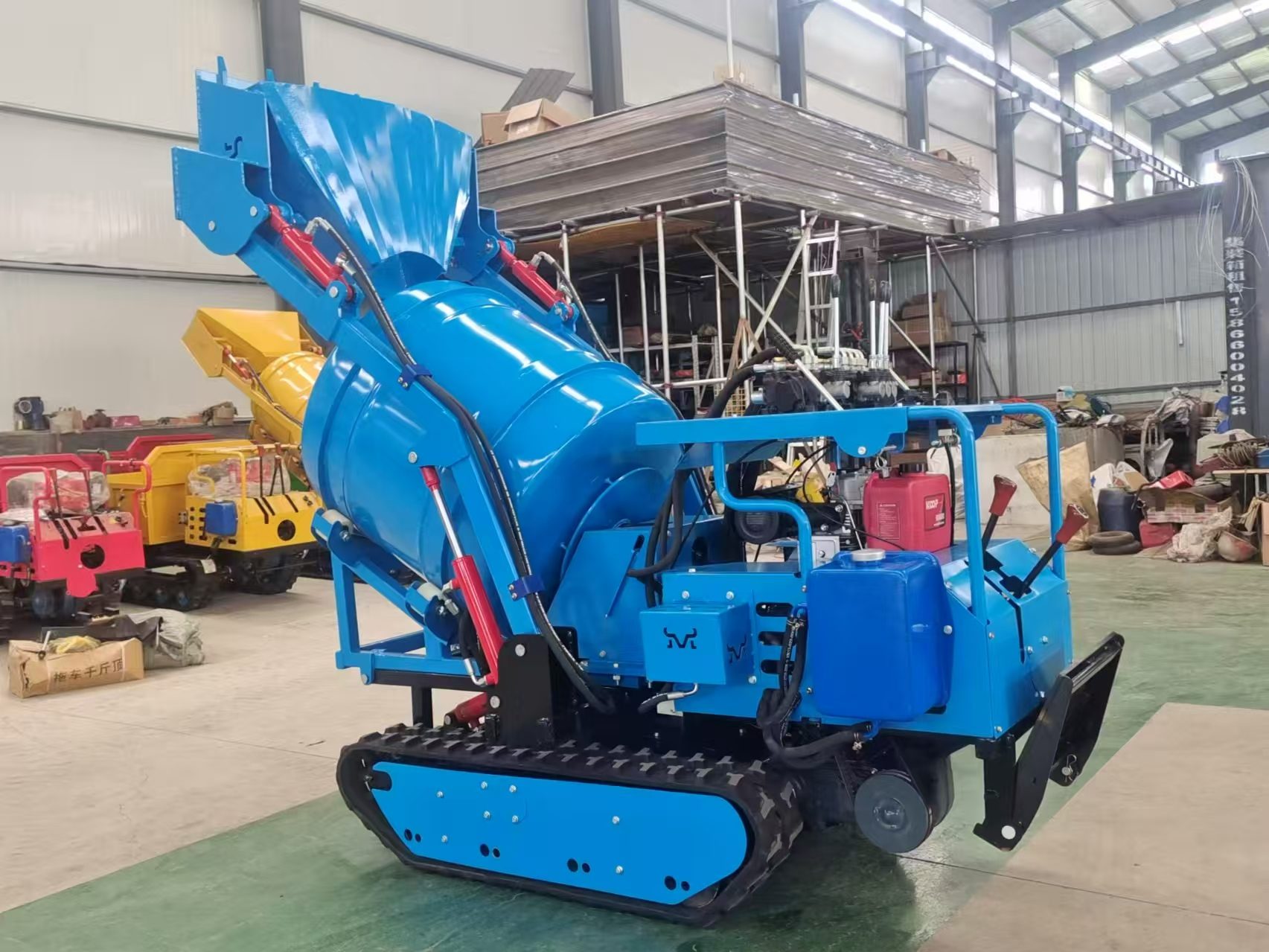

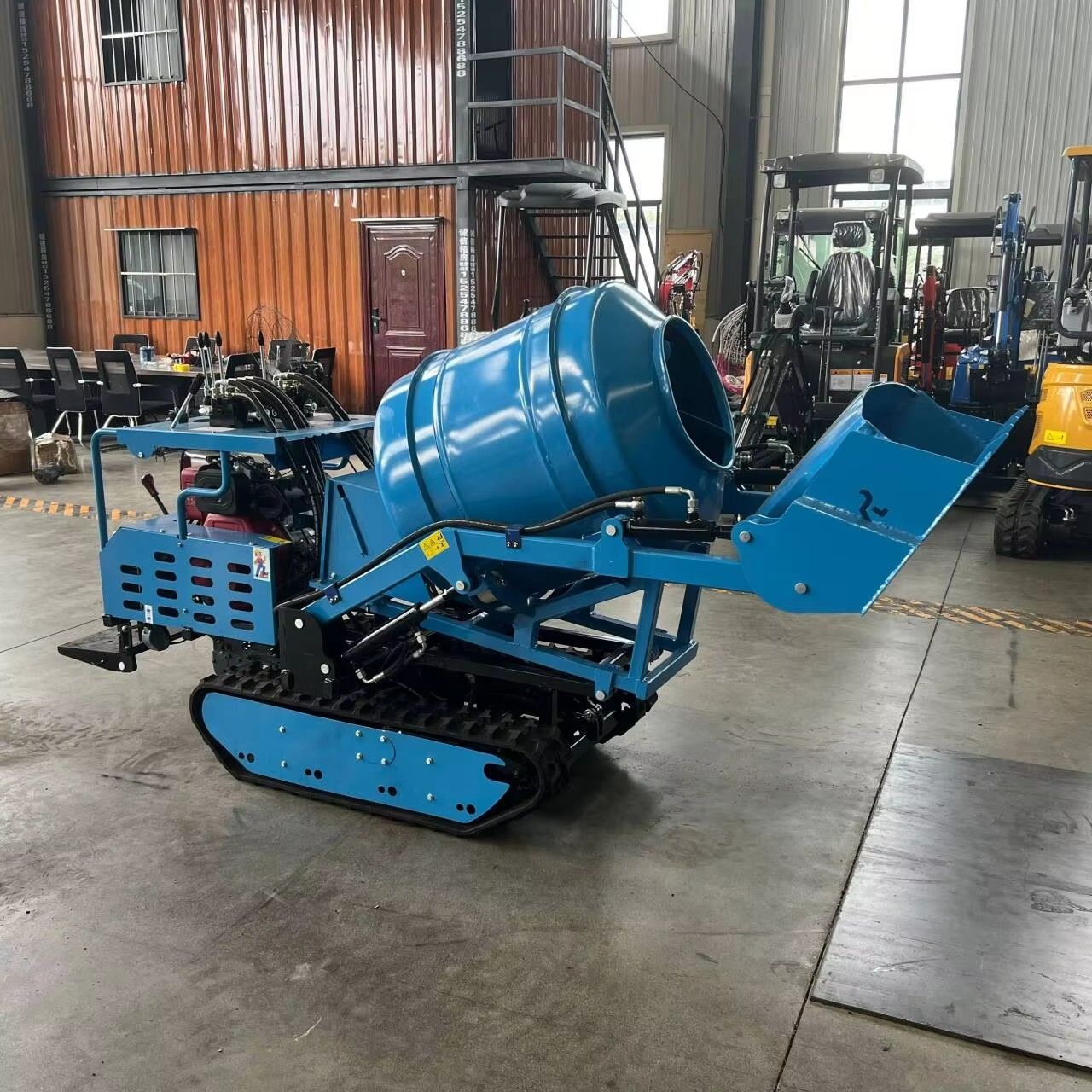

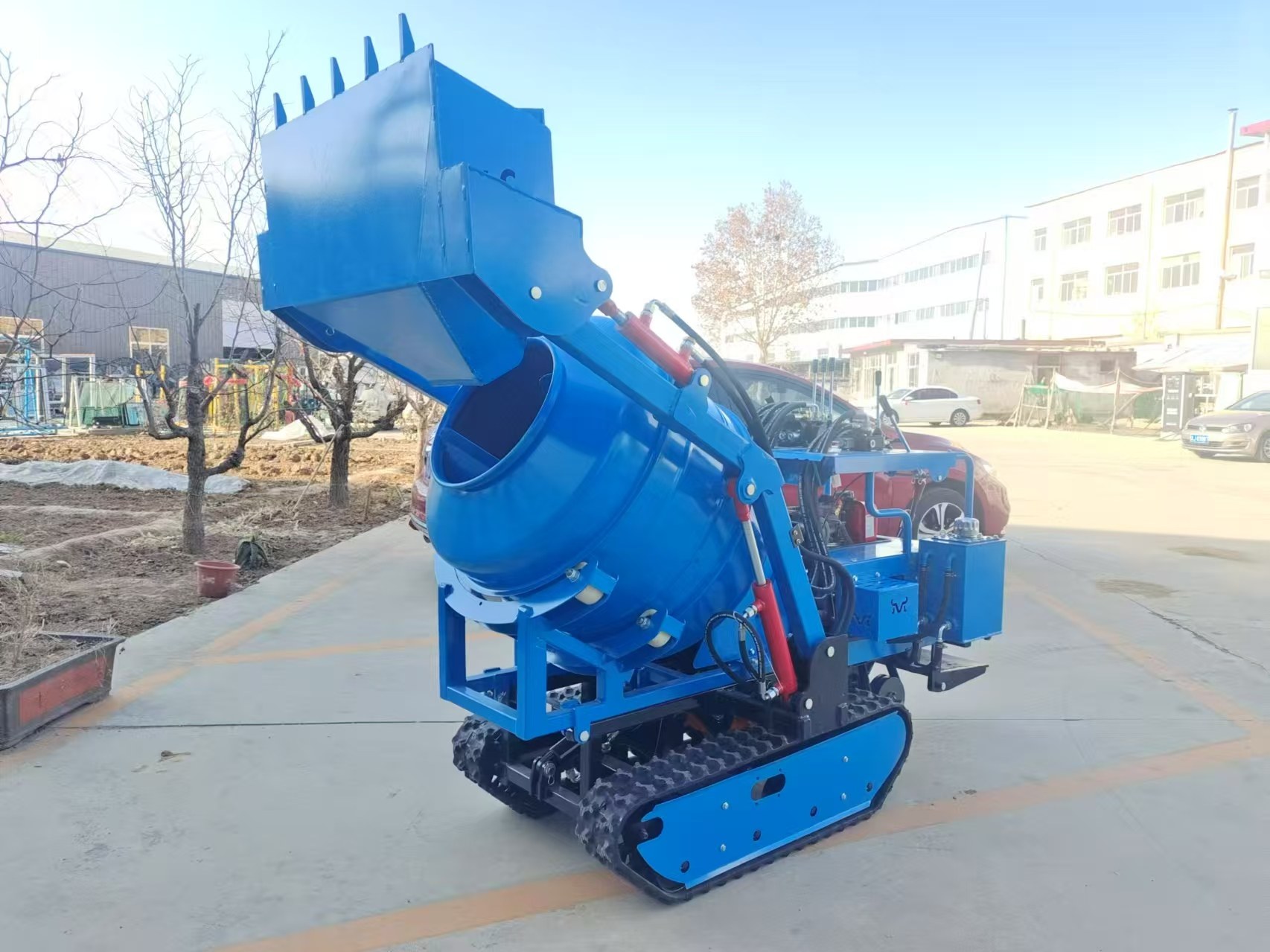

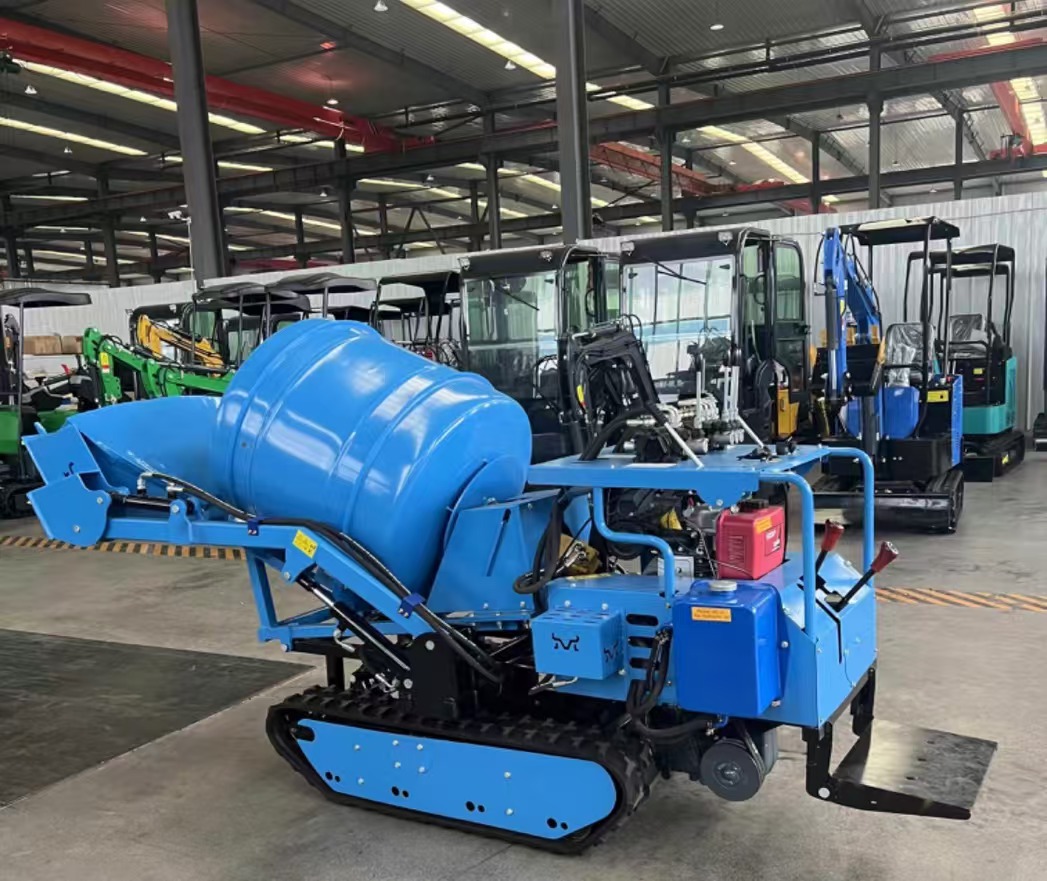

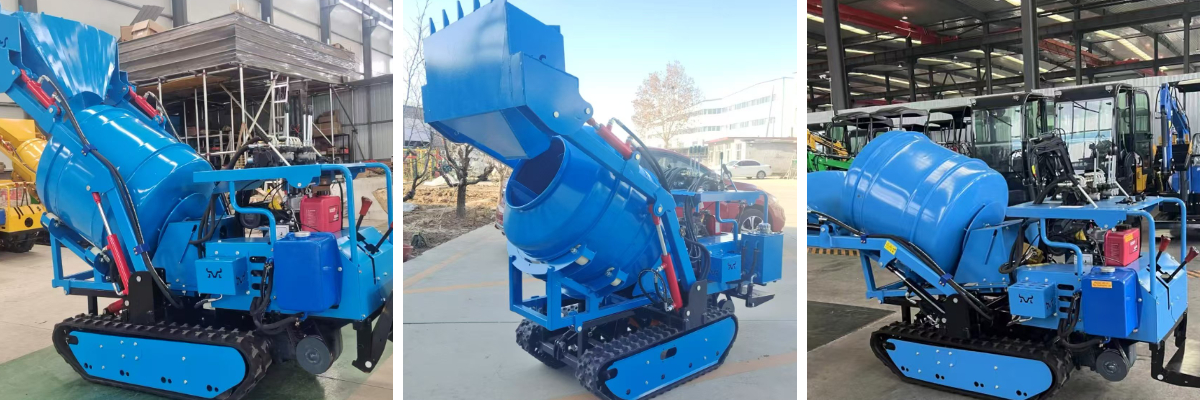

500L mixer truck

In small and medium-sized projects such as rural self-construction, foundation pouring of small buildings, and municipal pipeline laying, the 500L self-loading concrete mixer truck has become a core equipment for construction teams with its "all-round and efficient" characteristics. This equipment integrates four functions: loading, mixing, transporting and unloading. With its precise parameter design and flexible adaptability, it perfectly balances construction efficiency and cost control, redefining the concrete operation standards for small and medium-sized projects.

Power and Control: Stable Output with Zero Operation Threshold

The power system is the core of the efficient operation of the equipment. The truck is equipped with a Changchai 186F diesel engine, with a 10-horsepower output and a four-stroke design, which ensures stable power output and lower fuel consumption, saving about 15% energy compared with similar equipment. The adoption of an air-cooled heat dissipation system is particularly crucial - it does not rely on cooling water circulation, and can continue to work without "striking" even in rural water-scarce construction sites or high-temperature environments, greatly reducing the risk of shutdown caused by heat dissipation failures.

The matching GL-13 gearbox adopts a 3 forward gears + 1 reverse gear design, with clear gears and low shifting resistance. Combined with an ergonomic manual lever, operators can get started with simple training. Whether it is fast driving when transferring empty vehicles or low-speed stability when mixing with heavy loads, the speed can be flexibly adjusted through gears, taking into account both movement efficiency and operation safety.

Operation Efficiency: Precise Quantity Control for Worry-free Pouring Quality

The 500L discharge capacity accurately meets the batch pouring needs of small and medium-sized projects - a single discharge can meet the pouring volume of about 20 square meters of ground leveling or 3 standard walls, avoiding the trouble of frequent refueling with traditional small-capacity equipment. The design of feeding capacity ≥ 500L reserves sufficient space for the full mixing of concrete raw materials (cement, sand, gravel, water). Combined with the 0.10 cubic meter bucket capacity, a single material fetching can meet the needs of one round of mixing, eliminating the need for repeated trips to the material pile, and improving work efficiency by 30%.

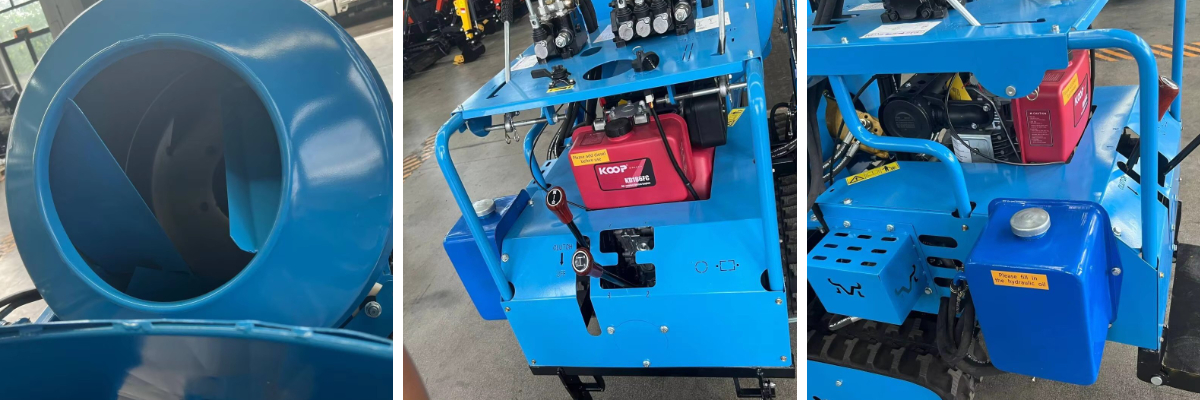

Mixing quality directly determines the construction effect. The mixing drum adopts a golden size design of Φ760×980 mm, and the internal spiral blades are optimized through fluid dynamics. When rotating, it can form a three-dimensional mixing trajectory: the bottom blades push the materials upward, the middle blades stir horizontally, and the top blades guide the materials to fall back. These three functions enable cement, sand, gravel and water to be evenly mixed within 3-5 minutes, with the segregation rate controlled within 5%, far lower than the industry average of 8%, ensuring that the strength of the poured concrete meets the standard and the surface is flat.

The unloading process is also efficient. The hydraulically driven unloading system has a fast response speed. The unloading angle (adjustable from 0-45°) and flow rate can be precisely controlled through the lever. Whether it is "high-altitude fixed-point material distribution" during high wall pouring or "thin-layer paving" after ground leveling, it can achieve leak-free operation, reducing material waste and manual cleaning costs.

Passability: No Pressure to Pass Through Complex Sites

The construction sites of small and medium-sized projects are often full of challenges - the narrowness of rural lanes, the steepness of temporary construction site ramps, and the muddiness of the site after rain all put forward high requirements for the passability of equipment. This mixer truck, with its compact body and crawler design, can easily cope with various complex scenarios.

The overall size of the machine is controlled at 2600×1080×1700 mm, with a width of only 1.08 meters, which is about 30 cm narrower than traditional mixer trucks. It can directly pass through 1.2-meter-wide rural courtyard gates or construction fence gaps; the height of 1.7 meters can pass through the ground floor doorways of most civil buildings, realizing the seamless connection of "indoor mixing + on-site pouring".

The rubber crawler design of the walking system can be called a "terrain master". The 180×72×42 mm crawler size combined with 1100 mm ground contact length can evenly distribute the equipment weight (net weight 765KG, gross weight 845KG) to the ground, avoiding indentations on hardened roads or floor tiles, and providing sufficient grip on muddy, loose soil and other slippery terrains. The adjustable walking speed of 0-8 km/h can be flexibly switched according to the site size: high-speed gear is used to improve efficiency during short-distance transfer, and low-speed gear is used to ensure accurate alignment when approaching the pouring point.

In the face of common obstacles on construction sites, the equipment's obstacle-surmounting ability is also excellent: the maximum climbing angle of 30° can easily climb over 1.5-meter-high soil slopes, the vertical obstacle-surmounting ability of 200 mm can directly run over brick piles, small pipes and other obstacles; the wading depth of 350 mm allows it to work normally in waterlogged sites after rain without waiting for the site to dry, effectively shortening the construction period.

Durability and Maintenance: High-quality, Worry-free and Cost-saving

The durability of engineering equipment is directly related to long-term use costs. This mixer truck is particularly strict in the selection and design of key components: the inner wall of the mixing drum is made of 6 mm thick wear-resistant steel plate, which has 50% higher wear resistance than ordinary steel, and its service life can reach more than 8000 hours; the edge of the bucket is inlaid with high-strength alloy, which is not easy to curl when dealing with hard materials such as sand and gravel; the crawler rubber is added with anti-aging agents, which is not easy to crack in sunlight or low-temperature environments, prolonging the replacement cycle.

The convenience of maintenance is also fully considered. The equipment is equipped with a centralized lubrication device as standard. Key bearings and hinge points of the machine body are reserved with oil injection ports. Daily maintenance only requires regular filling of lubricating grease, which can be completed without professional tools; the inspection doors of the engine and gearbox are designed to be wide, providing sufficient operating space for parts replacement or troubleshooting. Even ordinary technicians of the construction team can independently complete the maintenance, saving nearly 2000 yuan in professional maintenance costs every year.

Multiple Adaptability and Logistics Convenience

To adapt to energy supply and environmental protection requirements in different regions, the equipment supports two power options: diesel and gasoline - diesel power can be selected in cold northern regions (with better low-temperature starting performance), and gasoline power can be selected in southern regions or residential areas sensitive to noise (with quieter operation). At the same time, all power versions comply with Euro 5 or EPA environmental certification standards, which can meet local emission regulations whether for domestic construction or export overseas, without worrying about policy restrictions.

The logistics and transportation link is also worry-free. A single set of equipment adopts customized packaging with a size of 2300×1080×1850 mm, and key components are protected by reinforced wooden boxes; a 20-foot container can hold 5 sets, and a 40-foot container can hold 10 sets, which is 20% more efficient than similar equipment in transportation, greatly reducing the logistics cost of cross-border or long-distance transportation, making it more flexible for dealers to stock up and more cost-effective for construction teams to purchase in batches.

From precise capacity design to all-terrain adaptability, from low-consumption and durable quality to multiple adaptation flexibility, the 500L self-loading concrete mixer truck, with the advantages of "small but complete, precise and strong", provides a one-stop concrete solution for small and medium-sized projects. Whether it is improving construction efficiency, controlling material waste, or reducing labor and maintenance costs, it can become a "capable assistant" for construction teams, enabling every small and medium-sized project to achieve efficient, economical and high-quality construction goals.
