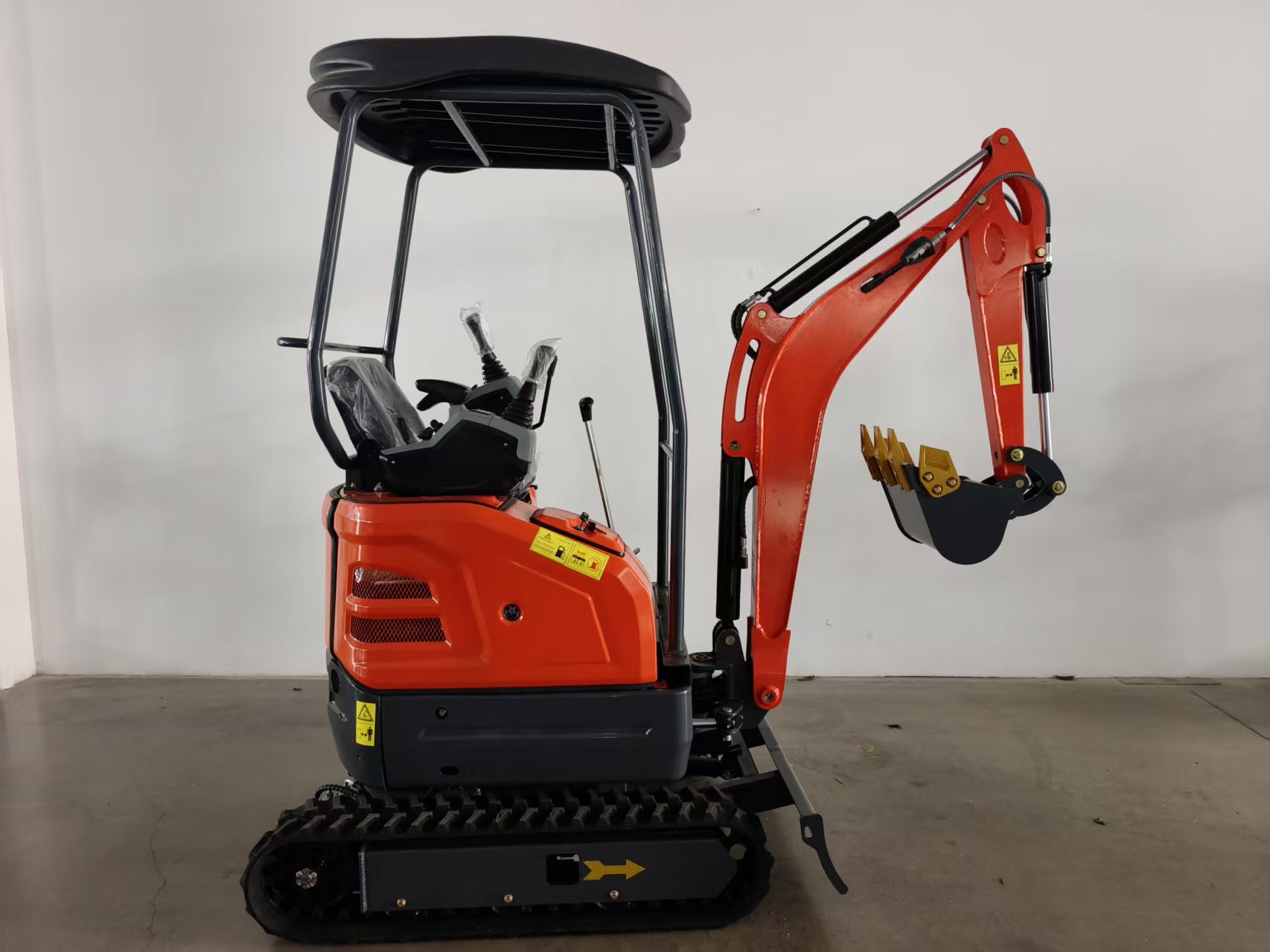

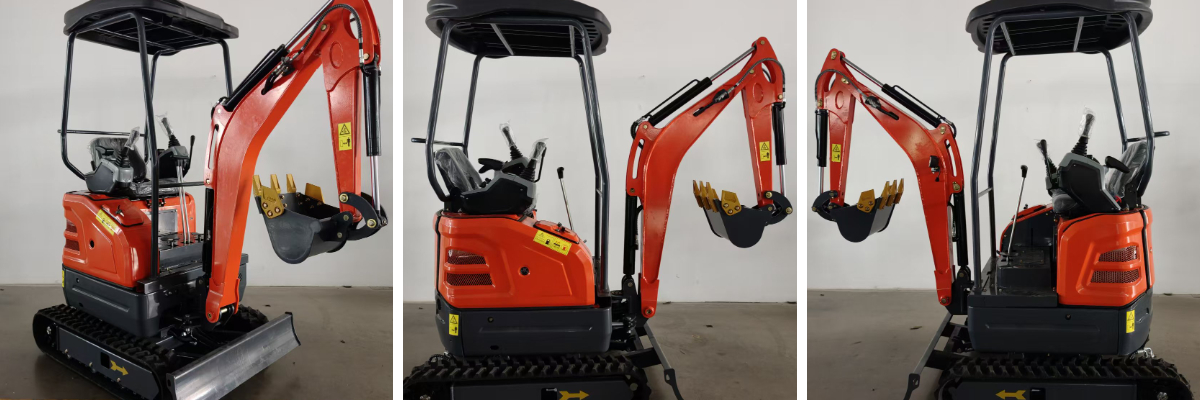

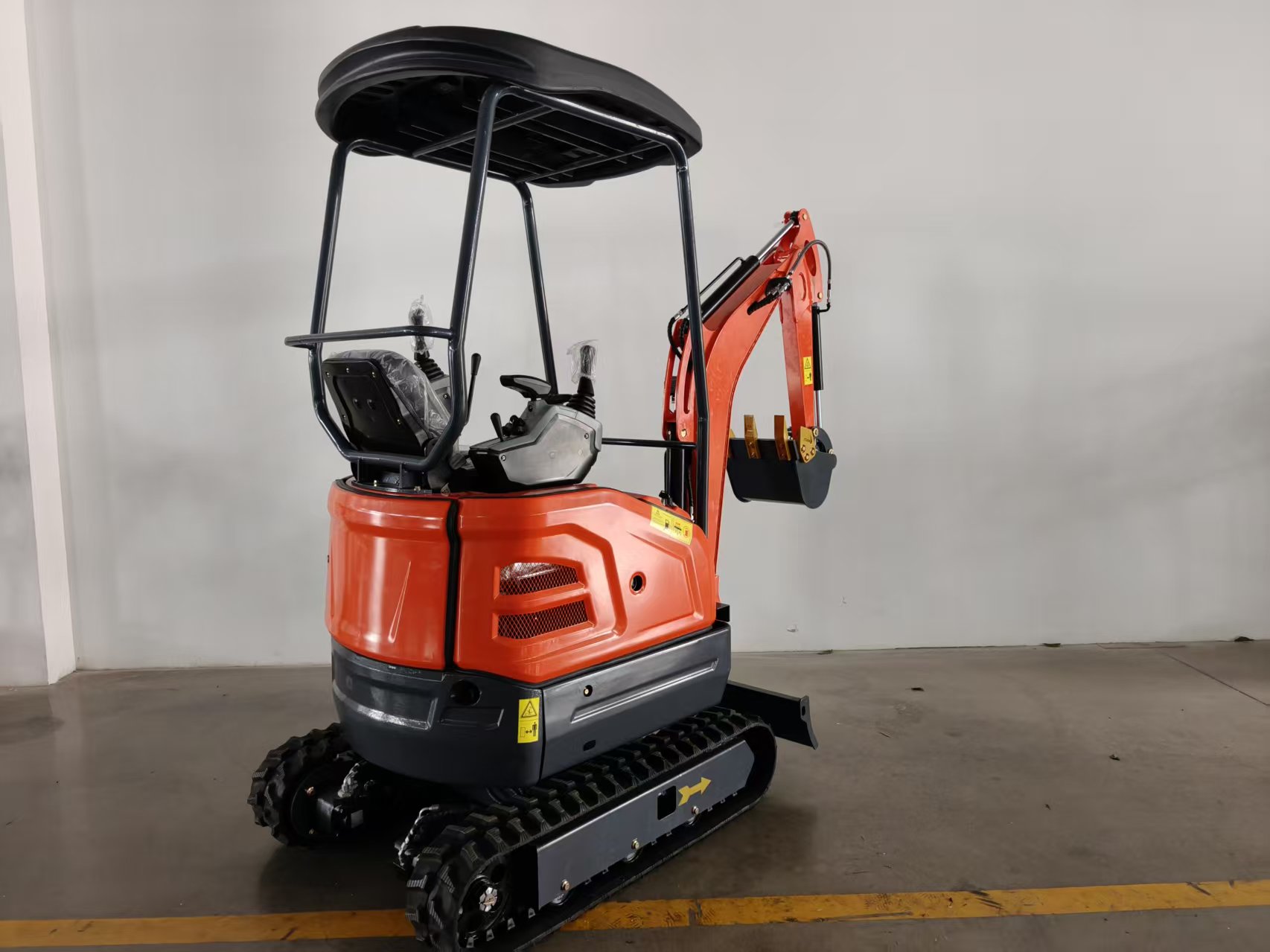

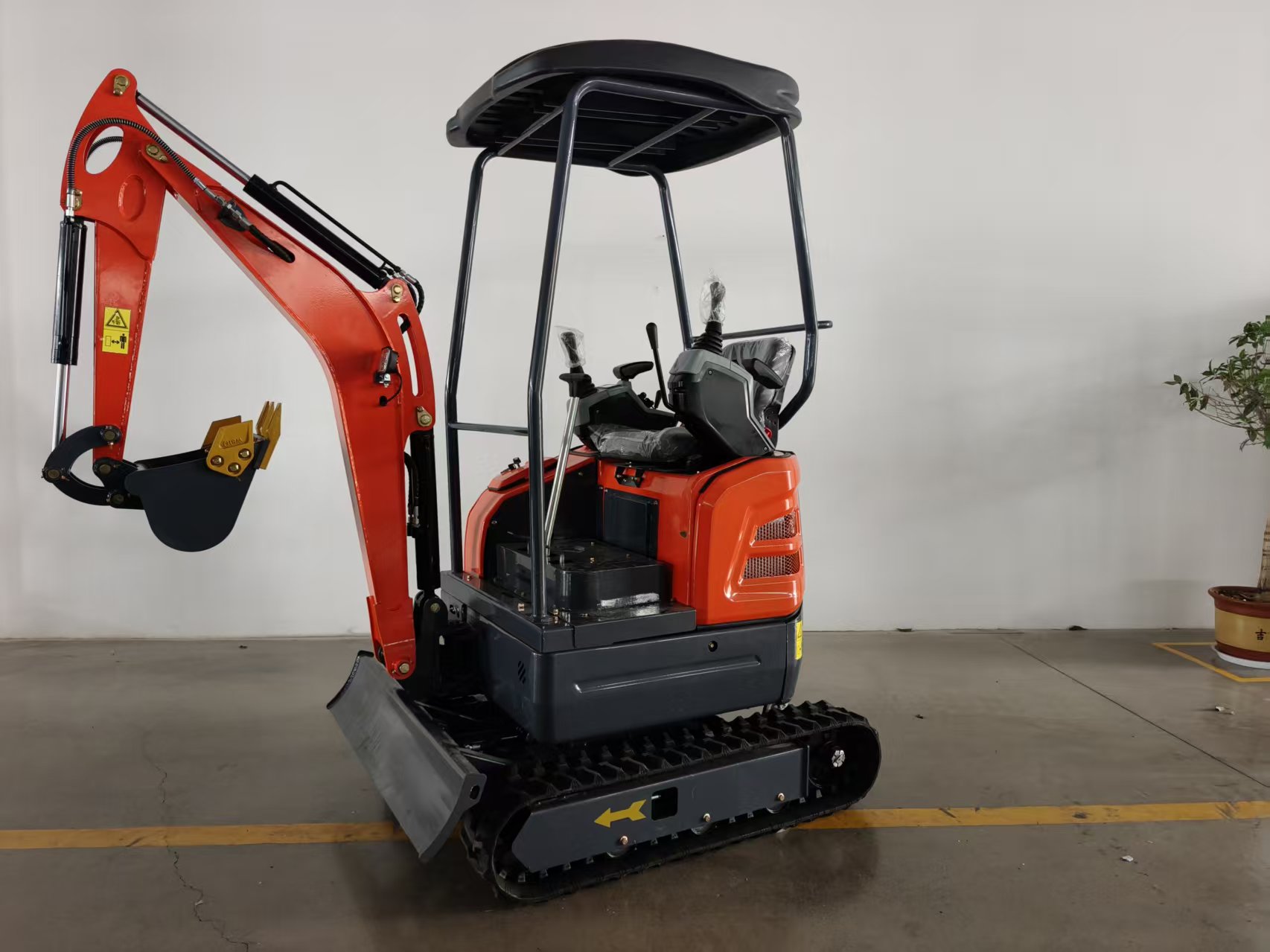

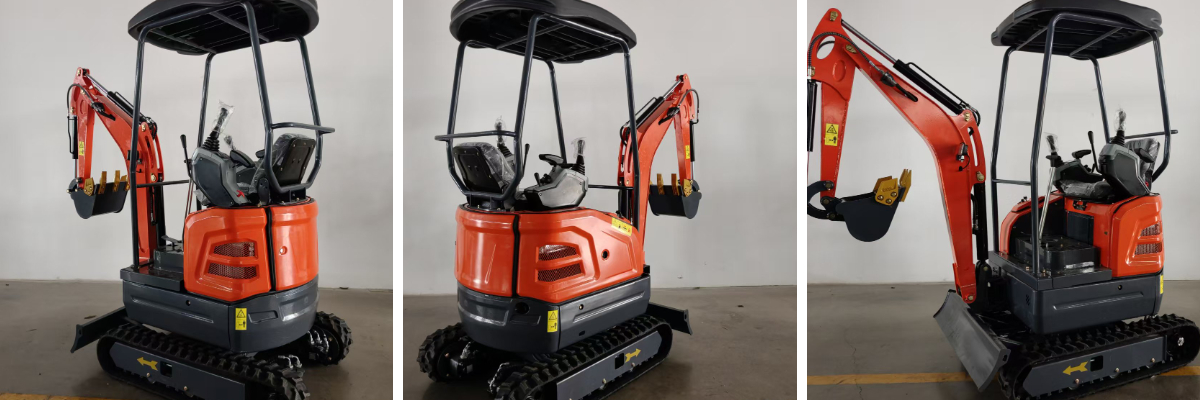

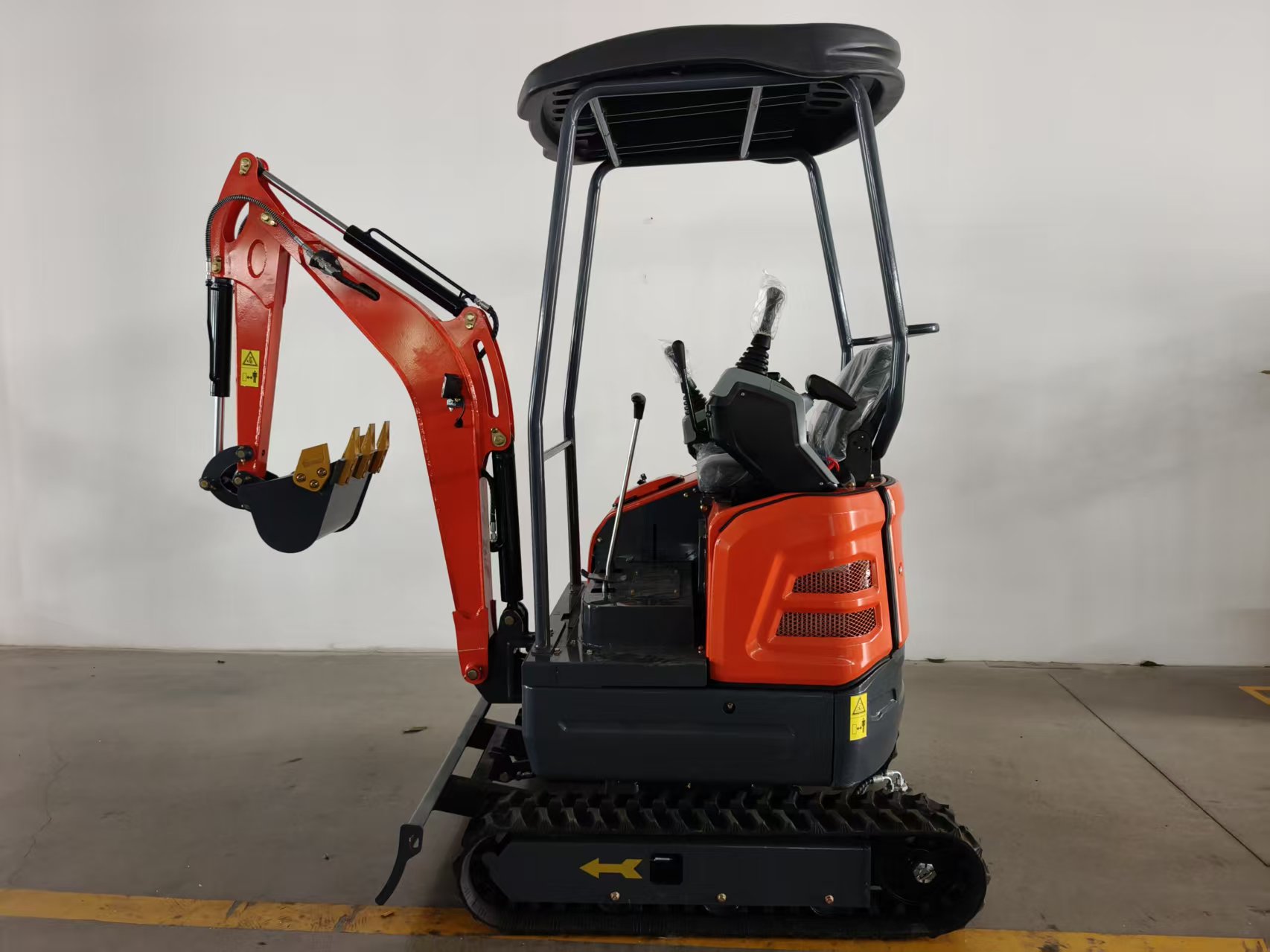

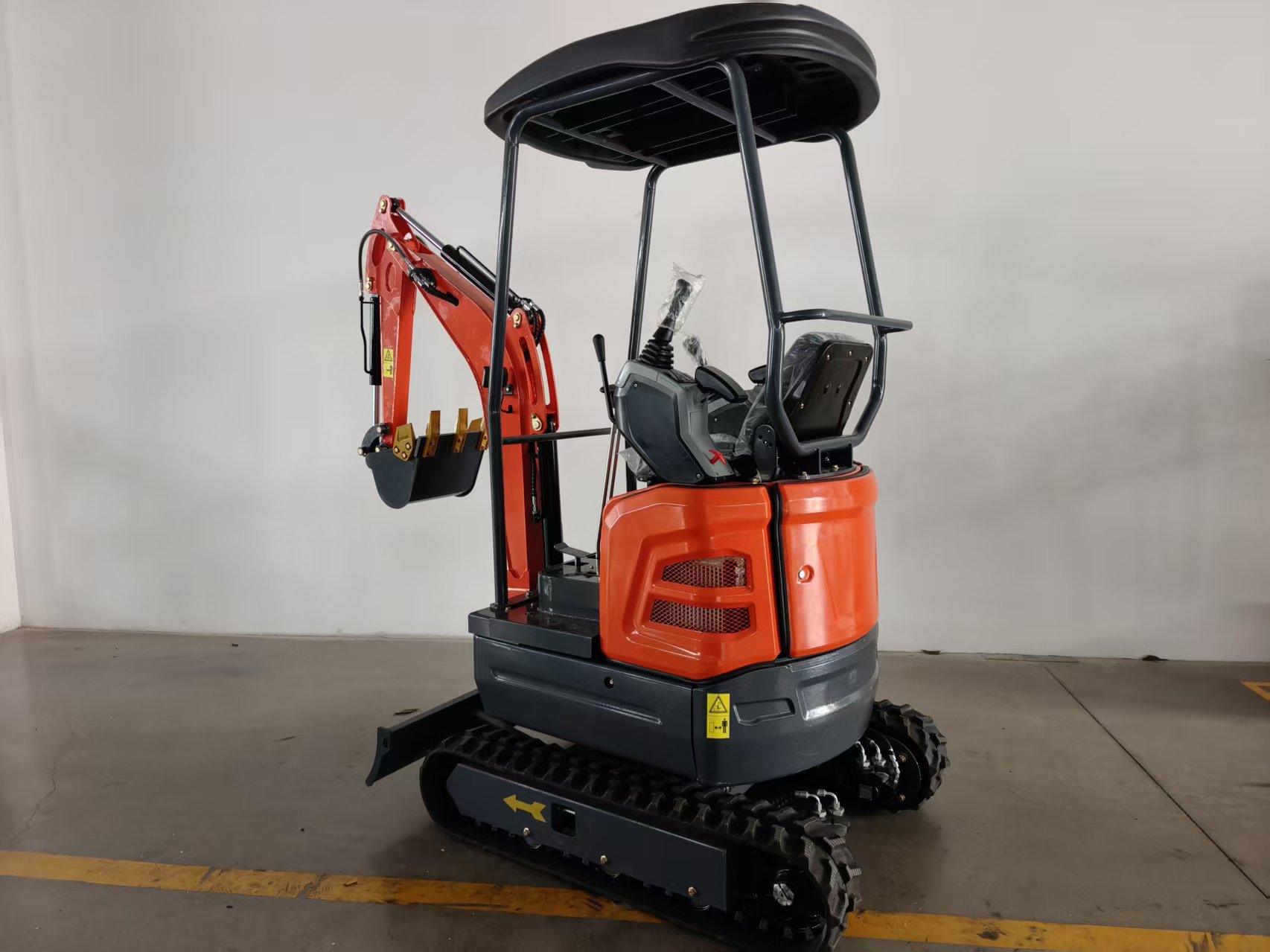

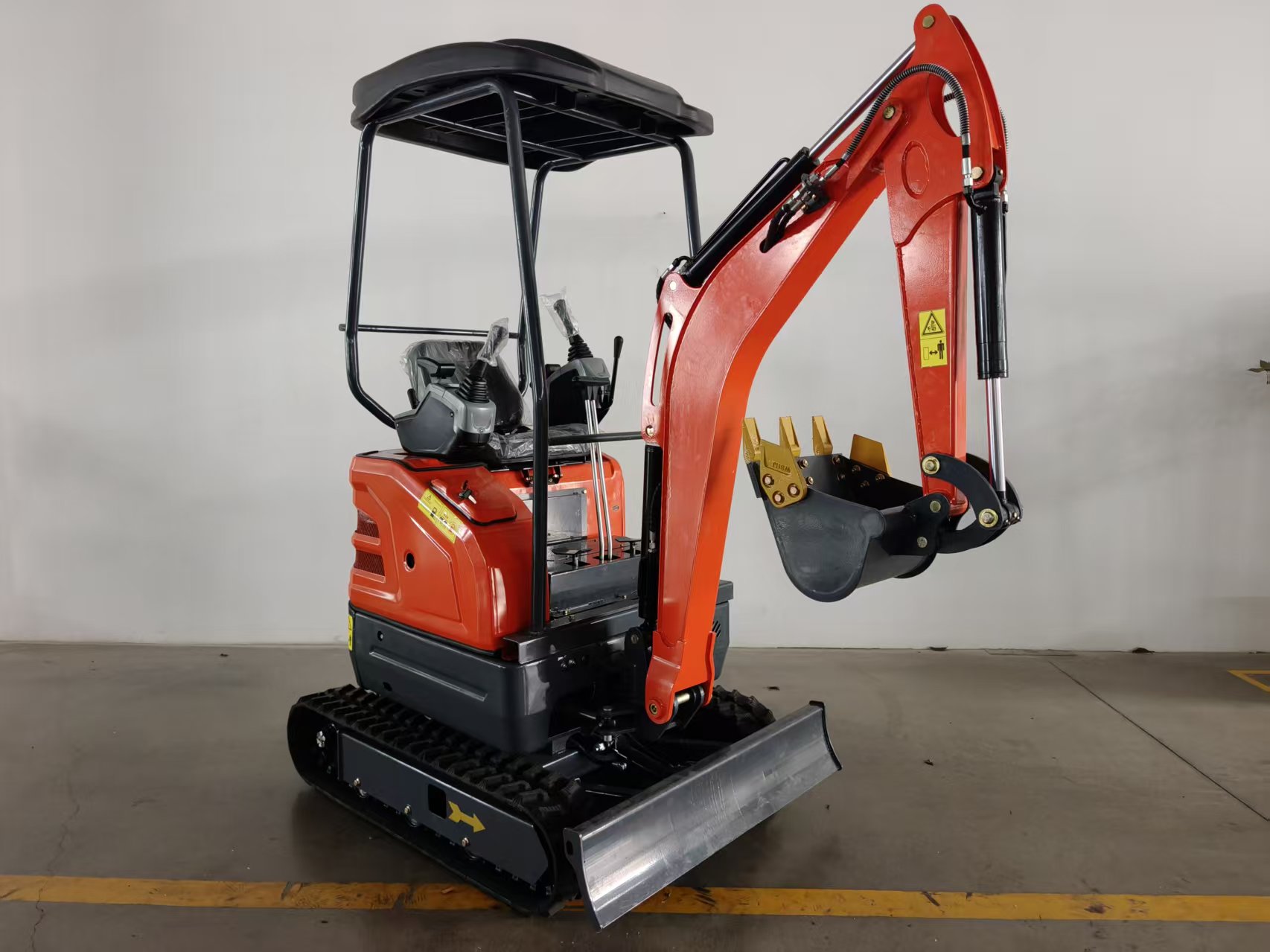

2 ton mini excavator

The 2-ton mini excavator is a multi-functional equipment specially designed for small and medium-sized projects. With its balanced performance and flexible operation, it has become an ideal choice for scenarios such as rural renovation, municipal maintenance, and small-scale infrastructure construction. Its operating weight of 2000kg achieves the dual advantages of "compact body + strong load-bearing capacity". The overall dimensions of 3665×1050×2260mm, combined with a track gauge of 820mm, allow it to easily navigate through confined spaces like narrow lanes and courtyards. Meanwhile, compared to smaller-tonnage models, it is more adaptable to complex operational intensities, with both passability and operational capability comprehensively improved.

The synergy between the power and hydraulic systems is particularly prominent: the hydraulic system has a working pressure of 18Mpa, which, together with the maximum bucket digging force of 14KN and the maximum arm digging force of 10KN, enables efficient completion of heavy-duty tasks such as earth excavation and stone crushing. The standard bucket capacity of 0.06m³ is significantly larger than that of smaller-tonnage models, greatly reducing the number of material transfers. The swing speed of 9rpm and the maximum grade ability of 35° allow the equipment to operate flexibly on slopes and rough terrain. The minimum ground clearance of 210mm effectively avoids collisions between the bottom components and ground protrusions, adapting to more diverse terrains.

In terms of operational performance, this excavator demonstrates a coverage range far exceeding that of its peers: the maximum digging radius reaches 3860mm, the maximum digging depth is 2050mm, and the maximum vertical digging depth is 1725mm. Combined with the maximum digging height of 3365mm and the maximum dumping height of 2385mm, it easily meets diverse needs such as wall foundation excavation, ditch trimming, and material loading. The design of a 75° left boom swing angle and a 45° right boom swing angle, paired with a tail swing radius of 955mm, allows for multi-angle operations in narrow spaces without frequent machine movement, significantly improving operational efficiency.

The detailed design of the equipment takes both practicality and durability into account: the 1230mm track length on the ground ensures uniform ground pressure, enabling operation on fragile surfaces such as lawns and floor tiles without causing damage. The blade has a maximum lifting height of 230mm and a maximum lowering depth of 275mm, which can both level the site and assist in stabilizing the equipment during operation. Reinforced structural components and precision hydraulic elements enhance the overall durability of the machine. Daily maintenance only requires basic inspection and lubrication, significantly reducing operating costs. When paired with attachments such as breakers and grapples, it can further expand to processes like crushing and grabbing, truly realizing multi-purpose functionality with one machine and providing an efficient and economical solution for small and medium-sized projects.
