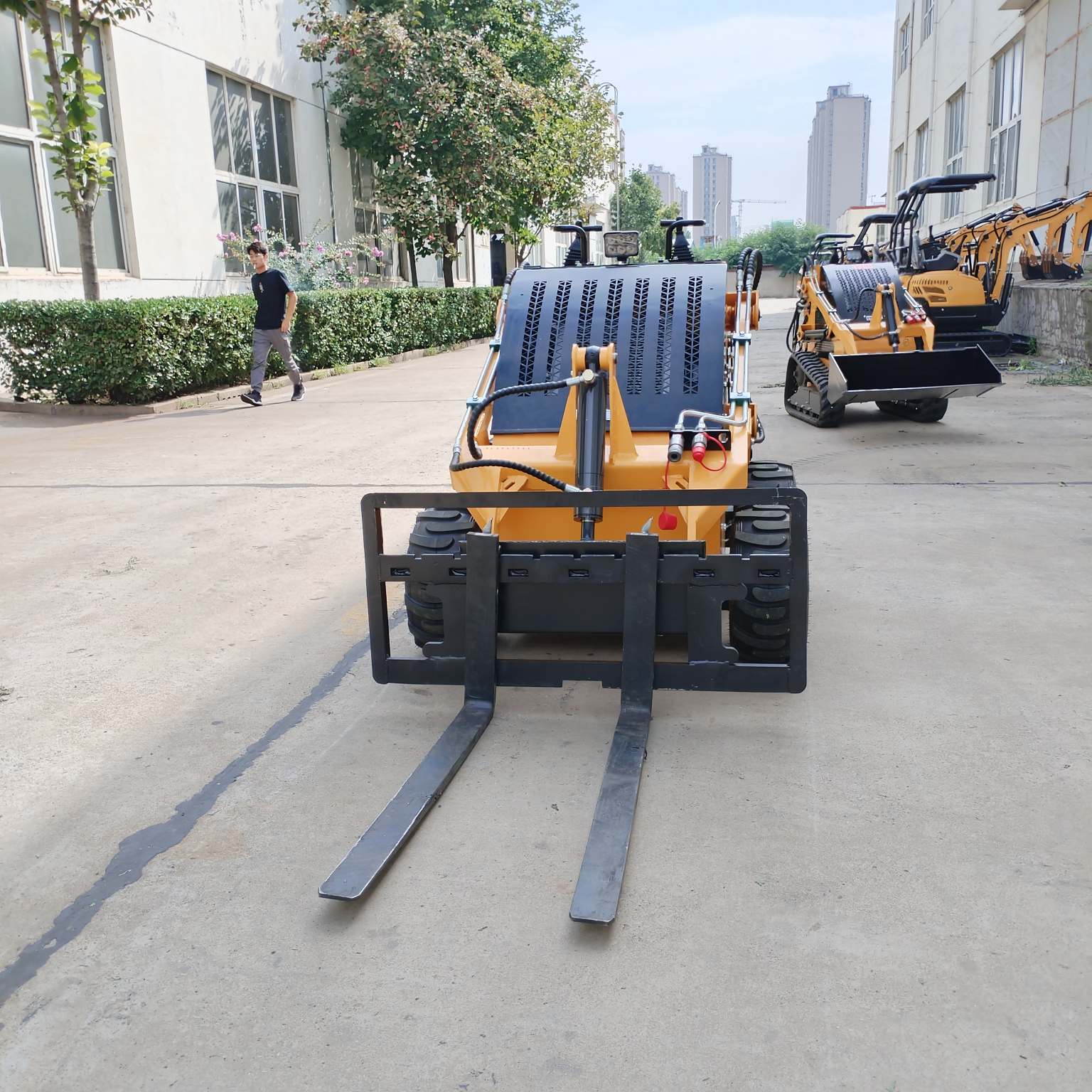

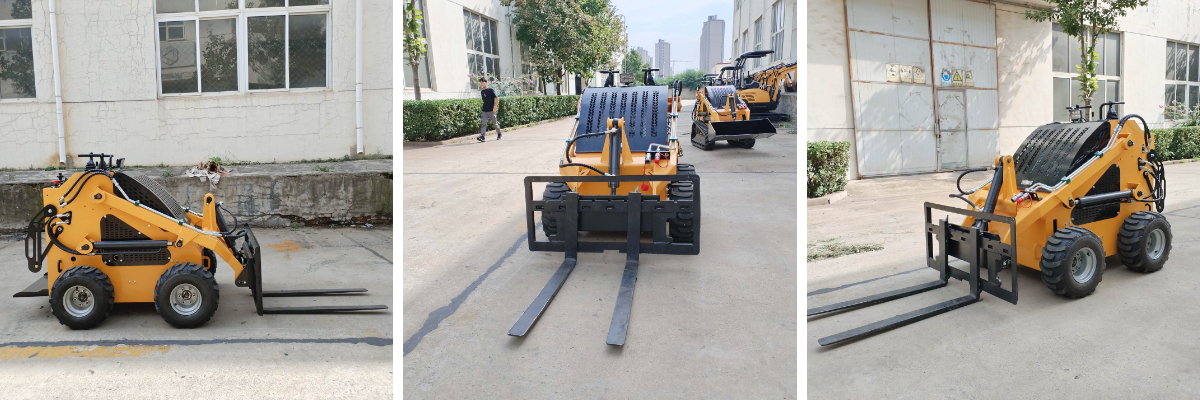

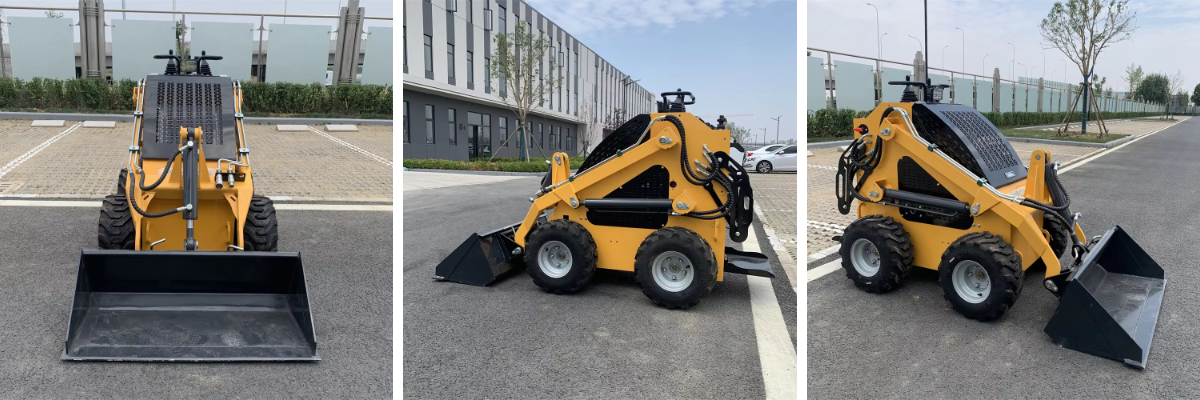

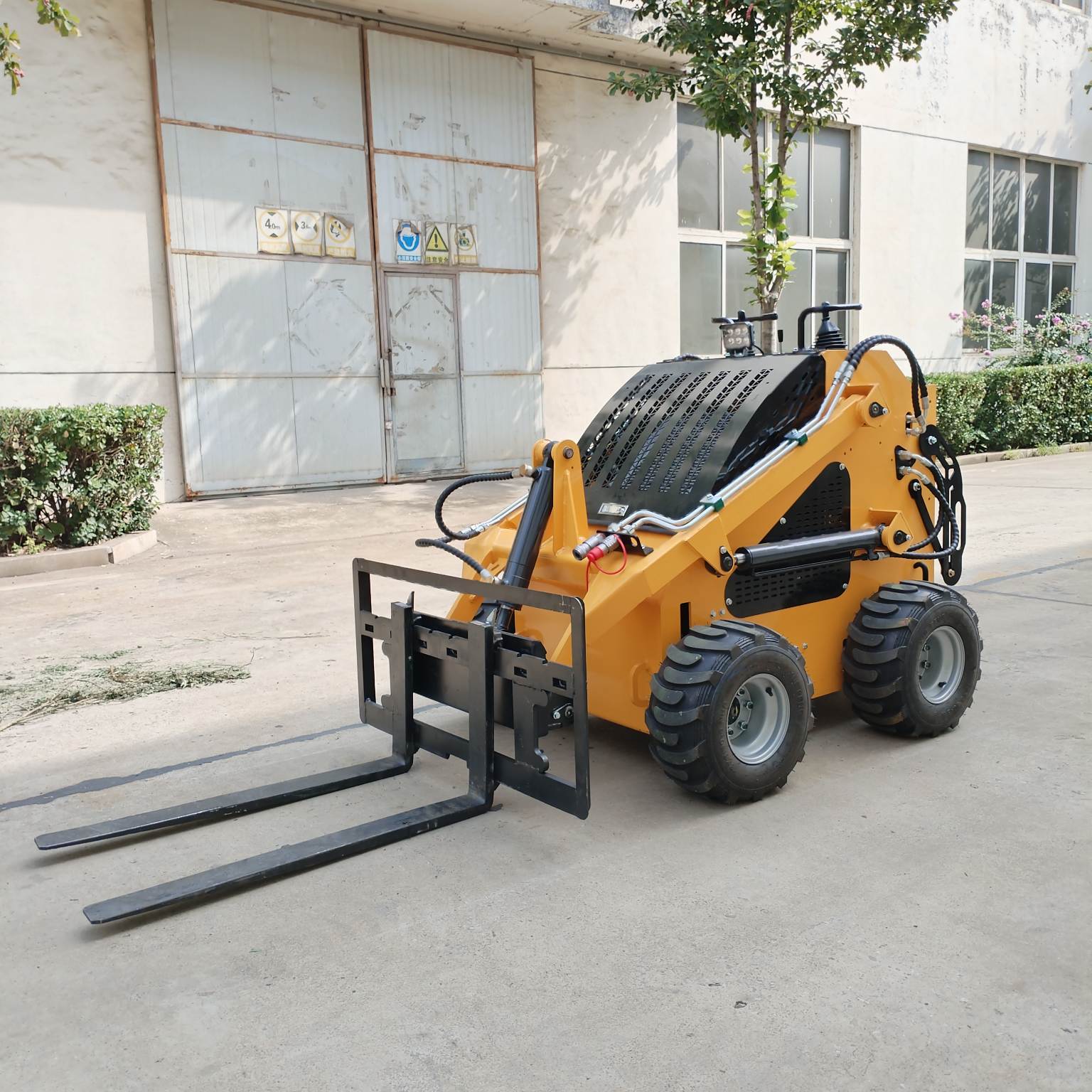

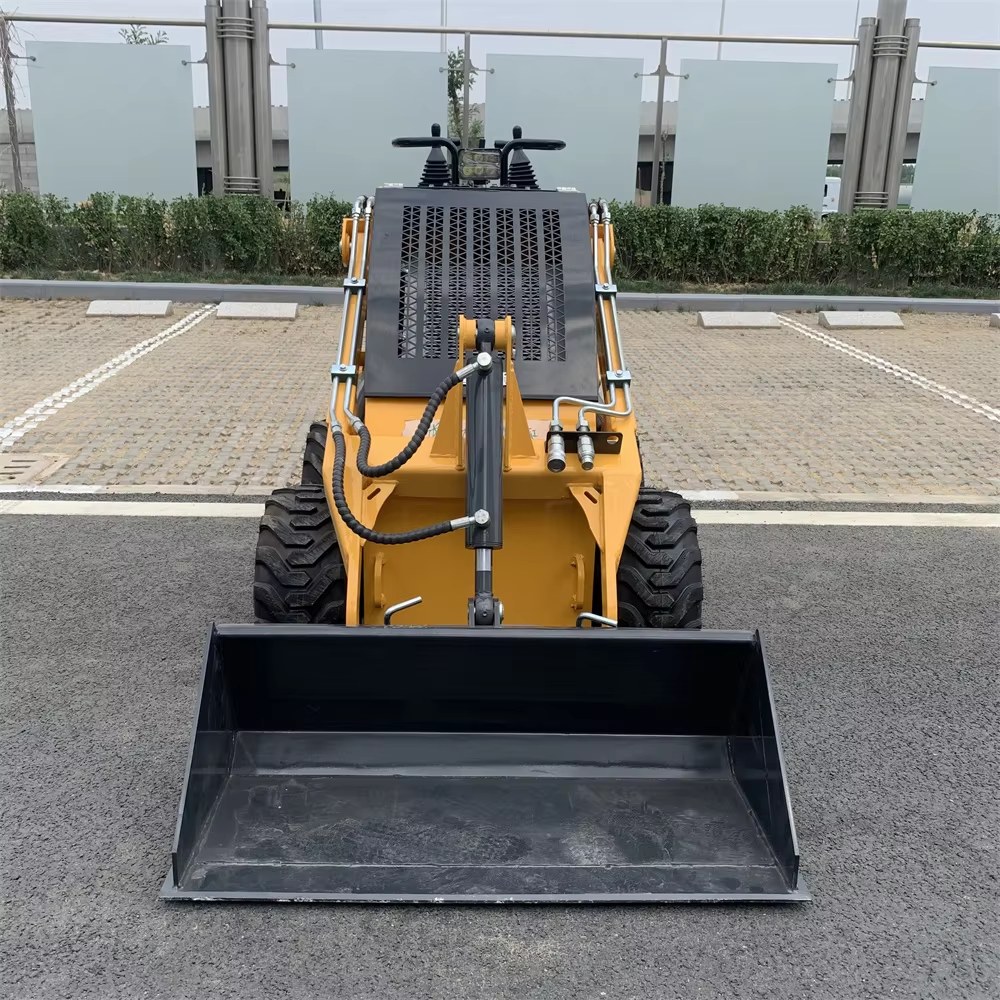

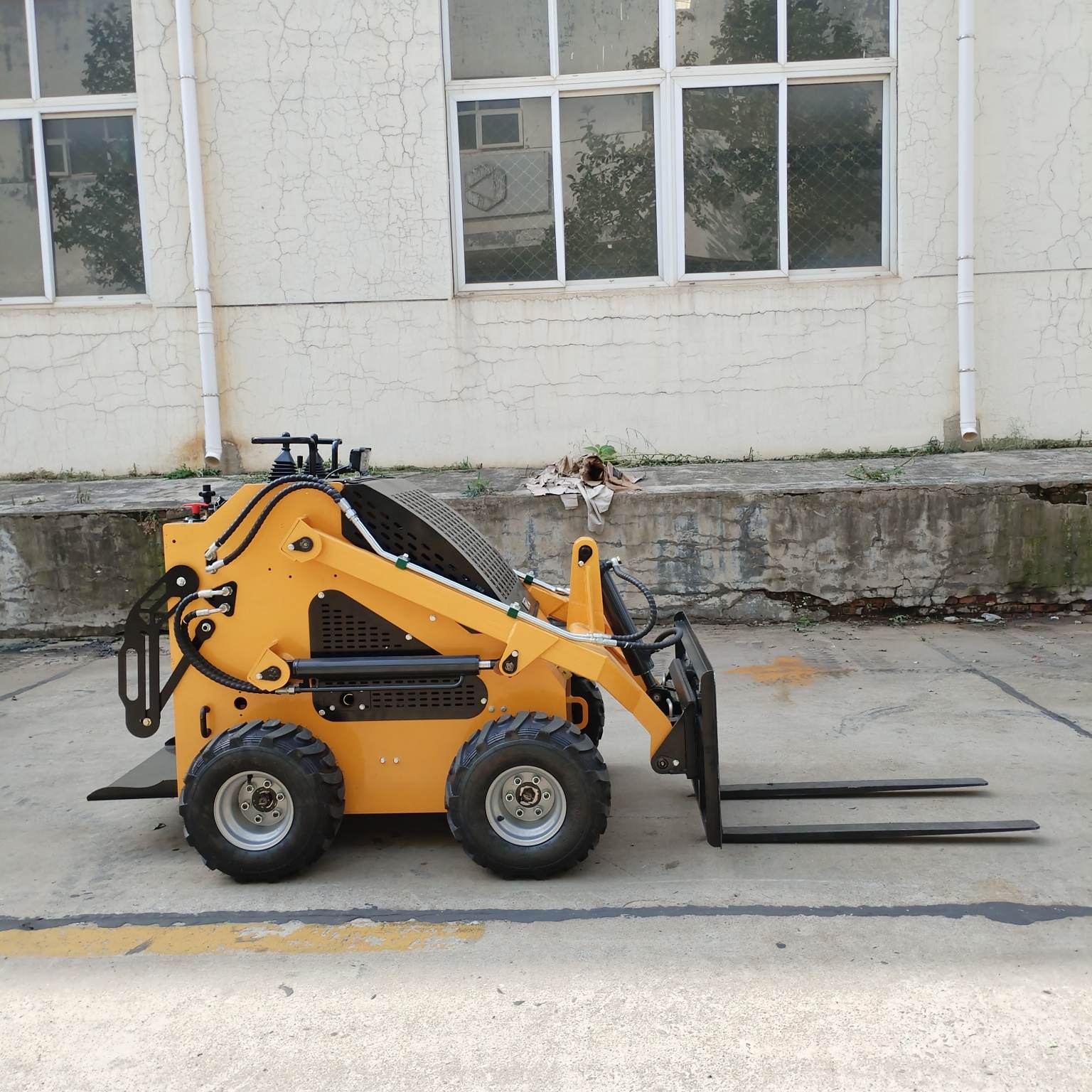

1-ton tracked skid steer loader

Product Details of 1-ton Skid-Steer Loader

I. Product Overview

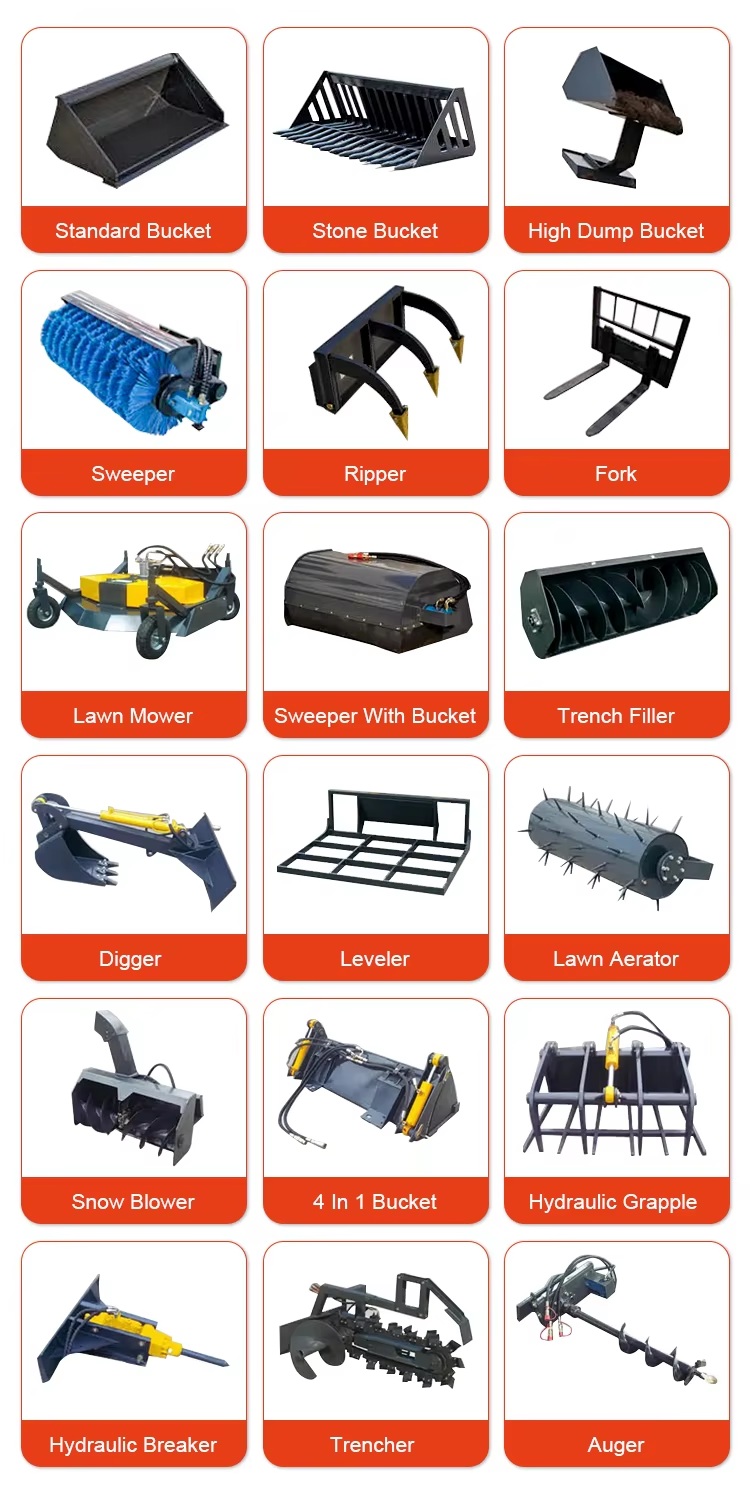

The 1-ton skid-steer loader features a narrow-frame design, enabling flexible operation in confined spaces and adapting to various construction scenarios. A variety of attachments can be quickly switched, covering more than ten functions such as shoveling, stacking, lifting, and digging. It can also efficiently handle scenarios like on-site cleaning at the end of large-scale projects and project closure operations.

II. Performance Advantages

(I) Flexible and Convenient Operation

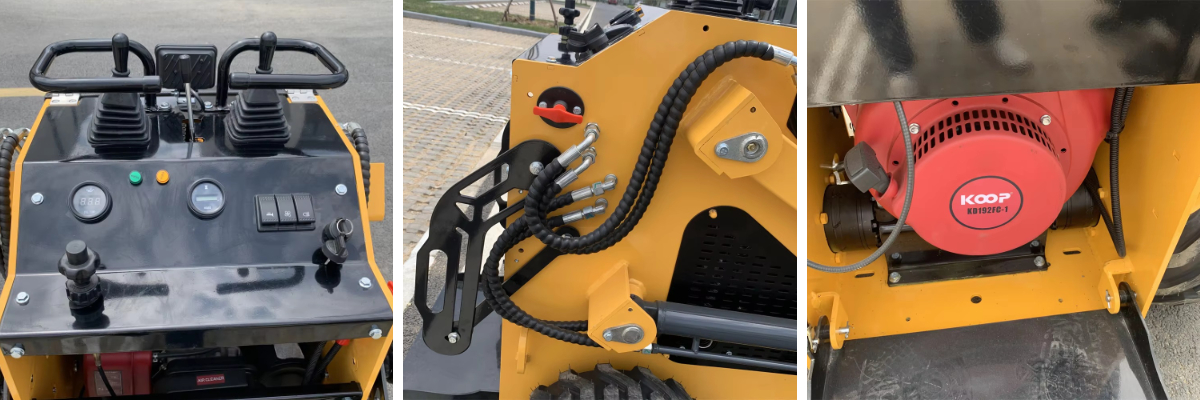

Designed in line with ergonomics, it adopts dual control levers, which can accurately control walking and construction actions, and supports in-situ turning. The operation is smooth, reducing work intensity and improving construction efficiency.

(II) Strong and Reliable Power

World - class power options are available, including Briggs & Stratton, RATO, LONCIN gasoline engines, as well as Kubota diesel engines, Kholer, etc. Relying on the excellent quality standards of well - known engines and paired with a quick - change connector, the power switching is efficient, and strong power is continuously and stably output.

III. Main Machine Performance Parameters

The engine brand is Kipor/Baileyton, with a rated power of 10/13.5 HP and a rated speed of 3000 rpm. There is 1 cylinder, with a natural air intake method and a displacement of 420 cc, and the emission standard reaches Euro 5 - EPA. The rated load is 200 kg, the maximum load is 300 kg, the maximum breakout force is 3.5 KN, and the bucket volume is 0.12 m³. The traveling speed is 0 - 6 km/h, the sum of three operations is 9 s, the working system pressure is 17 - 21 bar, the fuel tank volume is 5 L, the operating mass is 900 Kg, and the tire model is 15”72.

IV. External Dimension Parameters

The maximum operating height is 2450, the height to the bucket pin is 1870, and the overall vehicle height is 1280. The maximum lifting height of the bucket is 1810, the total length without attachments is 1450, and the total length with the standard bucket is 2100. The maximum height unloading angle is 34°, the unloading height is 1510, and the unloading distance is 450. The tipping angle of the bucket on the ground is 27°, and the tipping angle at the maximum height is 114°. The wheelbase is 850, the ground clearance is 150, and the tail length is 280. The track (standard tire) is 720, the vehicle width (standard tire) is 1000, and the bucket width is 1000.

Whether for fine operations in narrow sites or on-site cleaning at the end of projects, this loader, with its flexible operation, strong power, and rich functions, helps to promote the efficient progress of construction and is a reliable construction partner.

Product Details

Company Overview

Shandong Gongwo Machinery Co., Ltd. was founded in 2012. It is an entity factory specializing in the production of small and medium-sized engineering machinery and equipment, such as small wheel loaders, micro crawler excavators, electric/diesel tricycles, as well as two-wheel drive/four-wheel drive forklifts, etc. The company covers an area of more than 100 mu and has over 100 employees. The total annual sales volume of its products has reached more than 20,000 units, and the products are exported to Europe, America, Southeast Asia, Africa, Russia and other countries. Over the past decade, we have been serving customers from all over the world to meet their needs.
