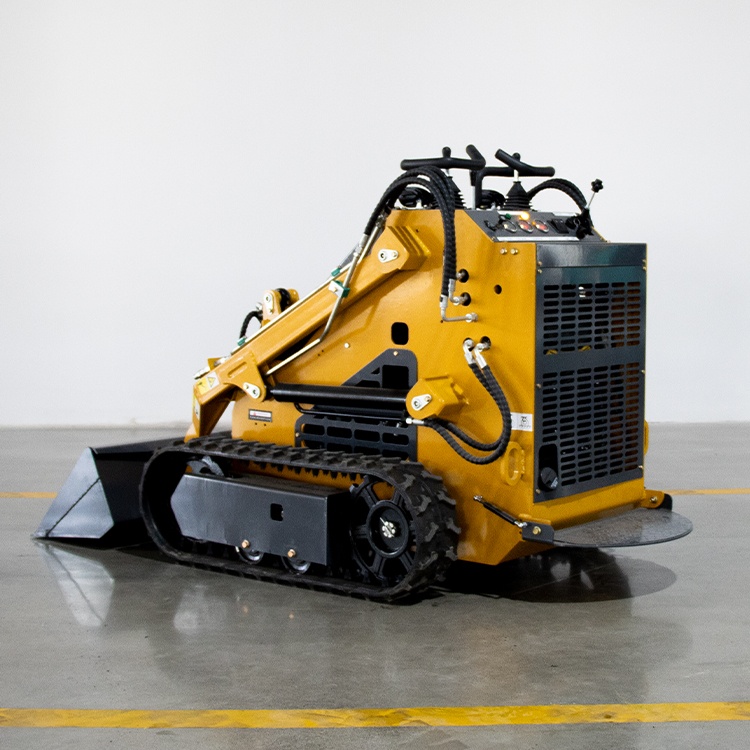

500 kg Skid Steer Loader
1、Easy operation: Dual handles control all functions; 4WD for stability; safe, convenient pedals.
2、Easy maintenance: External oil ports; detachable rear guard/top cover for quick part replacement.
3、40+ compatible attachments, interchangeable across models, with quick-connect hangers.
4、Famous brand engine: stable, reliable, 3-year warranty.
5、Multiple tire/crawler options for stronger adaptability.
6、800mm narrow body (fits narrow spaces) with large fuel tank and strong lifting.
7、Greatly reduces manual work, boosts efficiency.
8、Higher lifting height than peers; flexible attachment configurations.
Skid steer loader is one of the most popular mini construction machinery in the world. Relying on its flexible steer, compact body and replaceable multifunctional tools, it can finish all kinds of comprehensive construction demand easily. The appearance, height lifting, weightlifting and driving comfort are all the top-notch loader in the world.
Model | GH380 |
Engine | RATO Gasoline engine/KOOP Diesel engine |
Rated power | 7KW/13.5HP |
Number of cylinders | 1 |
Calibration speed rpm | 3600 |
Emission Standard | EPA/EURO 5 |
Rated load Kg | 200 |
Maximum load Kg | 300 |
Bucket volume m³ | 0.12 |
Driving speed km/h | 0-6 |
Fuel tank volume L | 5 |
Operating quality Kg | 900 |
Tire Model | 18*8.5-8 |
Maximum operating height mm | 2450 |
Vehicle height mm | 1280 |
With standard bucket length mm | 2206 |
Unloading height mm | 1510 |
Unloading distance mm | 450 |
Ground clearance mm | 150 |
Wheel base (standard tires) mm | 720 |
Width (standard tires) mm | 1150 |
Bucket width mm | 1000 |
Product Details
Product Show
Company Profile

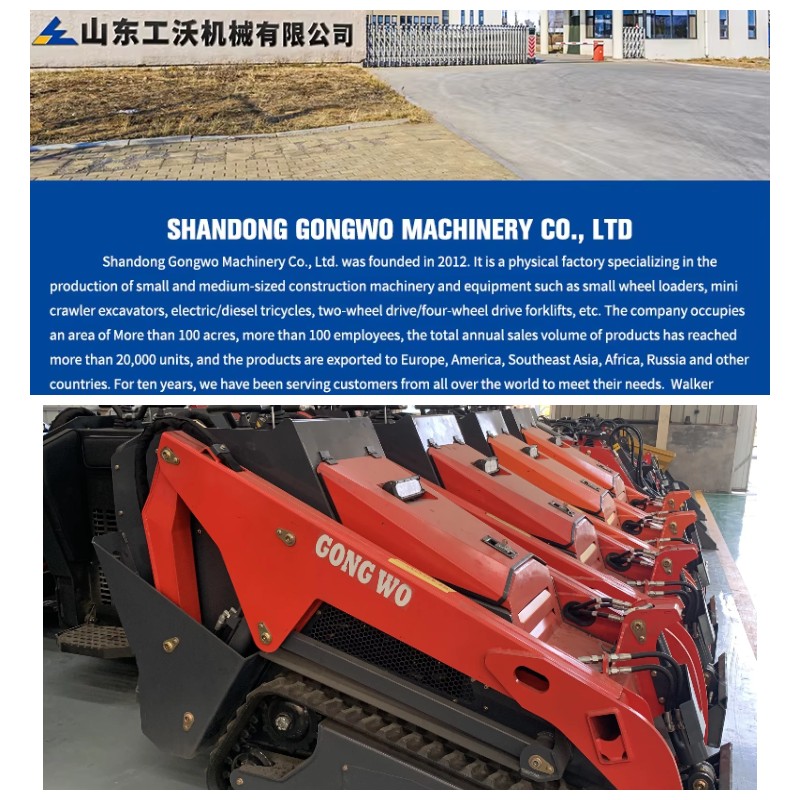

Shandong Gongwo Machinery Co., Ltd. was founded in 2012. It is a physical factory specializing in the production of small and medium-sized construction machinery and equipment such as small wheel loaders, mini crawler excavators, electric/diesel tricycles,two-wheel drive/four-wheel drive forklifts, etc.
The company occupies an area of More than 100 acres, more than 100 employees, the total annual sales volume of products has reached more than 20,000 units, and the products are exported to Europe, America, Southeast Asia, Africa, Russia and other countries. For ten years, we have been serving customers from all over the world to meet their needs.Walker Heavy Industries,mining your opportunities, carrying your success.
