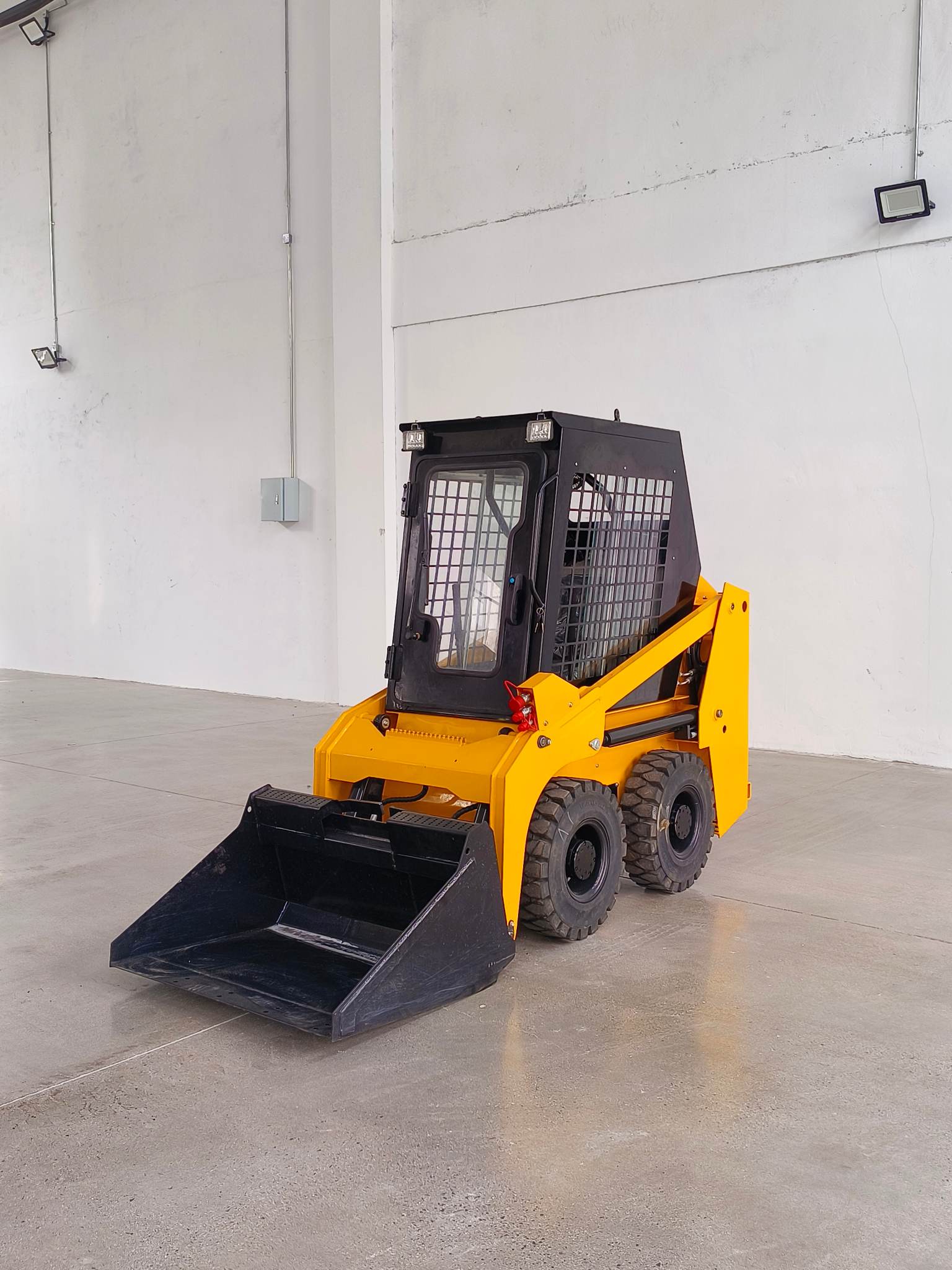

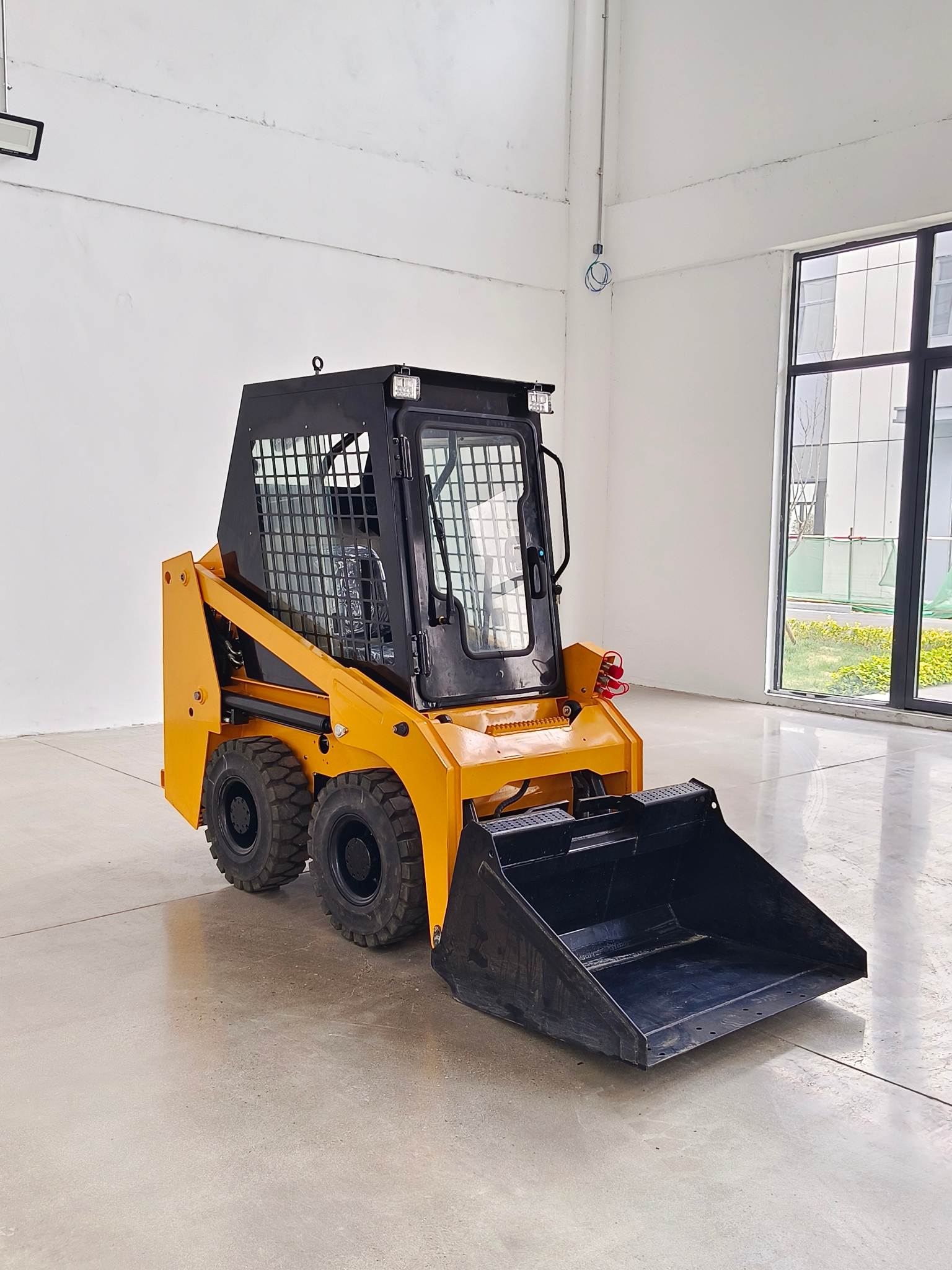

3-ton Skid - Steer Loader

I. Product Overview

This 3-ton skid steer loader is a powerful and versatile engineering machinery device. With its exceptional performance and wide applicability, it can meet the needs of various operating scenarios.

II. Key Parameters

(I) Power System

• Engine Model: Cummins HFC4DA1-2C3

• Rated Power: 36.8KW

• Number of Cylinders: 4

• Intake Method: Naturally Aspirated

• Emission Standard: National Standard III

• Fuel Tank Capacity: 80L

(II) Load-Bearing and Working Device Parameters

• Rated Load: 890Kg

• Tipping Load: >1780

• Maximum Lifting Force: >25KN

• Bucket Capacity: 0.4m³

• Maximum Operating Height: 3790mm

• Height to Bucket Pin: 3020mm

• Cab Roof Height: 2095±5%mm

• Horizontal Length of Bucket on Ground: 3450±5%mm

• Horizontal Length of Bucket: 2700±5%mm

• Maximum Horizontal Distance at Bucket Bottom: 2846±5%mm

• Maximum Dumping Height: 2384±5%mm

• Dumping Distance: 520±1%mm

• Bucket Tipping Angle on Ground: 27±2mm

• Bucket Tipping Angle at Maximum Height: 43±2mm

(III) Travel and Dimension Parameters

• Travel Speed: 0 - 12km/h

• Hydraulic Flow: 55L/Min

• Hydraulic Pressure: 21Mpa

• Operating Mass: 2880±3%

• Tire Model: 10 - 10.5

• Wheelbase: 1370mm

• Ground Clearance: 185±2%mm

• Tail Length: 1160±5%mm

• Vehicle Width: 1640±2%mm

• Bucket Width: 1800±2%mm

III. Product Advantages

(I) Flexibility and Maneuverability

1. Compact and Agile: With a compact design and small body size, it has an almost zero turning radius. It can freely move through narrow spaces such as narrow streets, warehouses, factory renovation sites, and crowded construction sites, performing tasks like loading, unloading, 搬运，and cleaning with ease. This is beyond the reach of large loaders.

2. Rapid Site Transfer: Its small size and light weight make it easy to be quickly transported by trucks or other means, enabling it to reach different work sites promptly and improving equipment utilization efficiency.

(II) Versatility

1. Abundant Attachment Compatibility: It can be equipped with dozens of different attachments such as buckets, breakers, milling machines, snow plows, and sweepers. By quickly changing attachments, it can easily perform various functions such as excavation, crushing, road surface milling, snow removal, and ground cleaning, truly achieving "one machine for multiple purposes" and reducing the cost for users to purchase multiple specialized devices.

2. Multi-Industry Applications: Widely used in construction, landscaping, agricultural production, municipal engineering, logistics and warehousing, etc. For example, in landscaping, it can be used for tree transplantation, tree pit digging, and site cleanup; in agricultural production, it can handle tasks like loading and unloading feed and transport agricultural machinery.

(III) Ease of Operation

1. Simple to Master: The operation control system is relatively straightforward, usually adopting pilot control or hydraulic operation with few control handles and intuitive action control. New operators can master the operation skills after a short period of training, lowering the skill threshold for operators.

2. Comfortable Working Environment: The cab is designed with a good shock absorption system to effectively reduce vibrations and bumps during operation. Some high-end models are also equipped with air conditioners, audio systems, etc., further enhancing operator comfort and work experience.

(IV) High Efficiency

1. Efficient Operation: The working device is flexible and responsive, capable of quickly completing various operation actions such as loading, unloading, lifting, and lowering, effectively increasing the workload per unit time and improving work efficiency.

2. Powerful Performance: Despite its compact size, the engine provides strong power, delivering sufficient driving force and hydraulic power to ensure efficient operation under various complex working conditions such as heavy-duty loading and unloading and crushing hard materials, maintaining stable performance.

(V) Safety

1. FOPS and ROPS Protection: Many fully enclosed cabs adopt Level II Falling Object Protective Structure (FOPS) and Rollover Protective Structure (ROPS) designs, providing high-level safety protection for drivers in case of rollovers or falling objects and reducing the risk of injury. For example, the XG30090 skid steer loader from XCMG is equipped with a FOPS/ROPS cab.

2. Protection Against External Hazards: The fully enclosed structure blocks external objects from hitting the driver, preventing accidental injuries from flying debris such as gravel and branches during operations like transport and excavation.

3. Safety Sensing Devices: Some cabs are equipped with seat sensors and other devices that ensure the machine only operates when the operator is seated and the safety guardrail is lowered, preventing safety accidents caused by misoperation.

(VI) Comfort

The fully sealed and pressurized cab effectively reduces noise and prevents dust intrusion, creating a relatively quiet and clean working environment for the driver. For example, the cab of the John Deere 326E skid steer loader has this feature, allowing the driver to work comfortably for extended periods.

(VII) Maintenance Convenience

1. Easy Access to Maintenance Components: Key components such as the engine and hydraulic system are rationally arranged, with convenient maintenance points. Most routine maintenance operations such as checking fluids and replacing filters can be easily performed outside the machine without complex disassembly, reducing maintenance time and costs.

2. Low Maintenance Costs: With a relatively simple structure and high component  ，repairing and replacing parts is easier when equipment malfunctions occur. Additionally, the relatively low price of spare parts effectively reduces equipment maintenance costs and downtime.

Product Details

Company Overview

   Established in 2012, Shandong Gongwo Machinery Co., Ltd. is a specialized manufacturer of small - and medium - sized construction machinery. Our product portfolio encompasses compact wheel loaders, mini crawler excavators, electric and diesel tricycles, as well as 2WD and 4WD forklifts. These products are exported to international markets across Europe, the Americas, Southeast Asia, Africa, Russia, and beyond. In the past decade, we have been dedicated to serving overseas customers and fulfilling their operational requirements.
