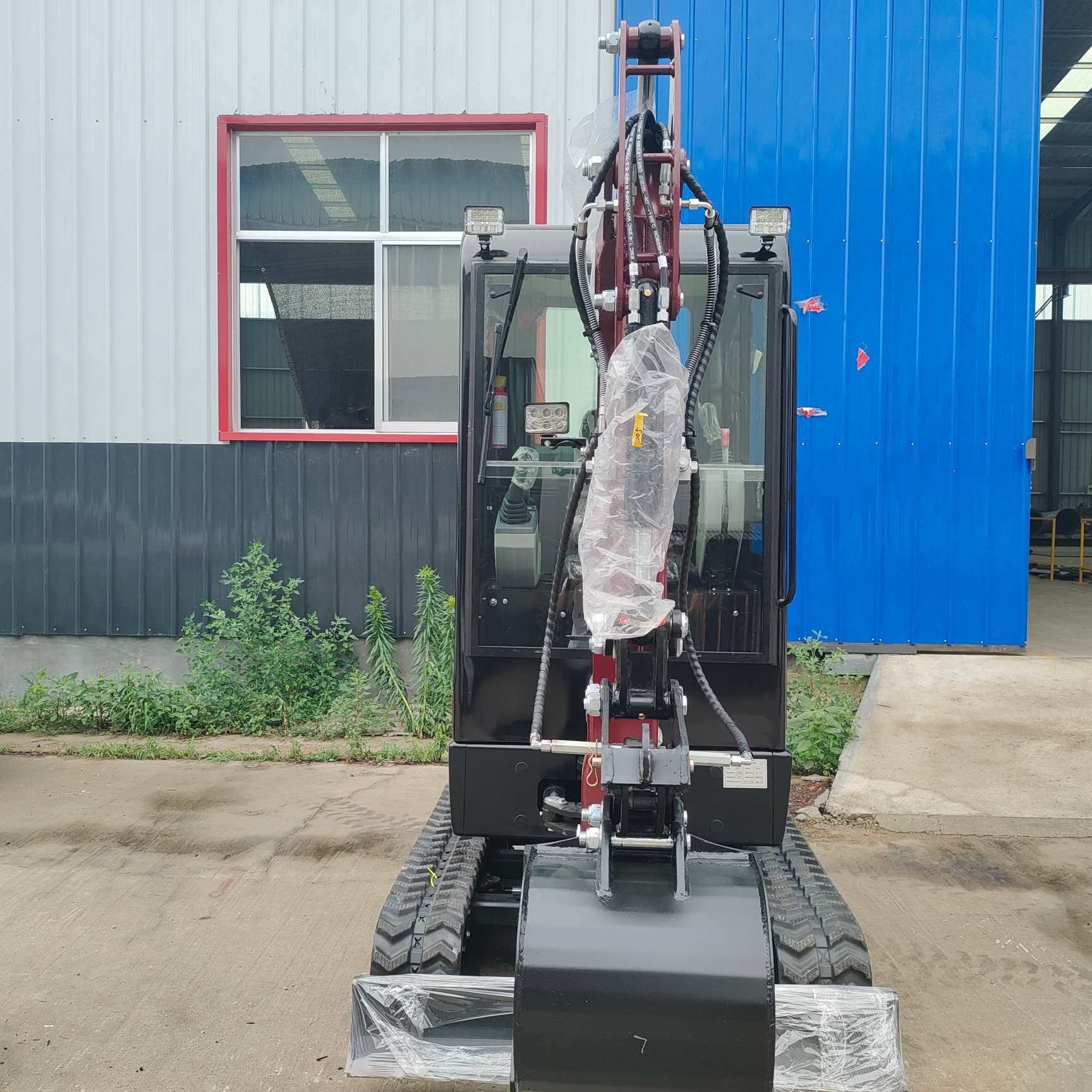

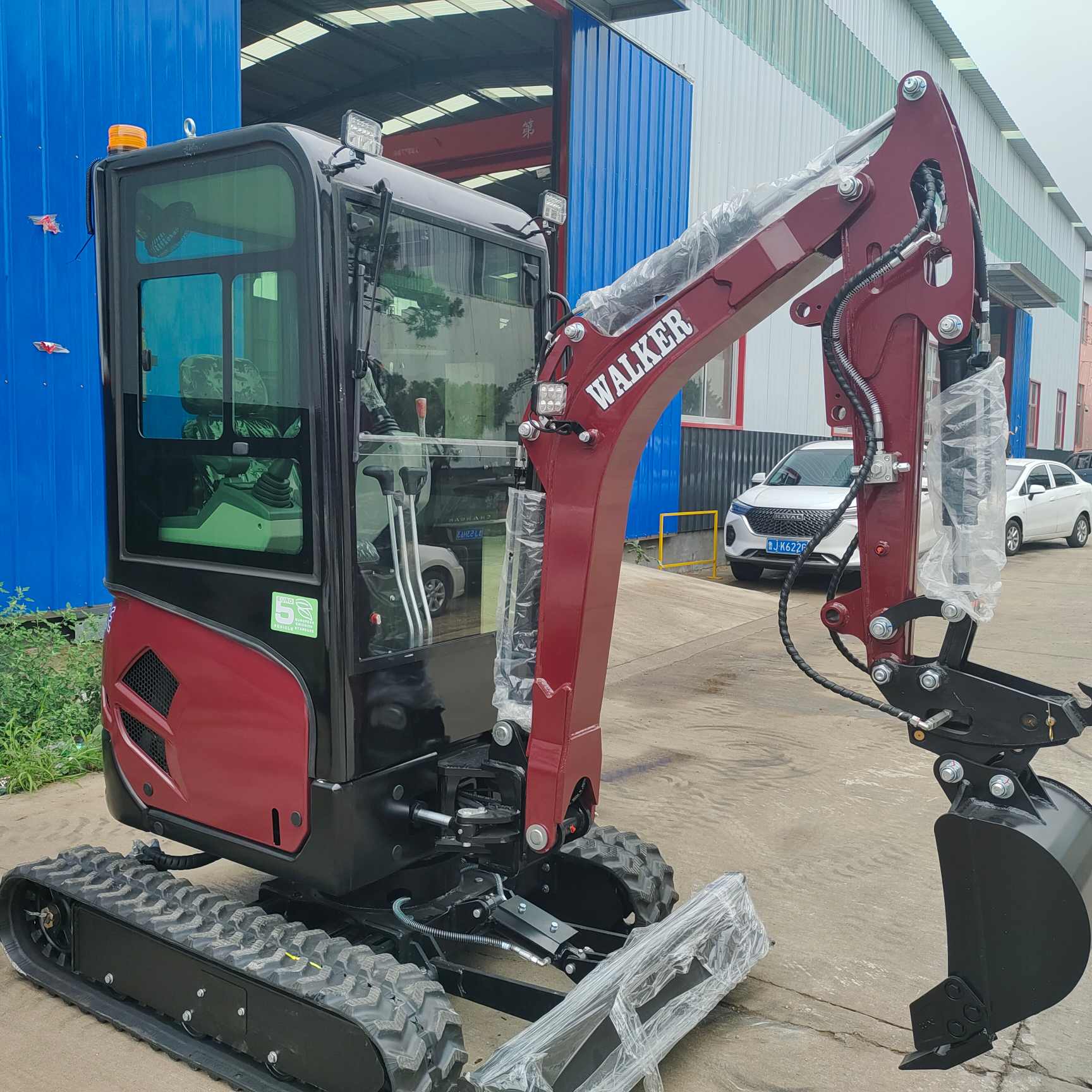

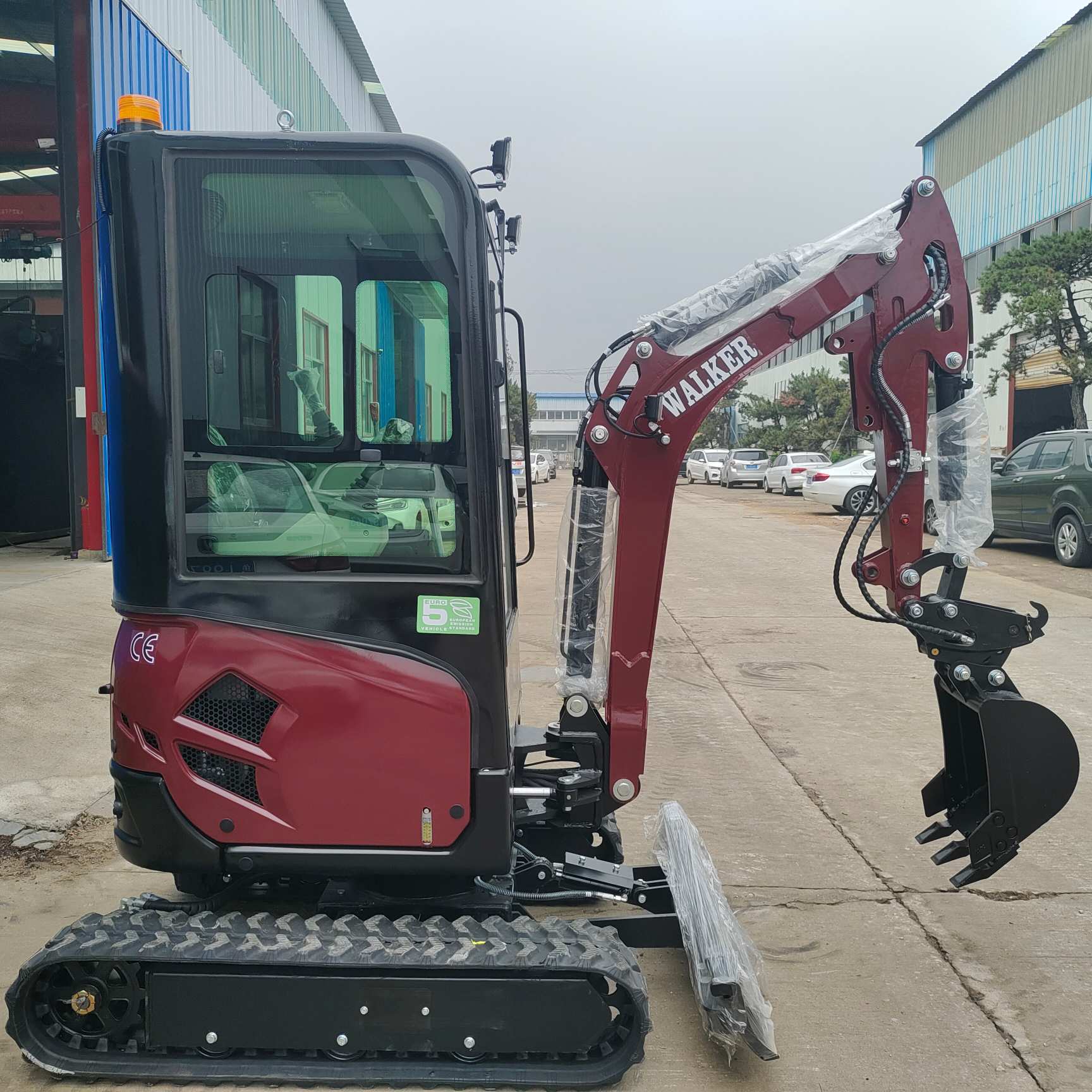

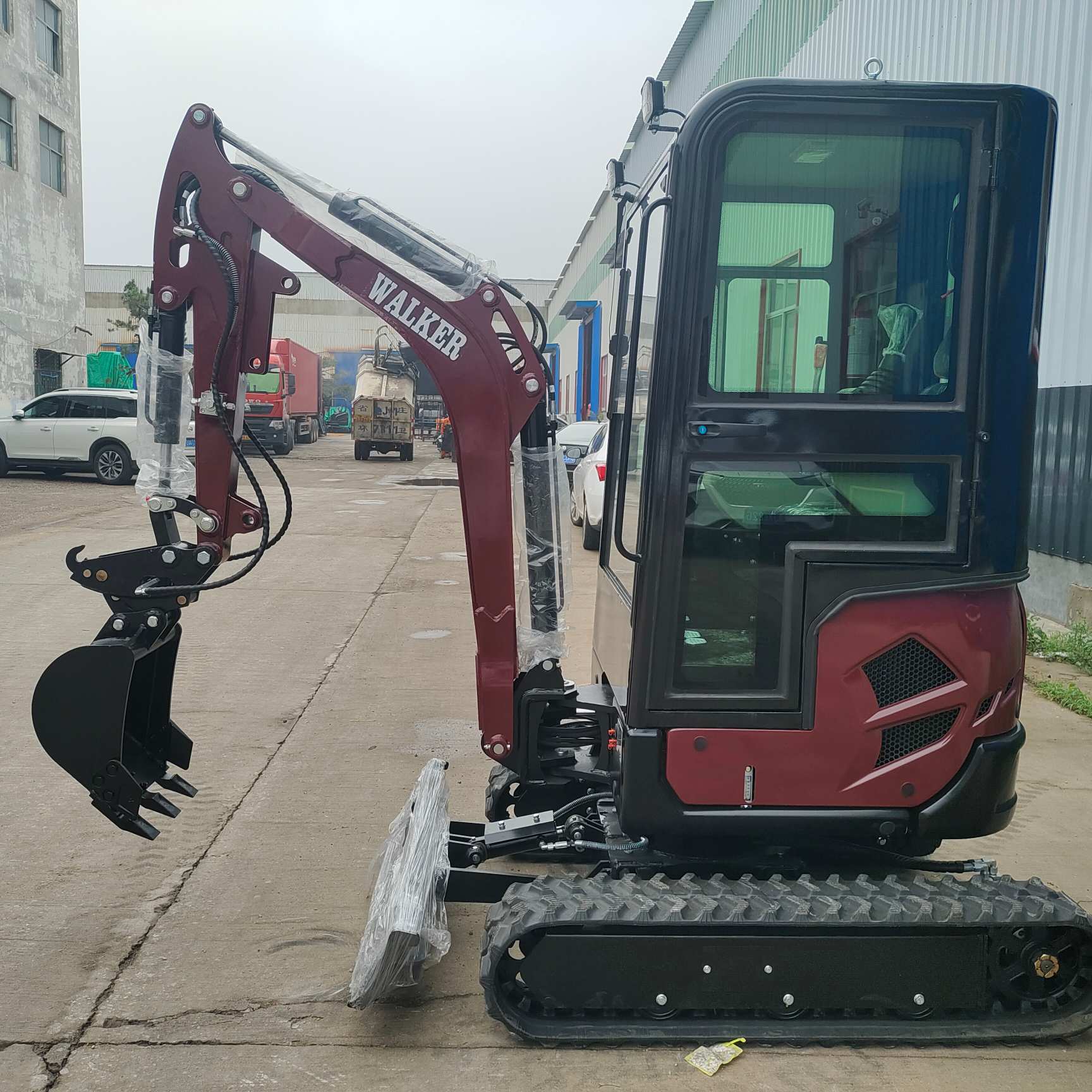

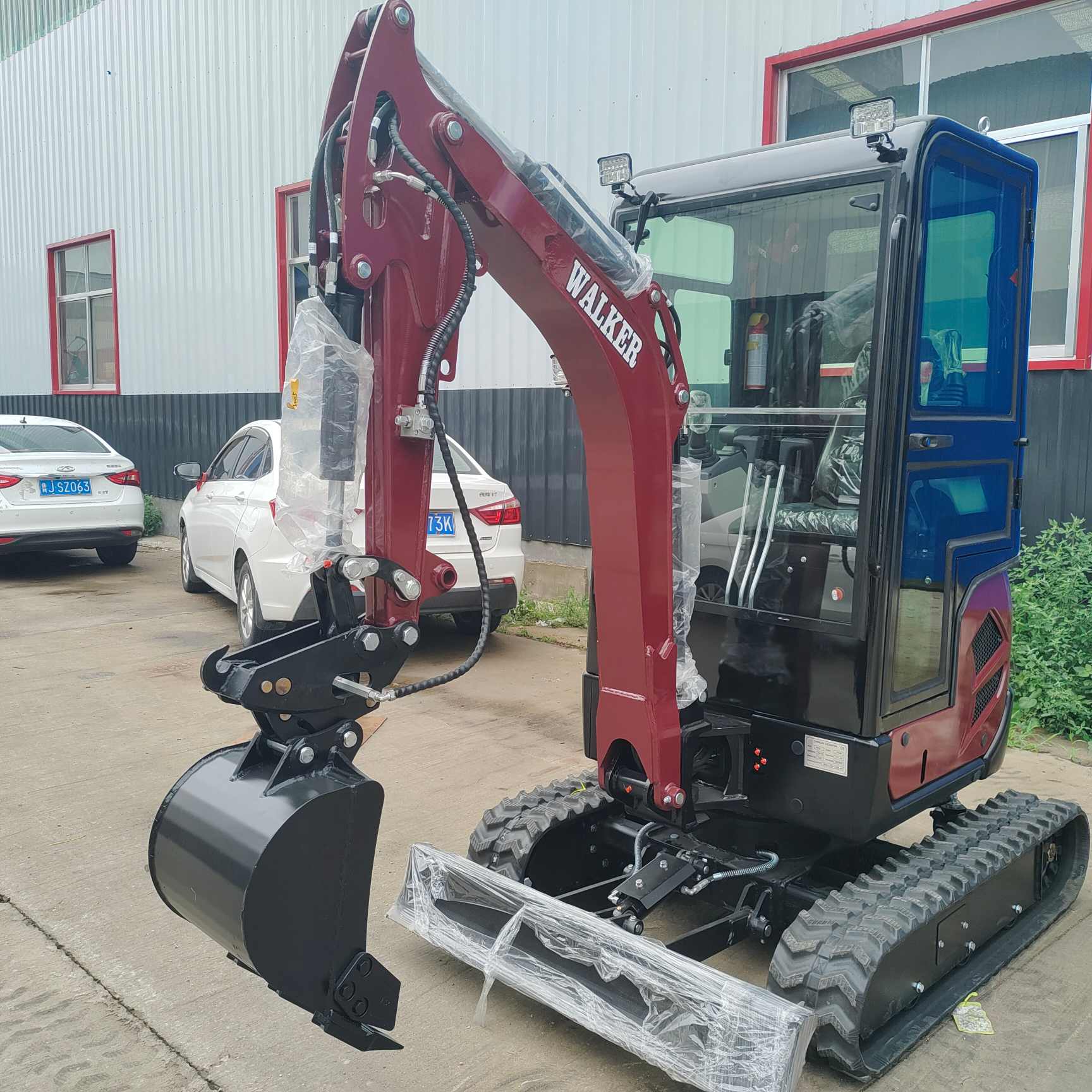

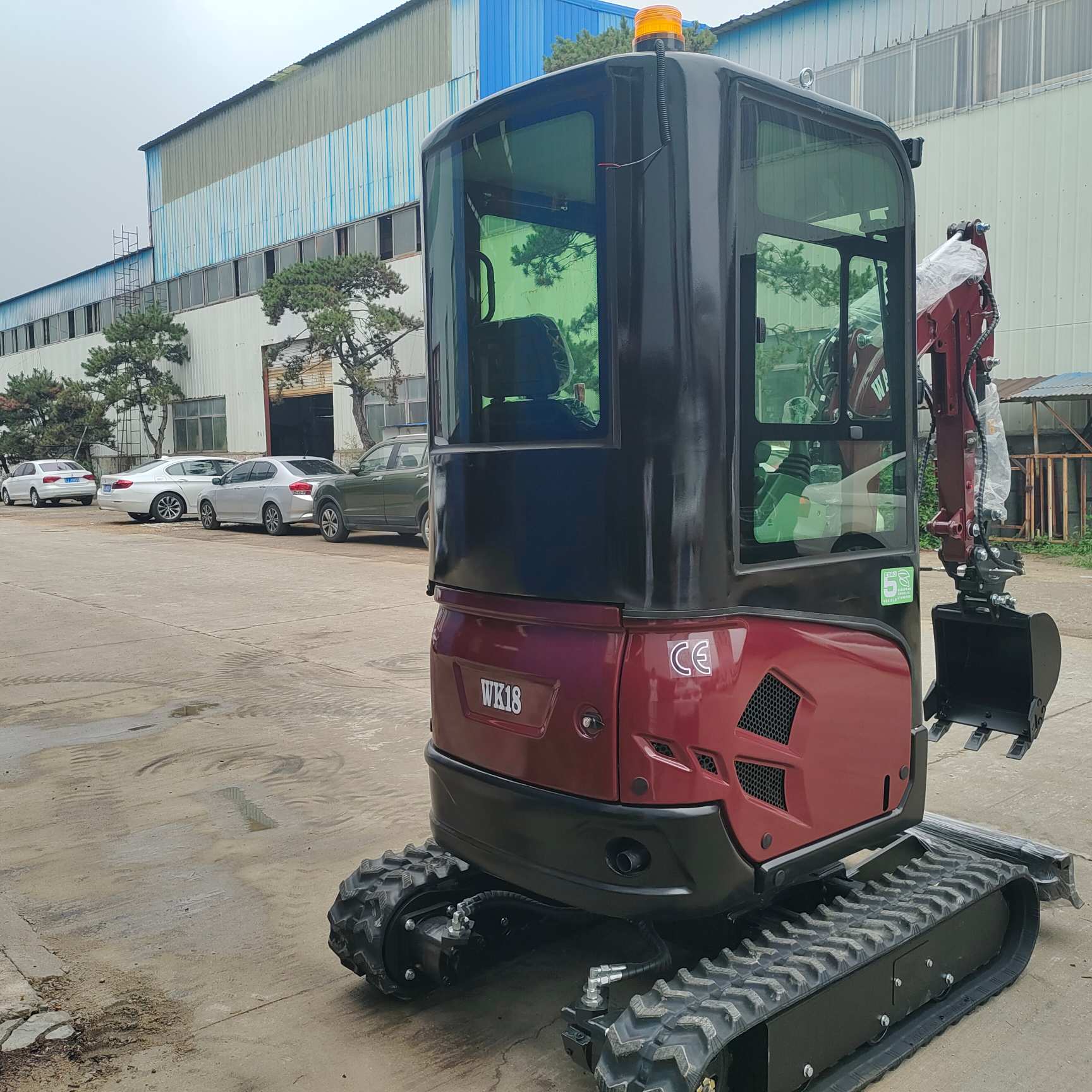

1 T Excavator

This 1.8-ton excavator excels in both performance and compliance. Its emissions strictly adhere to Euro 5 and EPA standards, meeting environmental requirements in international markets and adapting to regulatory norms in different regions, thus enabling more eco-friendly operations.

In terms of the power system, it is equipped with a reliable KUBOTA engine, while also offering the Briggs & Stratton gasoline engine as an alternative, providing users with diverse power options. The engine power can reach 10.2kw to 14kw, combined with different configurations of 3 cylinders or 2 cylinders, which can deliver stable and efficient power output according to operational needs, ensuring the equipment performs well in various working conditions.

In terms of dimensional specifications, this excavator features a compact and flexible overall design. With an overall length of 4325mm, overall width of 1100mm, overall height of 2260mm, and an upper width of 990mm, such dimensions allow it to easily navigate through narrow spaces, making it particularly suitable for work scenarios with limited space such as urban construction and interior decoration. The standard track shoe width is 180mm, track gauge is 920mm, track ground length is 1050mm, and track length is 1545mm. This not only ensures the stability and passability of the equipment on complex terrains but also effectively reduces the pressure on the ground, protecting the work site. The minimum ground clearance is 119mm, which can handle small protrusions and obstacles on the ground to avoid damage to the chassis; the tail turning radius is 790mm, and the minimum turning radius is 1711mm, further enhancing the maneuverability and operational flexibility of the equipment, making steering and turning operations more convenient and efficient.

In terms of operational performance, this excavator also performs impressively. The maximum digging height can reach 2590mm, easily handling digging and loading operations at high positions; the maximum unloading height is 1640mm, facilitating accurate unloading of materials to transport vehicles or designated locations; the maximum digging depth is 2100mm, meeting the needs of digging deep soil, sand, and other materials; the maximum digging distance is 3200mm, covering a wide operational range, reducing the number of equipment movements, and improving work efficiency. The boom swing angle is 75° to the left and 45° to the right. The flexible swing angles provide more possibilities for the excavator in terms of digging angles and ranges, enabling it to adapt to operational requirements at different angles and improve operational accuracy.

The working weight of the equipment is 1800kg, paired with a bucket capacity of 0.03m³. While ensuring work efficiency, it can also meet the material loading needs of small-scale projects. The swing speed is 12rpm, and the fast swing action can reduce the operation cycle time and improve overall work efficiency; the grade ability is 30°, allowing stable operation even on sloped sites, easily handling complex terrains such as mountains and slopes.

In addition, the main pump adopts the Tianjin CBT - F308/303GGH1R brand, providing strong power for the hydraulic system, ensuring the smoothness and stability of digging, lifting, swinging, and other actions, making the equipment more reliable and durable during operation, and providing a strong guarantee for efficient work.
