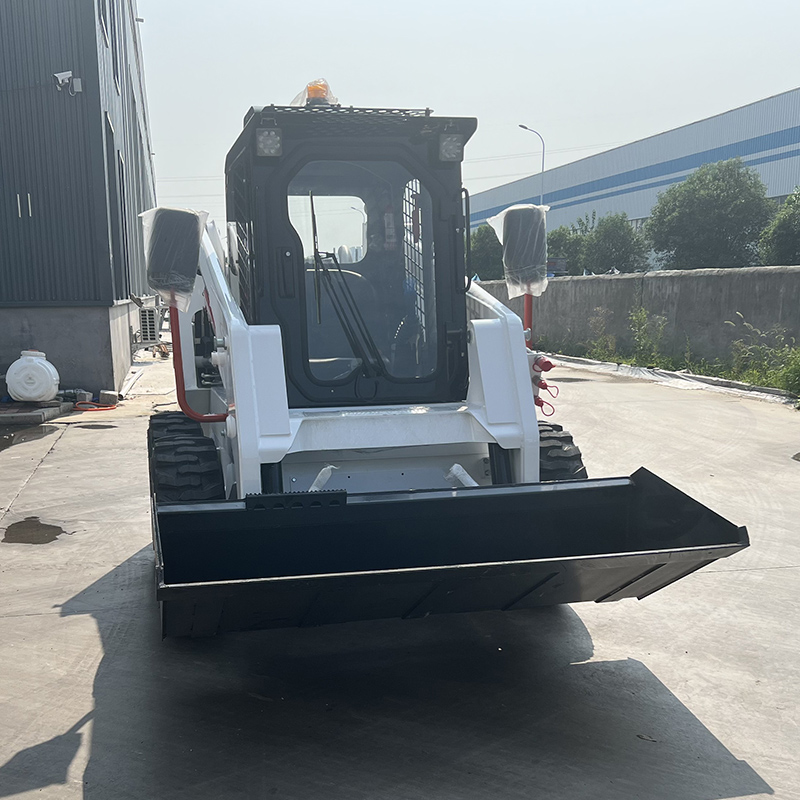

Wheeled Skid Steer Loader
1. Ultimate flexibility: Compact size with zero-radius turning, easily navigates narrow spaces, adapting to complex work environments.
2. Powerful performance: 4WD with high-efficiency engine handles heavy loads effortlessly, excelling in loading and handling.
3. Multi-attachment compatibility: Quickly switches buckets, breakers, etc., one machine meets diverse operational needs.
4. Easy operation: Sensitive control system, easy to master even for beginners, reducing training costs.
5. Convenient maintenance: Well-arranged key components, easy daily upkeep, minimizing downtime.
6. Durable & reliable: Reinforced structure withstands frequent use, extending service life.
7. Cost-effective: Low fuel consumption, full functionality, ideal for small-medium projects with quick returns.
This wheeled skid steer loader features reliable performance and practical design, powered by a Cummins HFC4DA1-2C engine. With a 4-cylinder naturally aspirated configuration, it delivers a rated power of 36.8KW and meets National Standard III emission regulations, ensuring stable, eco-friendly power output. The 80L large-capacity fuel tank supports long continuous operations, while the 55L/min hydraulic flow and 21Mpa system pressure guarantee quick hydraulic response, satisfying high-intensity work demands.
Its operational performance emphasizes practicality: rated load of 890Kg, tipping moment over 1780N·m, and maximum lifting force exceeding 25kN, paired with a 0.4m³ bucket capacity suitable for medium and light load tasks. The machine reaches a maximum operating height of 3790mm, with a dumping height of 2384mm and dumping distance of 520mm. The bucket’s tipping angles are 27° on the ground and 43° at maximum height, ensuring efficient and precise material handling.
The body design balances flexibility and stability: 1370mm wheelbase, 185mm ground clearance, overall length of 1160mm, and width of 1640mm, combined with 10-10.5 tires, enabling easy maneuvering in narrow spaces. The 1850mm-wide bucket expands work coverage, while the 2880Kg operating weight and reinforced chassis enhance stability during operations.
Operation and maintenance are user-friendly: driving speed ranges from 0-12km/h, with a precisely calibrated control system that’s easy for beginners to master. Key components are logically arranged for convenient daily inspections and maintenance, reducing downtime. Ideal for municipal maintenance, warehouse handling, and agricultural clearing, it excels in small to medium-sized work scenarios.
Parameter | Specification |
Engine Model | Cummins HFC4DA1 - 2C |
Rated Power | 36.8KW |
Number of Cylinders | 4 |
Intake Method | Naturally Aspirated |
Emission Standard | National Standard III |
Rated Load | 890Kg |
Tipping Moment | >1780 |
Maximum Lifting Force | >25kN |
Bucket Capacity | 0.4m³ |
Driving Speed | 0 - 12km/h |
Hydraulic Flow | 55L/Min |
Hydraulic Pressure | 21Mpa |
Fuel Tank Capacity | 80L |
Operating Mass | 2880±3% |
Tire Model | 10 - 10.5 |
Maximum Operating Height | 3790mm |
Height to Bucket Pin | 3020mm |
Height from Bucket to Cab Roof | 2095±5%mm |
Horizontal Length of Bucket above Ground | 3450±5%mm |
Horizontal Length of Bucket at Lowest Position | 2700±5%mm |
Maximum Horizontal Distance of Bucket at Lowest Position | 2846±5%mm |
Maximum Dumping Height | 2384±5%mm |
Dumping Distance | 520±1%mm |
Bucket Tipping Angle on Ground | 27±2° |
Bucket Tipping Angle at Maximum Height | 43±2° |
Wheelbase | 1370mm |
Ground Clearance | 185±2%mm |
Overall Length | 1160±5%mm |
Vehicle Width | 1640±2%mm |
Bucket Width | 1800±2%mm |
