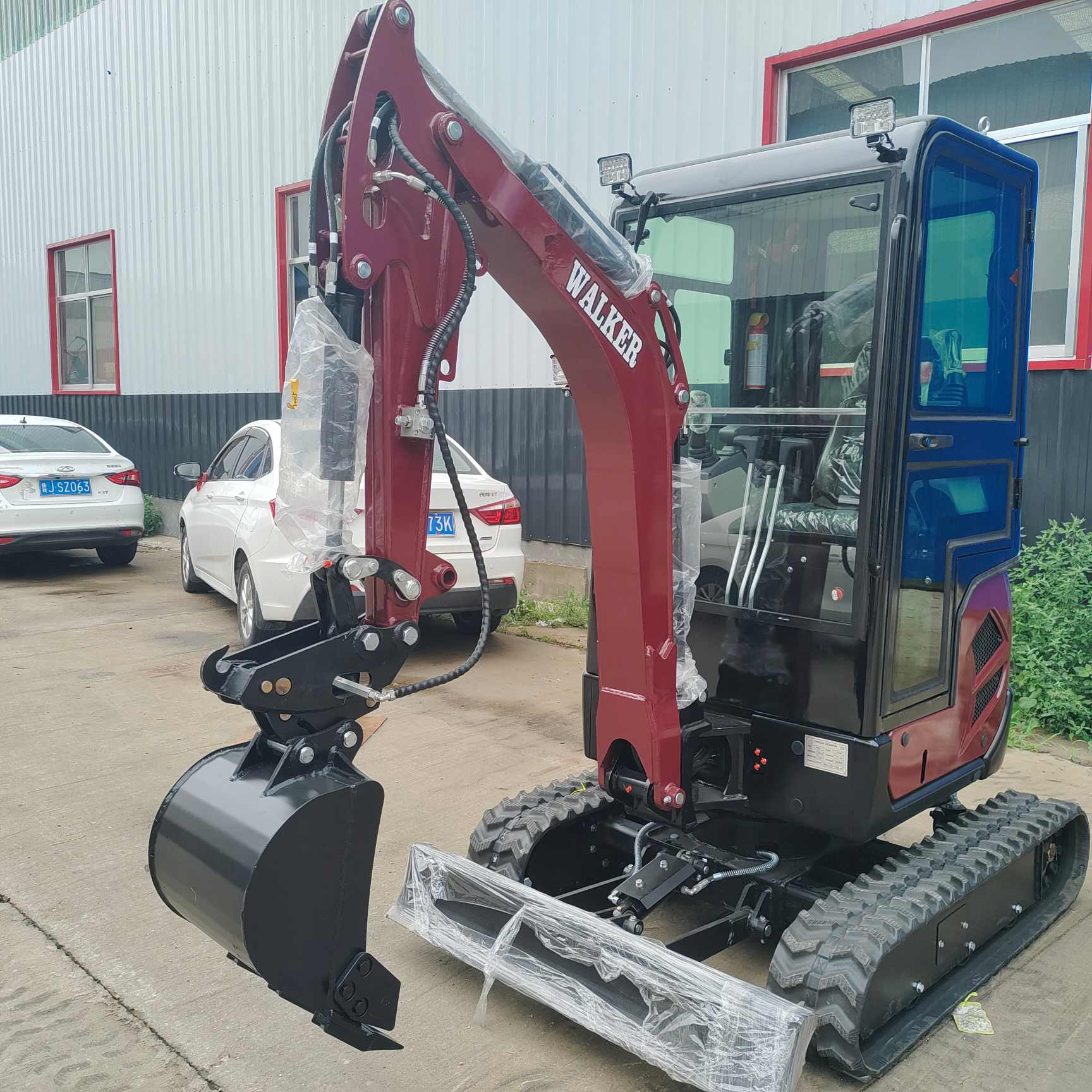

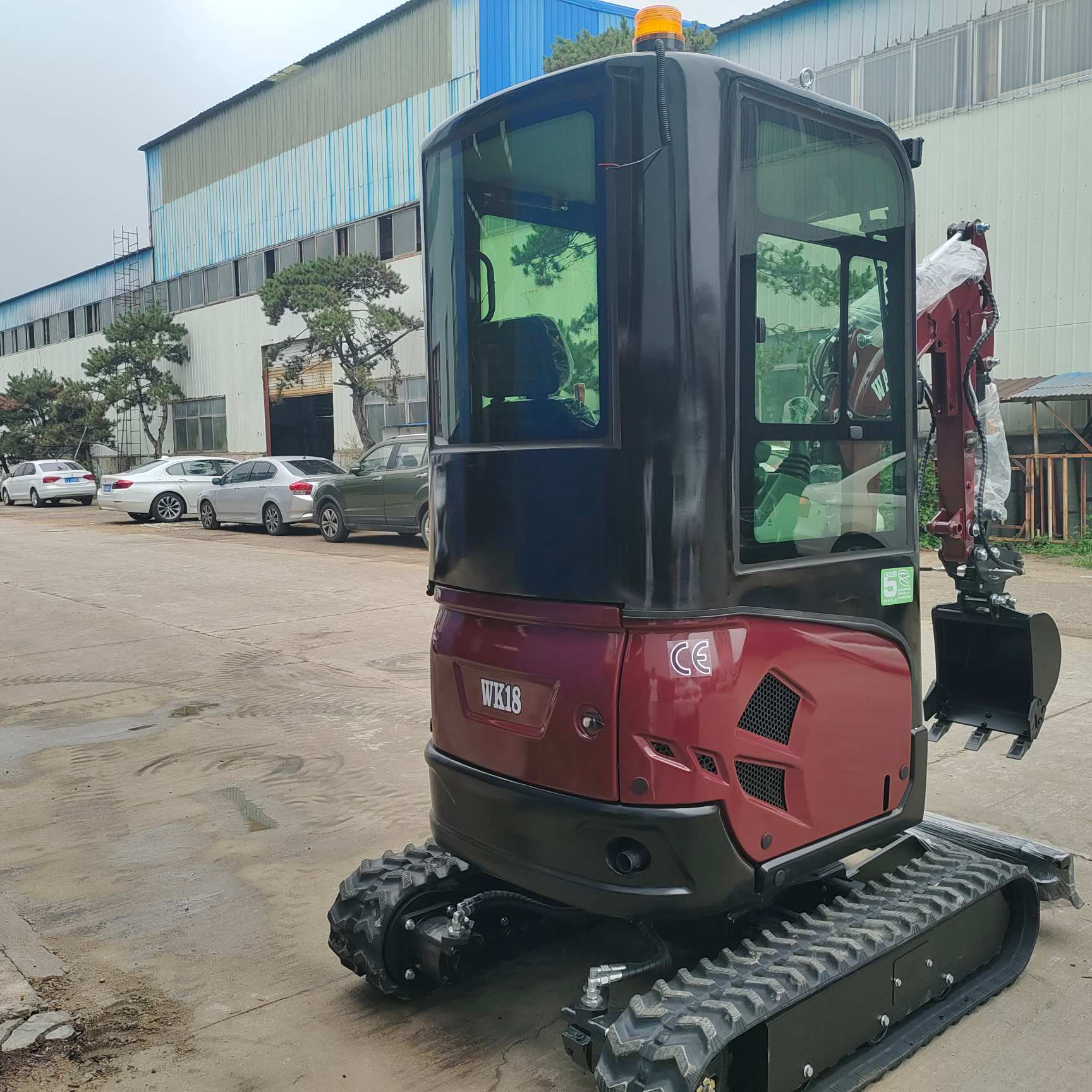

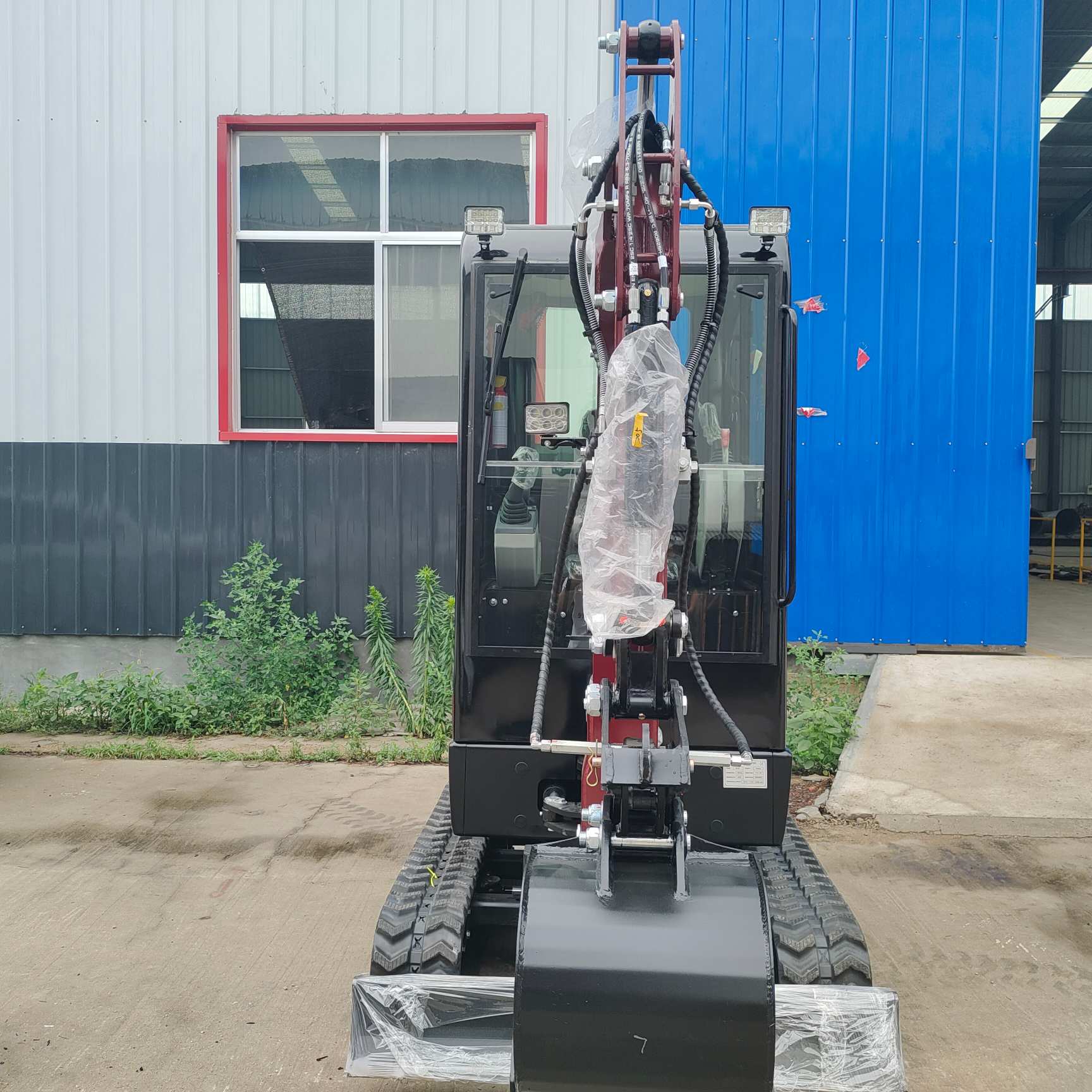

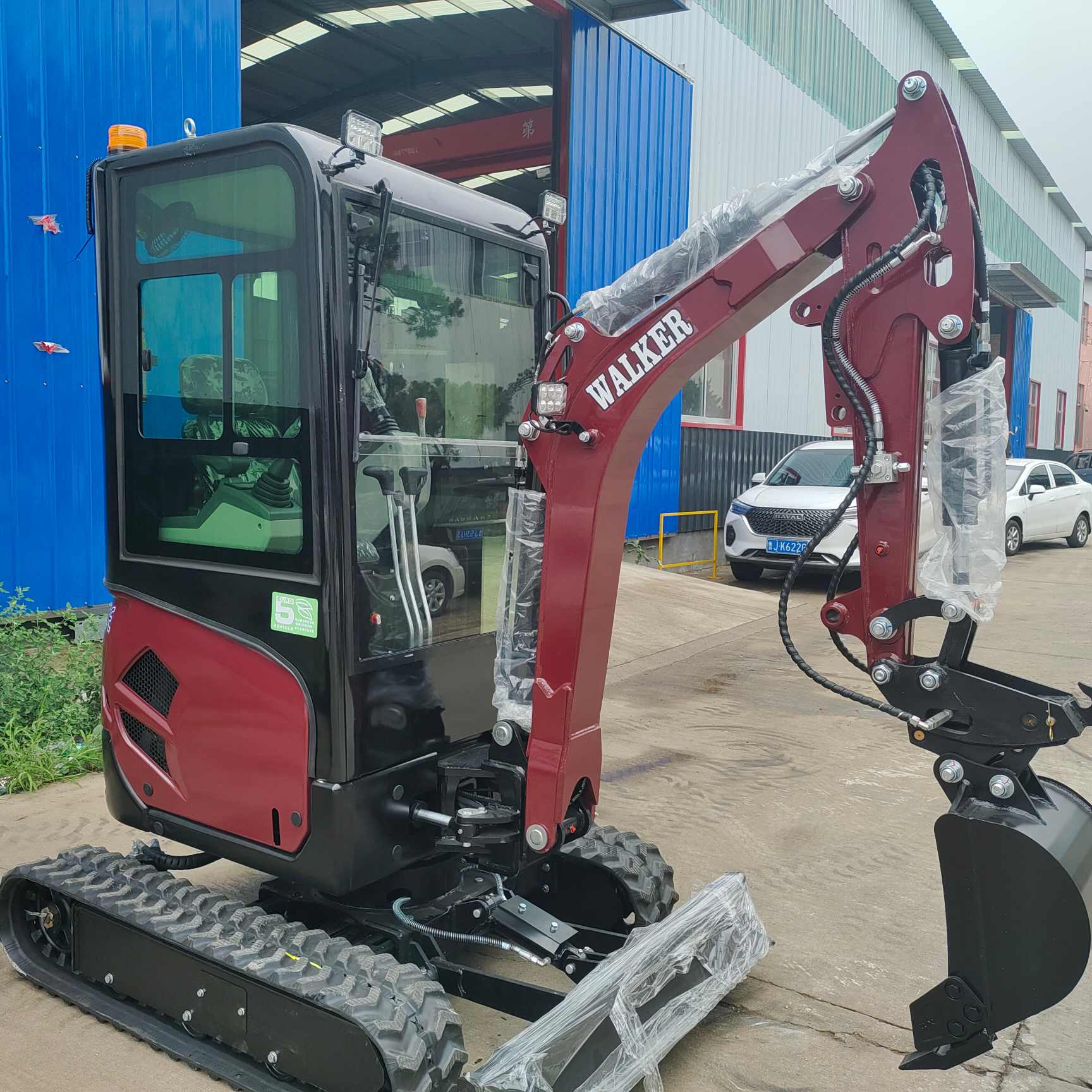

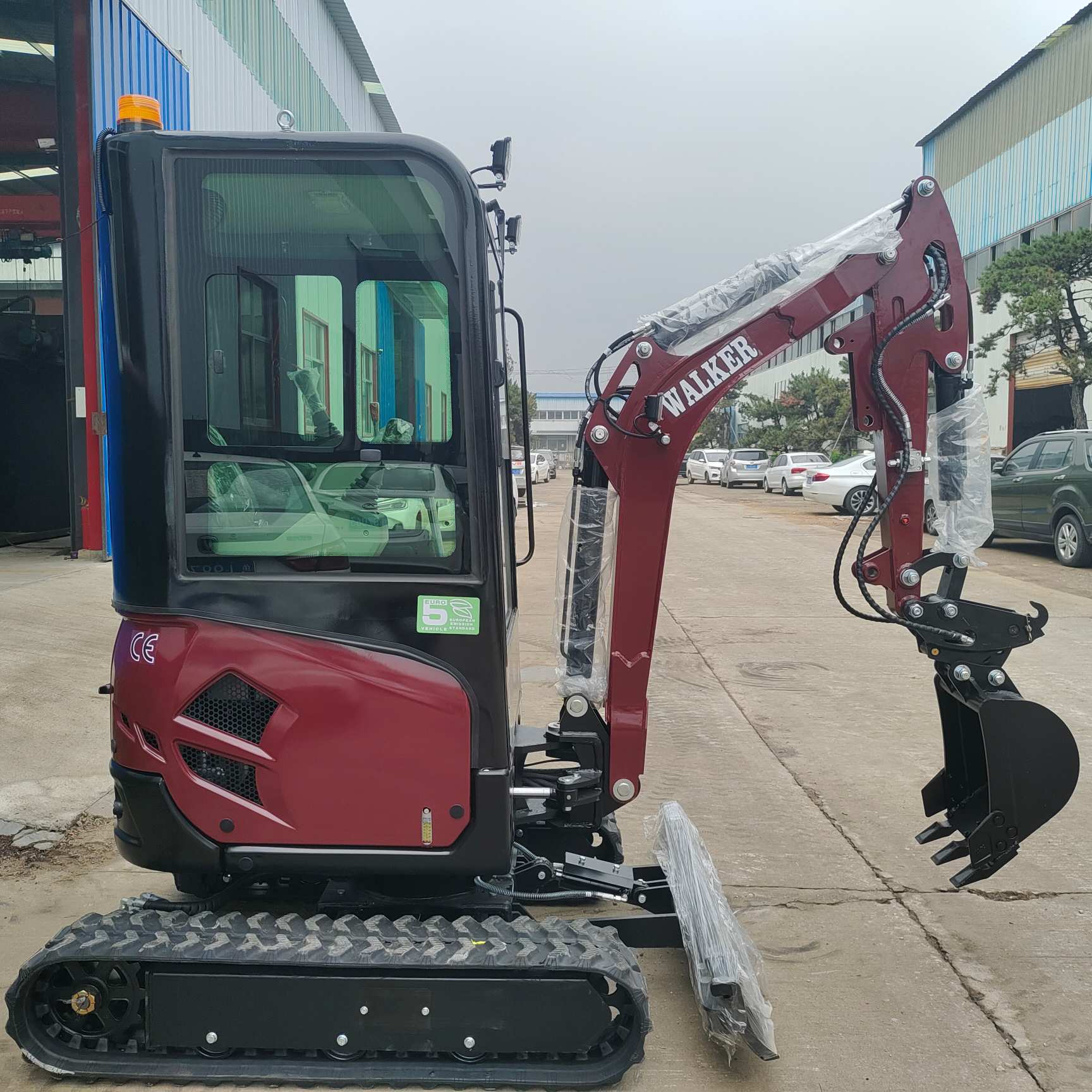

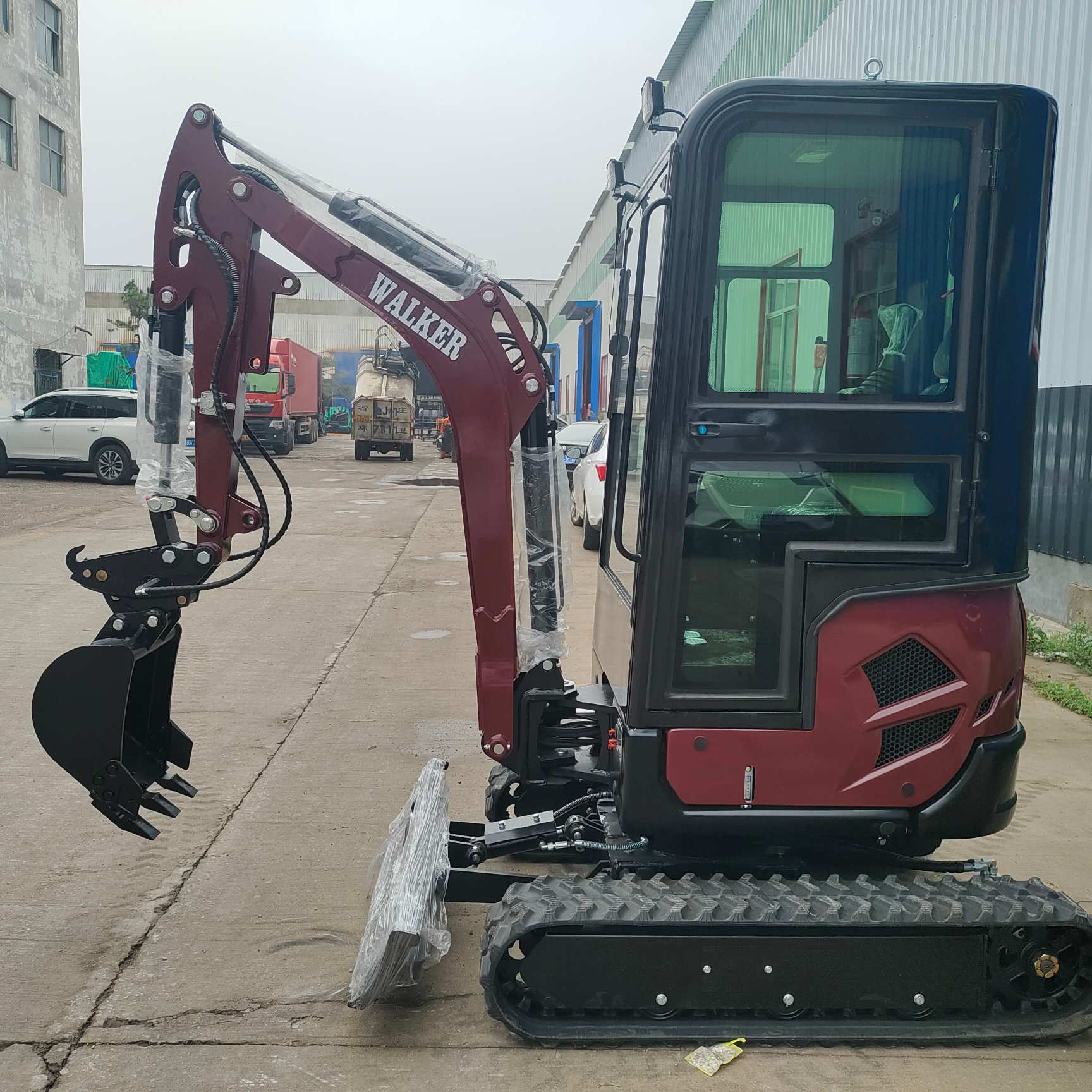

1.8-Ton Small Excavator

The 1.8-ton mini excavator is a professional equipment that combines flexibility and operational efficiency. Specifically designed for small and medium-sized projects and precision operation scenarios, it perfectly meets diverse needs such as rural renovation, municipal maintenance, and garden care. With an operating weight of 1800kg, it achieves a golden balance between "compact size and strong load-bearing capacity". The overall width of 1100mm combined with a track gauge of 920mm allows it to easily navigate through confined spaces like narrow lanes and courtyards. Meanwhile, compared to smaller-tonnage models, it is more adaptable to slightly complex operational intensities, with both passability and operational capability upgraded.

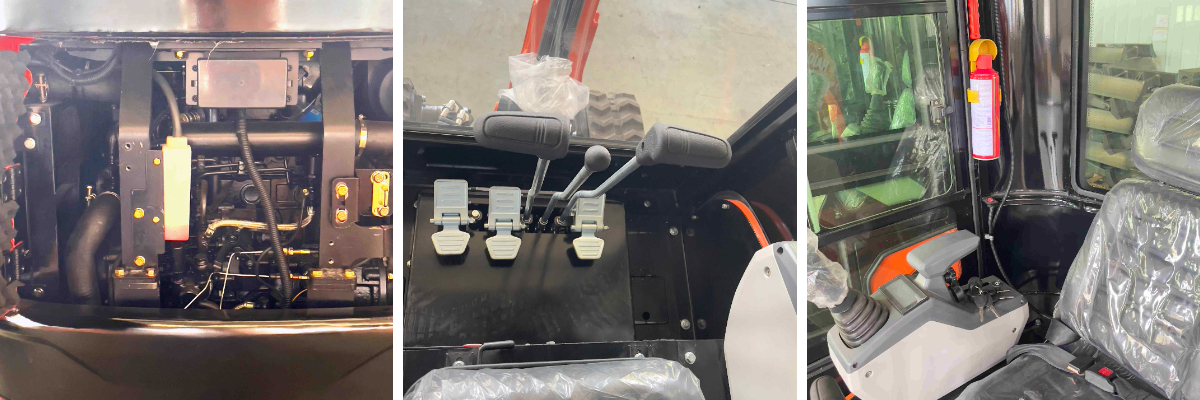

The power system is equipped with a Kubota engine (with an option for a Briggs & Stratton gasoline engine), with power ranging from 10.2kw to 14kw. A 3-cylinder/2-cylinder configuration can be selected as needed to meet different operational intensity requirements. The entire machine complies with Euro 5 and EPA emission standards, boasting excellent environmental performance. Coupled with an efficient heat dissipation design, it ensures stable power output during long-term high-intensity operations, completely eliminating the problem of efficiency degradation in high-temperature environments. The maximum climbing capacity of 30° and a swing speed of 12rpm enable the equipment to operate flexibly on gentle slopes and rough terrain, significantly expanding the operational range.

In terms of operational performance, this excavator demonstrates capabilities far surpassing smaller-tonnage models: the 0.03m³ bucket capacity paired with a 180mm standard track shoe width can efficiently complete tasks such as small-scale earth excavation and material transfer. The maximum digging depth reaches 2100mm, and the maximum digging distance is 3200mm. Combined with a maximum digging height of 2590mm and a maximum unloading height of 1640mm, it easily handles diverse needs like wall foundation excavation, small ditch trimming, and material loading. The design of a 75° left boom swing angle and a 45° right boom swing angle allows it to complete multi-angle operations in narrow spaces without frequent machine movement, and the 790mm tail turning radius further enhances operational flexibility.

The detailed design of the equipment takes both practicality and durability into account: the 1050mm track ground length combined with a 180mm track shoe width results in low ground pressure, enabling it to work on fragile surfaces such as lawns and floor tiles without causing damage. The minimum ground clearance of 119mm is sufficient to handle slightly raised terrain, avoiding collisions with bottom components. The main pump adopts the Tianjin CBT-F308/303GGH1R brand, ensuring stable pressure in the hydraulic system and precise and controllable operations. When paired with attachments such as breakers and grapples, it can achieve multi-purpose functionality. Reinforced structural components enhance the overall durability of the machine, and daily maintenance only requires basic inspection and lubrication, significantly reducing operating costs. It is an ideal choice that balances flexibility, efficiency, and economy.
