8.5-ton wheeled excavator
The 8.5-ton wheel loader boasts prominent advantages, balancing power and flexibility:
It features strong power with a large-displacement engine, delivering high rated power and excellent digging force. Easily handling heavy-duty tasks like mine stone crushing and bulk material transfer, it outperforms same-class models in work efficiency.
With a wheeled design and optimized steering system, it offers great maneuverability—small turning radius and high road speed allow on-site transfers without trailers, ideal for multi-site coordinated operations.
Its high load capacity shines through a large bucket and 8.5-ton rated load, boosting single-operation output and reducing cycles. The reinforced frame and working devices ensure durability for complex conditions.
Operation is user-friendly: equipped with a pilot control system for precise, smooth movements, easy even for beginners. The sealed, shock-absorbing cab with air conditioning and smart monitoring enhances comfort.
Economically, it excels in fuel efficiency, with fewer and accessible maintenance points. Universal parts cut long-term operational costs, achieving both high efficiency and low consumption.

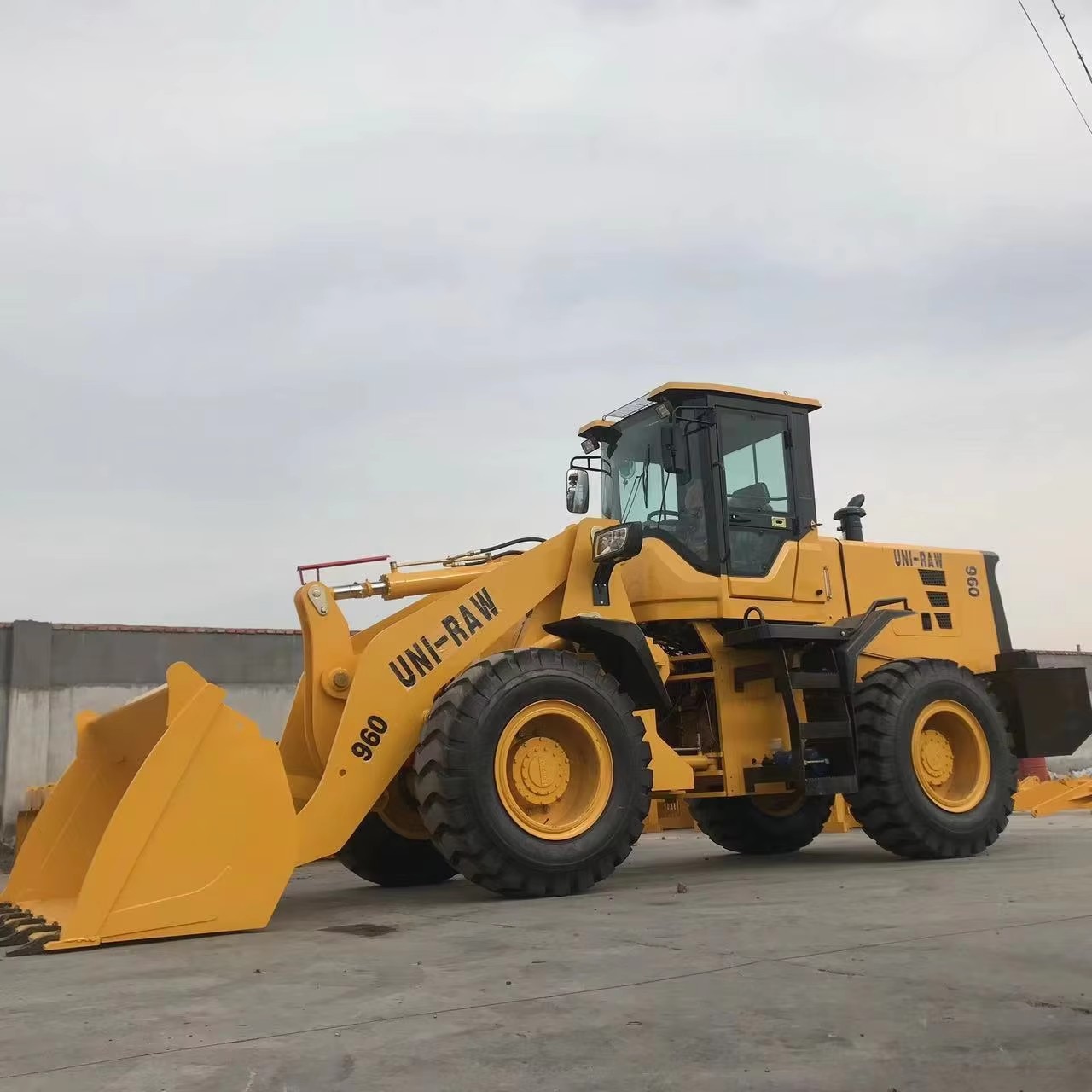

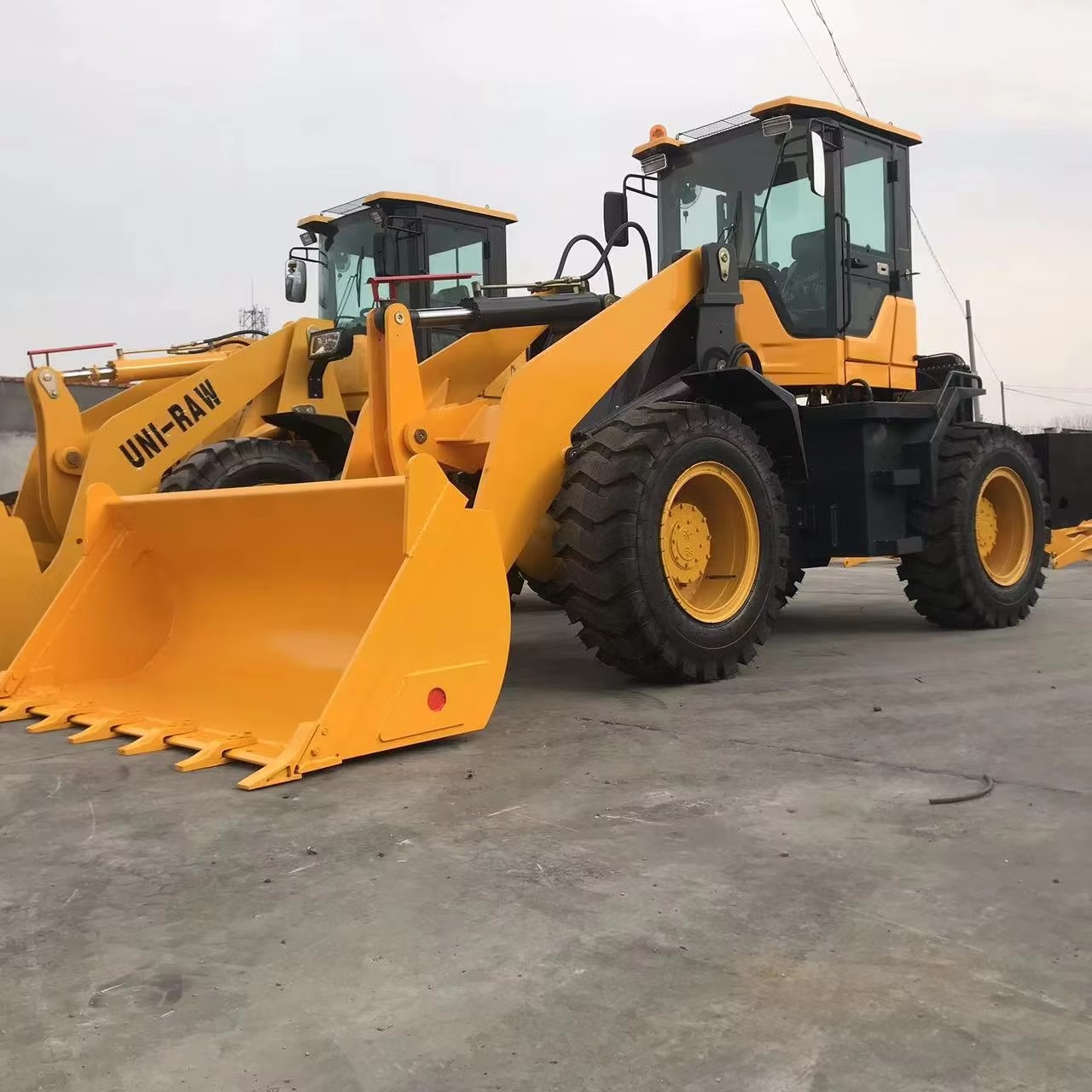

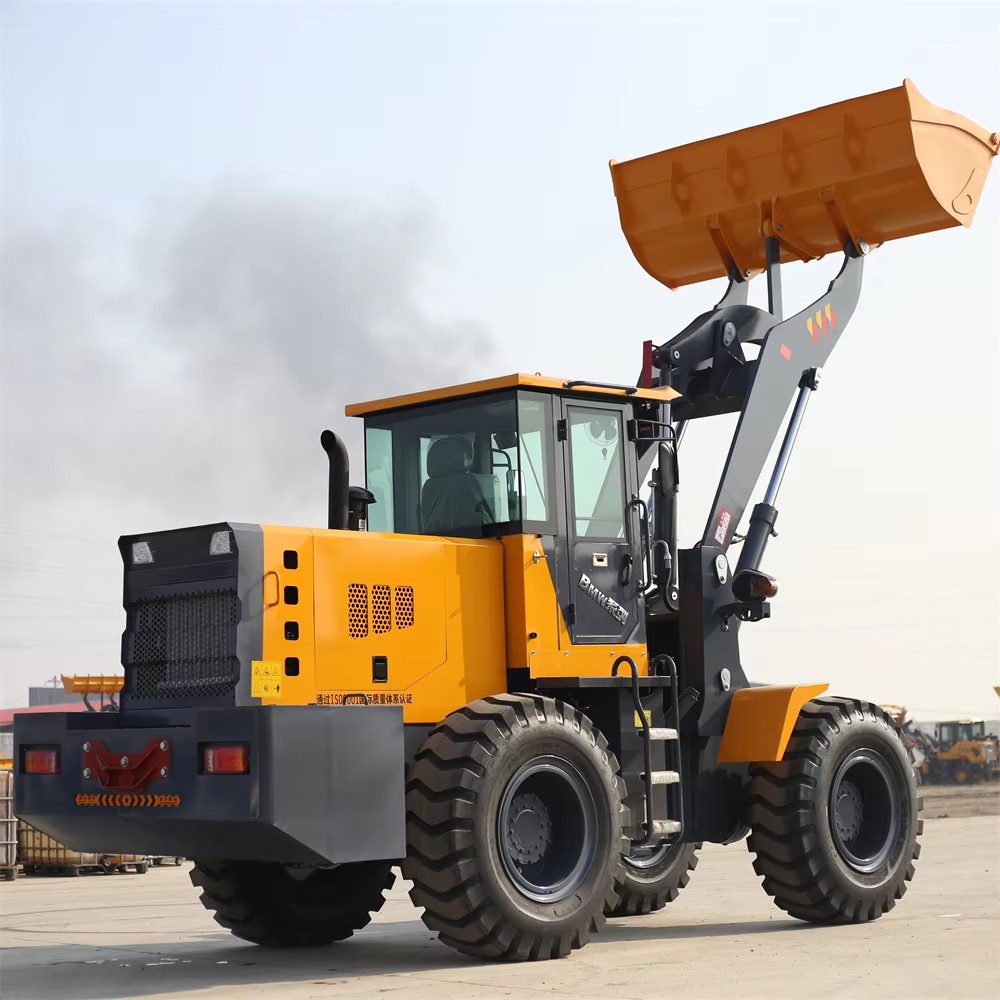

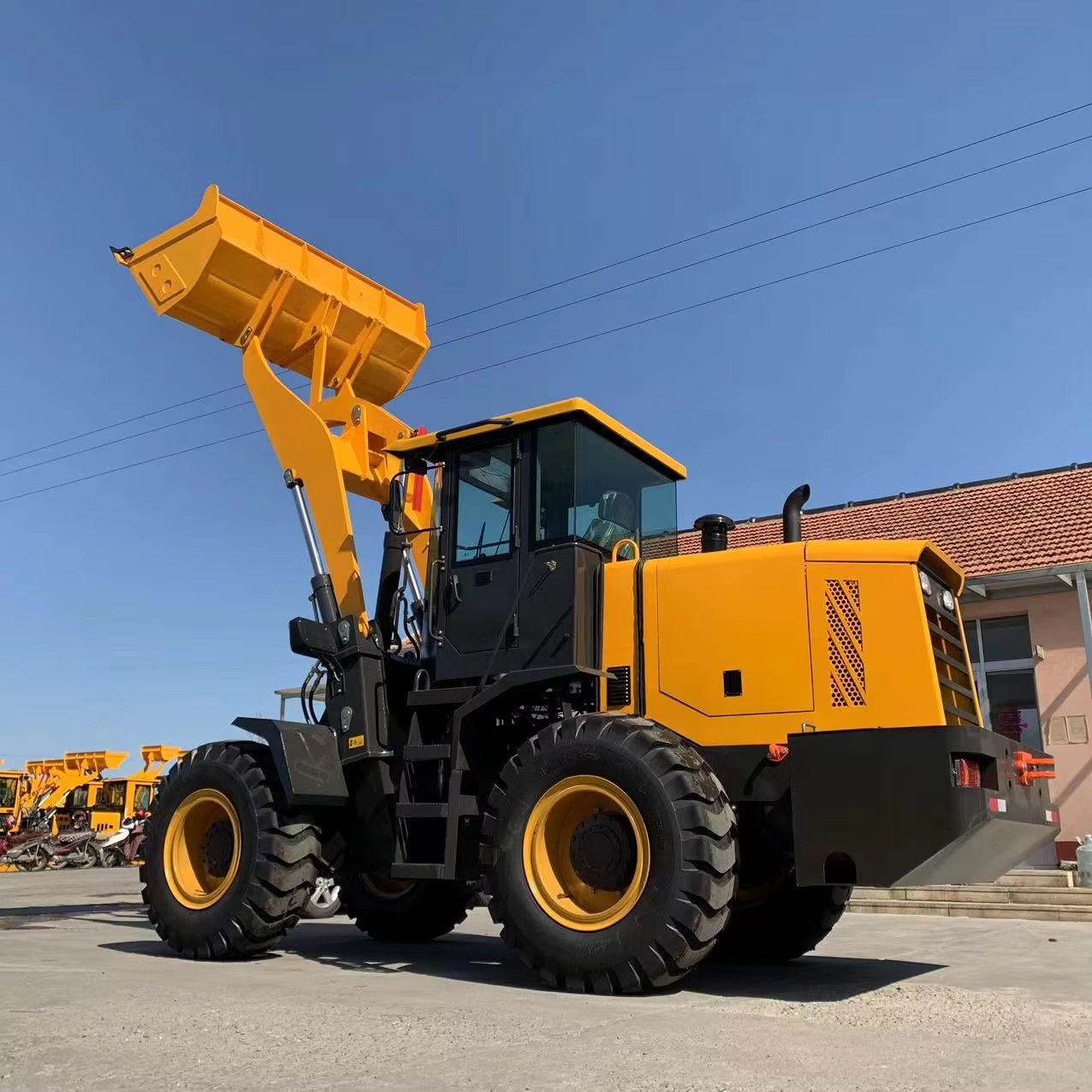

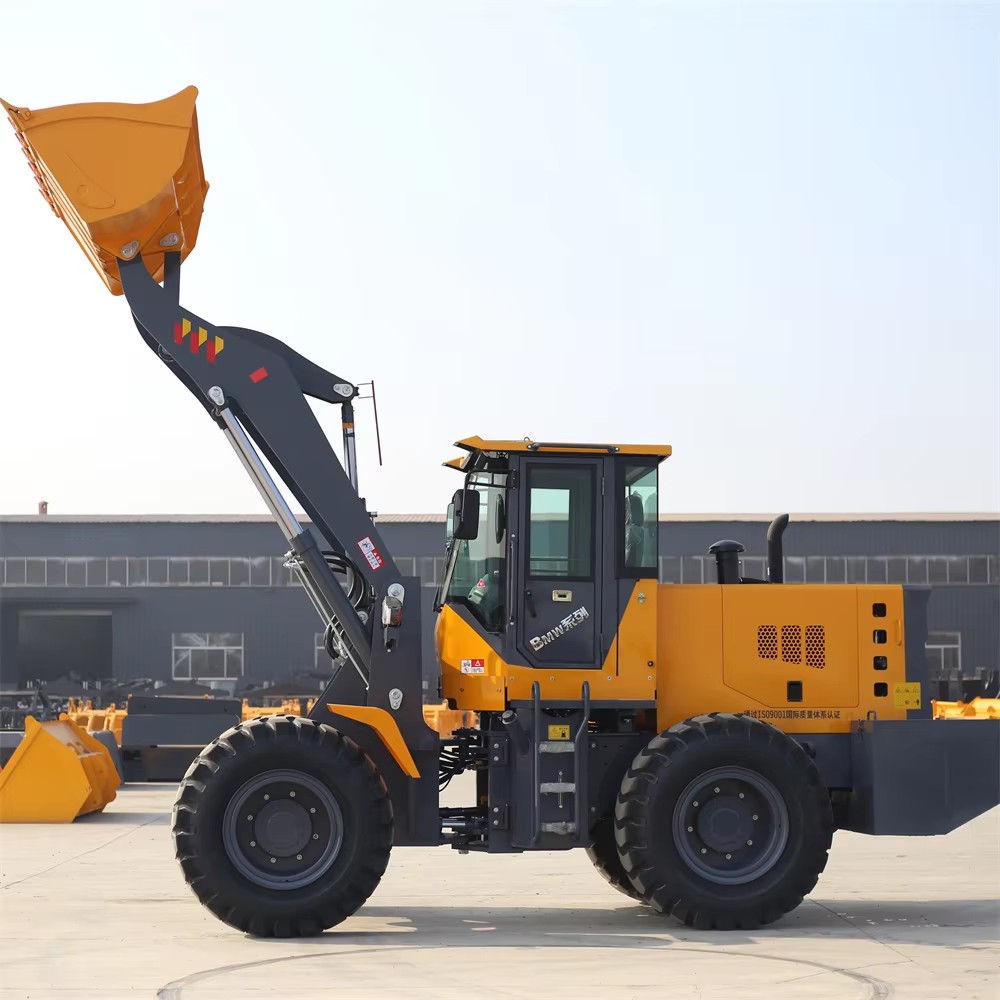

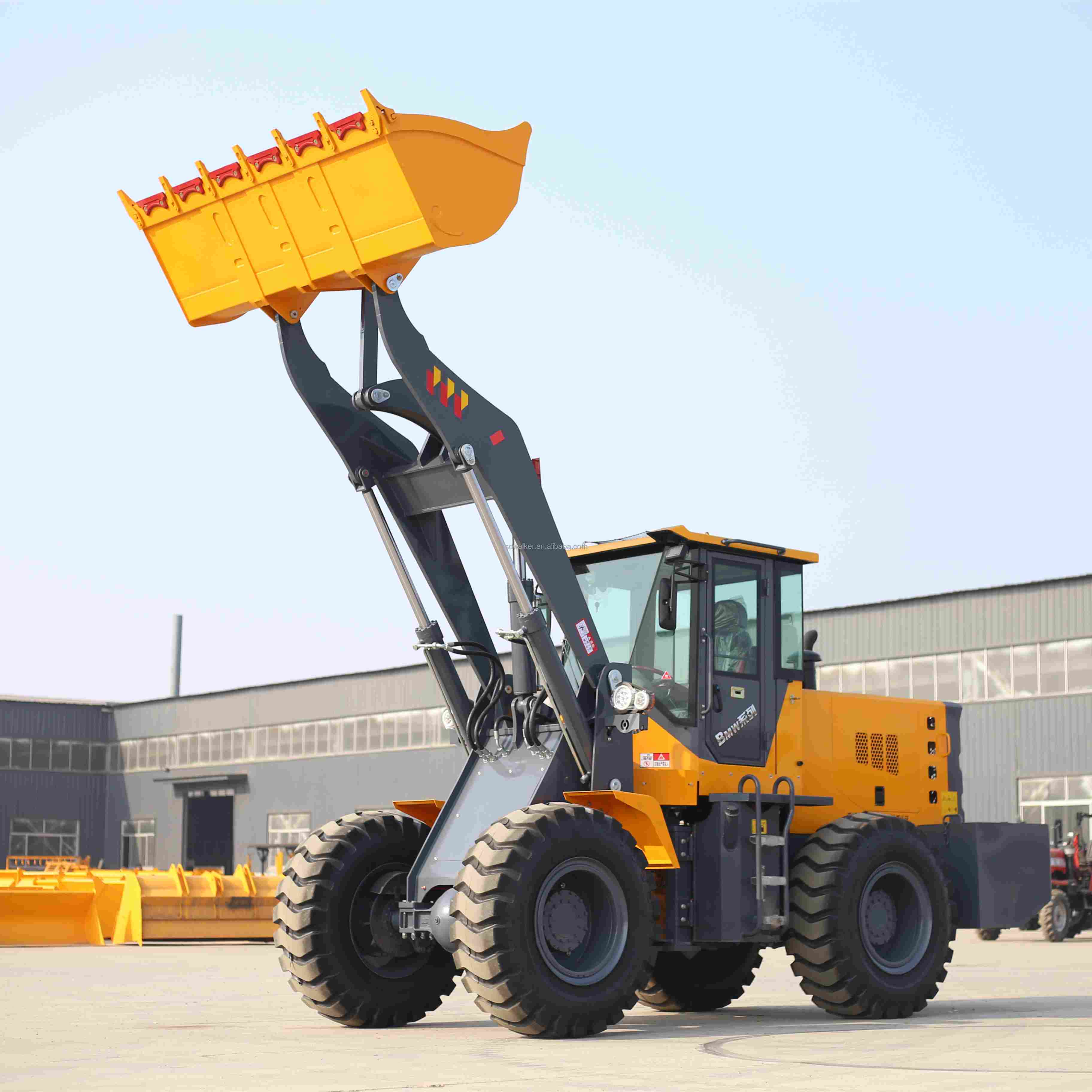

Product Details of GW-960 8.5-Ton Wheel Loader
The GW-960 8.5-ton wheel loader, designed with powerful performance and flexible adaptability at its core, is tailored for heavy-duty operation scenarios, boasting significant comprehensive advantages.
Superior Power and Efficiency: Equipped with the WEICHAI DEUTZ WPBG125E2 engine, it delivers a rated power of 92kw (123hp). Combined with direct injection, water-cooled, and turbocharged diesel technology, it ensures stable power output with strong explosive force. The adjustable bucket capacity of 1.4-2.0m³ adapts to different materials, while the 3000kg rated load capacity and 5100mm maximum dumping height easily meet the needs of bulk material shoveling in mines, ports, and other scenarios. Its single-operation capacity outperforms peer models, significantly reducing cycle times.
Flexible Maneuverability and Efficient Transfer: With an overall dimension of 7100mm×2300mm×3180mm, it balances stability and passability. The maximum speed of 35km/h and wheeled design enable quick on-site transfer without the need for a trailer, making it suitable for multi-site coordinated operations. The articulated frame steering system, paired with an optimized steering angle, ensures flexible turning, allowing easy operation in narrow spaces.
Durability and Safety Combined: The planetary rigid axle (hub) enhances load-bearing capacity. The hydraulic-air disc service brake (with calipers on both axles) and mechanical drum/disc parking brake ensure reliable braking under heavy loads. The 17.5-25 standard tires, with adjustable pressure of 0.25-0.35mpa, adapt to complex road conditions such as muddy or gravelly surfaces, extending service life.
Comfortable Operation and Strong Adaptability: The joystick control enables precise and effortless operation. The open hydraulic system (40L capacity) with a maximum pressure of 16mpa (160bar) ensures smooth movements. The sealed cab supports custom colors (standard yellow) and features a user-friendly layout, enhancing comfort during long working hours. For transportation, 2 units can be loaded into a 40HQ container, facilitating convenient bulk delivery.
Whether for heavy-duty handling or cross-site operations, the GW-960 delivers efficient and reliable performance, reducing operational costs and boosting work profits.
Parameter | Details |
Model | GW - 960 |
Gross Mass | 8500kg |
Rated Load Capacity | 3000kg |
Overall Dimensions | 7100mm*2300mm*3180mm |
Bucket Capacity | 1.4 - 2.0m³ |
Max Dumping Height | 5100mm |
Max Dumping Distance | 1050mm |
Bucket Width | 2.3m |
Max Speed | 35km/h |
Color | Customizable, standard color is yellow |
Engine Model | WEICHAI DEUTZ WPBG125E2 |
Engine Power | 92kw/123hp, rated engine speed 2000rpm |
Engine Type | Direct injection, water - cooled, turbocharged diesel engine |
Transmission Model | Hydraulic transmission |
Shift Mode | 4 forward and 4 reverse |
Axle Type | Planetary rigid axle (hub) |
Hydraulic System/Refill Capacity | Open hydraulic system/40L |
Max Hydraulic Pressure | 16mpa/160bar |
Drive System | Torque converter hydraulic transmission |
Operation Control | Joystick control |
Working Pump | Gear pump |
Steering System | Articulated frame steering |
Service Brake | Hydraulic - air disc brake, with brake calipers on both axles |
Parking Brake | Mechanical drum brake/disc brake |
Tire Model | 17.5 - 25 (standard) |
Tire Pressure | 0.25 - 0.35mpa |
Packaging | 2 units loaded in a 40HQ container |

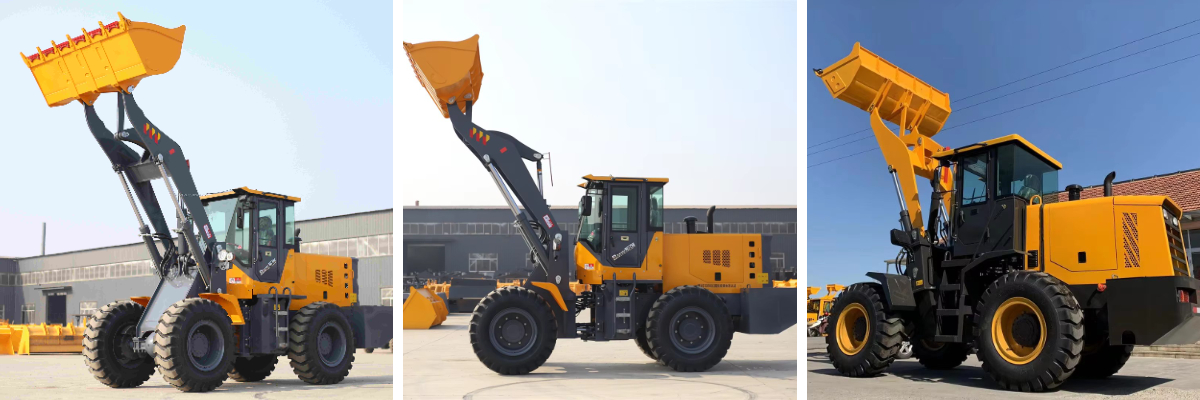

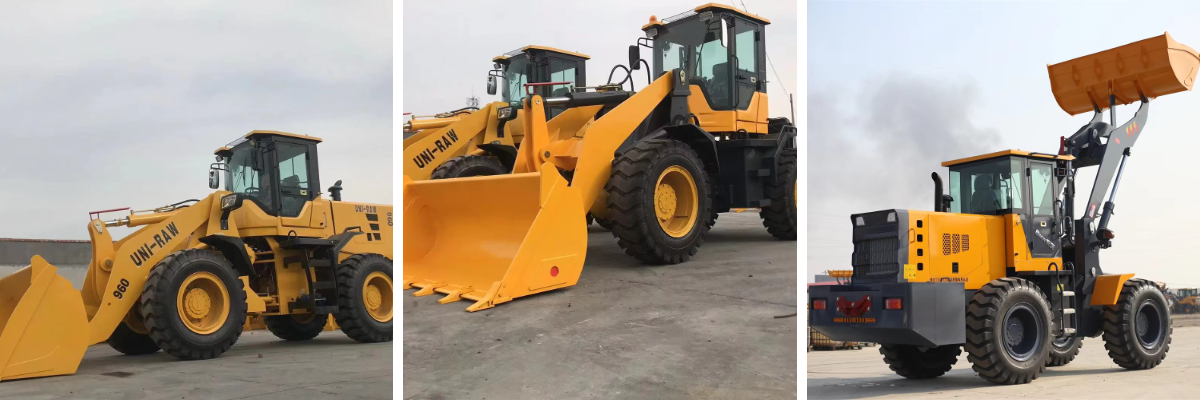

detail display
Company Overview
Established in 2012, Shandong Gongwo Machinery Co., Ltd. has emerged as a prominent producer of light and medium-duty construction machinery. Our extensive portfolio includes compact wheel loaders, mini crawler excavators, electric/diesel utility vehicles, and 2WD/4WD forklift trucks. For more than ten years, we have been delivering customized equipment solutions to clients across five continents, including Europe, the Americas, Southeast Asia, Africa, Russia, and beyond. Our mission is to engineer robust machinery that adapts to the changing requirements of our global clientele.
