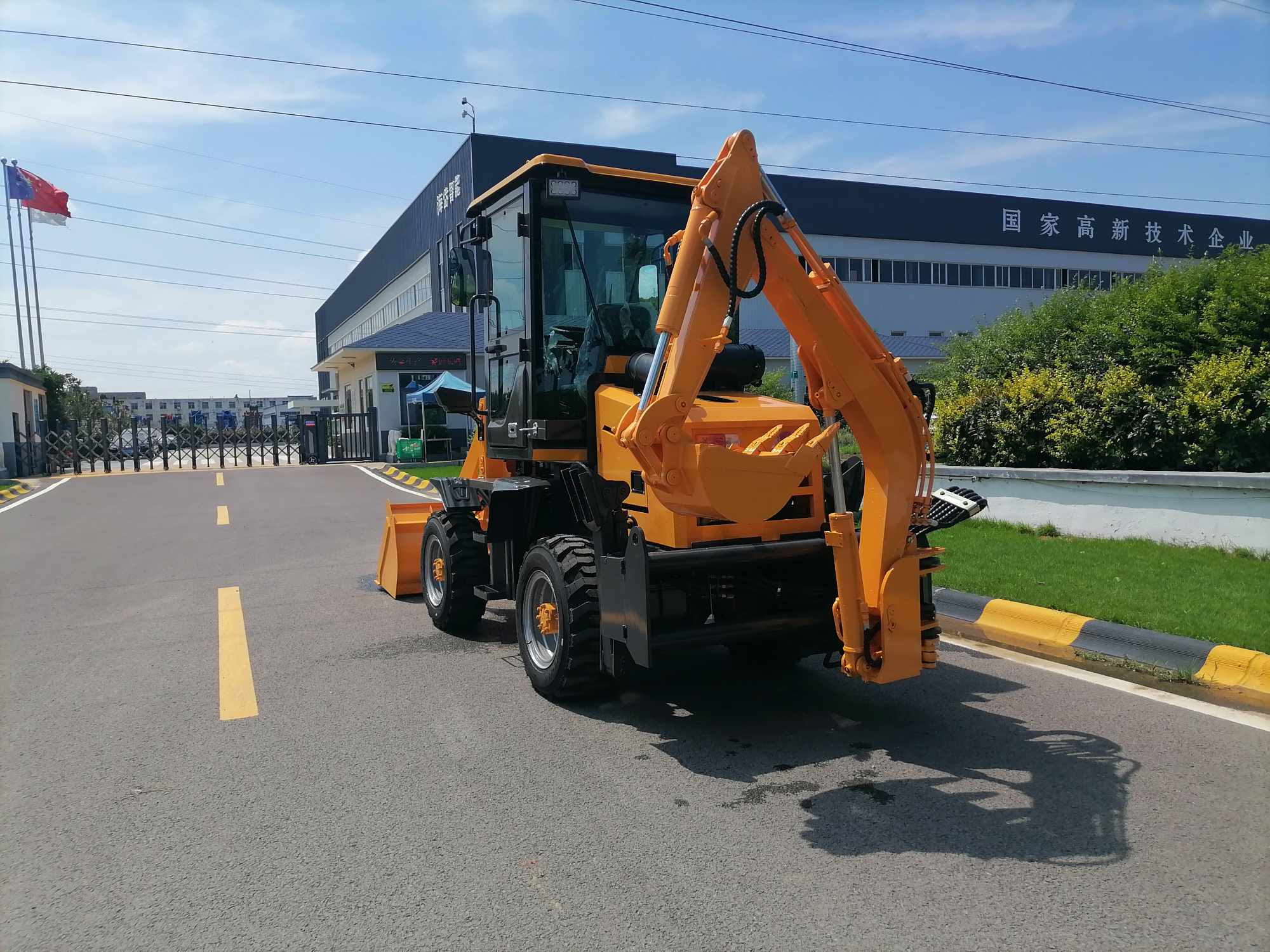

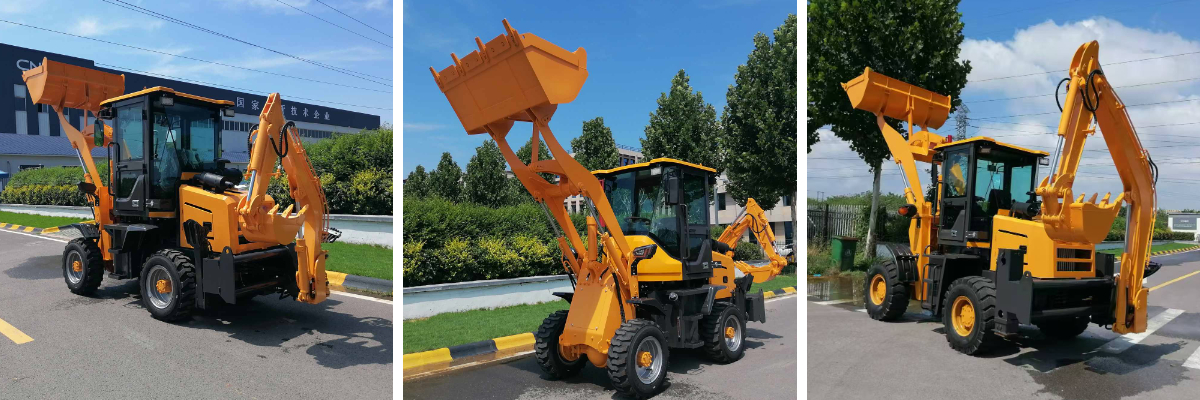

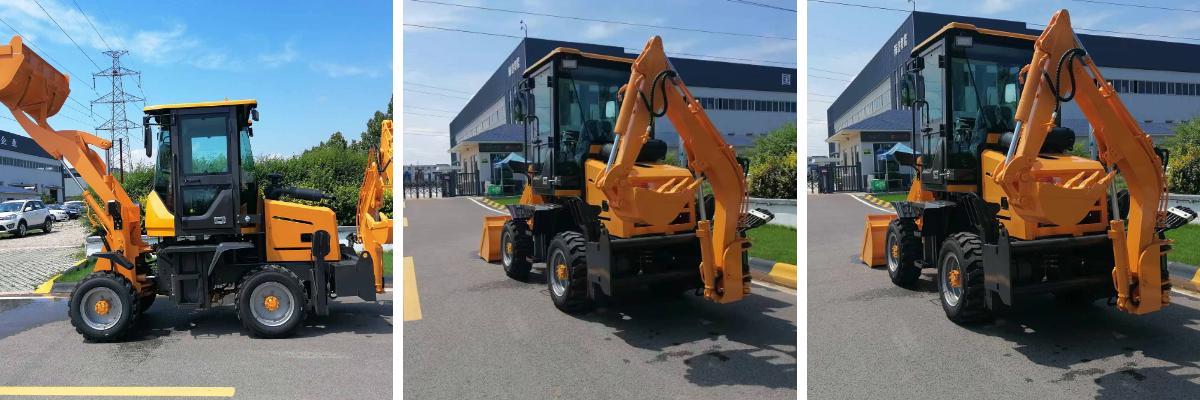

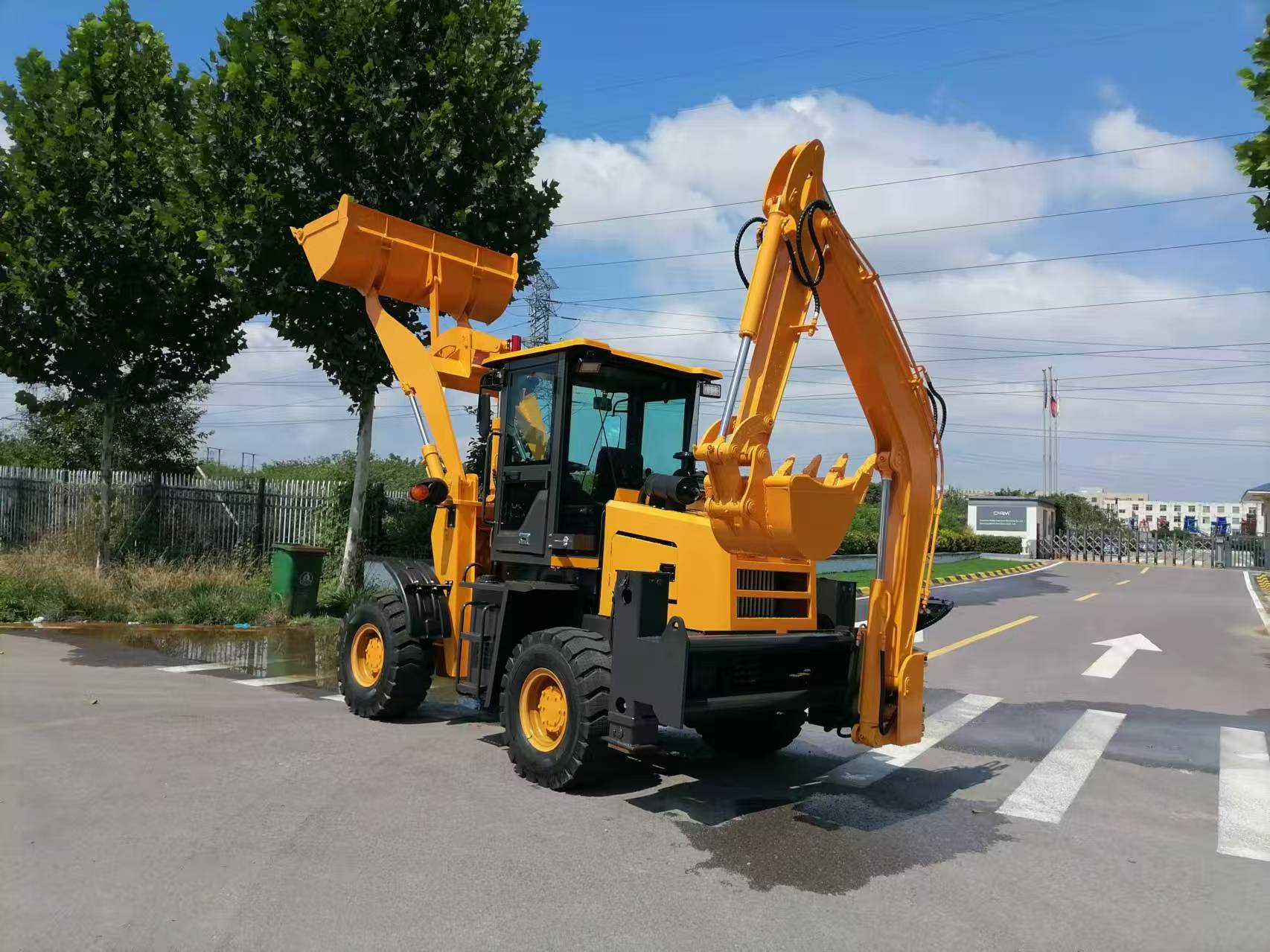

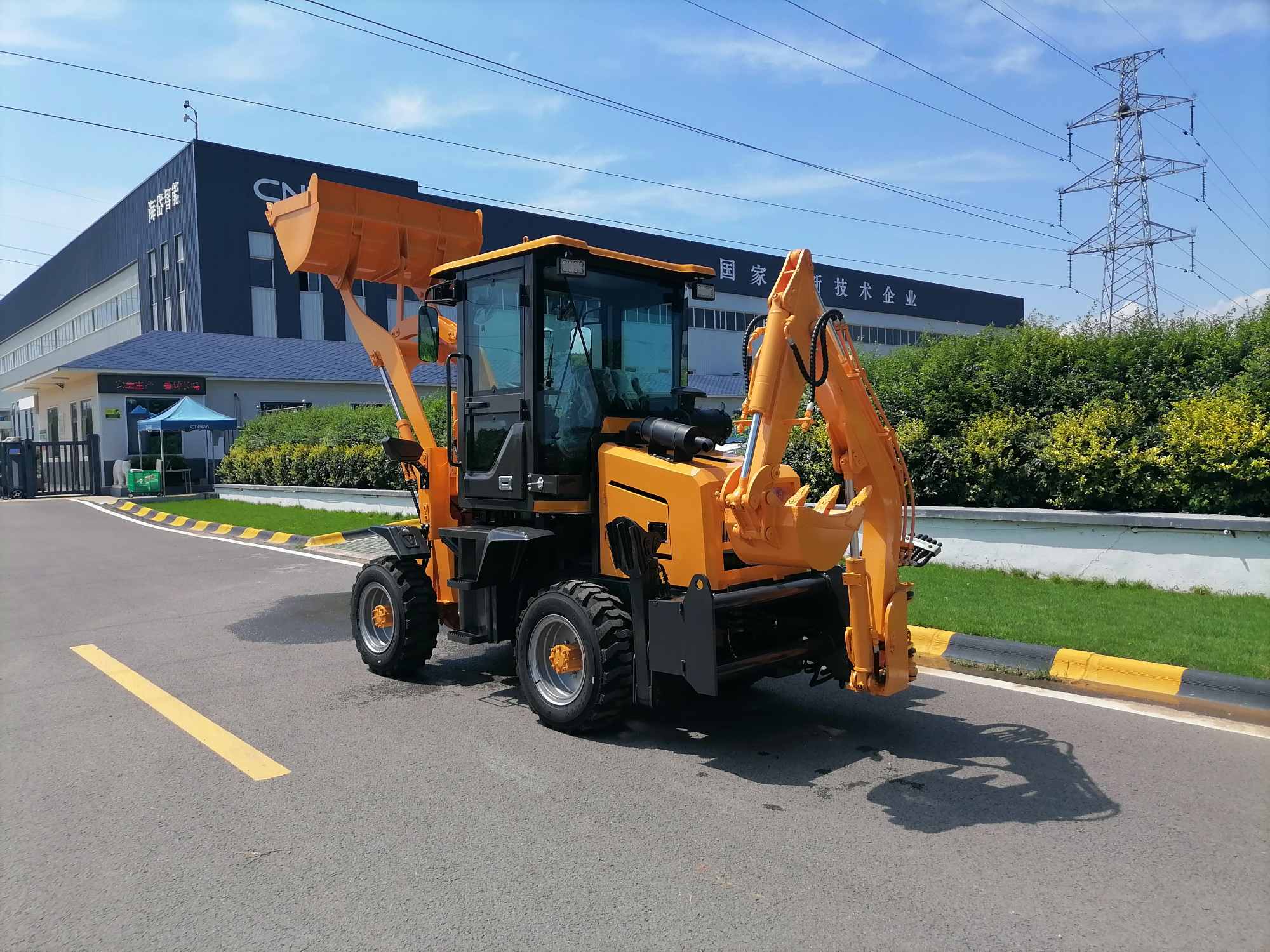

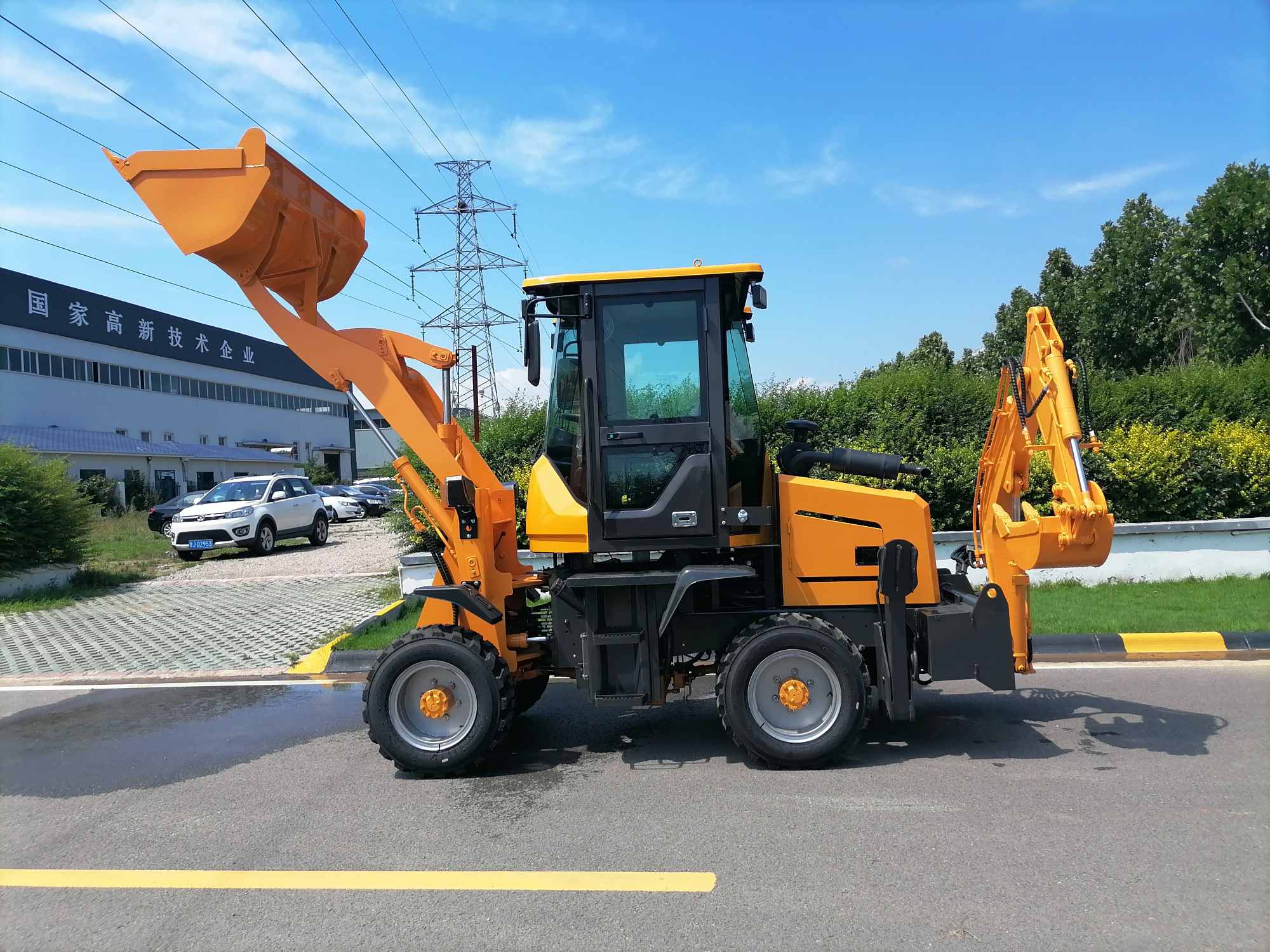

2.5 Ton Backhoe Loader

    This 2.5-ton backhoe loader features a compact size and powerful performance as its core advantages. With an overall dimension of 5100mm×1350mm×2580mm and a total weight of 2500Kg, it excels in narrow workspaces. The 1910mm wheelbase combined with a minimum turning radius of 3000mm, along with a 33° steering angle, enables easy maneuvering even in confined areas. Additionally, the 1100mm track width and 250mm minimum ground clearance ensure passability on complex terrains.

The power system is equipped with a 490-type four-stroke engine, delivering a rated power of 37KW and a rated speed of 2400r/min. The 4-cylinder design with a 90mm bore ensures stable power output. Combined with a 20L fuel tank and a 20L hydraulic oil tank, it meets the demands of long-hour operations. For transmission, it adopts a four-wheel drive and hydraulic transmission system, paired with a ZL28F torque converter and a fixed-shaft power shift gearbox with 2 forward and 2 reverse gears. It can reach a maximum speed of 20Km/h and handles slope operations effortlessly with a 25° maximum climbing capacity.

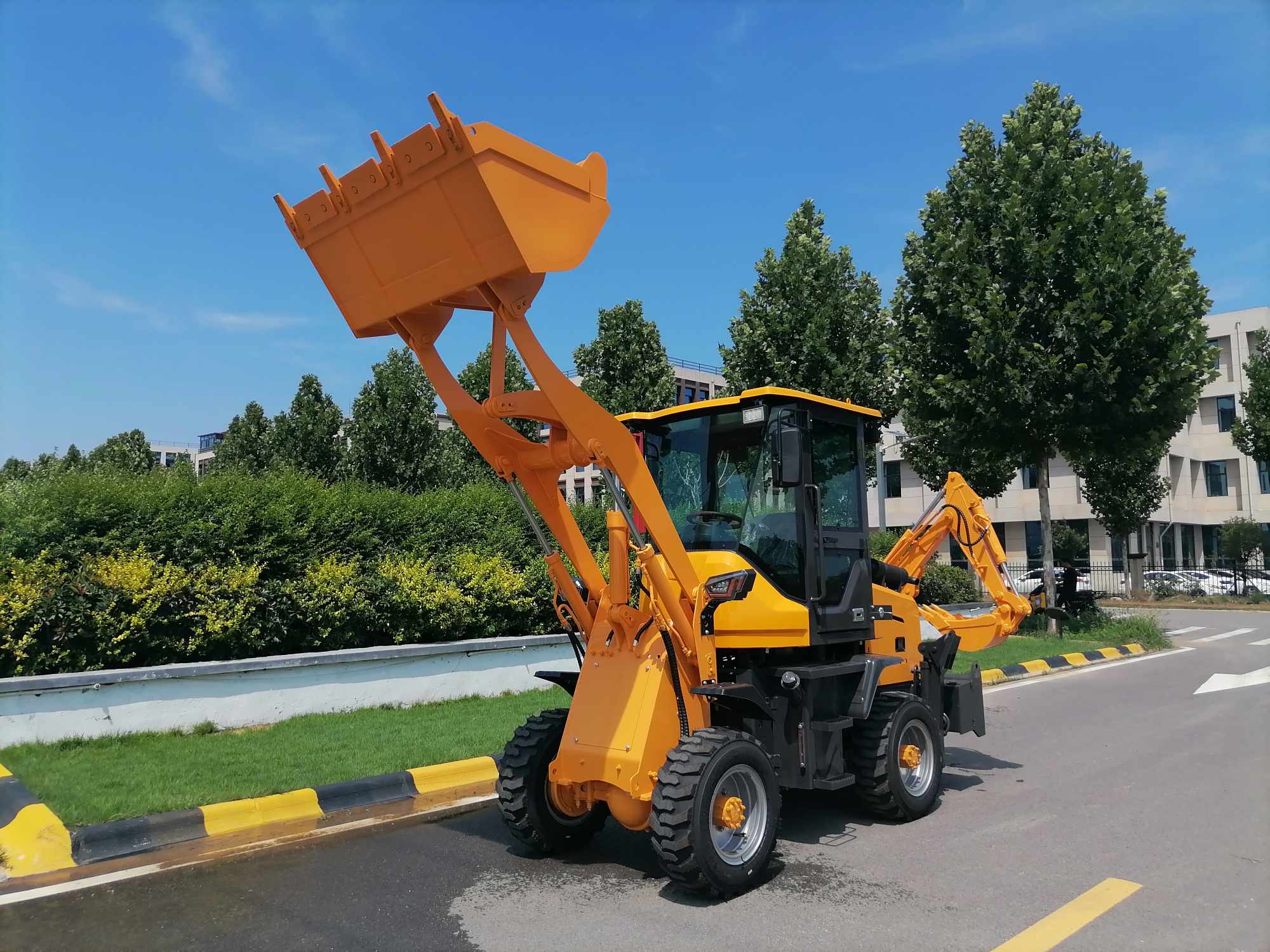

In terms of operational performance, the equipment combines both excavation and loading functions. The excavating device offers a maximum digging depth of 1500mm, a maximum digging radius of 2000mm, and an unloading height of 1500mm, with a maximum digging force of 25KN for efficient earthwork handling. The loading bucket, with a width of 1300mm and a capacity of 0.4m³, achieves a maximum unloading height of 2200mm and a maximum unloading distance of 800mm. The maximum breakout force of 28KN ensures loading efficiency, and the total operation time for the front shovel is only 12 seconds, significantly accelerating the construction pace. The hydraulic system, driven by a 16MPa system pressure and combined with articulated full-hydraulic steering, ensures sensitive and precise operational response.

Safety and reliability are also prominent features. It uses 825-16 tires (with front and rear tire pressure both at 250KPa), paired with oil-brake drum-type service brakes and manual parking brakes, keeping the braking distance within 3000mm for safe driving. The equipment structure undergoes reinforced design, with key components upgraded for durability, balancing efficient operation and long-term use. It is suitable for various scenarios such as small and medium-sized projects, agricultural transformation, and municipal maintenance.
