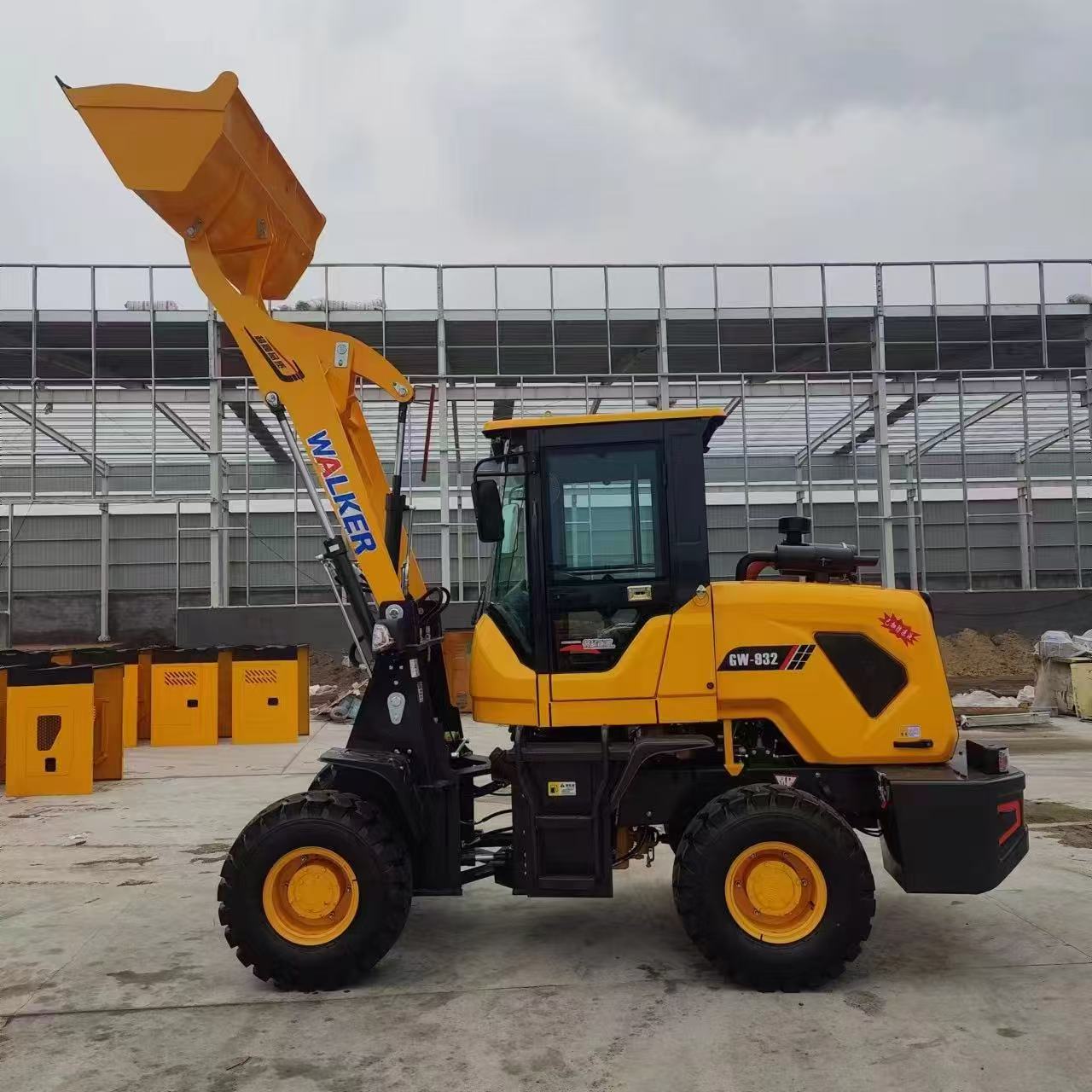

3.5-Ton Wheel-Type Loader

This 3.5-ton wheel loader, with its meticulously designed parameters and rich configurations, demonstrates exceptional practicality and reliability in various operating scenarios. It has a vehicle size of 5360×1800×2750mm, and its compact build allows it to operate flexibly in narrow spaces such as warehouses and small construction sites, easily maneuvering through limited areas without sacrificing stability during operation despite its small size.

The machine weight of 3500kg provides a stable foundation for the equipment, ensuring it is less likely to shake during loading and operation, thus enhancing operational safety. The rated load of 1500kg, combined with a 0.7m³ bucket, enables efficient completion of loading and handling tasks for small to medium-sized materials. Whether it is sand, coal, or agricultural crops, it can handle them with ease, processing an appropriate amount of materials in a single operation to meet the needs of low to medium-intensity work.

The unloading performance is equally impressive. With an unloading height of 3500mm, it can adapt to various transport vehicles, making material unloading more convenient and efficient, and reducing the need for secondary handling caused by insufficient height. The 1800mm bucket width further improves loading efficiency, allowing it to hold more materials at once and shorten operation time.

In terms of power, the loader is equipped with a 490 model engine with an output power of 40kw, providing sufficient power support for the entire machine. This ensures stable operation even under working conditions such as climbing slopes and heavy loads, without experiencing power shortages. The driving mode adopts wheel-side deceleration four-wheel drive, paired with a pneumatic disc brake axle. This not only gives the equipment strong grip and passability on complex road conditions such as muddy and potholed surfaces but also enables precise and rapid braking, enhancing operational safety and controllability.

In terms of configuration, the design of the luxury rear hood and luxurious cab offers operators a comfortable working experience. The luxurious cab has a spacious interior and a wide field of vision, effectively reducing visual fatigue for operators. At the same time, its good sealing performance can isolate external noise and dust, creating a more pleasant operating environment.

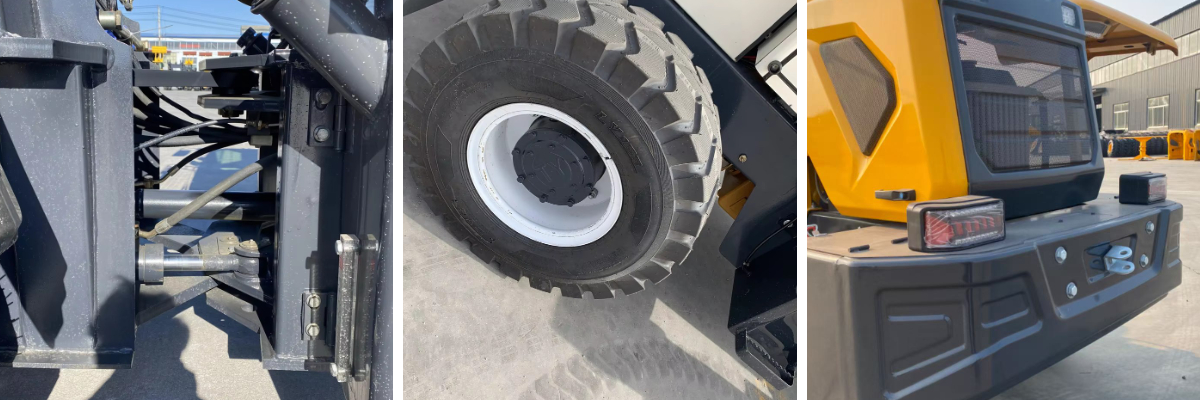

The tires are of model 20.5-16. The wide tires not only increase the contact area with the ground to improve grip but also effectively reduce the pressure on the ground, protecting the road surface of the work site. They are particularly suitable for operations in areas where the ground needs protection, such as farmland and grasslands. The 1460mm wheelbase design further enhances the overall stability of the machine, making the loader more stable during turning and operation and less likely to roll over. The 330mm ground clearance ensures that the equipment can pass smoothly over uneven ground, avoiding collisions between the bottom components and the ground, thus adapting to various complex terrains.

Whether it is material handling in small construction sites, loading operations in agricultural production, or garbage cleaning in municipal engineering, this 3.5-ton wheel loader can, with its efficient, flexible, and comfortable features, become a reliable assistant for users, providing strong support for improving work efficiency.
