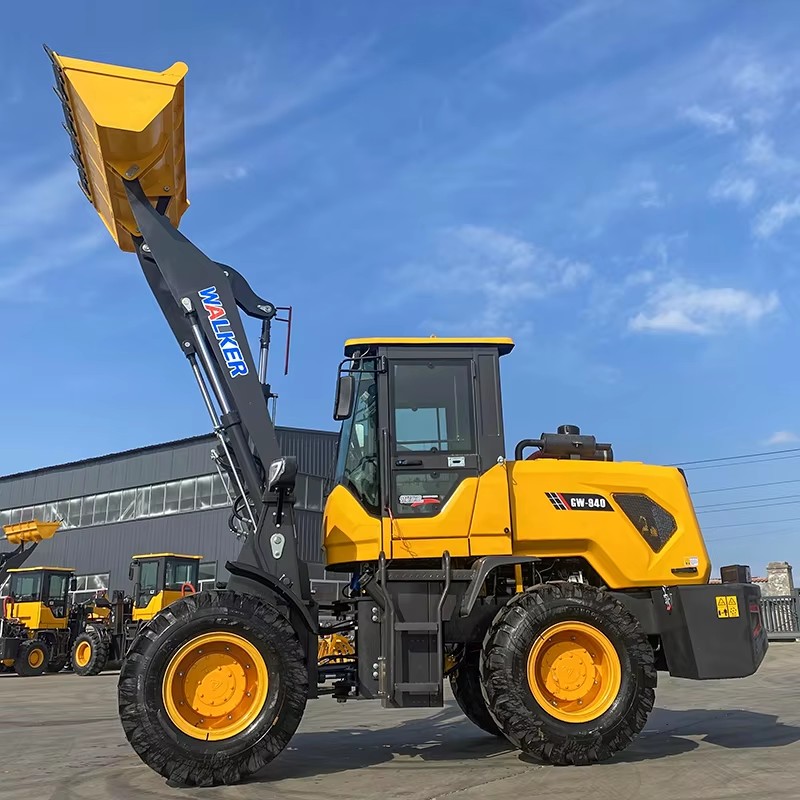

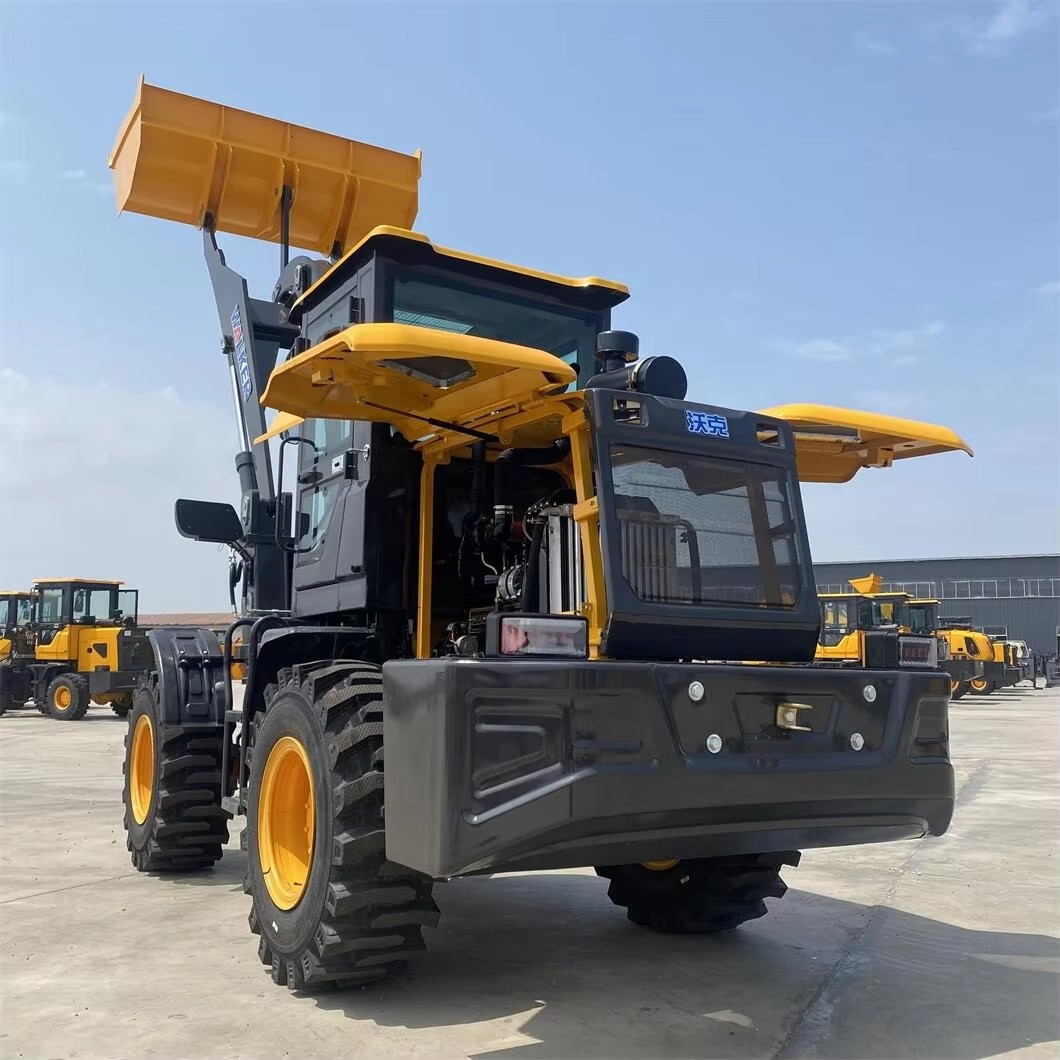

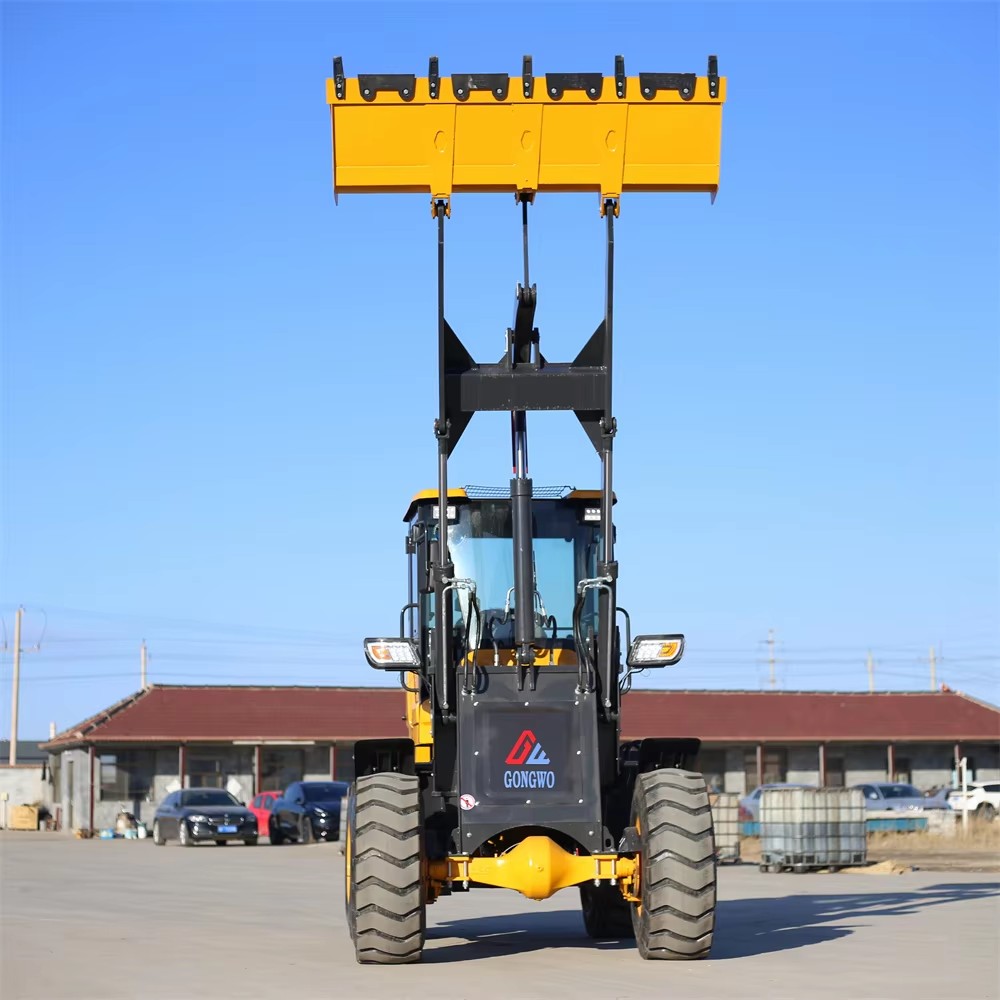

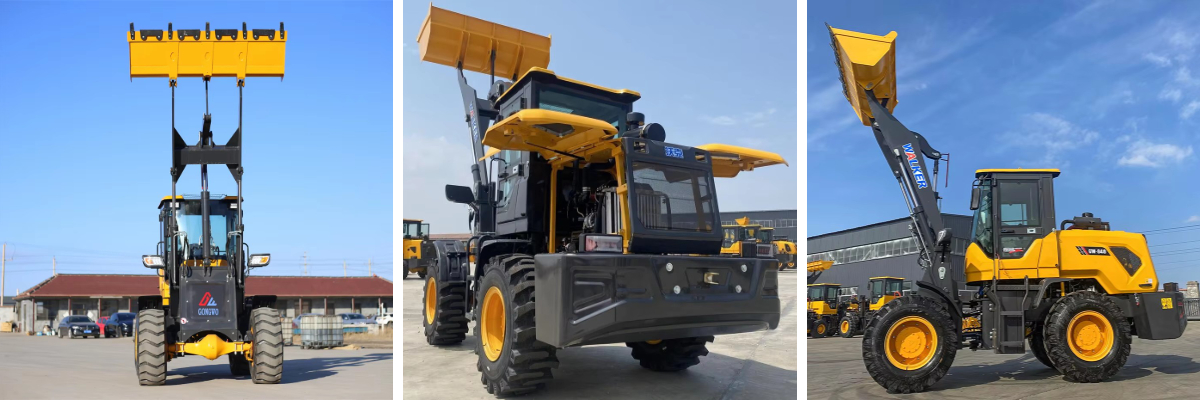

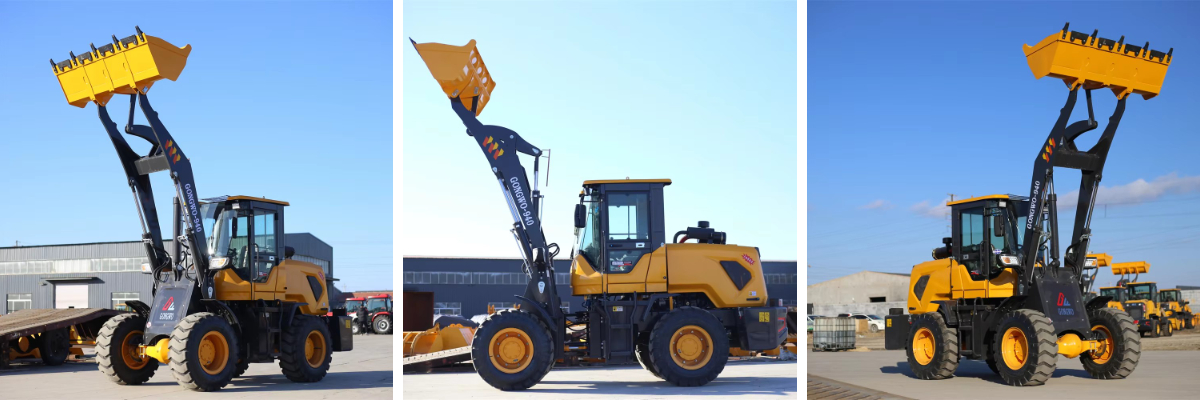

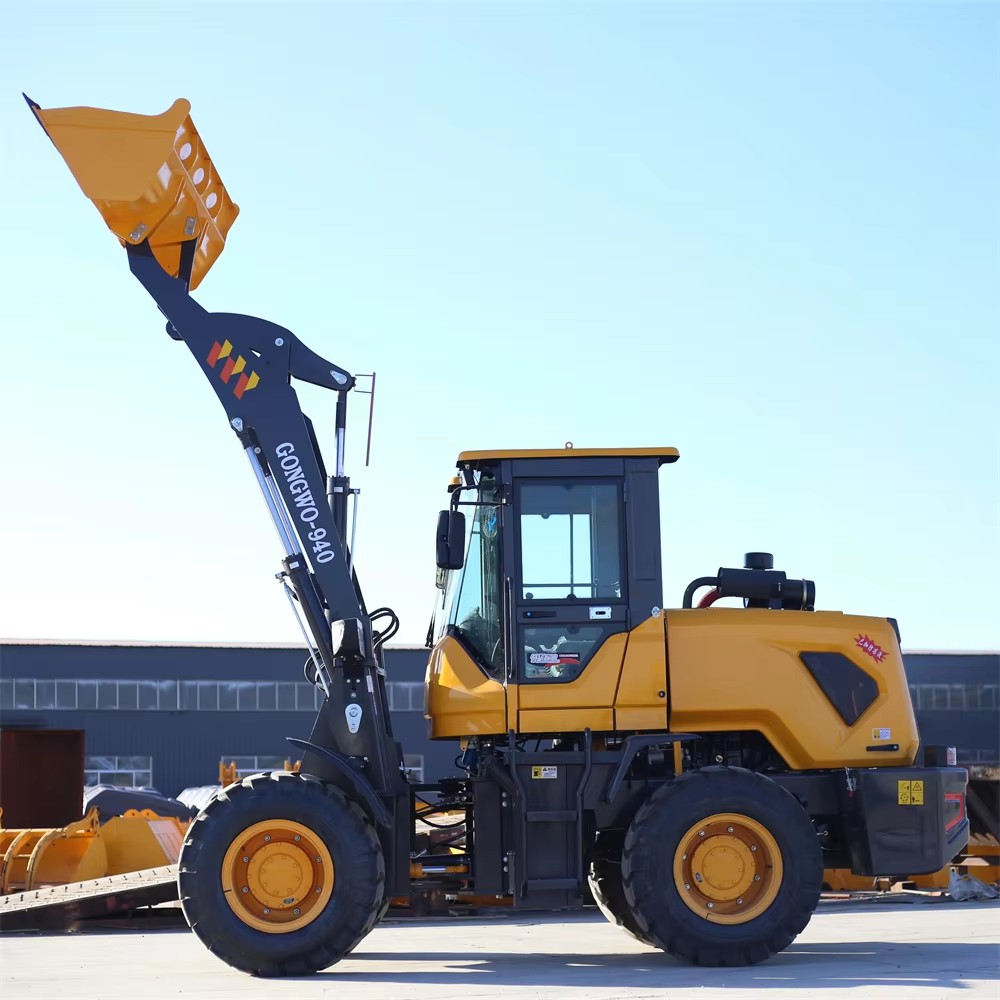

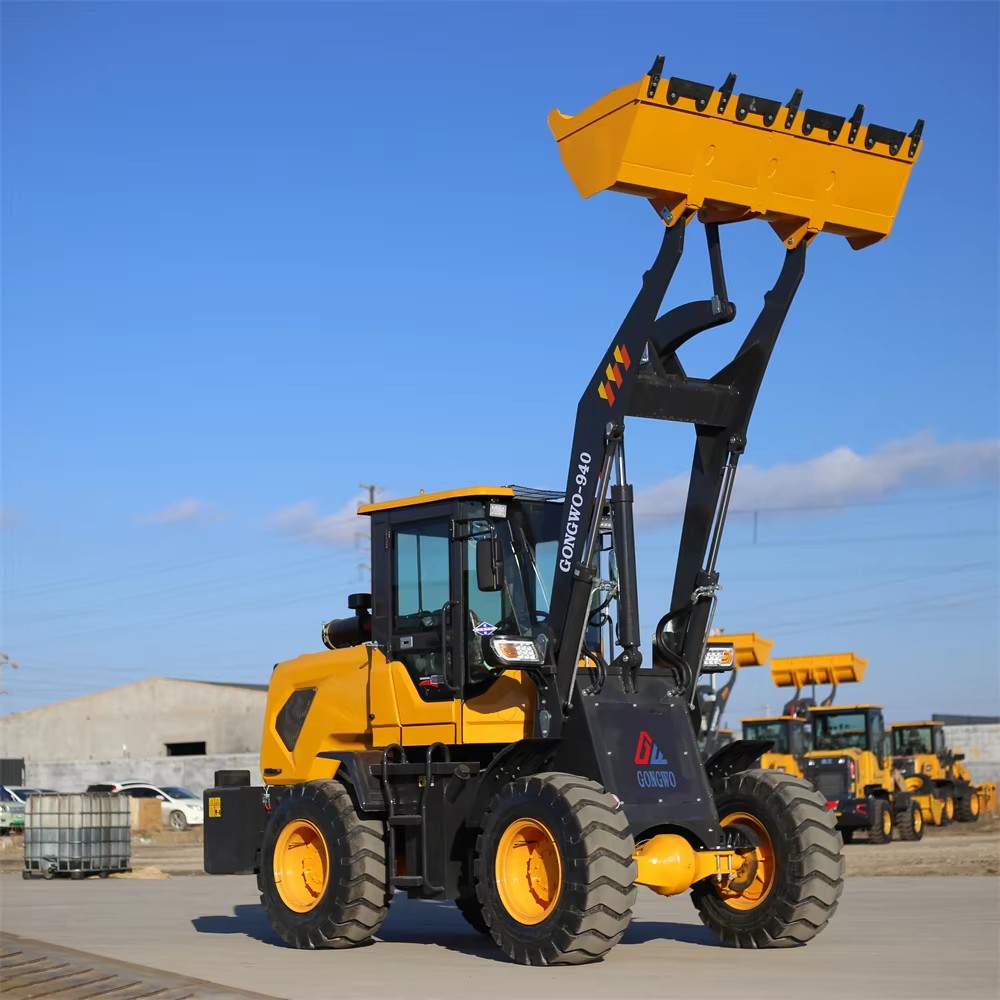

5.5 Tonne Wheel Loader
The 5.5-ton wheel loader boasts remarkable advantages. In terms of operational capacity, its 5.5-ton rated load allows for substantial material handling per operation. Combined with a long-wheelbase design, the machine maintains excellent stability, adapting to various complex working conditions.
In performance, it adopts a single-variable hydraulic system, saving an average of 8% in fuel consumption with a hydraulic cycle time of only 9.3 seconds, ensuring high efficiency and energy conservation. The power transmission is reliable, featuring end-face tooth-connected drive shafts to guarantee effective torque transfer.
For durability, it uses fully verified fixed-axis transmissions and heavy-duty drive axles, paired with hydraulic components from renowned brands, making the entire machine robust and long-lasting.

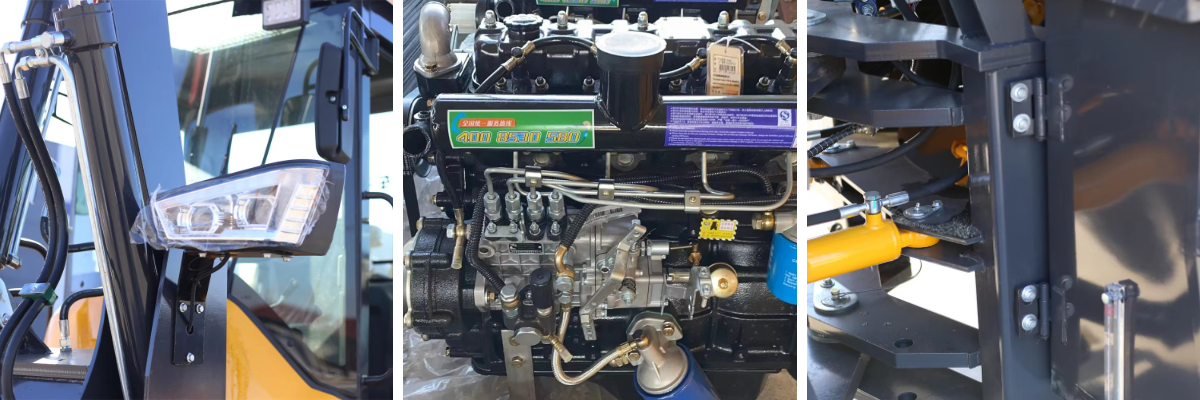

In lighting, it is equipped with LED front combination lights, which offer excellent illumination and a long service life, ensuring safe operation even in dimly lit environments. Whether for mining, material handling, or construction projects, it provides efficient support and serves as a reliable partner in your operations.
This 5.5-ton wheel loader, with its meticulously designed parameters and outstanding performance, serves as a capable assistant in various operating scenarios. It has a vehicle size of 5860×2000×2850mm, and its compact build allows it to maneuver flexibly even in narrow spaces while ensuring stability during operations.
In terms of weight, the operating weight of 5500kg provides a solid foundation for the entire machine, making it more stable and reliable during loading and operation processes. The rated load capacity reaches 2000kg, and when paired with a 1m³ bucket (2000mm wide), it can efficiently complete material loading and handling tasks, handling a considerable amount of materials in a single operation.
The unloading performance is excellent, with an unloading height of 3500mm, which can be increased to 4.2 meters, 4.5 meters, or 4.8 meters according to actual needs, meeting unloading requirements at different heights. The unloading distance is ≥1000mm, ensuring that materials can be accurately unloaded to the designated position and reducing material spillage.
It adopts a four-wheel drive mode combined with medium and large wheel-side deceleration, enabling it to have strong power and good passability under various complex road conditions. Whether it is a muddy site or a rough road, it can handle it with ease. The transmission case is equipped with a 265 torque converter and dual high and low speed continuously variable transmission, allowing for convenient and smooth operation. It can flexibly adjust the speed according to operational needs, improving work efficiency.
The engine is a 4102 Boost model, providing sufficient power output for the entire machine and ensuring stable operation even under high-intensity operations. The tire model is 1670-20, and the wide tires not only enhance grip but also effectively reduce the pressure on the ground, protecting the work site.
The 2500mm wheelbase design further improves the stability of the entire machine, making it less likely to roll over during turning and operation. The 1560mm track width and 330mm minimum ground clearance enable the loader to pass smoothly over uneven ground, adapting to a variety of complex working conditions.
Whether it is for mining, material handling at construction sites, or loading operations in agricultural production, this 5.5-ton wheel loader can provide users with efficient and reliable operational experience with its excellent performance.
Item | Specification |
Vehicle size | 5860×2000×2850mm |
Operating weight | 5500kg |
Unloading height | 3500mm (can be raised to 4.2 meters, 4.5 meters, 4.8 meters) |
Rated load capacity | 2000kg |
Tire model | 1670 - 20 |
Driving mode | Four-wheel drive, medium and large wheel-side deceleration |
Transmission case | 265 torque converter, dual high and low speed continuously variable transmission |
Bucket capacity | 1m³ (2000mm wide) |
Engine | 4102 Boost |
Unloading distance | ≥1000mm |
Wheelbase | 2500mm |
Track width | 1560mm |
Minimum ground clearance | 330mm |
