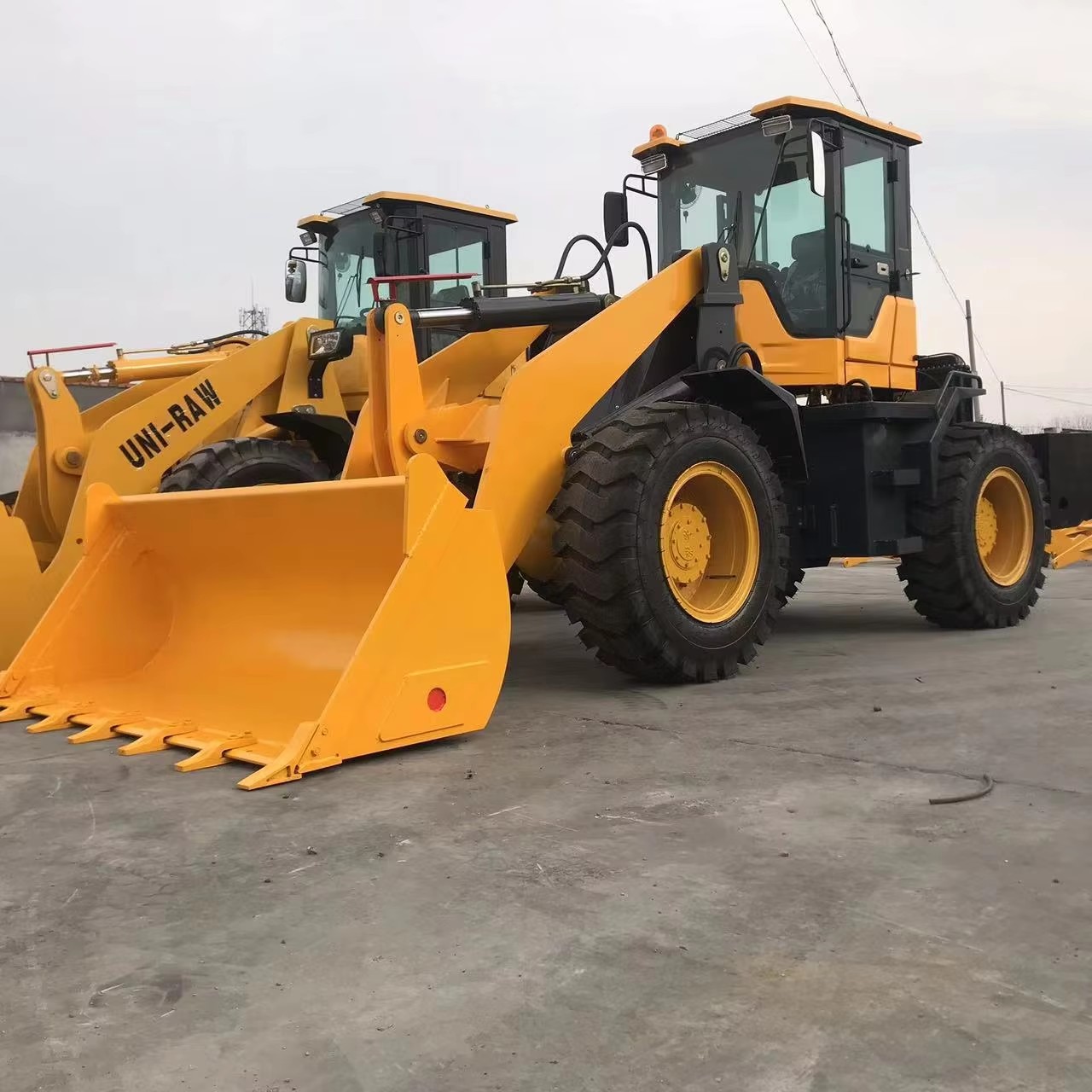

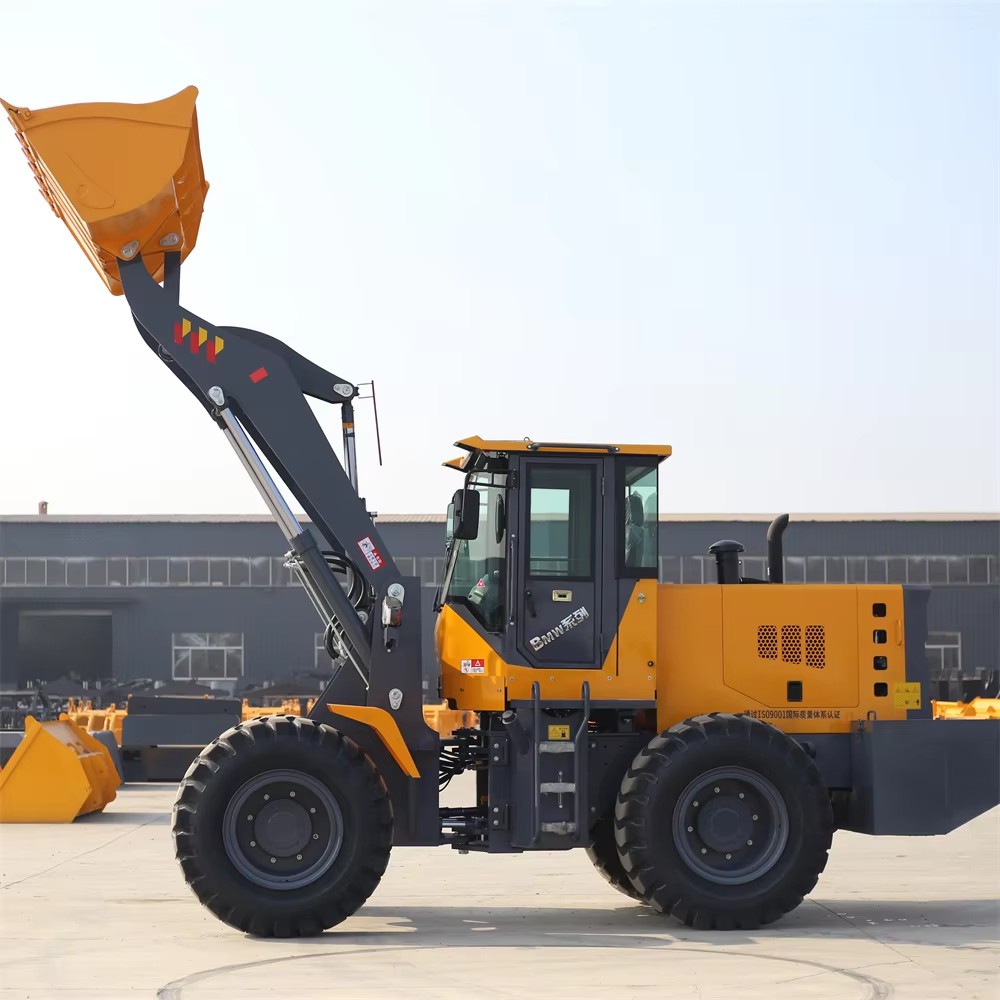

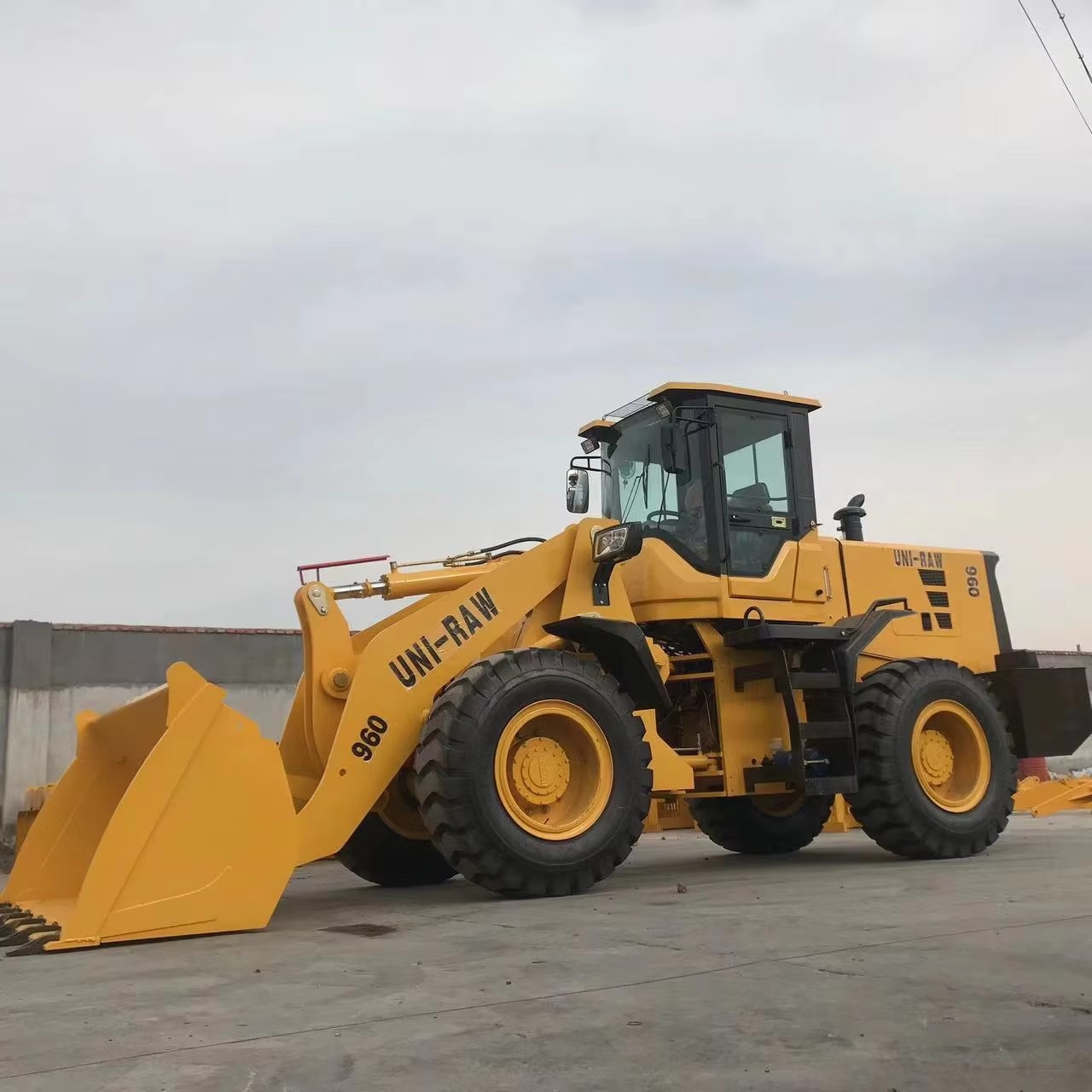

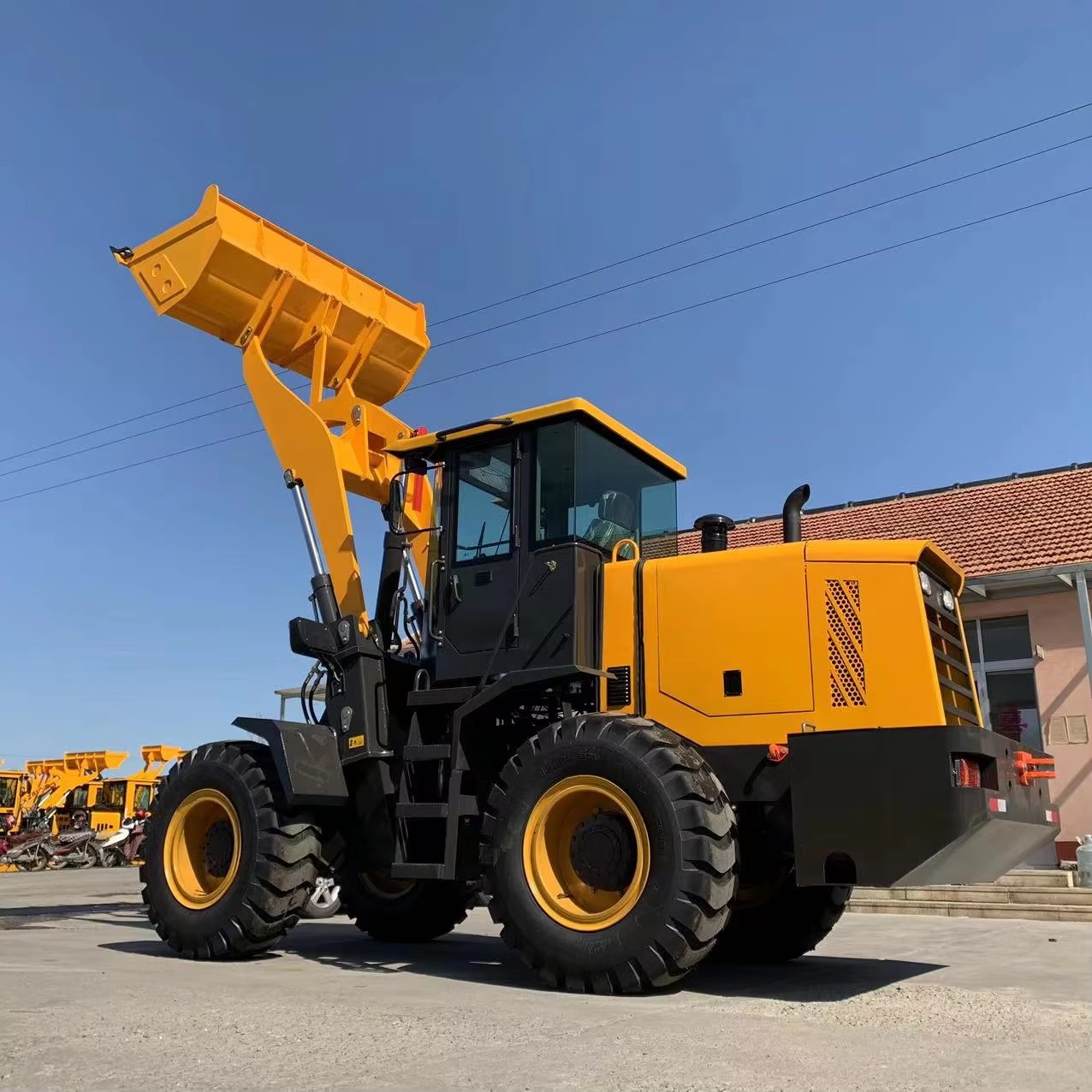

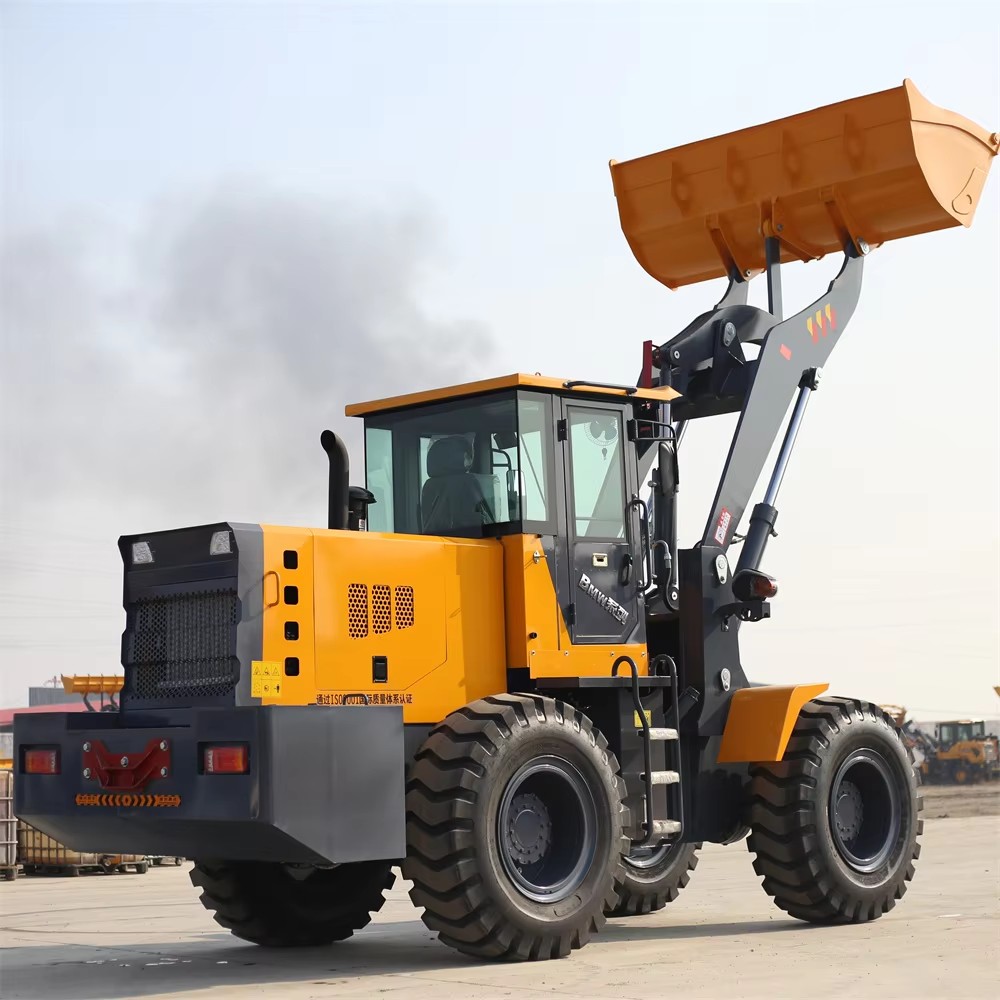

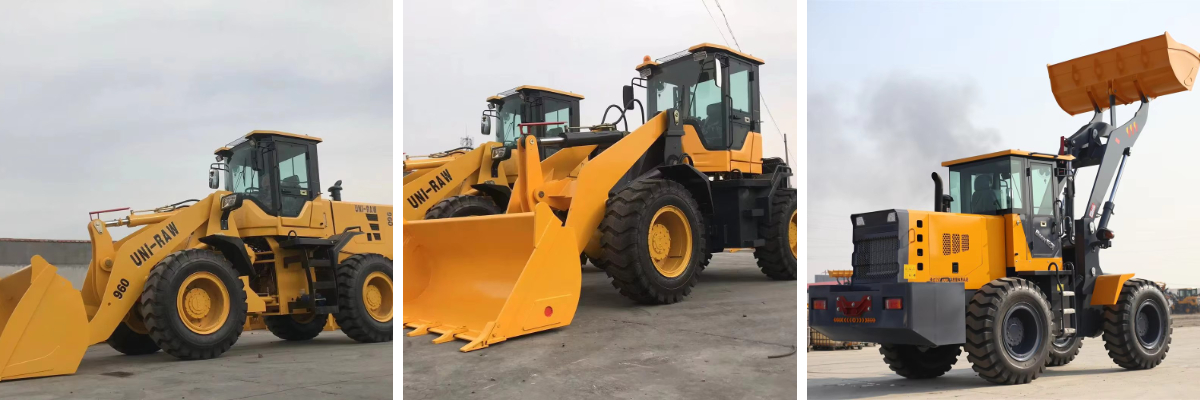

8.5-Ton Wheel-Type Loader

The GW-960, an outstanding 8.5-ton wheel loader, demonstrates exceptional capabilities in heavy-duty operation scenarios with its meticulously designed parameters and robust configurations. With a gross mass of 8500kg, it provides a solid and stable foundation for the entire machine, ensuring excellent balance and controllability even during heavy-loaded operations.

Equipped with a rated load capacity of 3000kg and a bucket capacity ranging from 1.4 to 2.0m³, the GW-960 can efficiently complete large-volume material loading and handling tasks. The 2.3m bucket width further increases the material processing volume per operation, easily handling ore transportation in mining operations and sand loading in infrastructure projects, significantly improving work efficiency.

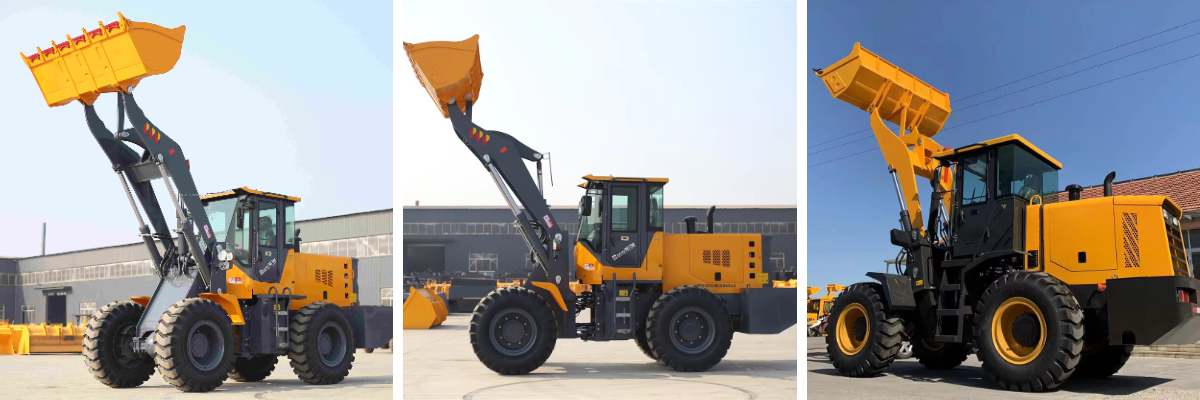

In terms of unloading performance, the GW-960 excels with a maximum dumping height of 5100mm and a maximum dumping distance of 1050mm. It can adapt to various large transport vehicles, effortlessly and accurately unloading materials to designated positions, reducing secondary handling and optimizing the workflow.

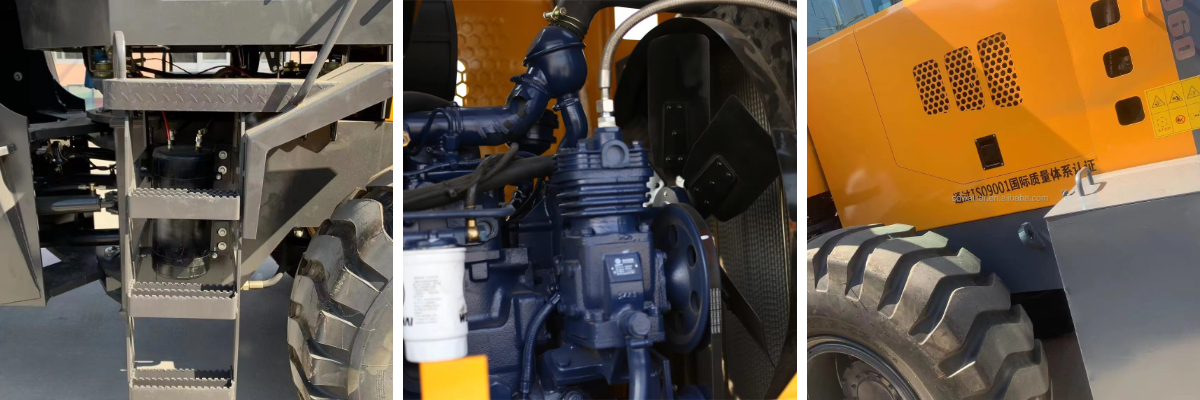

For power, the GW-960 is equipped with the WEICHAI DEUTZ WPBG125E2 engine, delivering an output power of 92kw/123hp and a rated speed of 2000rpm. This direct-injection, water-cooled, turbocharged diesel engine offers strong power and high fuel efficiency, ensuring continuous and stable output under various complex working conditions, even handling heavy loads and uphill climbs with ease.

The transmission system adopts hydraulic transmission, combined with a 4-forward and 4-reverse shift mode, enabling flexible and convenient operation. It can quickly adjust the speed according to different work requirements, ensuring the continuity and efficiency of operations. The drive system features torque converter hydraulic transmission, which effectively cushions impacts, protects the power system, and extends the equipment's service life.

The axle employs a planetary rigid axle (hub), boasting strong load-bearing capacity and high durability. It can adapt to rough and uneven terrains, providing reliable support for the entire machine. The hydraulic system is an open system with a refill capacity of 40L and a maximum hydraulic pressure of 16mpa/160bar. A gear pump is used as the working pump, ensuring rapid hydraulic response and precise and smooth movements such as bucket lifting and tilting.

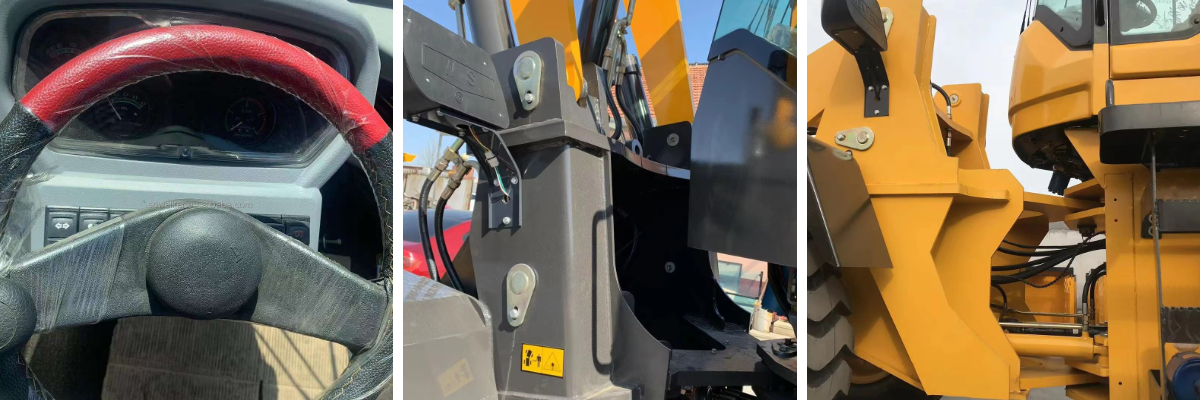

The operation control adopts a joystick, which is lightweight and flexible, effectively reducing the labor intensity of operators and improving operational accuracy. The steering system uses articulated frame steering, featuring a small turning radius and strong maneuverability, allowing flexible operation even in narrow spaces.

The braking system is safe and reliable. The service brake adopts hydraulic-air disc brakes, with brake calipers installed on both axles, ensuring strong and stable braking effect; the parking brake is a mechanical drum brake or disc brake, ensuring safety when the equipment is parked.

The tires are of the 17.5-25 (standard) model, with a tire pressure range of 0.25-0.35mpa. The wide tires not only have strong grip, adapting to complex roads such as muddy and gravel surfaces, but also effectively reduce the pressure on the ground, protecting the work site.

In terms of appearance, the color of the GW-960 can be customized, with the standard color being yellow, which is eye-catching and easy to identify at the work site. Its overall dimensions are 7100mm2300mm3180mm, with a reasonable structural design that ensures the space required for operations without being overly bulky to affect flexibility. With a maximum speed of 35km/h, it can quickly transfer between different work areas, saving time costs.

In terms of packaging, a 40HQ container can load 2 units, facilitating transportation and export and reducing logistics costs. Whether in large mines, construction sites, or port terminals and other heavy-duty operation scenarios, the GW-960 can rely on its strong performance, efficient operation capabilities, and reliable stability to become a trustworthy and capable assistant for users.
