300kg skid steer loader

In scenarios such as rural self-built housing, warehouse cargo handling, municipal pipeline maintenance, and small workshop cleaning, the 1-ton skid steer loader, with its core advantages of "compact size + versatile operation", has become an efficient alternative to manual labor and small-scale equipment. This equipment, with its precise parameter design and flexible adaptability, can not only turn flexibly in 1-meter-wide alleys but also complete diverse tasks such as light material loading/unloading and small-site leveling, providing a "one machine, multiple uses" solution for operations in small spaces.

Power System: Efficient and Stable, Adaptable to Multiple Scenarios

Power performance directly determines the operational efficiency of the equipment. The 1-ton skid steer loader is equipped with engines from two well-known brands: Kelei and Briggs & Stratton, with options of 10HP or 13.5HP versions. The 10HP model is suitable for light operations such as warehouse handling, while the 13.5HP version can handle slightly higher-intensity scenarios like material transportation on rural dirt roads. The rated rotational speed of 3000 rpm, combined with a single-cylinder natural aspiration design, ensures stable power output and excellent fuel efficiency. The 420cc displacement guarantees endurance during continuous operations, and the 5L fuel tank can support 4-5 hours of continuous work, reducing interruptions caused by frequent refueling.

Environmental compliance is also impressive: the entire machine meets Euro 5 and EPA emission standards, making it suitable for both domestic rural construction and overseas markets without worrying about policy restrictions. The air-cooled heat dissipation design is adapted to dusty construction environments, avoiding shutdowns caused by blocked heat dissipation in traditional water-cooled equipment and ensuring operational continuity.

Operational Efficiency: Precise Control, Efficient Construction in Small Spaces

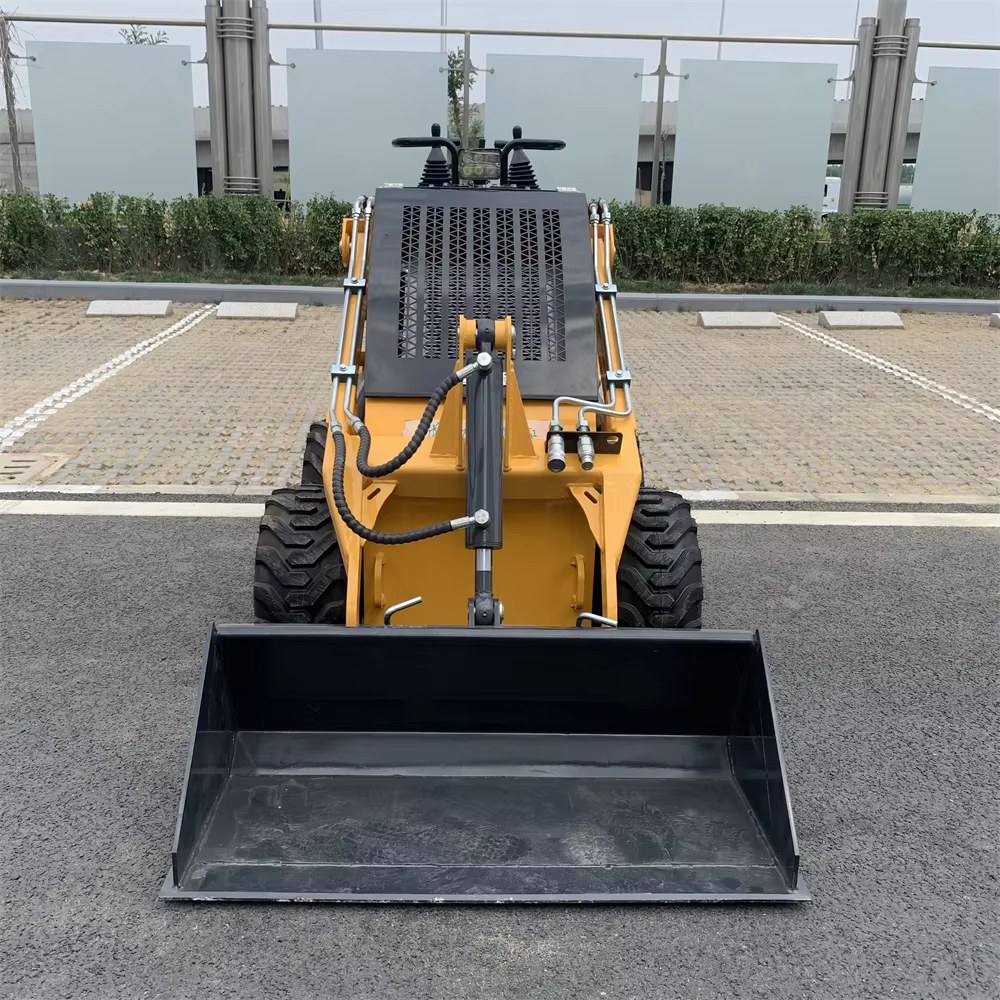

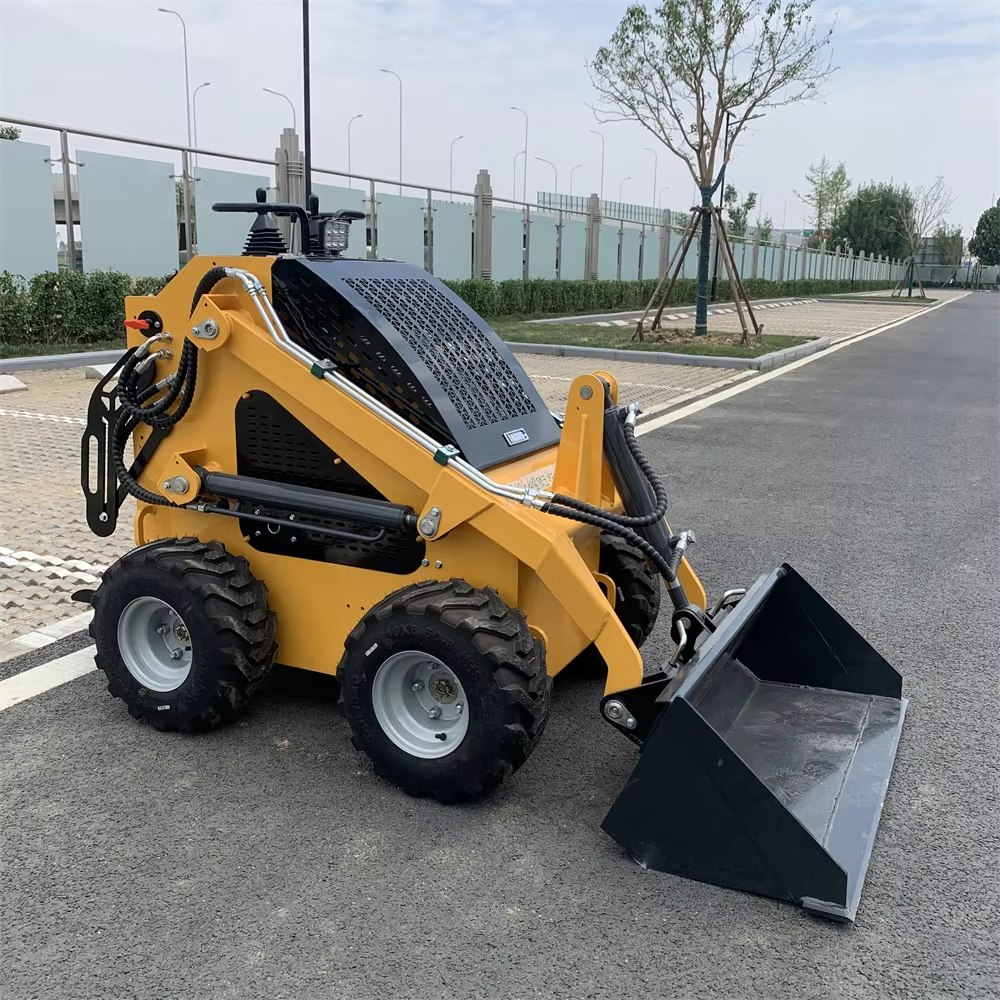

The 1-ton rated load and 0.12m³ bucket capacity accurately match the material handling needs of small-scale projects. A single load can carry approximately 200kg of sand, 150kg of bagged cement, or 50 standard bricks, meeting the batch operation requirements of scenarios such as rural courtyard wall construction and warehouse cargo organization. Compared to manual handling, efficiency is increased by 4-5 times. The maximum tipping load of 300kg and digging force of 3.5KN make the equipment more comfortable in light soil shoveling and gravel cleaning, without worrying about stability during heavy loads.

Loading and unloading efficiency is also noteworthy. The unloading height of 1510mm can directly connect to small truck compartments or 1.2-meter-high material piles, and the 450mm unloading distance ensures no residue during unloading. Combined with a maximum dumping angle of 34°, even cohesive soil can be poured smoothly. The bucket can rotate 27° on the ground and up to 114° at maximum height, enabling precise control of material placement whether cleaning close to walls or unloading at high places, reducing secondary handling.

Flexible Control: Smooth Navigation in Narrow Spaces

The core requirement for operations in small spaces is "accessibility and maneuverability", and the size design of the 1-ton skid steer loader perfectly meets this demand. With an overall width of only 1000mm, combined with a wheelbase of 850mm and axle distance of 280mm, it can easily pass through 1-meter-wide rural alleys, workshop passages, or construction fence gaps. The total length without attachments is 1450mm, and 2100mm with the standard bucket, allowing flexible turning in confined spaces such as warehouses and corridors with effortless in-place steering, avoiding the embarrassment of large equipment being "unable to enter or turn".

The coordination between movement and operation is also excellent. The travel speed of 0-6km/h can be flexibly adjusted according to scenarios: high-speed gear is used for empty vehicle transfer to improve efficiency, and low-speed gear is used when approaching material piles for precise positioning. The 15*72 tires, paired with a 720mm wheel track, have a large ground contact area and strong grip, ensuring stable driving on muddy dirt roads or cement ground. The 150mm tail clearance reduces 磕碰 from raised obstacles on the vehicle body.

Hydraulics and Control: Precise and Labor-Saving, Easy for Beginners

The hydraulic system is the "power transmission center" of the skid steer loader. The system pressure of 17-21bar ensures quick response of bucket lifting and rotation actions, while the working pressure of 9bar makes operation more effortless. The joystick allows precise control of the bucket's lifting and dumping angles, enabling even first-time operators to master basic operations within half an hour. The maximum operating height of 2450mm can meet material transfer at 2-story heights, and the maximum height of the bucket when flat (1810mm) is suitable for common scenarios such as truck loading/unloading and wall construction, without the need for additional auxiliary equipment.

Structural Durability: High-Quality, Adaptable to Complex Working Conditions

The durability of the equipment is directly related to long-term use costs. The 1-ton skid steer loader has an operating mass of 900kg, with key structural components made of high-strength steel. The bucket edge is inlaid with wear-resistant alloy, which is not easy to deform or curl when facing hard materials such as sand and bricks, with a service life 50% longer than ordinary steel. The 1870mm height of the cab guardrail meets safety standards, effectively blocking flying gravel and falling debris to protect the operator's safety.

The 15*72 tires are made of rubber with anti-aging components, which are not easy to crack under sunlight or low temperatures. Combined with a reinforced wheel hub design, tire pressure stability is strong, reducing the risk of tire blowouts on bumpy rural roads. The key connection parts of the vehicle body use sealed bearings with excellent dustproof and waterproof performance, reducing failure rates even when operating in muddy sites.

Multiple Adaptability and Maintenance Convenience

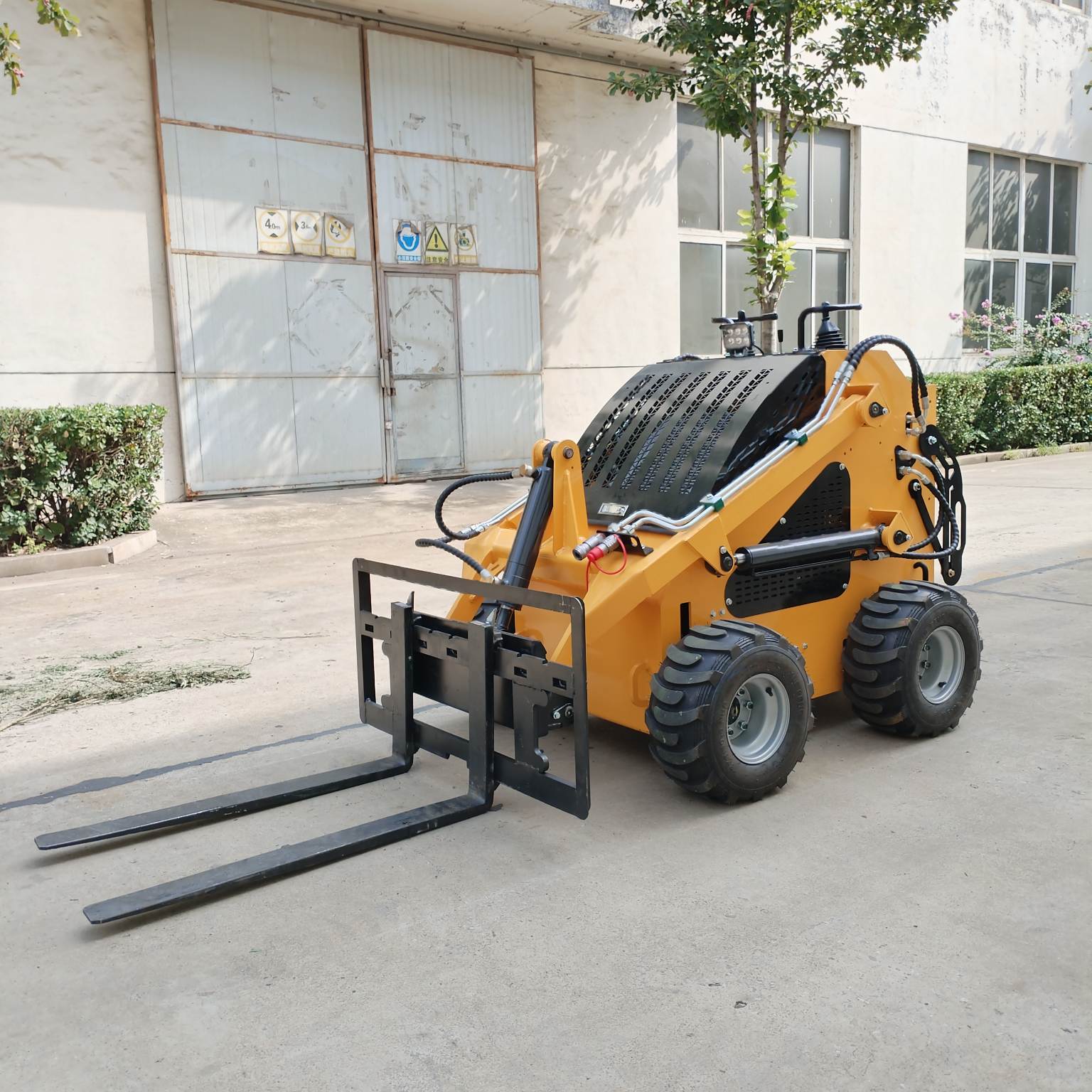

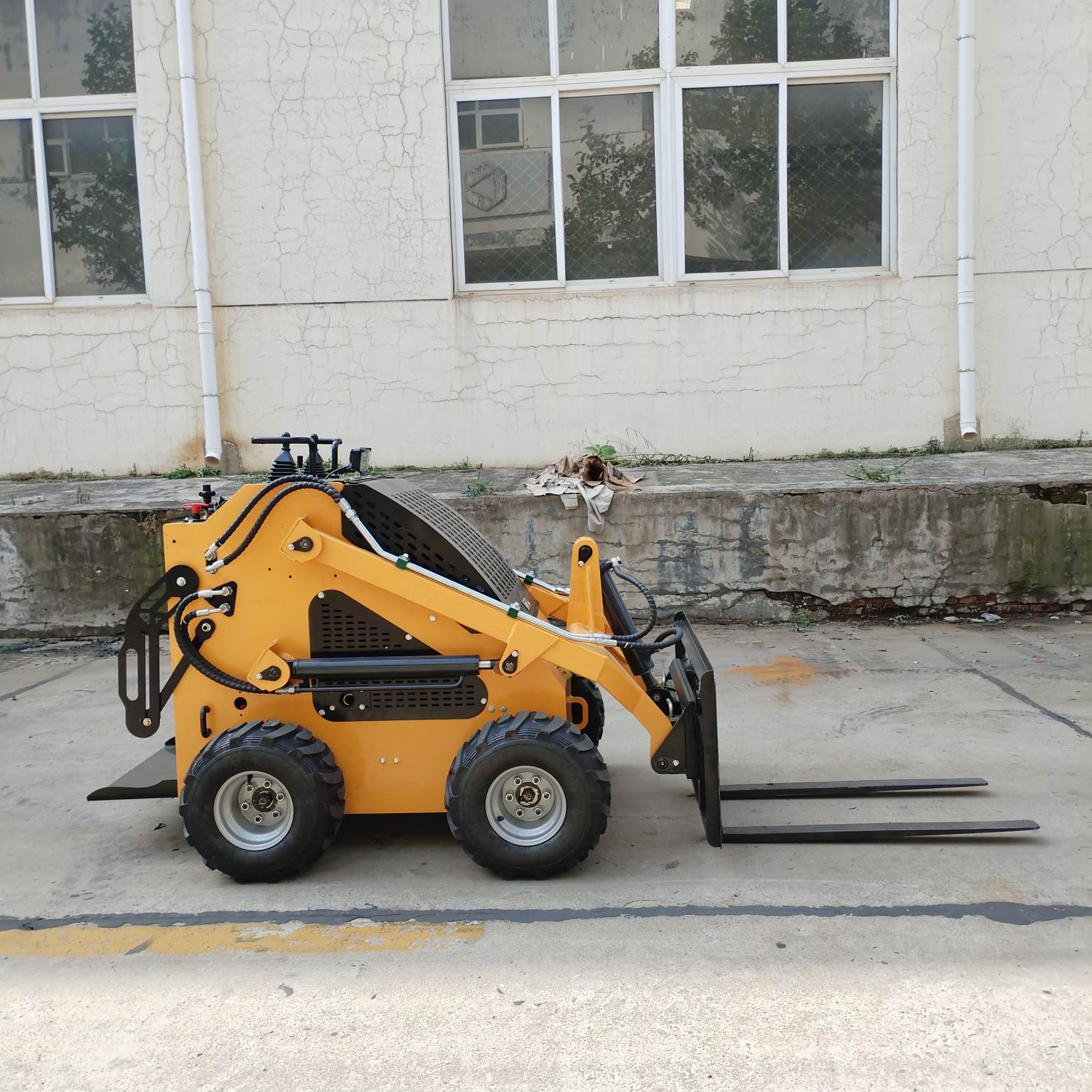

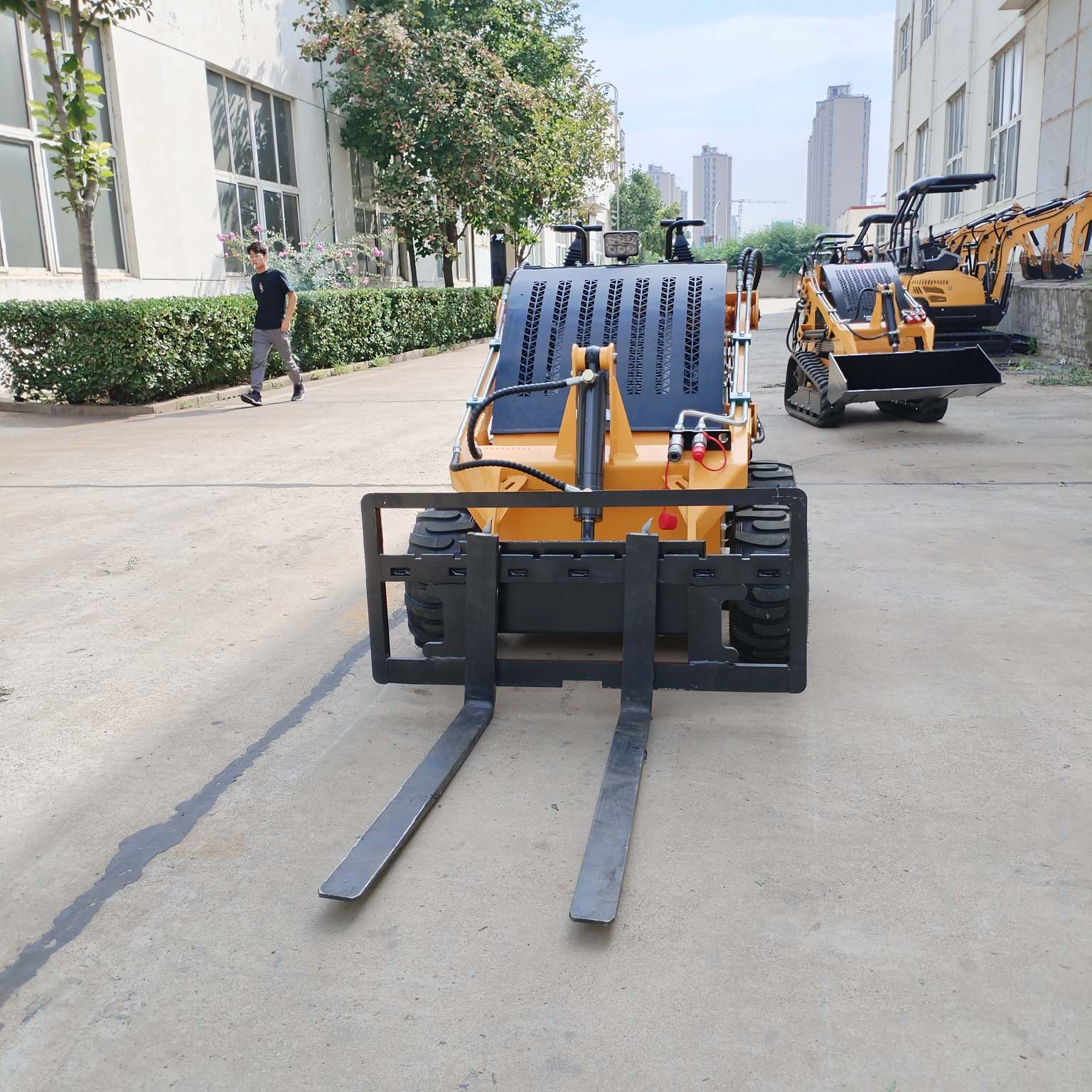

To adapt to different operational needs, the equipment supports quick replacement of attachments. In addition to the standard bucket, it can be equipped with log grapples (for wood handling), breakers (for light crushing), sweepers (for workshop cleaning), etc. The "one machine, multiple uses" feature significantly improves equipment utilization and reduces investment costs in multiple devices.

Daily maintenance design is also user-friendly: the engine inspection door opens at a 90° angle, fully exposing vulnerable parts such as filters and oil pipes for easy replacement; the hydraulic system oil filling port is at a moderate position, allowing filling without climbing; key bearings and hinge points have reserved oil injection ports, and regular lubrication can ensure flexible operation. Ordinary technicians can independently complete maintenance, saving nearly a thousand yuan in professional maintenance costs each year.

From flexible navigation in narrow alleys to adaptation to multiple operational scenarios, and low-cost long-term operation and maintenance, the 1-ton skid steer loader, with its "small but refined, multiple and excellent" performance, has become a core equipment for small-scale projects and operations in confined spaces. Whether improving construction efficiency, reducing labor costs, or adapting to complex sites, it can provide reliable support, enabling every small-scale operation to achieve the goal of "efficiency, safety, and economy".
