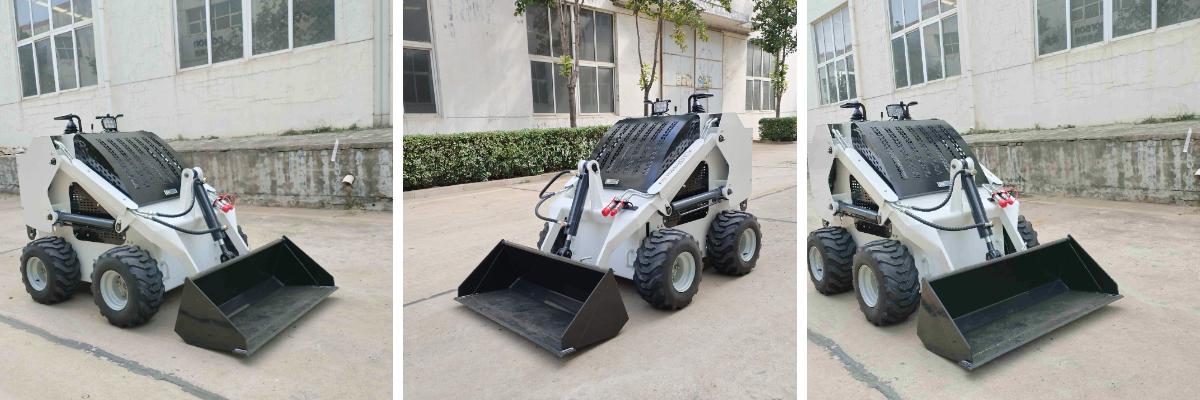

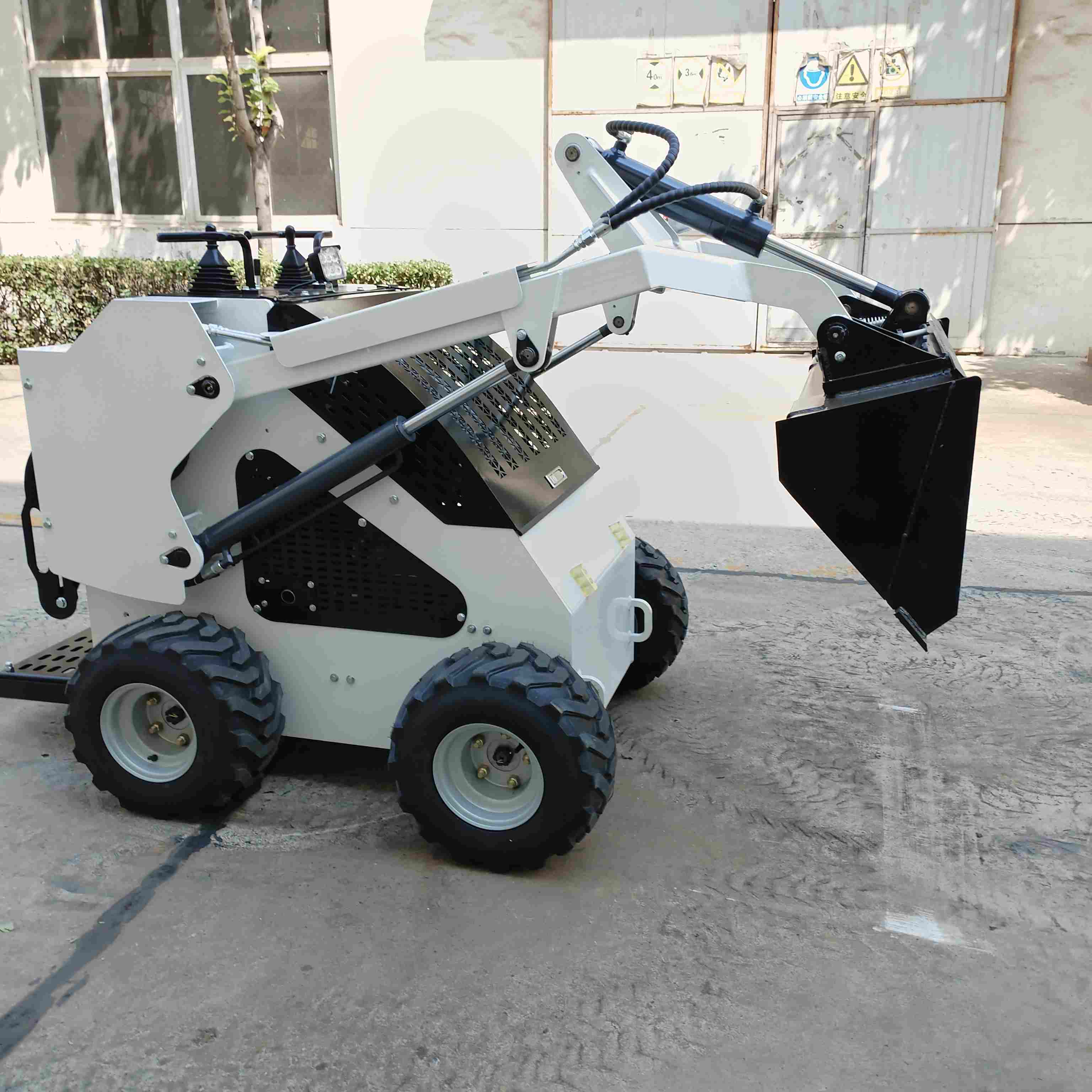

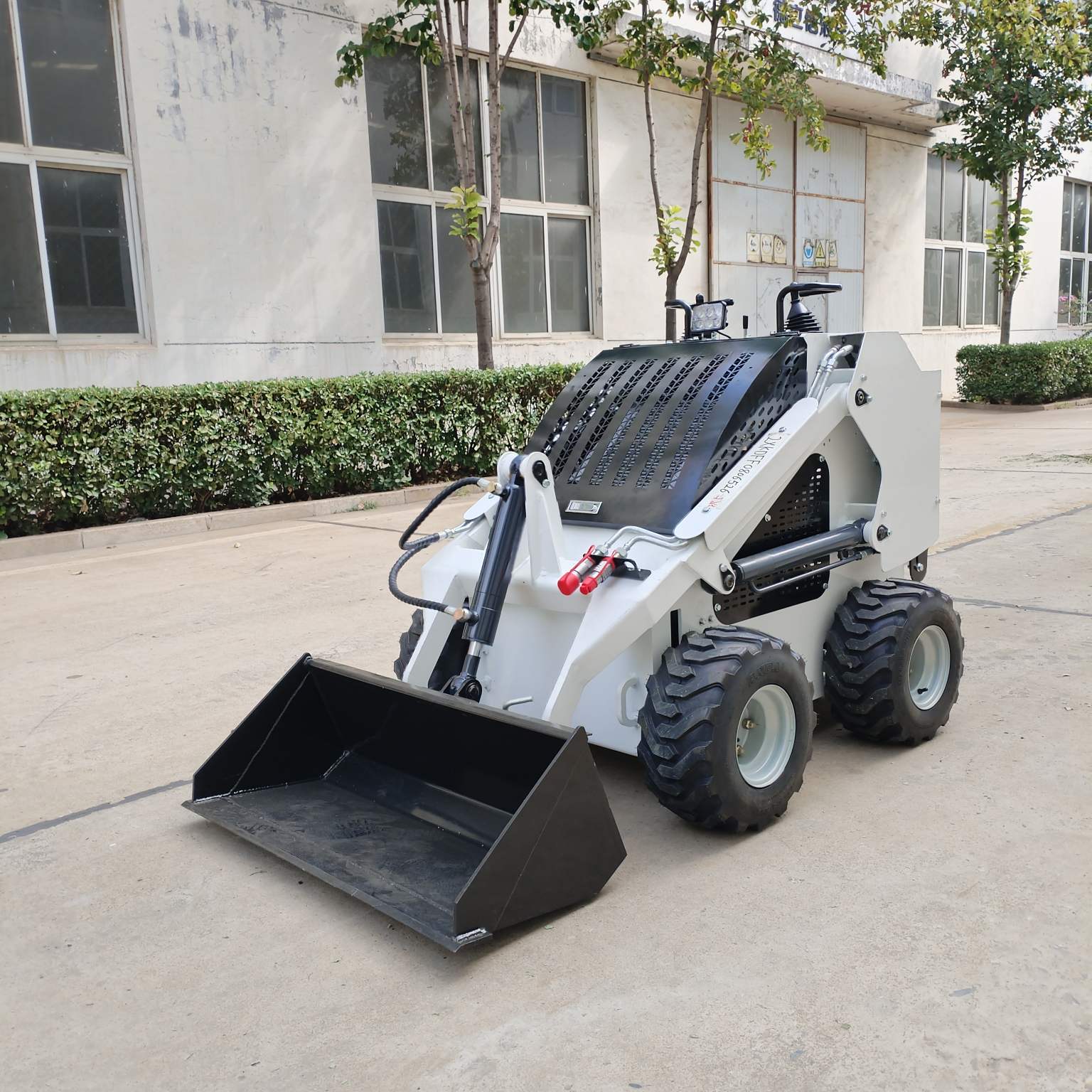

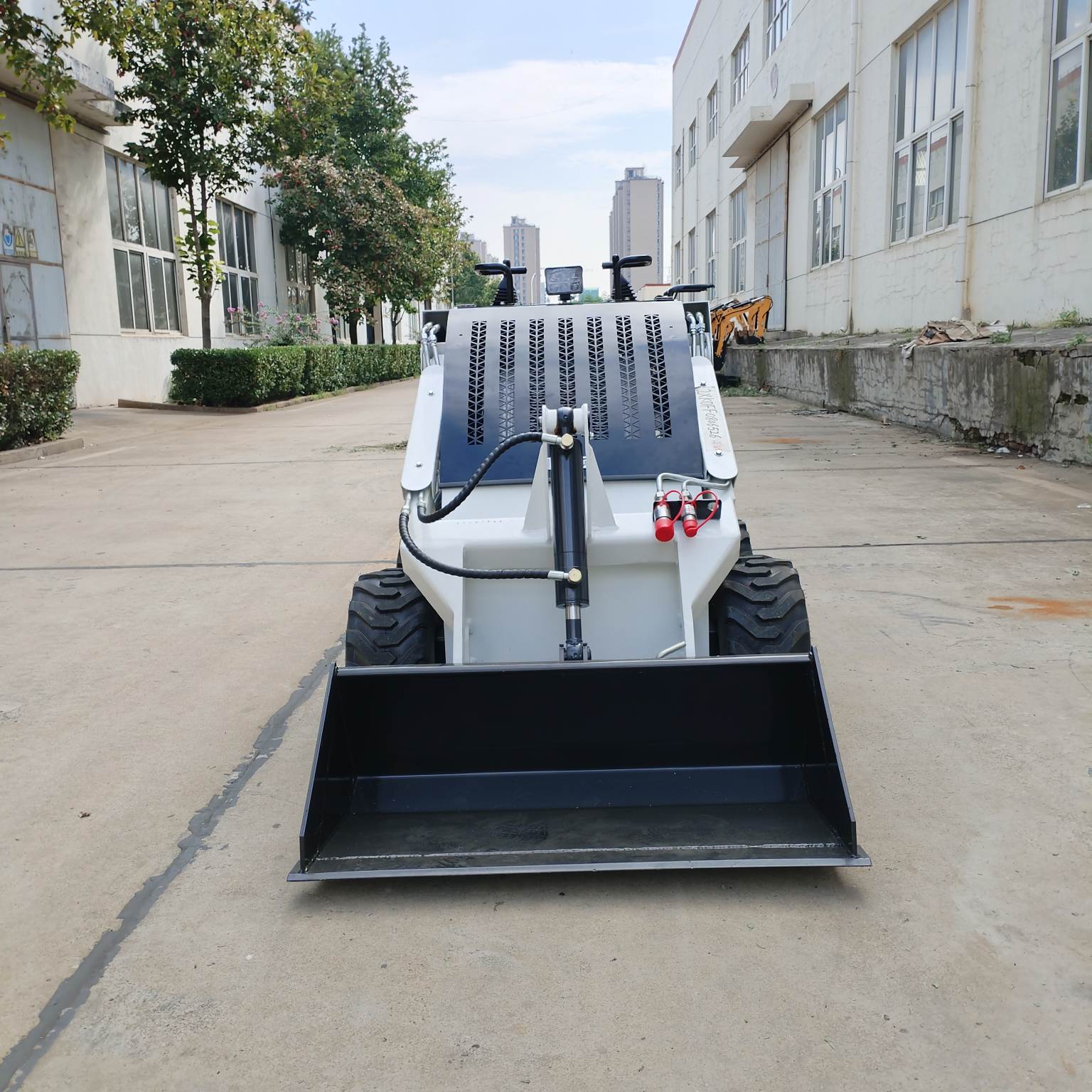

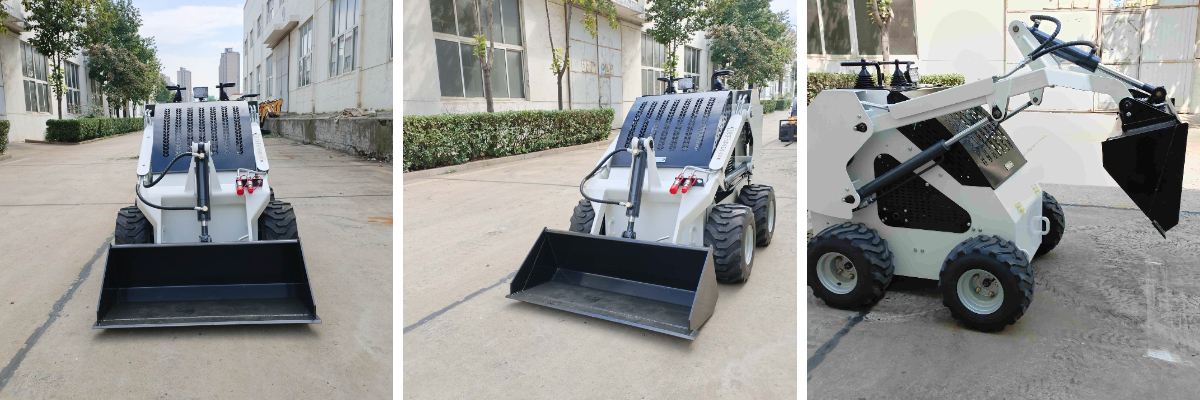

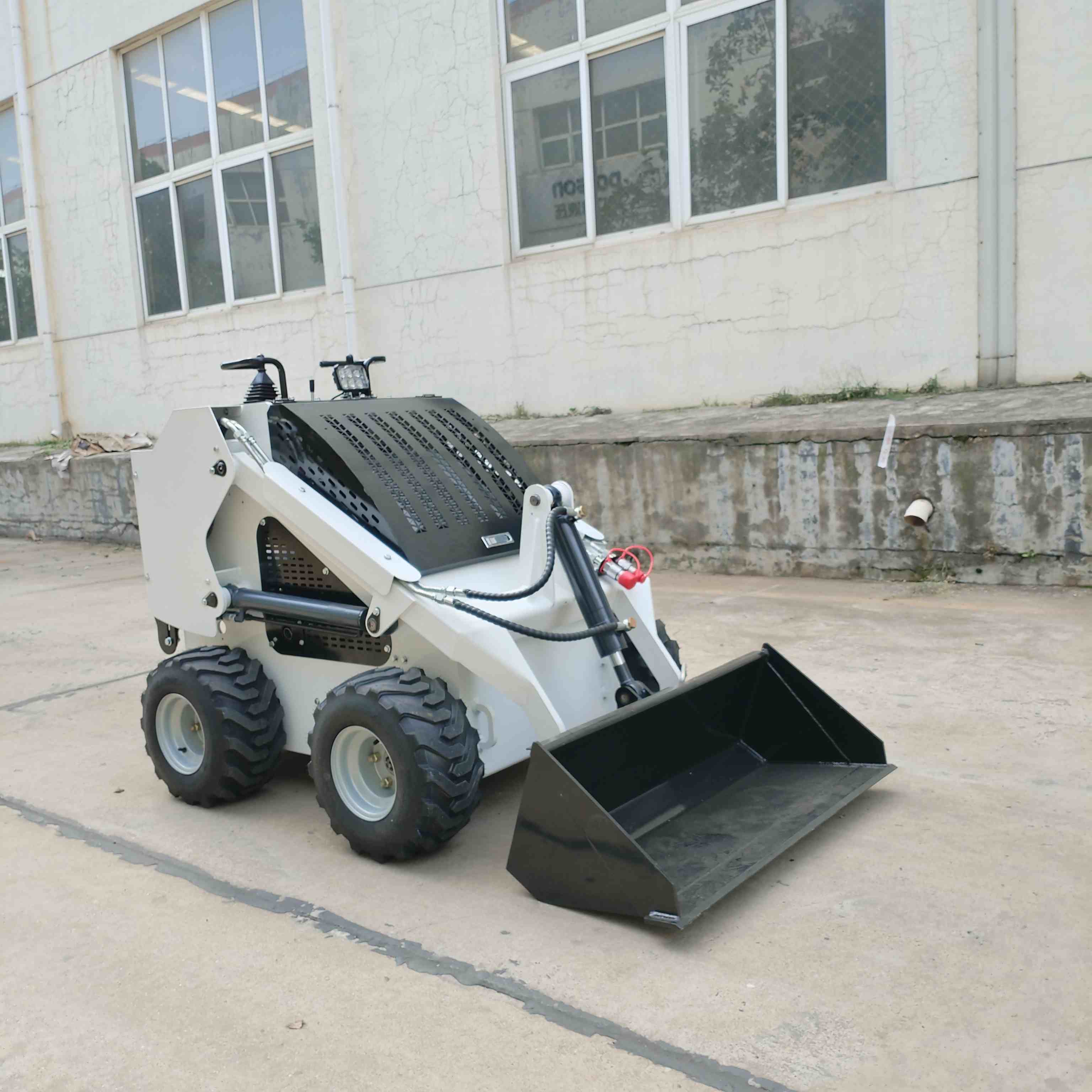

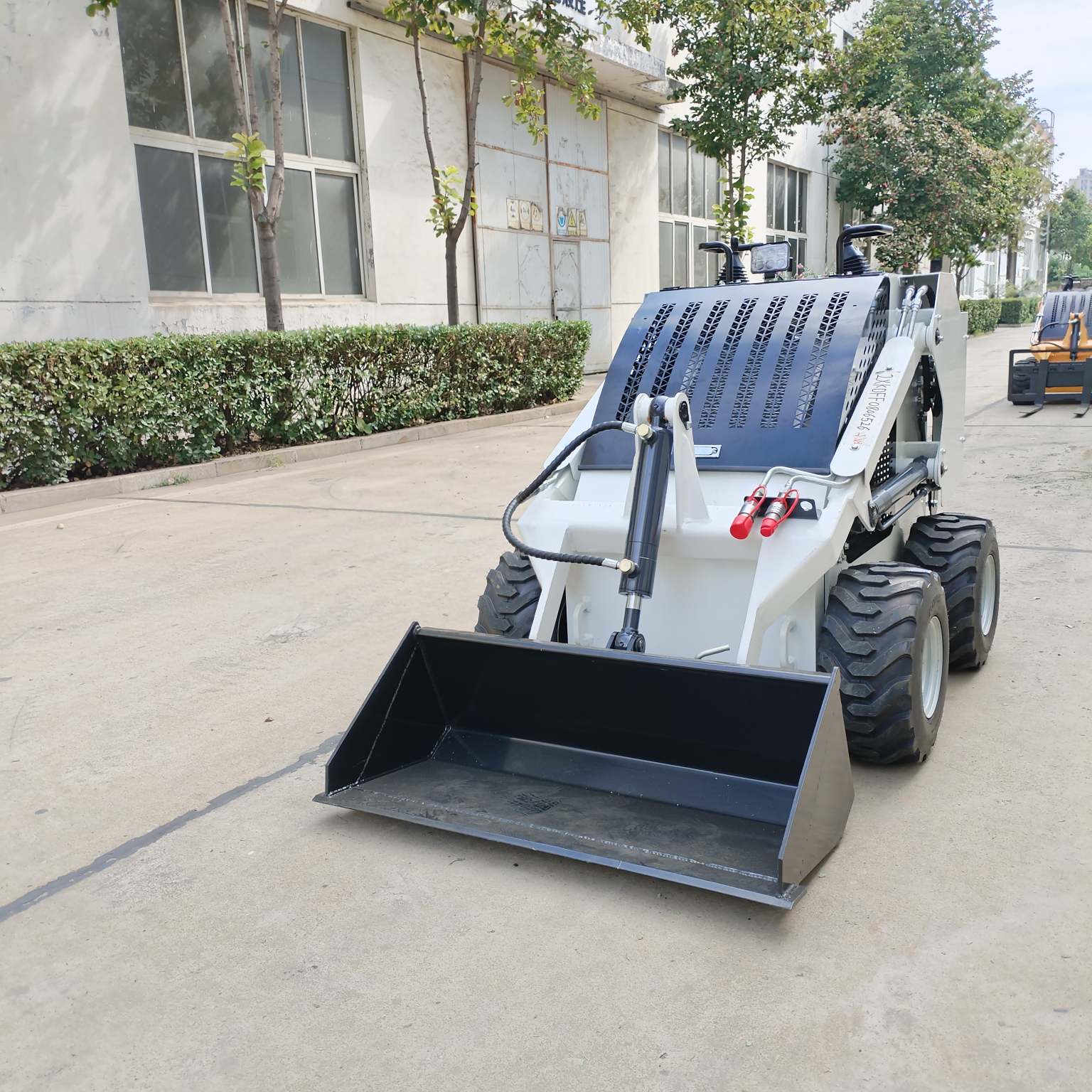

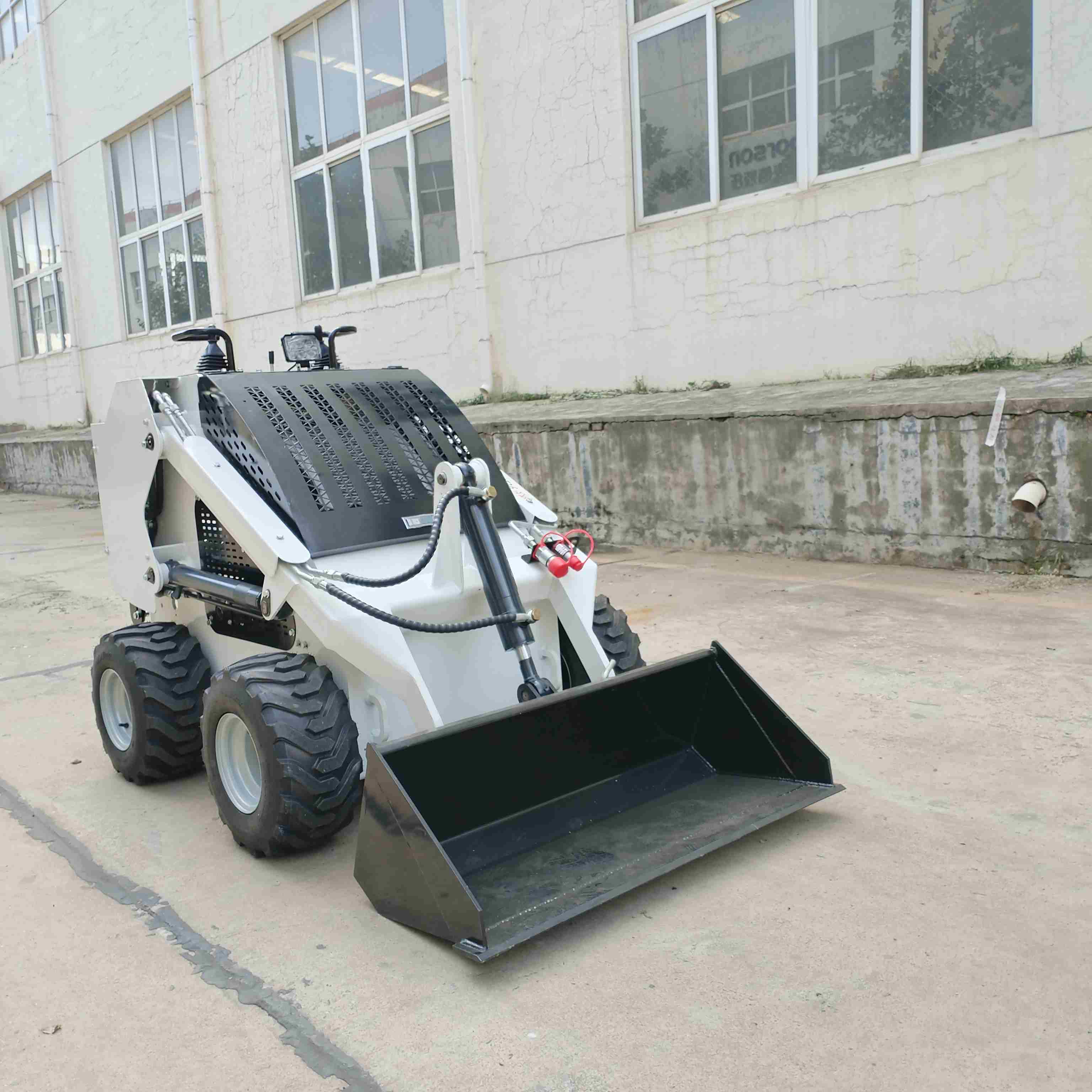

1.2-ton tracked skid steer loader
The 1.2 - ton skid - steer loader has a narrow - frame design for operation in tight spaces. It comes with various attachments that can be swiftly swapped for different construction scenarios, covering tasks like shoveling, stacking, lifting, etc. It's also useful for post - construction site clean - up.

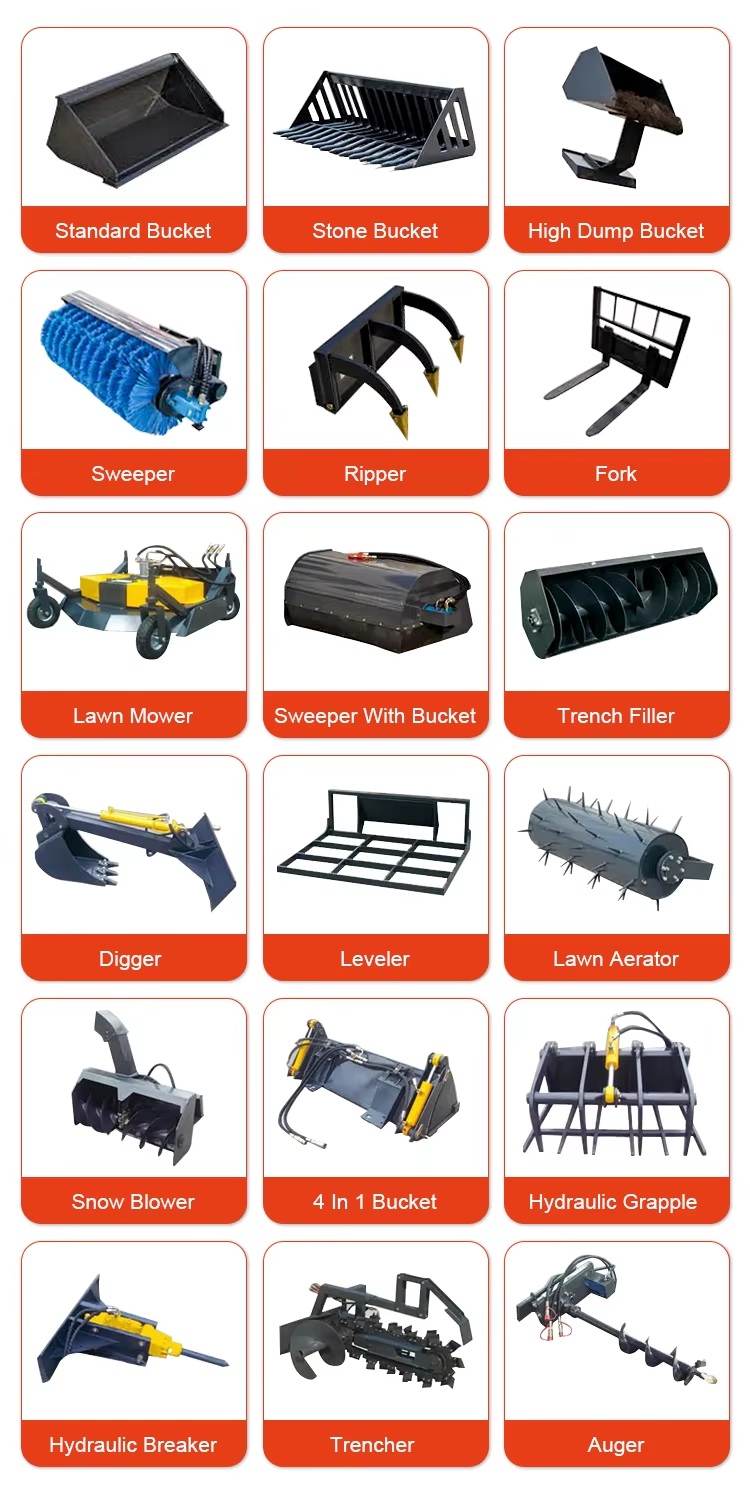

Attachments: excavator, auger, trencher, sweeper, backhoe, high - dump bucket, tiller, mower, hydraulic grapple fork, 4 - in - 1 bucket, snow blower, grader, angle blade, mixer, hydraulic breaker, trench filler, lawn aerator, sweeper with bucket, stone bucket, trailer, standard bucket, ripper, stump grinder, wood chipper, multi - function tool.
Product Details of 1.2-ton Skid-Steer Loader

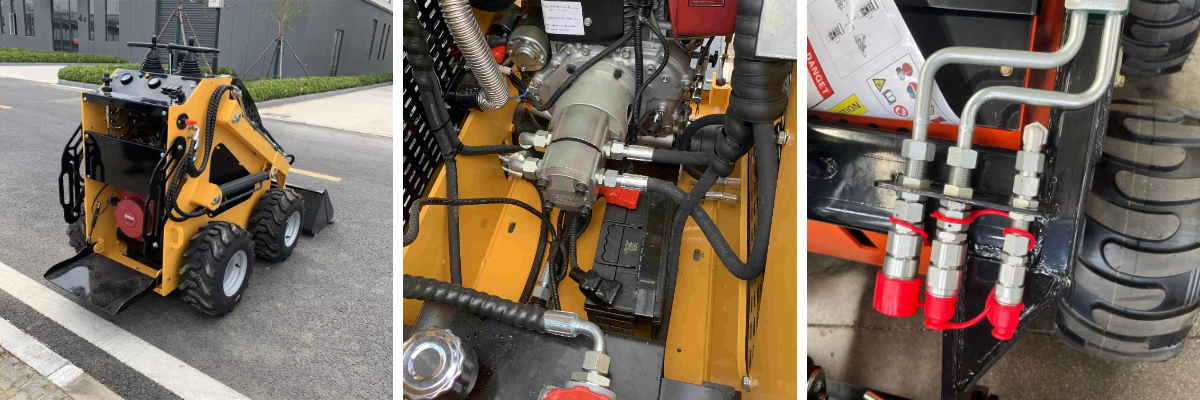

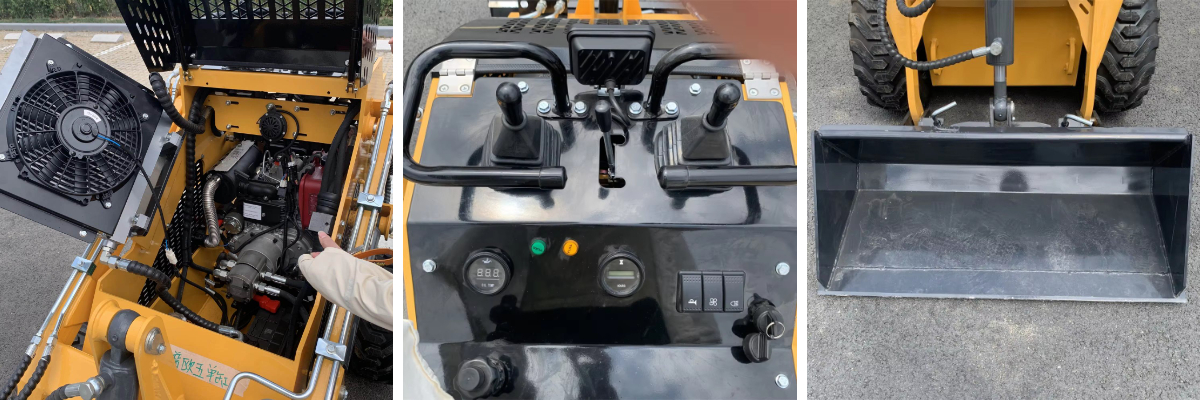

I. Overview With a narrow-frame design, it operates flexibly in tight spaces. Equipped with quick-change attachments, it handles shoveling, stacking, lifting, digging, drilling, etc., and works for post-construction cleaning and project closure. II. Advantages - Easy operation: Ergonomic dual levers for precise control and in-place turning, reducing labor intensity. - Strong power: Options include Briggs & Stratton, RATO, LONCIN (gasoline) and Kubota, Kholer engines, with efficient power output via quick connectors. III. Main Performance Parameters Engine: Kipor/Baileyton, 10/13.5 HP, 3000 rpm, 1 cylinder, natural intake, 420 cc, Euro 5 - EPA. Rated load: 200 kg; max load: 300 kg; breakout force: 3.5 KN; bucket volume: 0.12 m³. Travel speed: 0-6 km/h; 3-operation cycle: 9 s; working pressure: 17-21 bar; fuel tank: 5 L; operating mass: 900 kg; tire: 15”72. IV. Dimensions Max operating height: 2450; bucket pin height: 1870; overall height: 1280. Max bucket lifting height: 1810; length (without attachments): 1450; length (with standard bucket): 2100. Max height dumping angle: 34°; dumping height: 1510; dumping distance: 450. Bucket tipping angle (ground): 27°; (max height): 114°. Wheelbase: 850; ground clearance: 150; tail length: 280. Track (std tire): 720; vehicle width (std tire): 1000; bucket width: 1000. Ideal for narrow-site tasks and post-project cleaning, this loader, with flexible operation, strong power and rich functions, boosts construction efficiency as a reliable partner.
Project Name | Parameter |
Engine Brand | KOOP/Briggs & Stratton |
Rated Power (KW) | 14 - 17KW |
Rated Speed (rpm) | 3600 |
Number of Cylinders | 2 |
Intake Mode | Natural |
Displacement (cc) | 639 |
Emission Standard | Euro 5 |
Rated Load (Kg) | 300 |
Maximum Load (Kg) | 400 |
Maximum Lifting Force (KN) | 4.50 |
Bucket Capacity (m³) | 0.12 |
Travel Speed (km/h) | 0 - 6 |
Working Radius | 9 |
Working System Pressure (bar) | 17 - 21 |
Fuel Tank Capacity (L) | 10 |
Operating Mass (Kg) | 1200 |
Tire Model | 18×72 |
Maximum Operating Height | 2450 |
Height to Bucket Pin | 1870 |
Overall Vehicle Height | 1280 |
Overall Bucket Width | 1810 |
Overall Length without Bucket | 1680 |
Overall Length with Standard Bucket | 2206 |
Maximum Height Dumping Angle | 34° |
Dumping Height | 1510 |
Dumping Distance | 450 |
Bucket Tipping Angle on Ground | 27° |
Bucket Tipping Angle at Maximum Height | 114° |
Axle Distance | 850 |
Ground Clearance | 150 |
Tail Length | 280 |
Track Width (Standard Tire) | 720 |
Vehicle Width (Standard Tire) | 1100 |
Bucket Width | 1000 |
Product Details
Company Overview
Shandong Gongwo Machinery Co., Ltd., founded in 2012, is a manufacturer specializing in small and medium-sized engineering machinery: small wheel loaders, micro crawler excavators, electric/diesel tricycles, and 2WD/4WD forklifts.
Covering 100+ mu with over 100 staff, it achieves annual sales of 20,000+ units, exported to Europe, America, Southeast Asia, Africa, Russia, etc. For a decade, it has served global customers to meet their needs.
