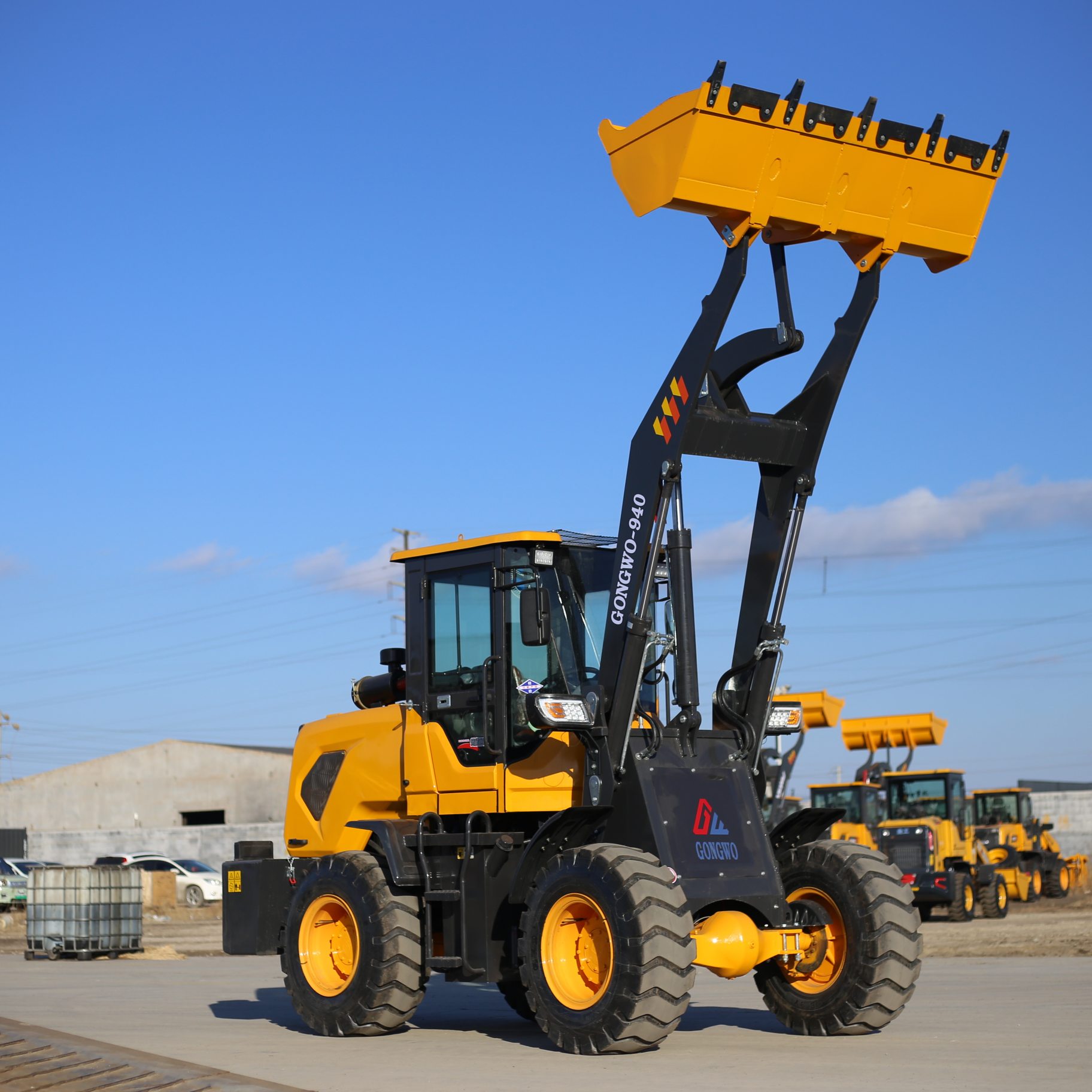

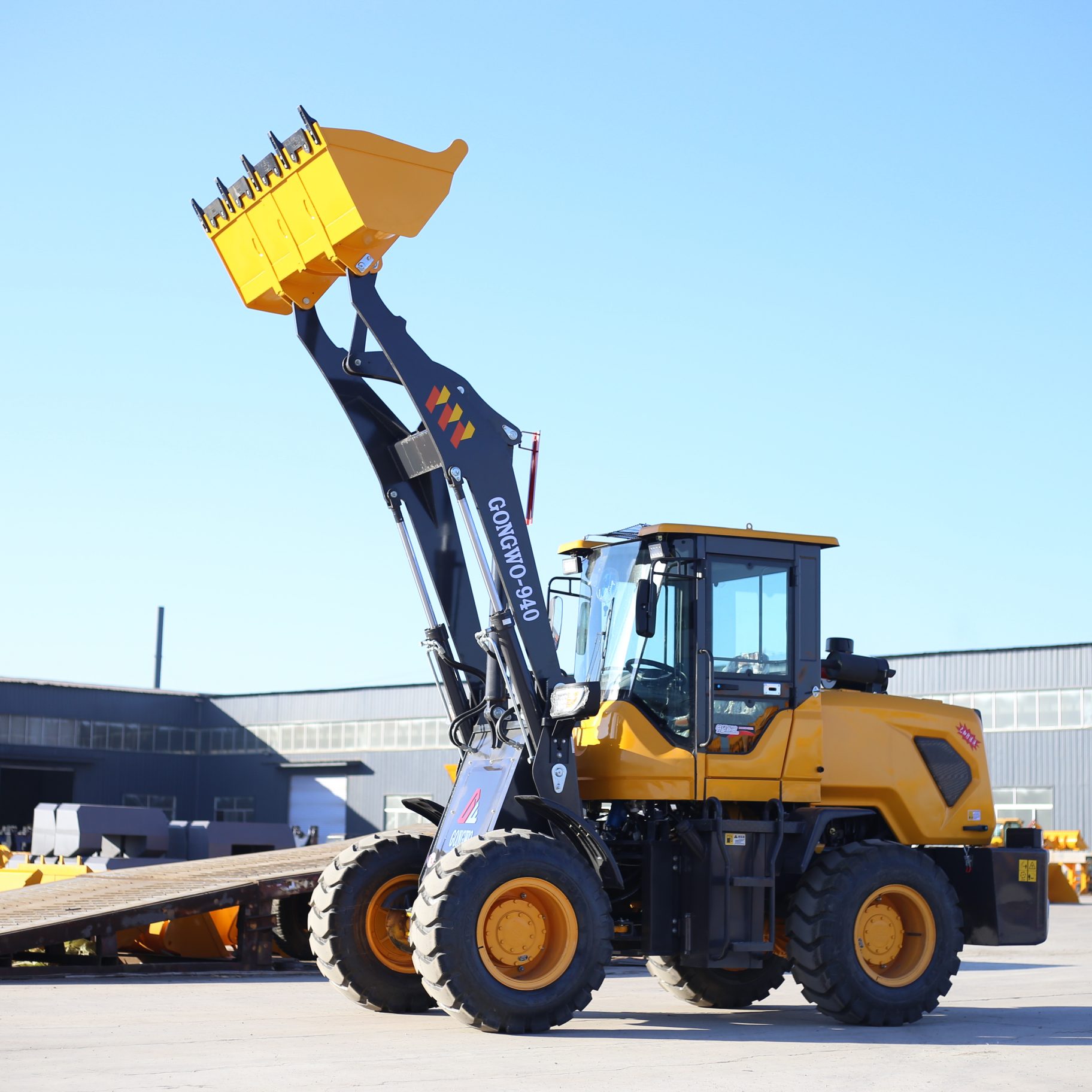

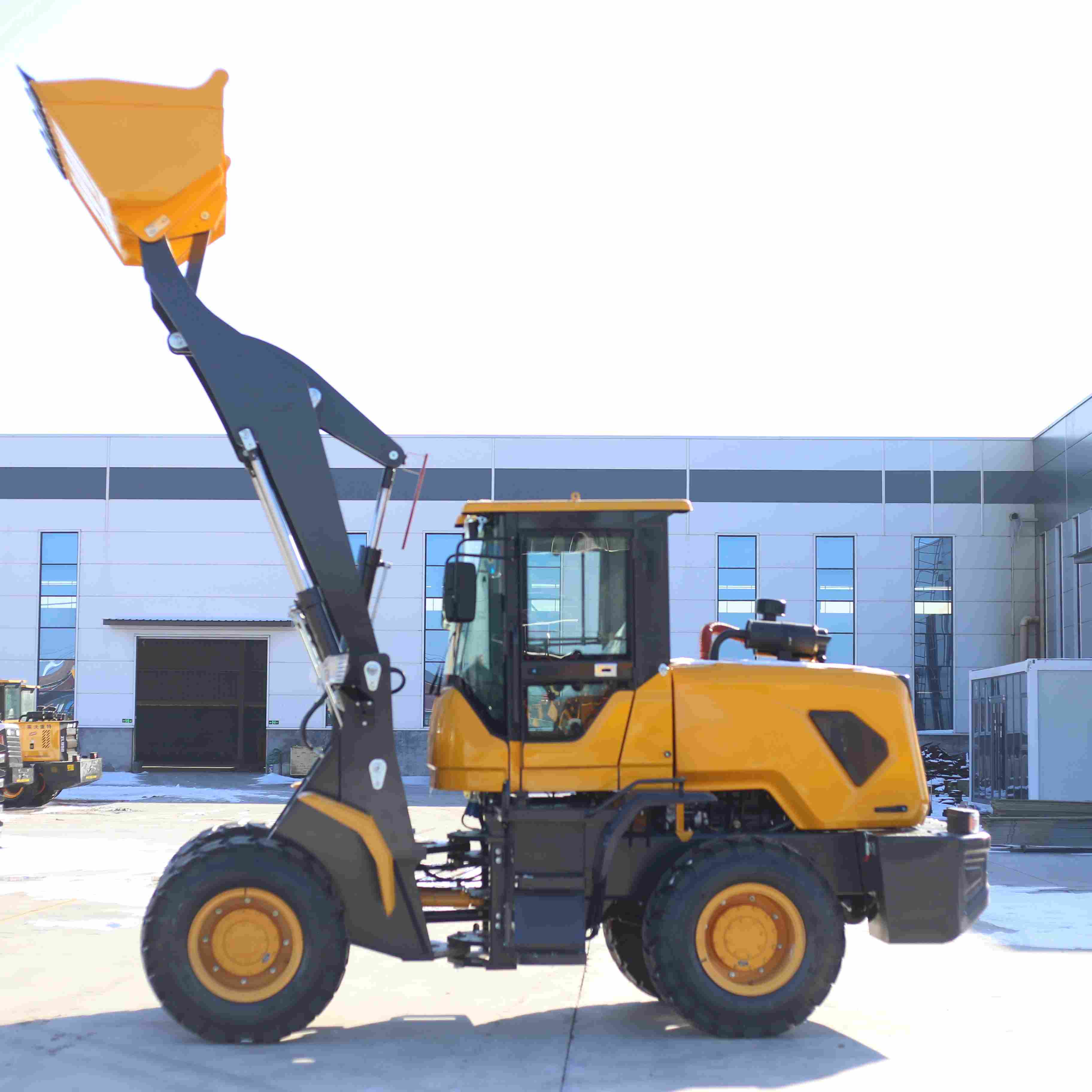

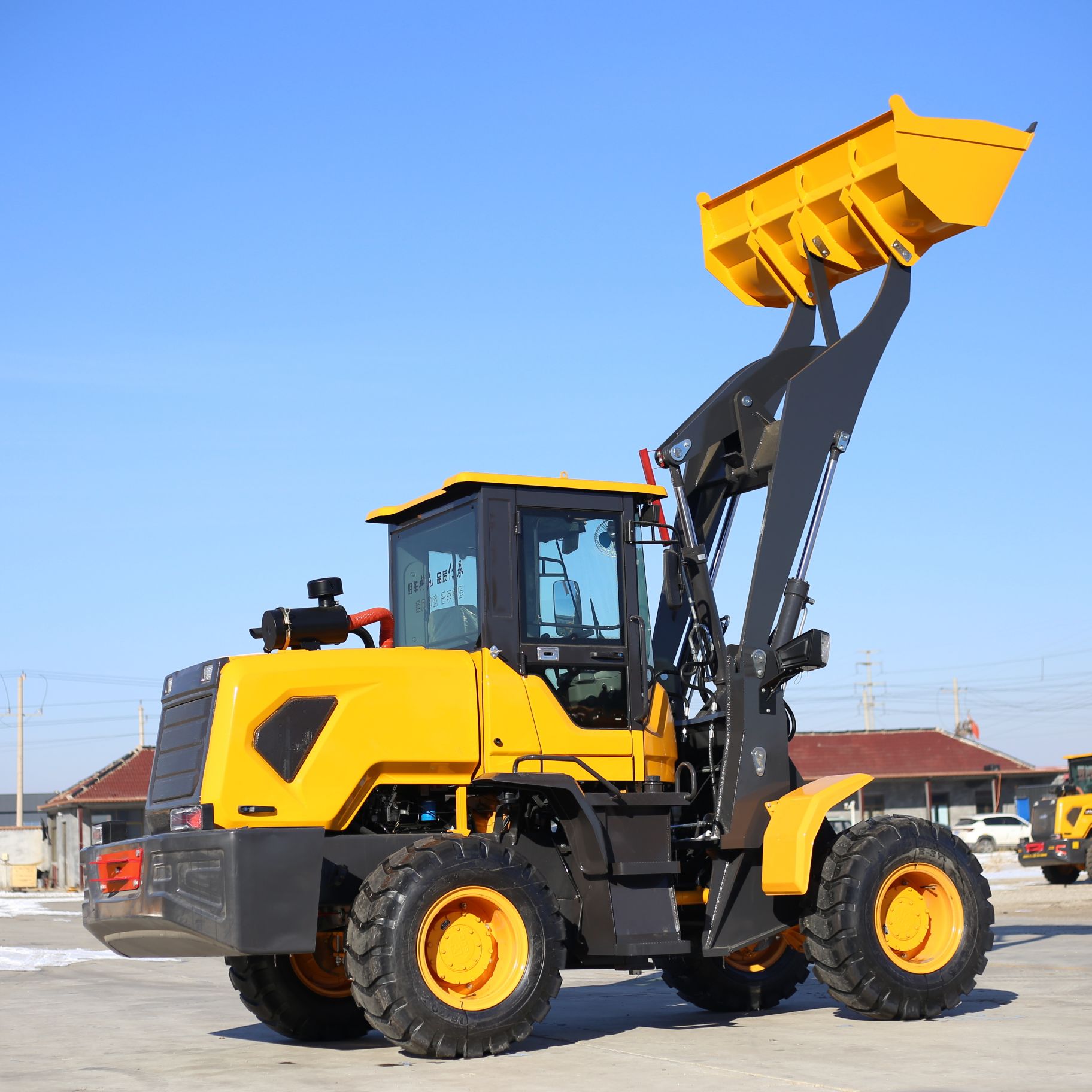

5.5 ton wheel loader
1.The structure is portable, the operation is sensitive and the power is strong.
2.Using mature components on the market, easy maintenance, replacement, easy to purchase, repairability to enable users to rest assured.
3.Large horsepower diesel engine for power output
4.We specializes in building a world class small and medium-sized loader R & D base and become the leader of small loaders worldwide.
5.The products are renowned internationally for their good performance, moderate price and excellent service, and are exported to Asia, Africa and Europe.
This 5.5-ton loader, with a compact body of 5860×2000×2850mm and an operating weight of 5500kg, is “in its element” in narrow sites, easily handling construction in alleys and indoors.
In terms of power, the 4102 supercharged engine is paired with a 265 torque converter and a dual high-low speed continuously variable transmission, along with four-wheel drive plus medium and large wheel-side deceleration. It has strong power, is fuel-efficient, and features efficient transmission without lag.
The 1m³ large bucket (2000mm wide) and a rated load capacity of 2000kg make loading and unloading super powerful! The unloading height starts at 3500mm and can be flexibly raised to 4.2/4.5/4.8 meters. With an unloading distance of ≥1000mm, it can handle high stacking and long-distance dumping.
Equipped with 1670 - 20 tires, a 2500mm wheelbase, a 1560mm track width, and a 330mm ground clearance, it can easily pass through rough roads and slopes, “navigating” complex terrains with ease.
Need efficiency for your project? Choose it! Flexible, capable of heavy loads, and cost-effective, it’s a “reliable powerhouse” for small and medium-sized operations—no need to fear tight schedules!

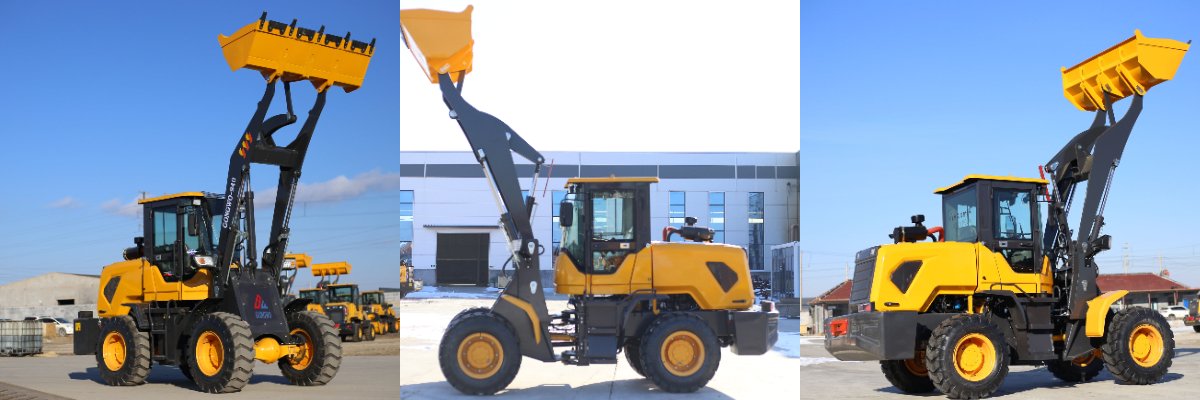

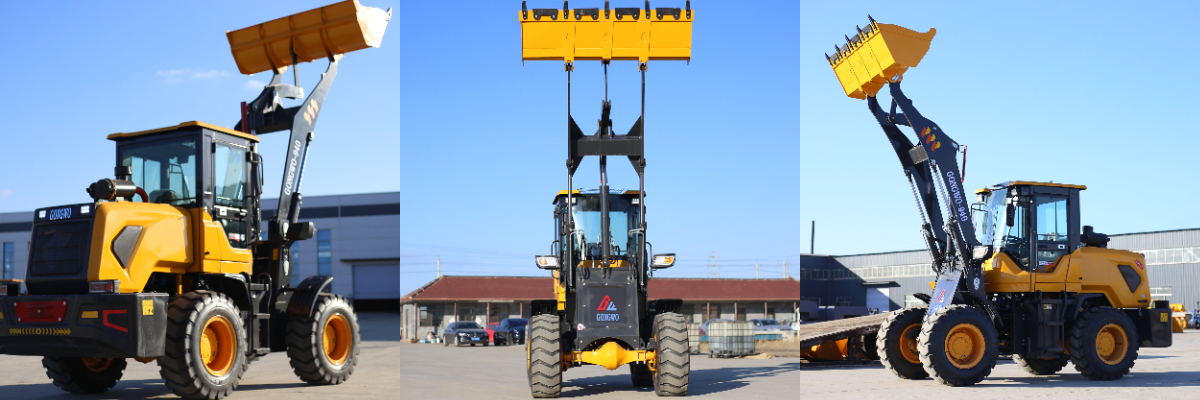

Product show

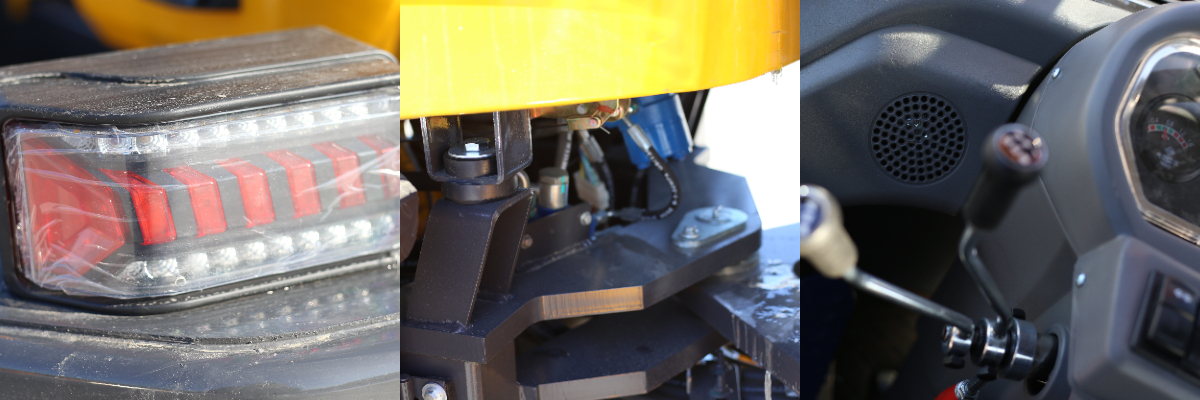

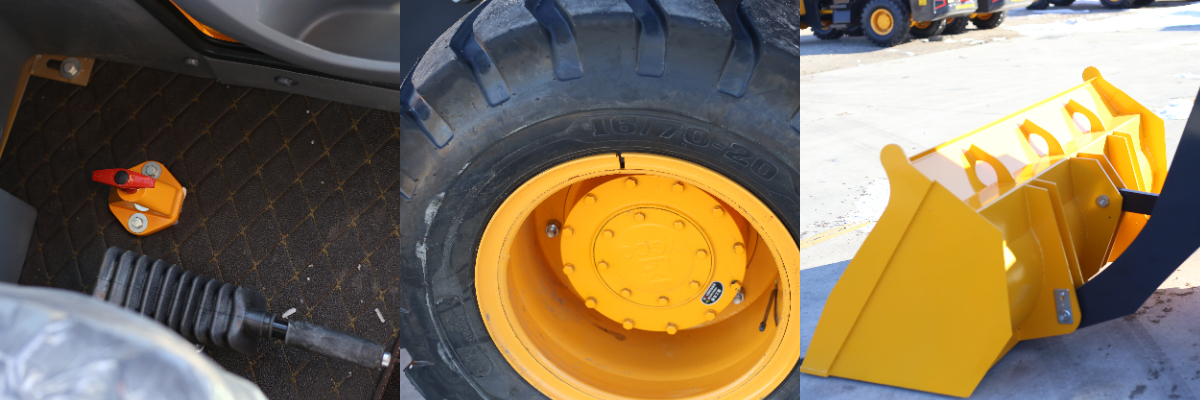

Product details
Machine parameters
Model | GW940 |
Trademark | Walker |
whole vehicle Weight | 4900 kg |
Standard Bucket Capacity | 0.8-1.0 cbm |
Rated load | 2000 kg |
Bucket width | 2000 mm |
Engine | WEICHAI&YUNNEI-4102turbo |
Engine power | 76 kw |
Tire | 1670-20 |
lifting time | 4.6 s |
falling time | 4.1 s |
Overall dimension( LxWxH) | 5860*2000*2850mm |
Wheelbase | 2500 mm |
Wheel track | 1560 mm |
OPERATING RANGE | |
Maximum unloading height | 3500 mm |
Load and Unload Mode | front discharge |
Drive Bridge Type | Wheel side reduction axle |
working hydraulic system | Mechanical single joystick or Hydraulic Pilot |
Walking Mode | Wheeled |
Service brake | Air hydraulic disc brake |
parking brake
| hand operated |
Control Type | automatic transmission |
Drive system | Torque converter hydraulic transmission |
Number of cylinders | 4 |

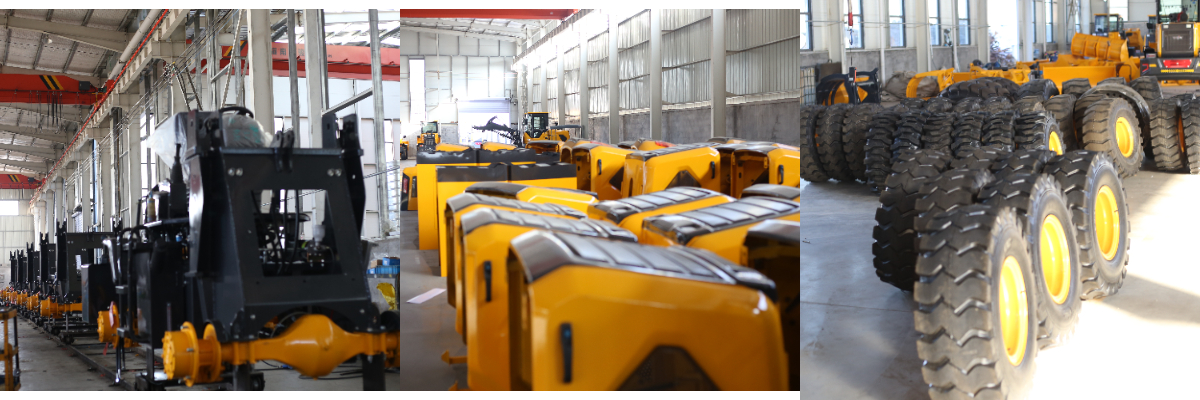

Compamy Profile
