GW920S Wheel Loader Product Details Introduction

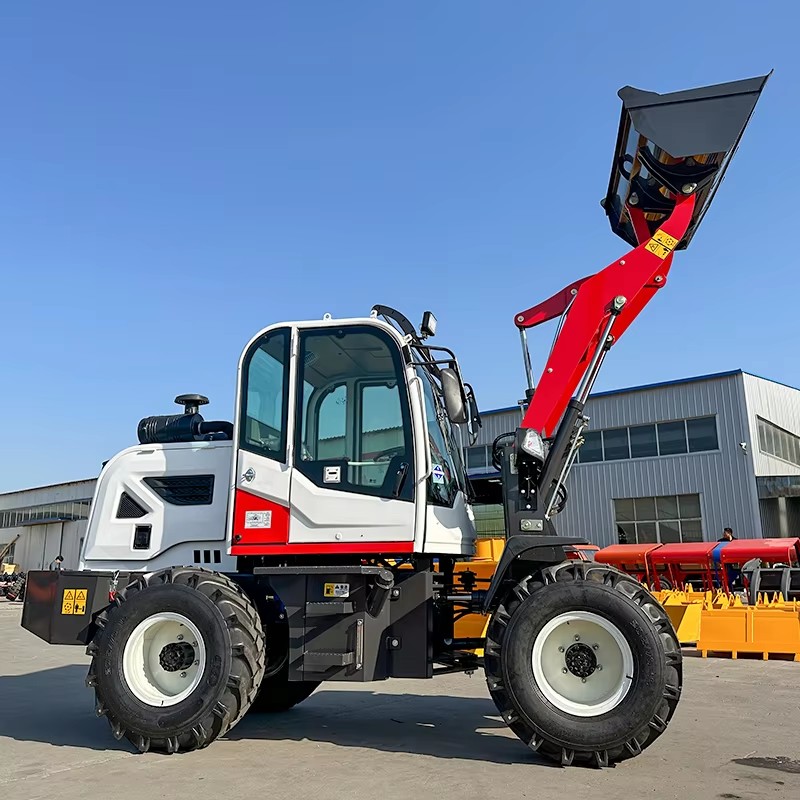

Compact 1-Ton Wheel Loader — GW920S

GW920S is a 1-ton wheel loader specially designed for narrow spaces. Its special height cab can easily handle low-clearance working environments such as basements and tunnels. With a small turning radius design, it can still maintain flexible mobility in complex terrains. Despite its compact body, its rated load can reach 1,200 kg, which is sufficient to meet the material handling needs of medium and small projects. In terms of tire configuration, it supports optional pneumatic widened tires or vacuum tires, which can adapt to different working sites such as muddy and sandy areas. In terms of operation, the humanized single-lever boom is matched with an automatic transmission to make the control more convenient and efficient; the spacious and luxurious cab is equipped with LED headlights, USB recorders, and audio systems, which not only ensures the comfort of long-term operation but also improves the safety of night operations.

Core Technical Parameters

GW920S has an overall vehicle weight of 2,500 kg, a standard bucket capacity of 0.3 cubic meters, a rated load of 1,000 kg, a bucket width of 1,300 mm, a Weichai engine with a power range of 37-58 kW, and is equipped with 1000-16 specification tires. The equipment has a lifting time of 4.0 seconds, a falling time of 3.2 seconds, overall dimensions of 4380×1300×2200 mm, and a maximum unloading height of 2,400 mm. The drive system adopts torque converter hydraulic transmission with wheel side reduction axle. The control system supports mechanical single joystick or hydraulic pilot operation and is equipped with an automatic transmission. The braking system includes mechanical drum service brake on the gearbox and manual parking brake to ensure operational safety.

Product Core Highlights

GW920S has diversified choices in power configuration, and optional engines with different emission standards such as National II, National IV, Euro V, and Kubota EPA can meet the environmental protection requirements of different regions. The mechanical structure adopts an articulated body design, combined with an automatic transmission and a single-lever control system, making the operation simple and capable of achieving precise operations. The cab has been reinforced, which not only improves impact resistance but also enhances night-time operation visibility through LED headlights; the interior integrates auxiliary functions such as USB recorders and audio systems, effectively reducing the fatigue of operators.

Application Scenarios and Purchase Guide

GW920S takes the core advantages of 1,200 kg high load capacity and low-clearance adaptability, and is suitable for scenarios requiring heavy-duty short-distance handling or operations in low-rise spaces, such as basement material transportation in urban construction, narrow-channel operations in warehousing and logistics, and terrain transformation in landscaping. The equipment supports overall parameter customization and engine model adaptation, and can be adjusted according to different regional environmental protection standards (such as National IV, Euro V) or special working conditions (such as mines, farmland).

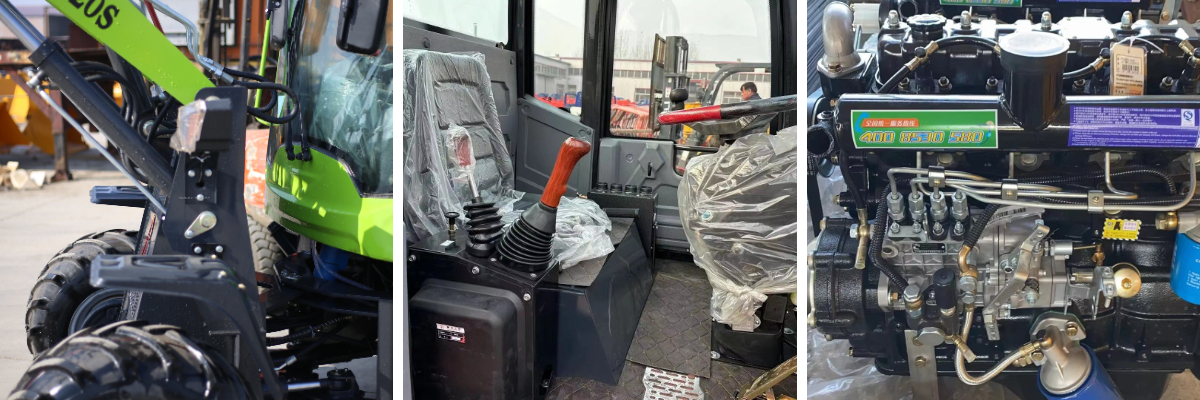

Product Details

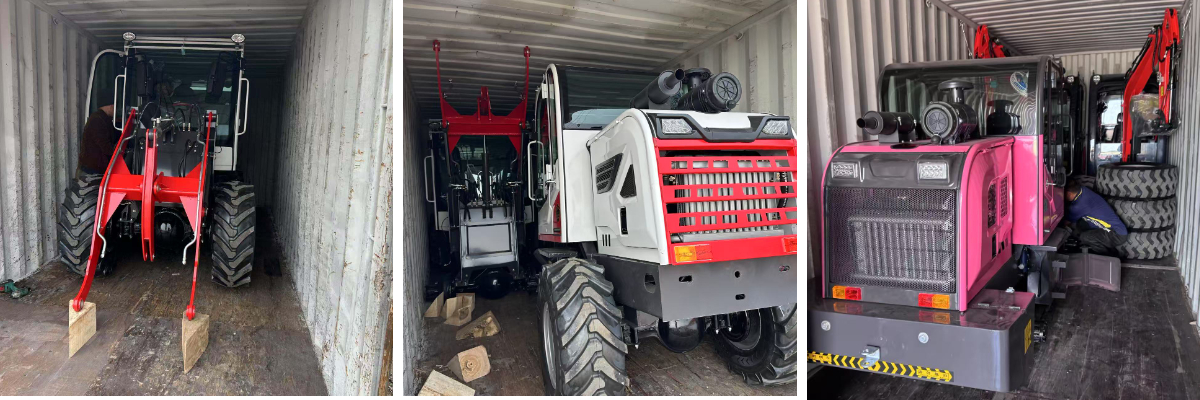

Packaging Images

Company Overview

Shandong Gongwo Machinery Co., Ltd., established in 2012, is an enterprise specialized in manufacturing medium and small construction machinery. Our product portfolio includes compact wheel loaders, mini crawler excavators, electric/diesel tricycles, 2WD/4WD forklifts, among others. Equipment is exported to worldwide markets including Europe, the Americas, Southeast Asia, Africa, Russia, and beyond. For over a decade, we have been dedicated to serving international clients and fulfilling their operational requirements.
